Frigidaire FFC09M5HW Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC09M5HW1 FFC09M5HW 134A white 115

MARKET

North America

Publication No.

5995354627

010612

-EN/SERVICE /GS

365

FREEZER

Model number

FFC09M5HW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216372500

OWNER’S GUIDE - # 216768600

SERVICE DATA SHEET - # 216372500

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FFC09M5HW

5995354627

DOOR

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FFC09M5HW Publication No.

5995354627

DOOR

POS. NO PART NO DESCRIPTION

1 216481001 Gasket-door,white

2 5303925107 Lock Assy

5 216702900 Key,lock

9 216061800 Panel-inner door/lid,white

10 216141101 Plug button,white

11 216117921 Panel-outer door/lid,white

12 316095402 Label-nameplate,Frigidaire ,white

12A 216373000 Frame-nameplate

18 216205004 Handle,white

23 # 216212700 Light-signal,amber

27 5303212828 Clip,panel

31 08009392 Gasket,white

35 5303297015 Washer,signal light

44 # 5303017178 Switch-rocker

46 216707800 Screw,PH ,8-32 x 1/2 ,wiring harness

47 216552700 Harness,electrical

53 # 5303208483 Buzzer,alarm

55 216164000 Housing,switch

56 216694200 Sealing cap

93 5303161215 Screw

* 5303917276 Insulation-door,fiberglass ,(bulk)

* 5309948955 Clip-panel

06/01 4

Publication No. FFC09M5HW

5995354627

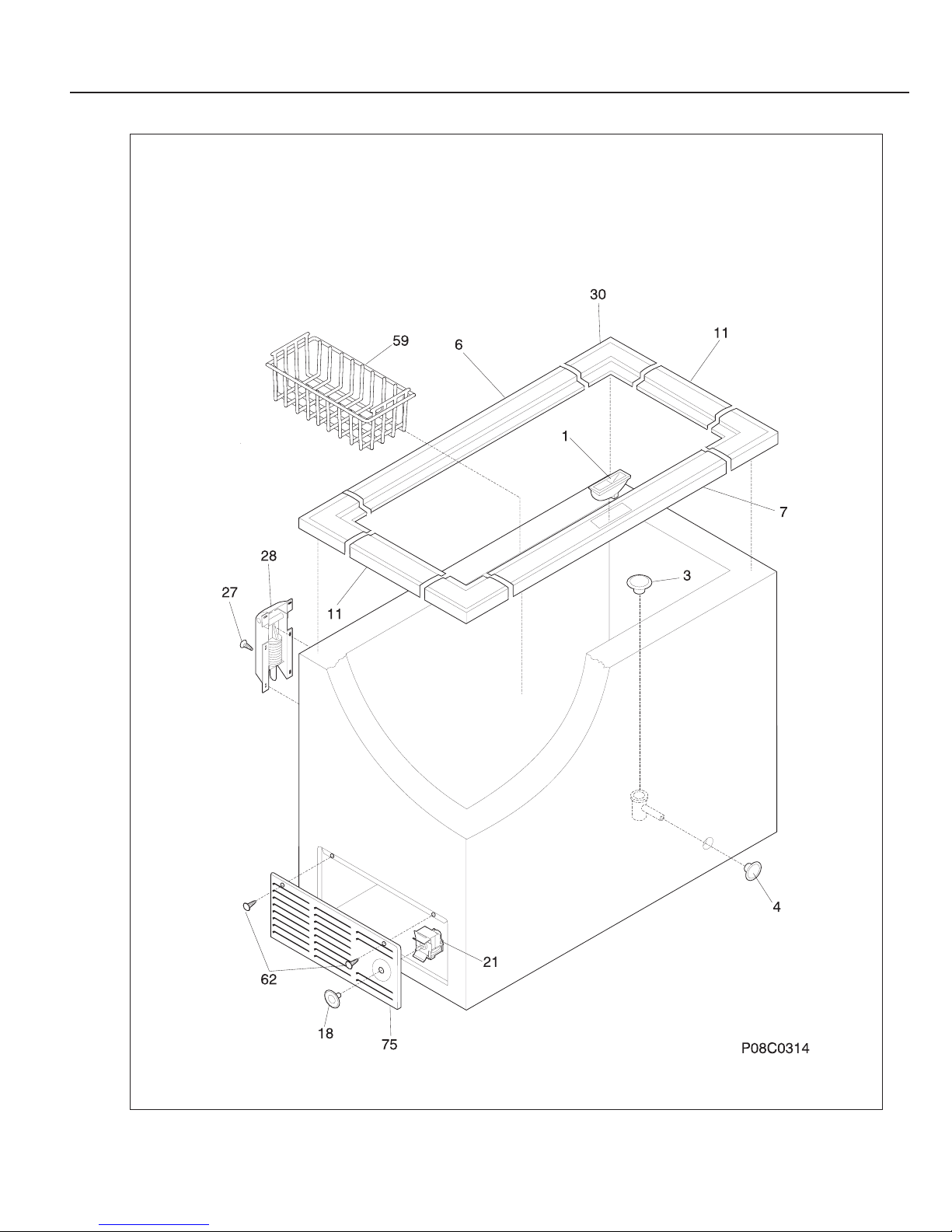

CABINET

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FFC09M5HW Publication No.

5995354627

POS. NO PART NO DESCRIPTION

1 216117700 Catch-lock

3 216502600 Plug-drain,interior ,interior

4 216073900 Plug-drain,exterior

6 216117500 Breaker-hinge side,white

7 216117600 Breaker-lock side

11 216105600 Breaker-ends,white

18 216707200 Knob-control cold

21 # 216714500 Control-temperature

27 216337700 Screw,hex washer head ,10-24 x 0.500

28 216478800 Hinge Assy

30 216105500 Breaker-corners,white

59 216078600 Basket

62 131168200 Screw,8-18 x 0.31

75 216329402 Panel-access,white

* 5303305324 Paint,touch-up ,white

* 216269500 Adapter-drain

CABINET

06/01 6

Publication No. FFC09M5HW

5995354627

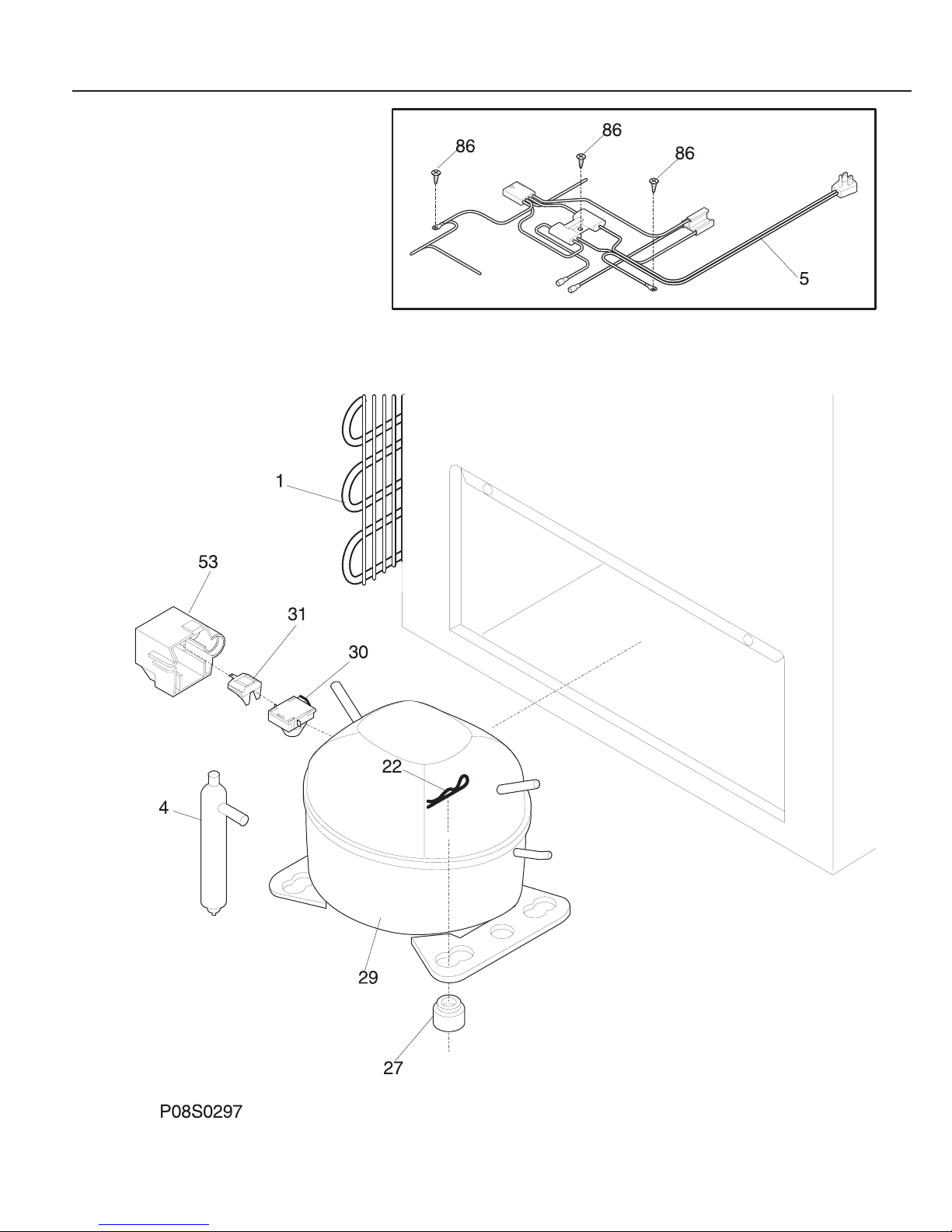

SYSTEM

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FFC09M5HW Publication No.

5995354627

POS. NO PART NO DESCRIPTION

1 # 5300120781 Condenser

4 216634500 Drier-filter

5 216552700 Harness,electrical

22 216056400 Clip-spring mtg

27 5308002681 Grommet,compressor

29 216510900 Compressor,R134a ,w/electricals

30 216511200 Starter

31 216100113 Overload Protector

53 216347800 Cover terminal,cover-comp term

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

* 216478900 Fastener,energy guide

SYSTEM
