Frigidaire FFC25C8CW Manuale utente

Product No. FFC25C8CW1

Series 134A

Color white

Volts 115

Wiring Diagram 216901200

Owner's Guide 216960000

Market North America

Energy Guide 216794606

P08F0085.eps P08D0361.eps P08C0786.eps P08S0345.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995422655

04/11/22

(EN/SERVICE/)

365

FREEZER CHEST

Model No.

FFC25C8CW

Publication No: 5995422655 FFC25C8CW1

11/04 2

DOOR

FFC25C8CW1 Publication No: 5995422655

# Functional Parts 3 11/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216469301 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216912900 Panel-lid, white

10 216923001 Plug button, 1/4", white

11 216032422 Lid, white

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

18 216897600 Handle, white

27 5303212828 Clip, panel mtg

34 216578502 Shield, light

40 216922700 Fastener, .330 dia stud, handle, (2)

47 # 216889600 Harness-lid

57 216899500 Overlay, white

79 # 216898700 Control Board, electronic

* 216905300 Screw, control board, #3-24 x .25, (3)

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995422655 FFC25C8CW1

11/04 4

CABINET

62A

59A

100

P08C0786

FFC25C8CW1 Publication No: 5995422655

# Functional Parts 5 11/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 216909800 Catch-lock, white

1A 216818900 Support, lock catch clip

3 216502600 Plug, drain, interior

4 216073905 Plug-drain, exterior

6 216111400 Breaker-hinge side, white

7 216112000 Breaker-lock side, white

11 216110800 Breaker, chest end, (2)

18 216707200 Knob, temp control

21 # 216844500 Control-temperature

27 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

28 216035400 Hinge

30 216110700 Breaker, corners

59 216916200 Basket, upper

59A 216867400 Basket, lower

62A 131420300 Screw, cr truss head, 8-18AB x 0.750

73 216128200 Divider/drain pan

74 216486700 Support, divider, (4)

75 216034301 Panel, access, white

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

100 216205100 Track, basket

* 216794606 Energy Guide

* 5303305324 Paint, touch-up, white

Publication No: 5995422655 FFC25C8CW1

11/04 6

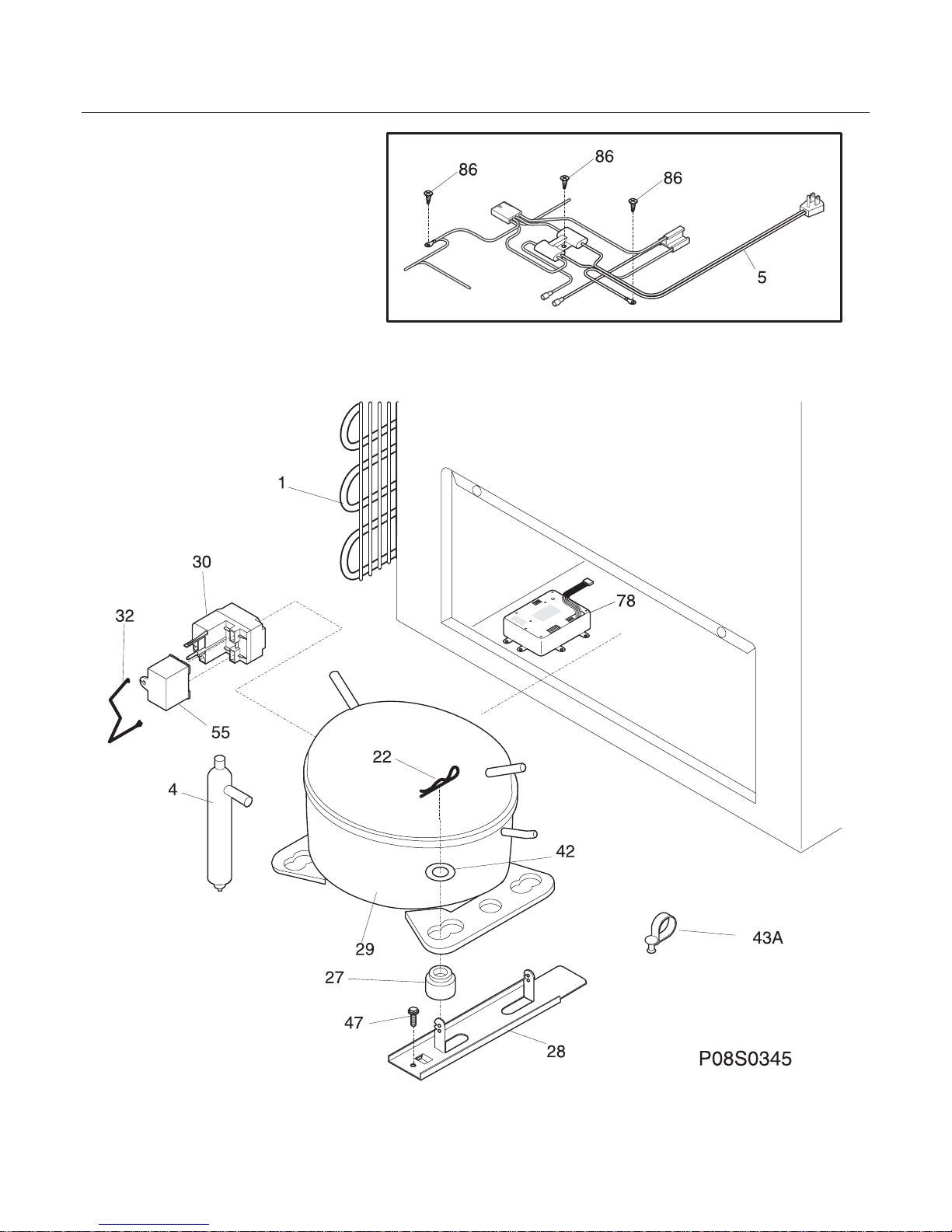

SYSTEM

FFC25C8CW1 Publication No: 5995422655

# Functional Parts 7 11/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5303925320 Condenser

4 # 216938600 Drier-filter

5 # 216890300 Harness-main

5 * 216890200 Harness, low voltage-, w/thermistor

22 216056400 Clip, compressor mtg, SPRING

27 5308002681 Grommet, compressor

28 5303212615 Support, compressor

29 # 216967000 Compressor, w/o electricals

30 216649300 Controller-regulator LP

32 216649100 Clamp, elec cont mtg, compressor

42 216232700 Washer, flat, 1"OD x 0.531"ID

43A 5303212614 Clip, harness mount

47 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

55 218909913 Capacitor-run, 220 VAC, 15 microfarad

78 216893100 Assy-High Voltage

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

* 5303298960 Spacer-tube, 0.237" ID
