Frigidaire FFC20G4AW2 Manuale utente

CHEST FREEZER

Model number

FFC20G4AW2

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216804000

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216804000

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC20G4AW2 FFC20G4AW 134A white 115

MARKET

North America

Publication No.

5995376851

020814

-EN/SERVICE /MLR

08 / 365

ELECTROLUX HOME PRODUCTS INC.

P.O BOX 212378, AUGUSTA , GA 30917

08/02 2

Publication No FFC20G4AW2

5995376851

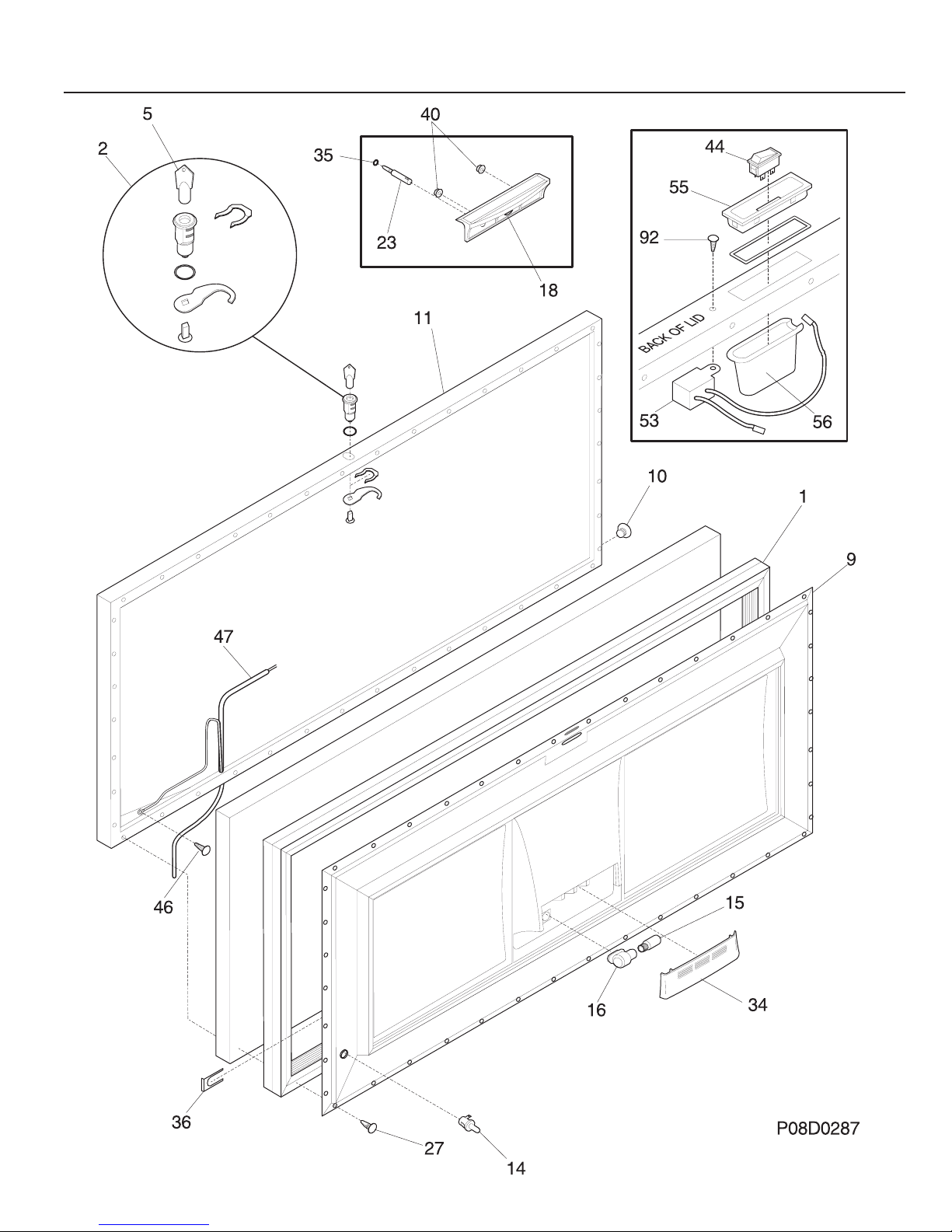

DOOR

# = Fast-moving Parts 3 08/02

* = Non-Illustrated Parts

FFC20G4AW2 Publication No.

5995376851

DOOR

POS. NO PART NO DESCRIPTION

1 216481401 Gasket-door,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

9 216829504 Panel-inner door,frzr

10 216141101 Plug button,white

11 216130114 Lid,white

14 # 216822900 Switch,light/lamp ,ramp

15 216846400 Light Bulb/Lamp

16 # 216817600 Socket,light/lamp ,25 W

18 216205004 Handle,white

23 216212700 Light-signal,amber

27 5303212828 Clip,panel mtg

34 5303296969 Shield-light

35 5303297015 Washer,signal light

36 5306599968 Plate,backup ,light switch

40 5309948647 Fastener,handle

44 # 216823300 Switch,rocker

46 08037851 Screw,PH type AB ,8-32x1/2 ,wiring harness

47 # 216792400 Harness-lid

53 # 216713600 Buzzer,alarm

55 216164000 Housing,switch

56 216694200 Cap,sig light seal

92 5303161215 Screw,ph truss head ,8-18AB x 0.500

* 5303925098 Insulation

08/02 4

Publication No FFC20G4AW2

5995376851

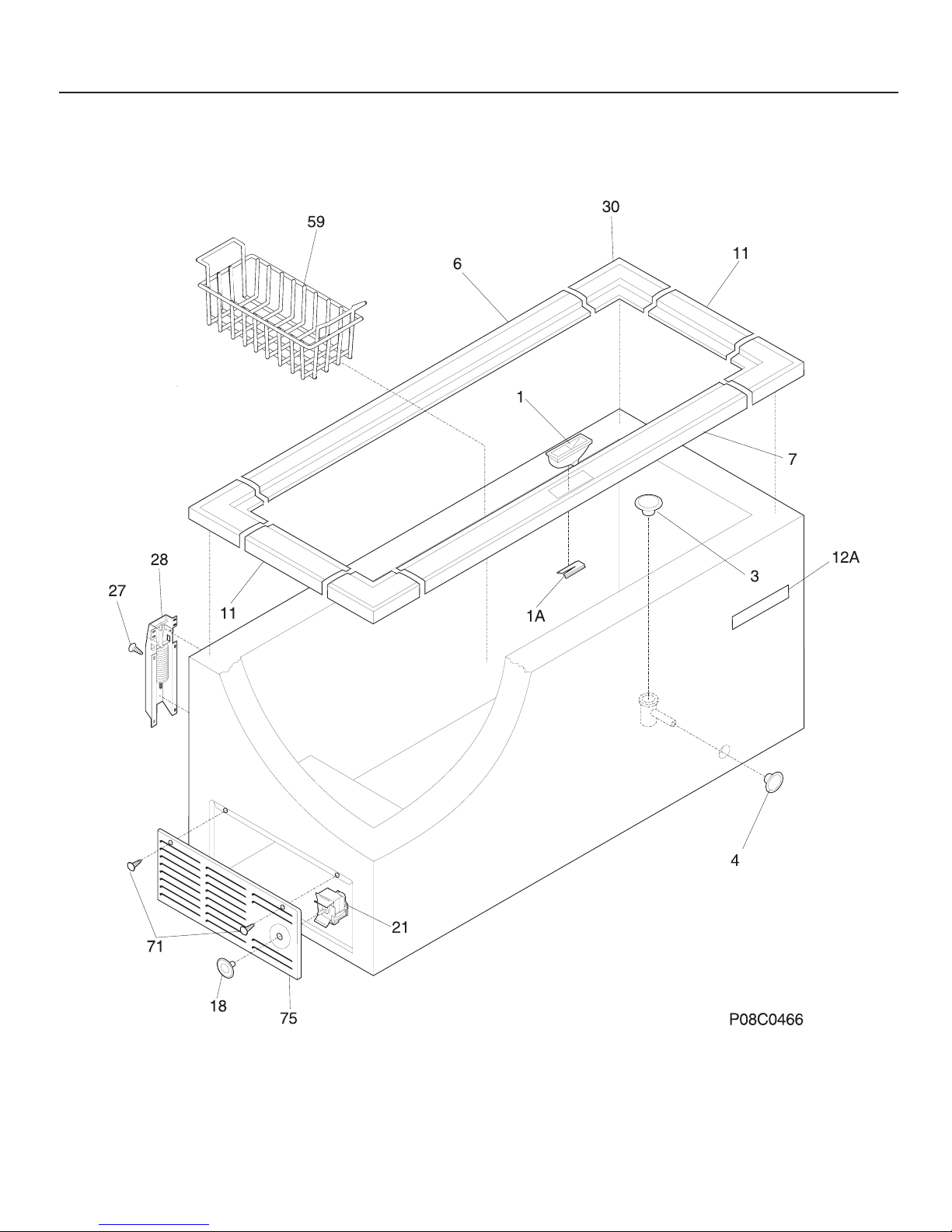

CABINET

# = Fast-moving Parts 5 08/02

* = Non-Illustrated Parts

FFC20G4AW2 Publication No.

5995376851

POS. NO PART NO DESCRIPTION

1 5303208488 Latch-door

1A 216818900 support-lock

3 216502600 Plug-drain,interior

4 216073905 Plug-drain,exterior

6 216111200 Breaker,hinge side

7 216111800 Breaker,lock side

11 216110800 Breaker,white ,ends

12A 240449701 Nameplate,white

18 216707200 Knob,temp control

21 # 216714700 Control-temperature

27 216629600 Screw-hinge

28 216035300 Hinge

30 216110700 Breaker,white ,corners

59 216080300 Basket

71 5303302714 Screw,8-18x3/4 ,(2)

75 216034301 Panel-access,white

* 5303305324 Paint,touch-up ,white

* 216269500 Adapter,drain hose

CABINET

08/02 6

Publication No FFC20G4AW2

5995376851

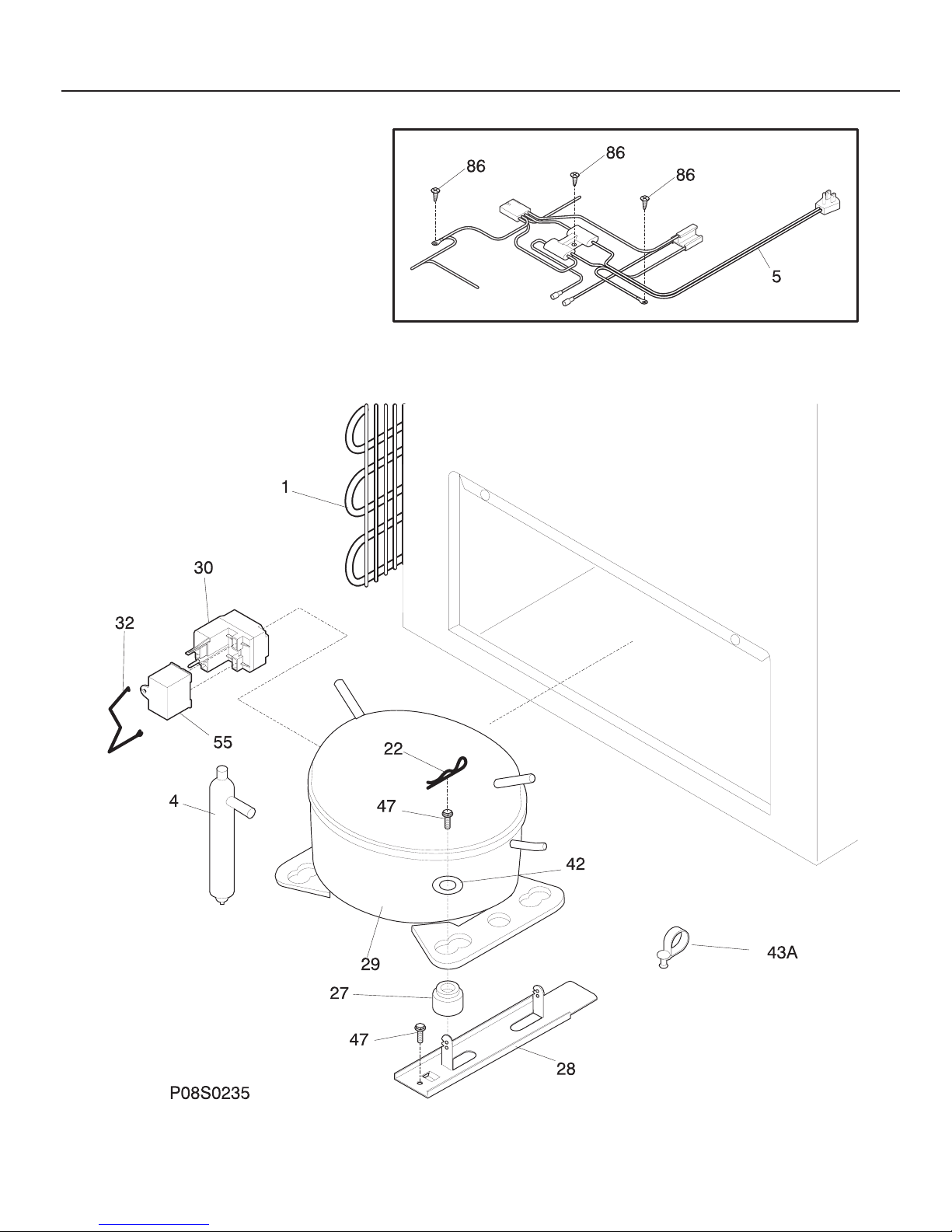

SYSTEM

# = Fast-moving Parts 7 08/02

* = Non-Illustrated Parts

FFC20G4AW2 Publication No.

5995376851

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5303280307 Condenser

4 # 216634500 Drier-filter

5 # 216792500 Harness,electrical

22 216056400 Clip-spring mtg

27 5308002681 Grommet,compressor

28 5303212615 Support-compressor

29 # 216851800 Compressor,w/o electricals

30 216649318 Controller

32 216649100 Clamp,elec cont mtg ,compressor

42 216232700 Washer-flat

43A 5303212614 Clip-harness

47 216629600 Screw-hinge

55 # 216787800 Capacitor-run

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming
