Frigidaire FFU14FG4AW0 Manuale utente

UPRIGHT FREEZER

Model numbers:

FFU14FG4AW0

FFU17FG4AW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803600, 21680

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216803600, 216803700

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU14FG4AW0 FFU14FG4AW 134A white 115

FFU17FG4AW0 FFU17FG4AW 134A white 115

MARKET

North America

Publication No.

5995361077

011114

-EN/SERVICE /GS

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

11/01 2

Publication No FFU14FG4AW0, FFU17FG4AW0

5995361077

DOOR

# = Fast-moving Parts 3 11/01

* = Non-Illustrated Parts

FFU14FG4AW0, FFU17FG4AW0 Publication No.

5995361077

DOOR

A = FFU14FG4A (FFU14FG4AW0)

B = FFU17FG4A (FFU17FG4AW0)

POS. NO PART NO DESCRIPTION

1 216522306 A - Gasket-door,white

1 216522309 - B Gasket-door,white

2 5303925107 A B Lock Assy

5 # 216702900 A B Key,lock

6 5300158222 A B Screw-anchor,8-18

9 216527605 A - Panel-inner door,white ,frzr

9 216527803 - B Panel-inner door,white ,frzr

11 5303925466 A - Panel-outer door,white

11 5303925474 - B Panel-outer door,white

12 240449701 A B Nameplate,white

13 08016354 A B Door Stop

14 5303313518 A B Washer,sealing

18 216446900 A B Handle,white

21A 08005520 A B Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

22 216443600 A B Bearing

22A 216503200 A B Bearing-hinge,btm

26 216524300 A - Gasket,secondary

26 216524200 - B Gasket,secondary

27 5303212828 A B Clip,panel

28 216807701 A - Rack-door

28 216807700 - B Rack-door

32 5309950074 A B Valve-breather

57 3017682 A B Insert-handle

64 216403700 A B Plug-button,door base

93 5303161215 A B Screw

* 5303925098 - B Insulation

11/01 4

Publication No FFU14FG4AW0, FFU17FG4AW0

5995361077

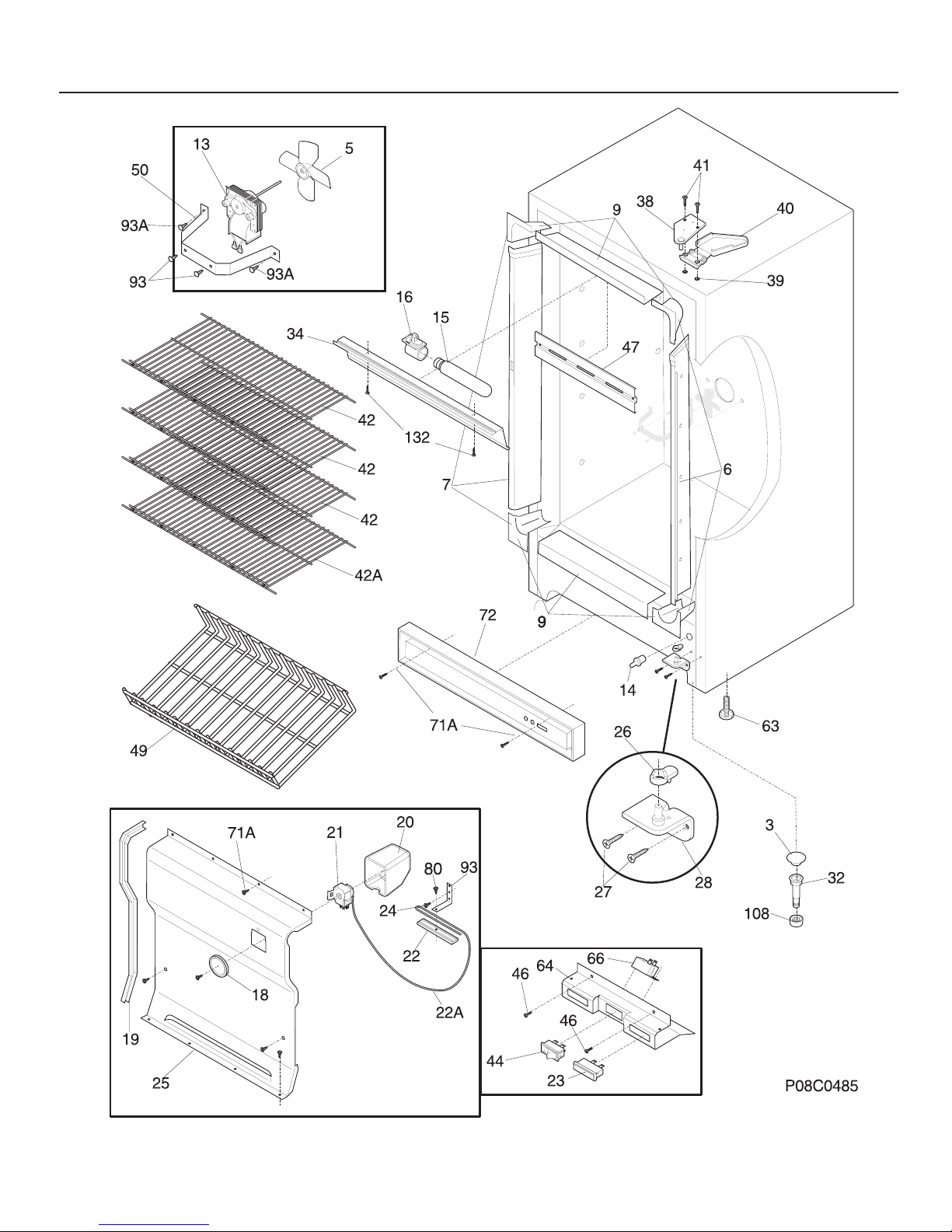

CABINET

# = Fast-moving Parts 5 11/01

* = Non-Illustrated Parts

FFU14FG4AW0, FFU17FG4AW0 Publication No.

5995361077

A = FFU14FG4A (FFU14FG4AW0)

B = FFU17FG4A (FFU17FG4AW0)

POS. NO PART NO DESCRIPTION

3 216503100 A B Screen-drain

5 # 216325600 A B Fan Blade

6 216603400 A - Breaker Kit w/corners,28" ,top or bottom

6 216604200 - B Breaker Kit w/corners

7 216603800 A - Breaker Kit w/corners,lock catch

7 216603700 - B Breaker Kit w/corners,lock catch

9 216604300 A - Breaker Kit w/corners

9 216603300 - B Breaker Kit w/corners,32" ,top or bottom

13 216787000 A B Motor-fan

14 216822900 A B Light/Lamp,ramp

15 # 216608600 A B Lamp,light bulb ,40 W ,120 V

16 # 216688600 A B Socket-light/lamp

18 216707200 A B Knob-control cold

19 216204900 A B Gasket,evap cover

20 216230300 A B Cover,temp control

21 # 216788000 A - Control-temperature

21 216715200 - B Control-temperature

22 05878562 A B Clamp,cap tube ,cold control

22A 5303916855 A B Tube,sensor sleeve ,plastic ,clear

23 06594648 A B Light-signal,amber

24 5300052943 A B Screw-clamp,truss hd cr ,control

25 216737000 A - Cover-evaporator

25 216737100 - B Cover-evaporator

26 216503300 A B Ramp,closer ,door

27 5303205738 A B Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 A B Hinge-bottom

32 5308005500 A B Drain

34 216557500 A - Shield-light

34 216557600 - B Shield-light

38 5303925086 A B Hinge-upper

39 5303294372 A B Nut-insert,hinge

40 5303212912 A B Cover-hinge

41 5303212937 A B Screw-top hinge

42 216546100 A - Shelf,16.69 X 23.88 WH,16.69x23.88 ,white

42 216458400 - B Shelf,14.50x27.88 ,WH

42A 216546200 A - Shelf,14.50 X 23.88 WH,14.50x23.88 ,white

42A 216458200 - B Shelf,12.50x27.88 ,white

44 # 5303017178 A B Switch-rocker

46 08037851 A B Screw,PH type AB ,8-32x1/2 ,wiring harness

47 216661600 A B Baffle-plate

49 216278800 A - Trivet

49 216278900 - B Trivet

50 216394000 A B Bracket-motor mtg fan

63 216396900 A B Foot-adjustable

64 08016369 A B Bracket

66 # 216713700 A B Buzzer,alarm

71A 216347500 A B Screw,quadrex

72 216591213 A - Grille/Kickplate,white

72 216591120 - B Grille/Kickplate

80 06594601 A B Bracket,control

93 5303161215 A B Screw

93A 5303302760 A B Screw

108 216388600 A B Trap-drain

132 5303283898 A B Screw,6-20AB x 3/8

* 09948773 A B Insulation,drain tube

* 216502400 A B Grommet-shelf mtg

* 216802800 A B Owners guide

* 5303305324 - B Paint,touch-up ,white

CABINET

11/01 6

Publication No FFU14FG4AW0, FFU17FG4AW0

5995361077

SYSTEM

# = Fast-moving Parts 7 11/01

* = Non-Illustrated Parts

FFU14FG4AW0, FFU17FG4AW0 Publication No.

5995361077

SYSTEM

A = FFU14FG4A (FFU14FG4AW0)

B = FFU17FG4A (FFU17FG4AW0)

POS. NO PART NO DESCRIPTION

1 # 5300123788 A - Condenser

1 # 5300083897 - B Condenser

2 5308000110 A B Strap-evap/heater,aluminum ,(2)

4 216634500 A B Drier-filter

5 # 216790500 A B Harness,electrical

14 216740000 A - Heater-defrost

14 216730700 - B Heater-defrost

15 216737400 A - Evaporator

15 # 216737300 - B Evaporator

15A 216565700 A - Heat Exchanger

15A 216783200 - B Heat Exchanger

18 216727600 A B Insulator-evap,styrofoam

19 216727700 A B Insulator-evap,styrofoam

20 216731000 A B Thermostat-defrost

23 216744400 A B Timer-defrost

24 08016580 A B Bracket

27 216498900 A B Grommet,compressor

29 # 216784300 A - Compressor,w/o electricals

29 # 216788400 - B Compressor,w/o electricals

30 216649313 A - Controller

30 216649311 - B Controller

31A 216601800 A - Pan-drain,production compr

31A 216517800 - B Pan-drain

32 216649200 A - Clip,controller

32 218740800 - B Clamp,elec cont mtg ,compressor

34 5306594529 A B Sleeve-compressor

35 5303272328 A B Screw,Ind hex sems ,1/4-28 unfx ,compressor

43A 216629700 A B Clip-harness

55 # 216787800 A - Capacitor-run

55 # 218909901 - B Capacitor-run,220 VAC ,15 microfarad

86 216036600 A B Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 A B Screw

130 216730400 A B Support-evaporator

* 216502500 A B Sleeve-tube insert

* 216511900 - B Spacer tube,(3)

* 216816500 A - Pan-drain
