Frigidaire FFC07C4AW Manuale utente

CHEST FREEZER

Model number

FFC07C4AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216787900

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216787900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC07C4AW1 FFC07C4AW 134A white 115

FFC07C4AW2 FFC07C4AW 134A white 115

MARKET

North America

Publication No.

5995363685

020114

-EN/SERVICE /BLT

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

01/0 2

Publication No FFC07C4AW1/2

5995363685

DOOR

# = Fast-moving Parts 3 01/02

* = Non-Illustrated Parts

FFC07C4AW1/2 Publication No.

5995363685

DOOR

A = FFC07C4A (FFC07C4AW1)

B = FFC07C4A (FFC07C4AW2)

POS. NO PART NO DESCRIPTION

1 216480901 A B Gasket-door,white

2 5303925107 A B Lock Assy

5 # 216702900 A B Key,lock

9 216688100 A - Panel-inner door,frzr

9 216829700 - B Panel-lid

10 216141101 A B Plug button,white

11 216113127 A B Panel-lid

12A 216816801 A B Nameplate

14 216472300 A - Switch-light plunger

14 216822900 - B Light/Lamp,ramp

15 # 216608600 A B Lamp,light bulb ,40 W ,120 V

16 216817600 A B Light/Lamp,indicator

18 216446600 A B Handle

23 5308002706 A B Light-signal,amber

27 5303212828 A B Clip,panel

34 216160400 A B Shield-light

36 5306599968 A B Plate,backup ,light switch

40 5309948647 A B Fastener,handle

46 216707800 A B Screw,PH ,8-32 x 1/2 ,wiring harness

47 216819800 A B Harness-lid/defrost

56 216694200 A B Sealing cap

* 5303917276 A B Insulation-door,fiberglass ,(bulk)

01/0 4

Publication No FFC07C4AW1/2

5995363685

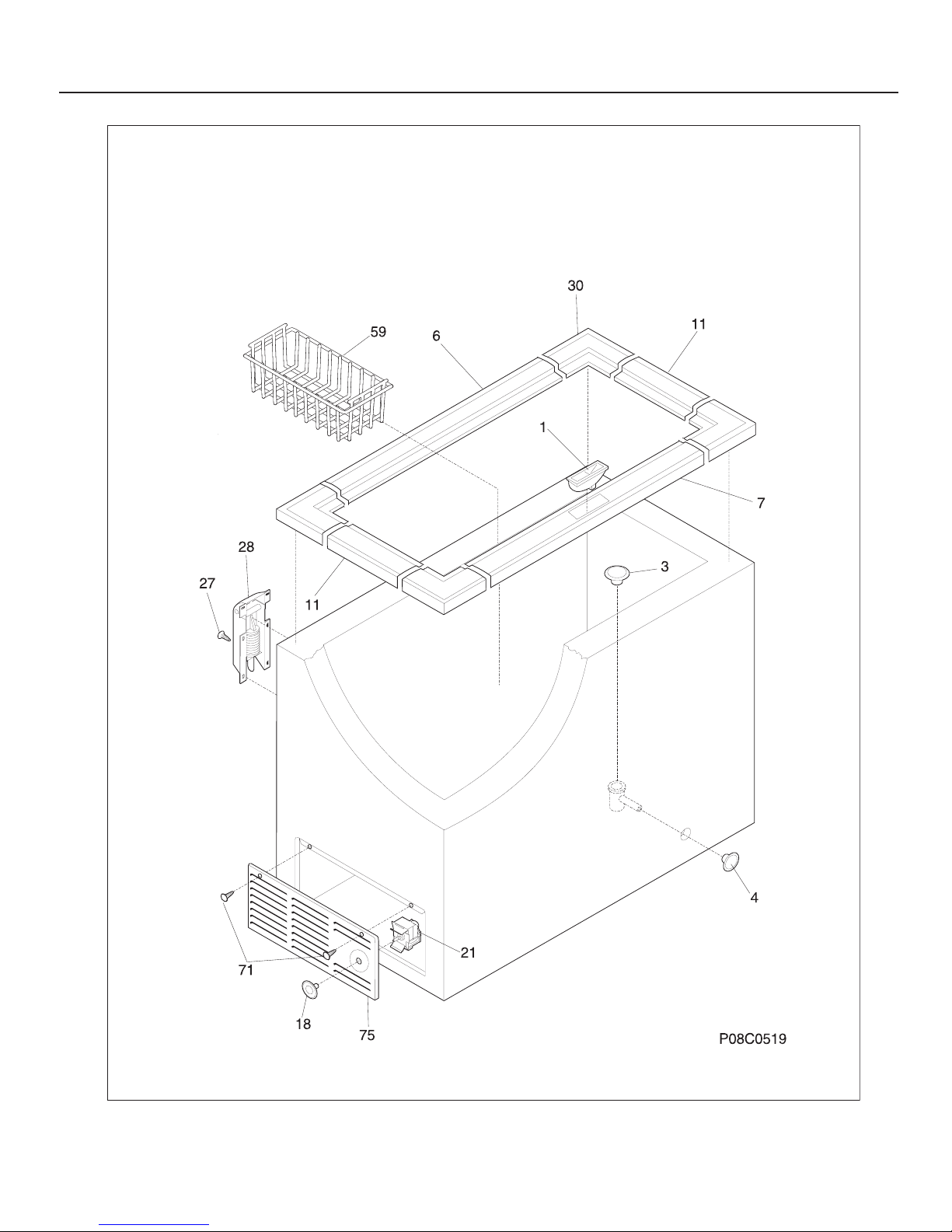

CABINET

# = Fast-moving Parts 5 01/02

* = Non-Illustrated Parts

FFC07C4AW1/2 Publication No.

5995363685

A = FFC07C4A (FFC07C4AW1)

B = FFC07C4A (FFC07C4AW2)

POS. NO PART NO DESCRIPTION

1 216117700 A B Catch-lock

3 216502600 A B Plug-drain,interior ,interior

4 216073905 A B Plug-drain,exterior

6 216112800 A B Breaker-hinge,white

7 216112900 A B Breaker-lock side

11 216105600 A B Breaker-ends,white

18 216707200 A B Knob-control cold

21 # 216787700 A B Control-temperature

27 216337700 A B Screw,hex washer head ,10-24 x 0.500

28 216478800 A B Hinge Assy

30 216105500 A B Breaker-corners,white

59 216078600 A B Basket

71 5303302714 A B Screw,8-18x3/4 ,(2)

75 216329402 A - Panel-access,white

75 216782000 - B Panel-access,white

* 216802800 A B Owners guide

* 5303305324 A B Paint,touch-up ,white

CABINET

01/0 6

Publication No FFC07C4AW1/2

5995363685

SYSTEM

# = Fast-moving Parts 7 12/01

* = Non-Illustrated Parts

FFC07C4AW1/2 Publication No.

5995363685

SYSTEM

A = FFC07C4A (FFC07C4AW1)

B = FFC07C4A (FFC07C4AW2)

POS. NO PART NO DESCRIPTION

1 # 5300120780 A B Condenser

4 216634500 A B Drier-filter

5 216807100 A - Harness-main

5 216830600 - B Harness-main

22 216056400 A B Clip-spring mtg

27 5308002681 A - Grommet,compressor

27 216337700 - B Screw,hex washer head ,10-24 x 0.500

29 # 216820500 A - Compressor,w/o electricals

29 # 216784200 - B Compressor,w/o electricals

30 216649305 A - Controller

30 216649314 - B Controller

32 216694500 A - Clip,controller

32 216649200 - B Clip,controller

55 216696700 A - Capacitor-run,180 VAC ,15 microfarad

55 # 216787800 - B Capacitor-run

86 216707700 A B Screw,8-18 X 1/2
