Frigidaire FFC20G4AW Manuale utente

CHEST FREEZER

Model number

FFC20G4AW

FFC25G4AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216804000

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216804000

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC20G4AW0 FFC20G4AW 134A white 115

FFC25G4AW0 FFC25G4AW 134A white 115

Publication No.

5995362067

011211

-EN/SERVICE /GS

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

12/01 2

Publication No FFC20G4AW0 / FFC25G4AW0

5995362067

DOOR

# = Fast-moving Parts 3 12/01

* = Non-Illustrated Parts

FFC20G4AW0 / FFC25G4AW0 Publication No.

5995362067

DOOR

A = FFC20G4A (FFC20G4AW0)

B = FFC25G4A (FFC25G4AW0)

POS. NO PART NO DESCRIPTION

1 216481401 A - Gasket-door,white

1 216469301 - B Gasket-door,white

2 5303925107 A B Lock Assy

5 # 216702900 A B Key,lock

9 216687504 A - Panel-inner door,frzr

9 216688404 - B Panel-inner lid,white

10 216141101 A B Plug button,white

11 216130114 A - Lid,white

11 216032415 - B Lid,white

14 216822900 A B Light/Lamp,ramp

15 # 216608600 A B Lamp,light bulb ,40 W ,120 V

16 216684000 A B Socket-light/lamp

18 216205004 A B Handle,white

23 216212700 A B Light-signal,amber

27 5303212828 A B Clip,panel

34 216160400 A B Shield-light

35 5303297015 A B Washer,signal light

36 5306599968 A B Plate,backup ,light switch

40 5309948647 A B Fastener,handle

44 # 5303017178 A B Switch-rocker

46 08037851 A B Screw,PH type AB ,8-32x1/2 ,wiring harness

47 # 216792400 A B Harness-lid

53 # 5303208483 A B Buzzer,alarm

55 216164000 A B Housing,switch

56 216694200 A B Sealing cap

92 131420300 A B Screw,cr truss head ,8-18AB x 0.750

* 5303925098 A B Insulation

* 216140200 A B Handle,recessed ,white

12/01 4

Publication No FFC20G4AW0 / FFC25G4AW0

5995362067

CABINET

# = Fast-moving Parts 5 12/01

* = Non-Illustrated Parts

FFC20G4AW0 / FFC25G4AW0 Publication No.

5995362067

A = FFC20G4A (FFC20G4AW0)

B = FFC25G4A (FFC25G4AW0)

POS. NO PART NO DESCRIPTION

1 5303208488 A B Latch-door

1A 216818900 A B support-lock

3 216502600 A B Plug-drain,interior ,interior

4 216073905 A B Plug-drain,exterior

6 216111200 A - Breaker,hinge side

6 216111400 - B Breaker-hinge side,white

7 216111800 A - Breaker,lock side

7 216112000 - B Breaker-lock side,white

11 216110800 A B Breaker,white ,ends

12A 240449701 A B Nameplate,white

18 216707200 A B Knob-control cold

21 # 216714600 A B Control-temperature

27 216629600 A B Screw-hinge

28 216035300 A - Hinge

28 216035400 - B Hinge

30 216110700 A B Breaker,white ,corners

59 216080300 A B Basket

71 5303302714 A B Screw,8-18x3/4 ,(2)

75 216034301 A B Panel-access,white

* 216802800 A B Owners guide

* 5303305324 A B Paint,touch-up ,white

* 216269500 A B Adapter-drain

CABINET

12/01 6

Publication No FFC20G4AW0 / FFC25G4AW0

5995362067

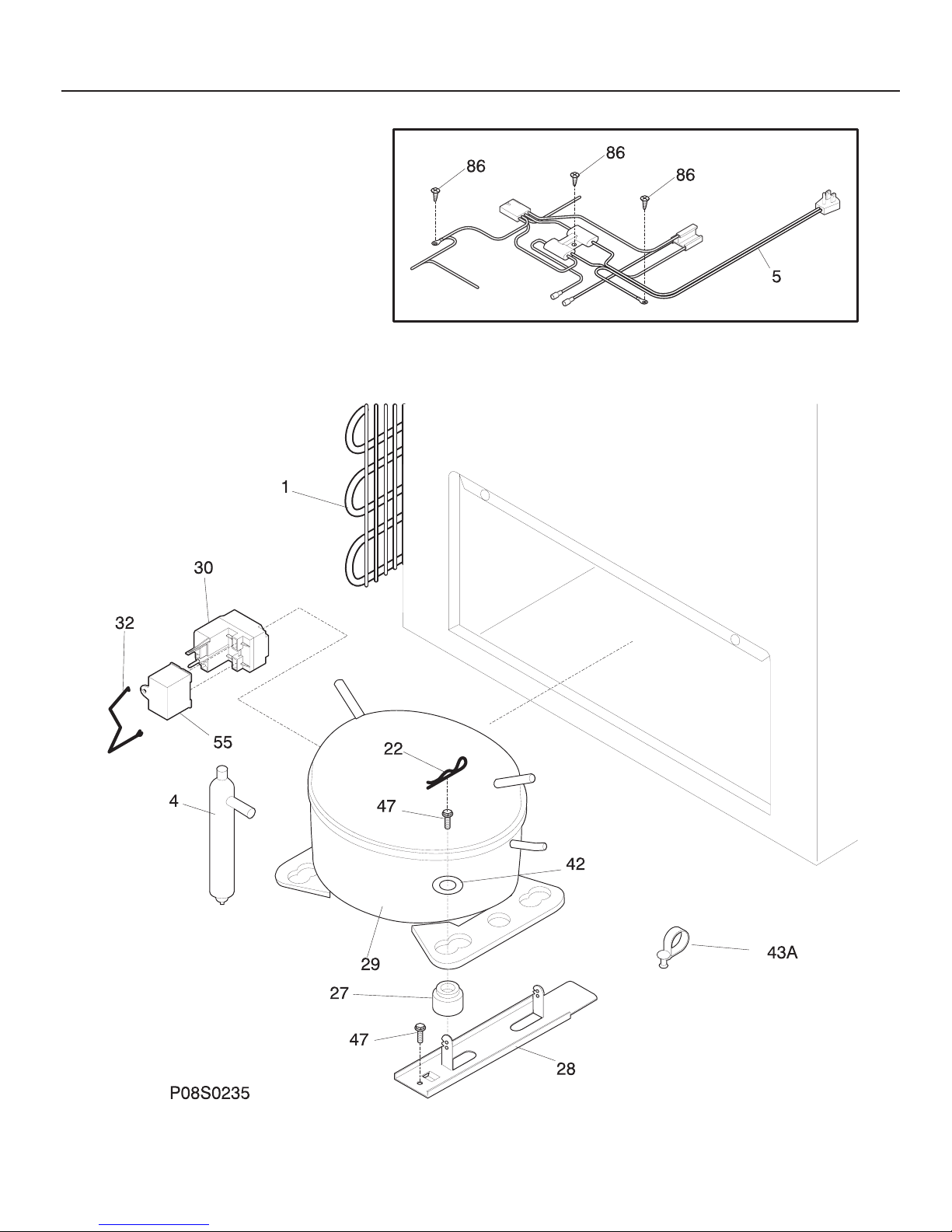

SYSTEM

# = Fast-moving Parts 7 12/01

* = Non-Illustrated Parts

FFC20G4AW0 / FFC25G4AW0 Publication No.

5995362067

SYSTEM

A = FFC20G4A (FFC20G4AW0)

B = FFC25G4A (FFC25G4AW0)

POS. NO PART NO DESCRIPTION

1 # 5303280307 A - Condenser

1 # 5303925320 - B Condenser

4 216634500 A B Drier-filter

5 # 216792500 A B Harness,electrical

22 216056400 A B Clip-spring mtg

27 5308002681 A B Grommet,compressor

28 5303212615 A B Support-compressor

29 # 216784600 A - Compressor,w/o electricals

29 # 216784700 - B Compressor,w/o electricals

30 216649315 A - Controller

30 216649300 - B Controller-regulator LP

32 216649100 A B Clamp,elec cont mtg ,compressor

42 216232700 A B Washer-flat

43A 5303212614 A B Clip-harness

47 216629600 A B Screw-hinge

55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad

86 216036600 A B Screw,rwhd (gx-ca) ,8-32 x 1/2
