Frigidaire FFC09K0BW0 Manuale utente

FREEZER

Model number

FFC09K0BW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216787900

OWNERS GUIDE - # 216802800

SERVICE DATA SHEET - # 216787900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC09K0BW0 FFC09K0BW 134A white 115

MARKET

North America

Publication No.

5995366126

020218

-EN/SERVICE /BLT

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

02/02 2

Publication No FFC09K0BW0

5995366126

DOOR

# = Fast-moving Parts 3 02/02

* = Non-Illustrated Parts

FFC09K0BW0 Publication No.

5995366126

DOOR

POS. NO PART NO DESCRIPTION

1 216481001 Gasket-door,white

9 216061802 Panel-inner lid,white

10 216141101 Plug button,white

11 216117906 Panel-outer door/lid,white

27 5303212828 Clip,panel

* 216205400 Washer,signal light

* 5303917276 Insulation-door,fiberglass ,(bulk)

02/02 4

Publication No FFC09K0BW0

5995366126

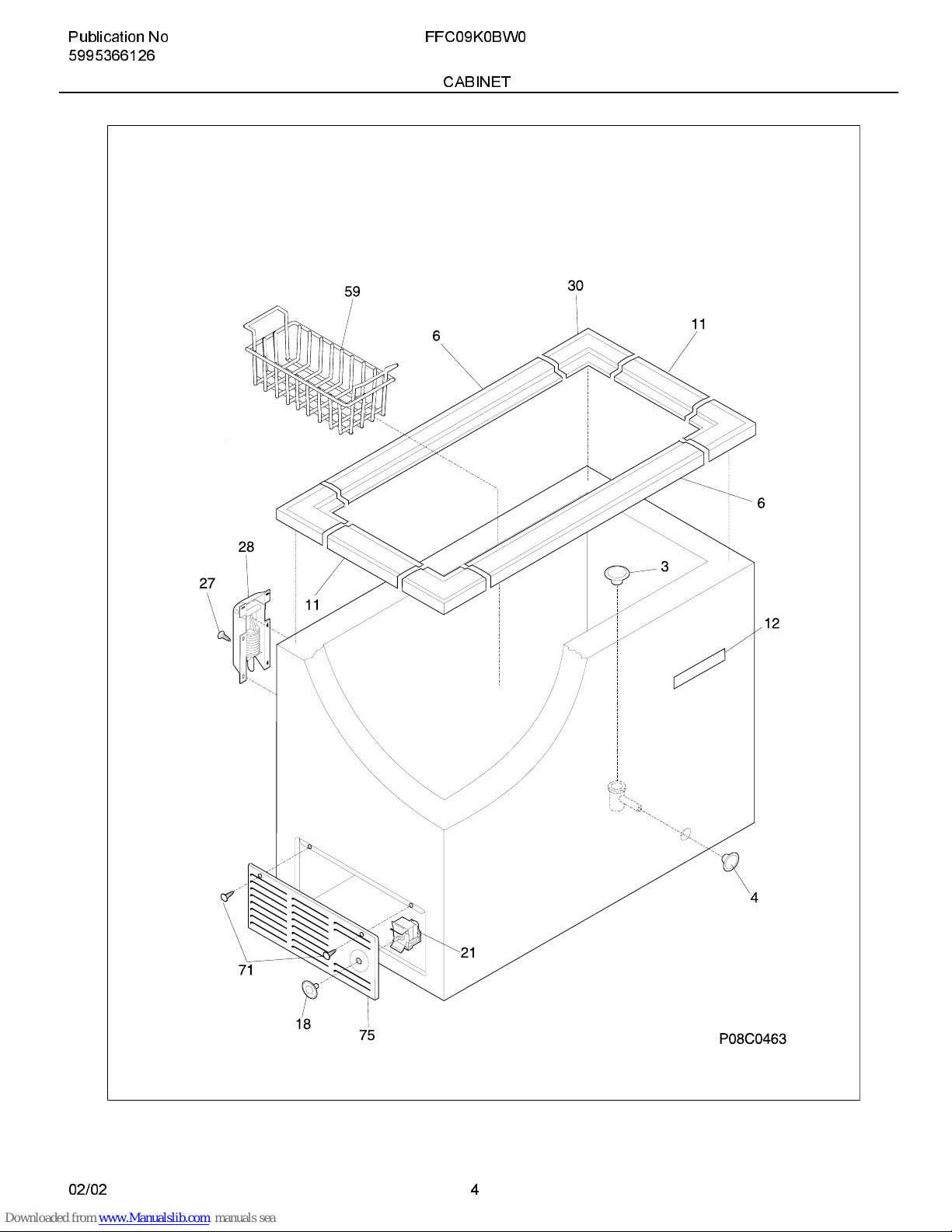

CABINET

# = Fast-moving Parts 5 02/02

* = Non-Illustrated Parts

FFC09K0BW0 Publication No.

5995366126

POS. NO PART NO DESCRIPTION

3 216502600 Plug-drain,interior ,interior

4 216073900 Plug-drain,exterior

6 216117500 Breaker-hinge side,white

11 216105600 Breaker-ends,white

12 240415201 Label-nameplate,white

18 216707200 Knob-control cold

21 # 216787700 Control-temperature

27 216337700 Screw,hex washer head ,10-24 x 0.500

28 216478800 Hinge Assy

30 216105500 Breaker-corners,white

59 216078600 Basket

71 5303302714 Screw,8-18x3/4 ,(2)

75 216782000 Panel-access,white

* 216205400 Washer,signal light

* 216802800 Owners guide

* 5303305324 Paint,touch-up ,white

CABINET

02/02 6

Publication No FFC09K0BW0

5995366126

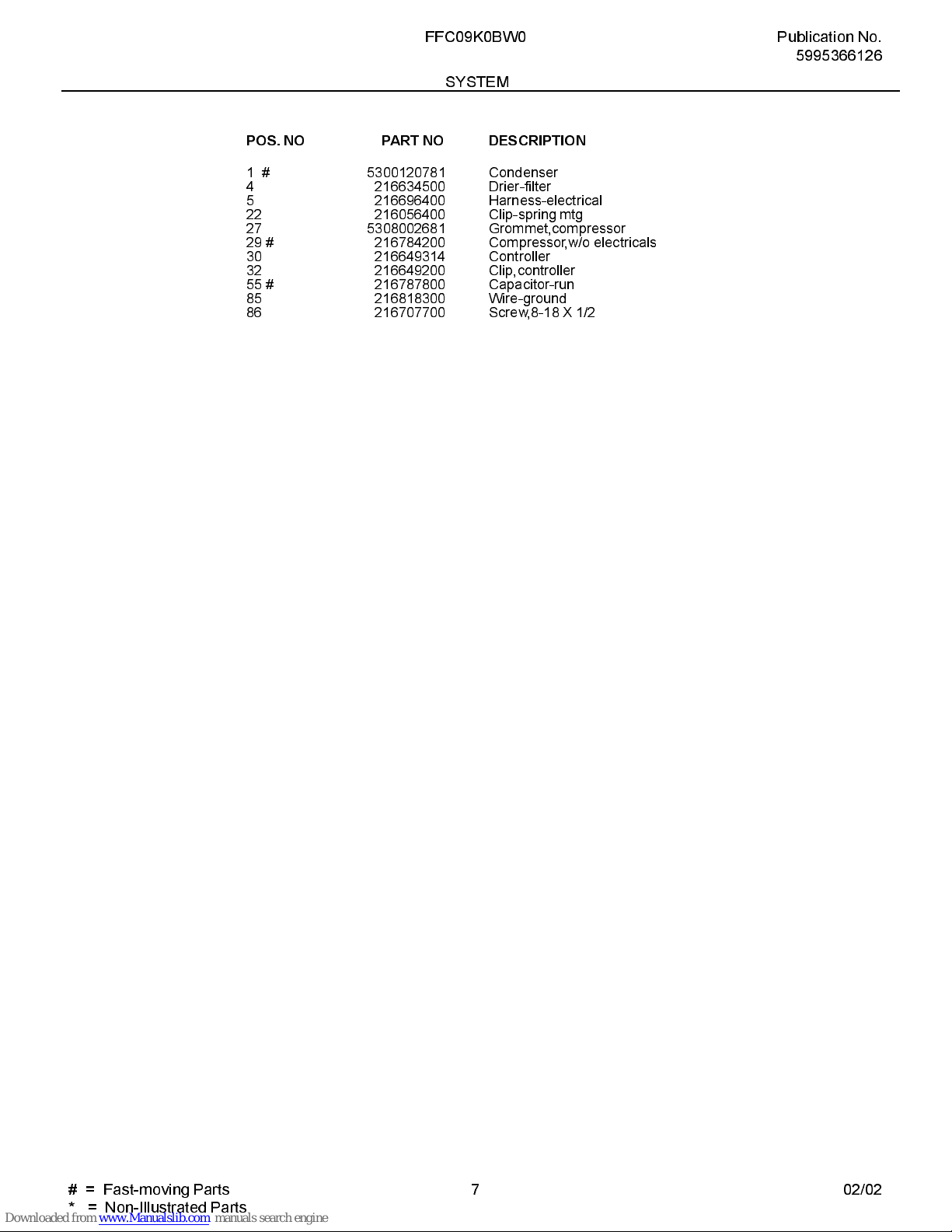

SYSTEM

FFC09K0BW0 Publication No.

5995366126

# = Fast-moving Parts 7 02/02

* = Non-Illustrated Parts

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300120781 Condenser

4 216634500 Drier-filter

5 216696400 Harness-electrical

22 216056400 Clip-spring mtg

27 5308002681 Grommet,compressor

29 # 216784200 Compressor,w/o electricals

30 216649314 Controller

32 216649200 Clip,controller

55 # 216787800 Capacitor-run

85 216818300 Wire-ground

86 216707700 Screw,8-18 X 1/2
