Frigidaire GLFC1326F Manuale utente

P08F0060.eps P08D0501.eps P08C0945.eps P08S0354.eps

Product No. GLFC1326FW1

Series Gallery

Color white

Volts 115

Wiring Diagram 297010501

Owner's Guide 297079200

Market North America

Energy Guide 216794111

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995477220

06/10/20

(EN/SERVICE/MLR)

365

FREEZER CHEST

Model No.

GLFC1326FW

Publication No: 5995477220 GLFC1326FW1

10/06 2

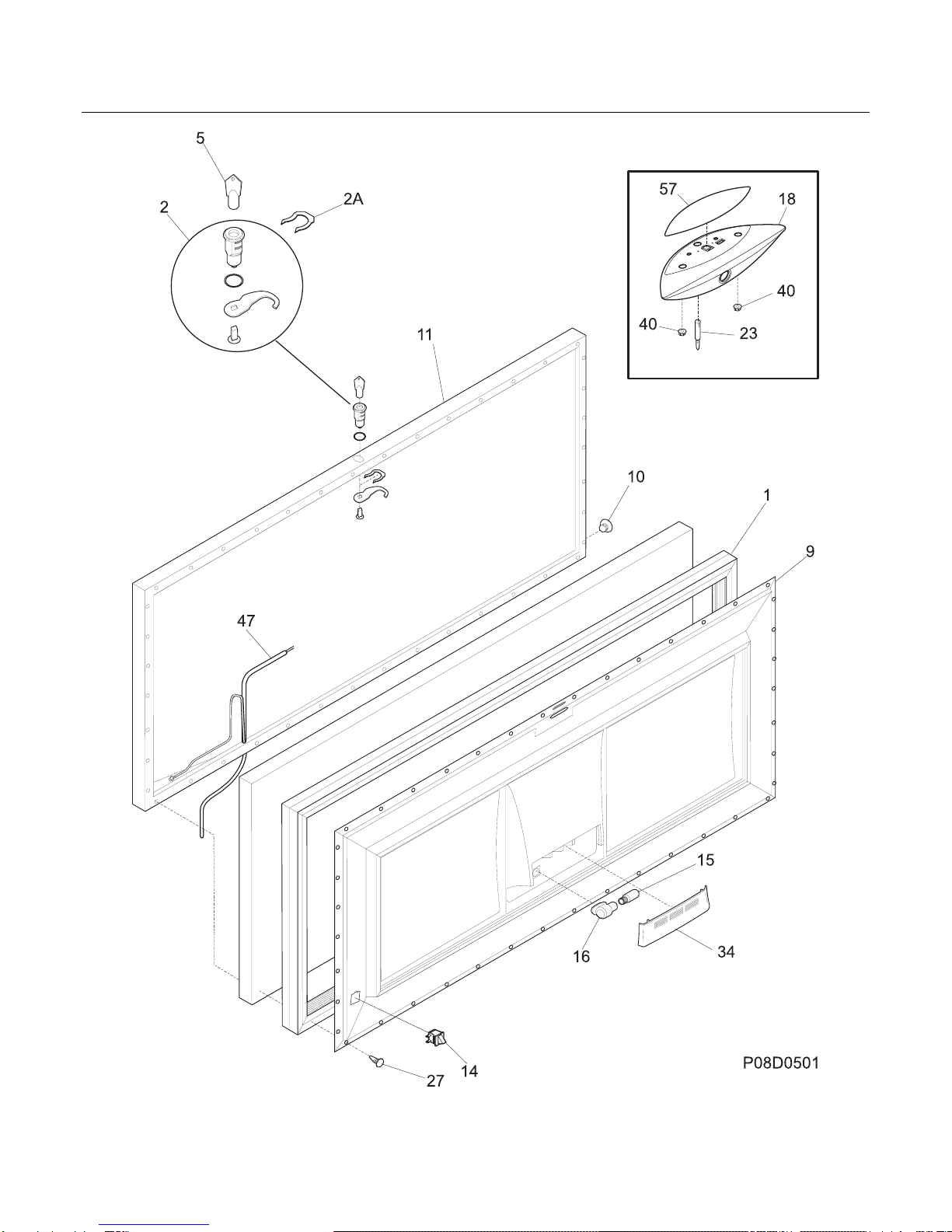

DOOR

GLFC1326FW1 Publication No: 5995477220

# Functional Parts 3 10/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216481101 Gasket-door, white

2 297090100 Lock Assy

2A 297090900 Clip, SPRING

5 # 216702900 Key, lock

9 216828904 Panel-lid

10 216923001 Plug button, 1/4", white

11 216129827 Lid, white

* 216858000 Screw, TH#8-18x.500AB, #10

14 216822900 Switch, light/lamp, ramp

15 297048600 Light Bulb/Lamp, short

16 216817600 Socket, light/lamp, 25 W

18 216897600 Handle, white

23 216212700 Light-signal, amber

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

34 297013900 Shield, light

40 216922700 Fastener, .330 dia stud, handle, (2)

47 # 216908000 Harness-lid

57 216899514 Overlay

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995477220 GLFC1326FW1

10/06 4

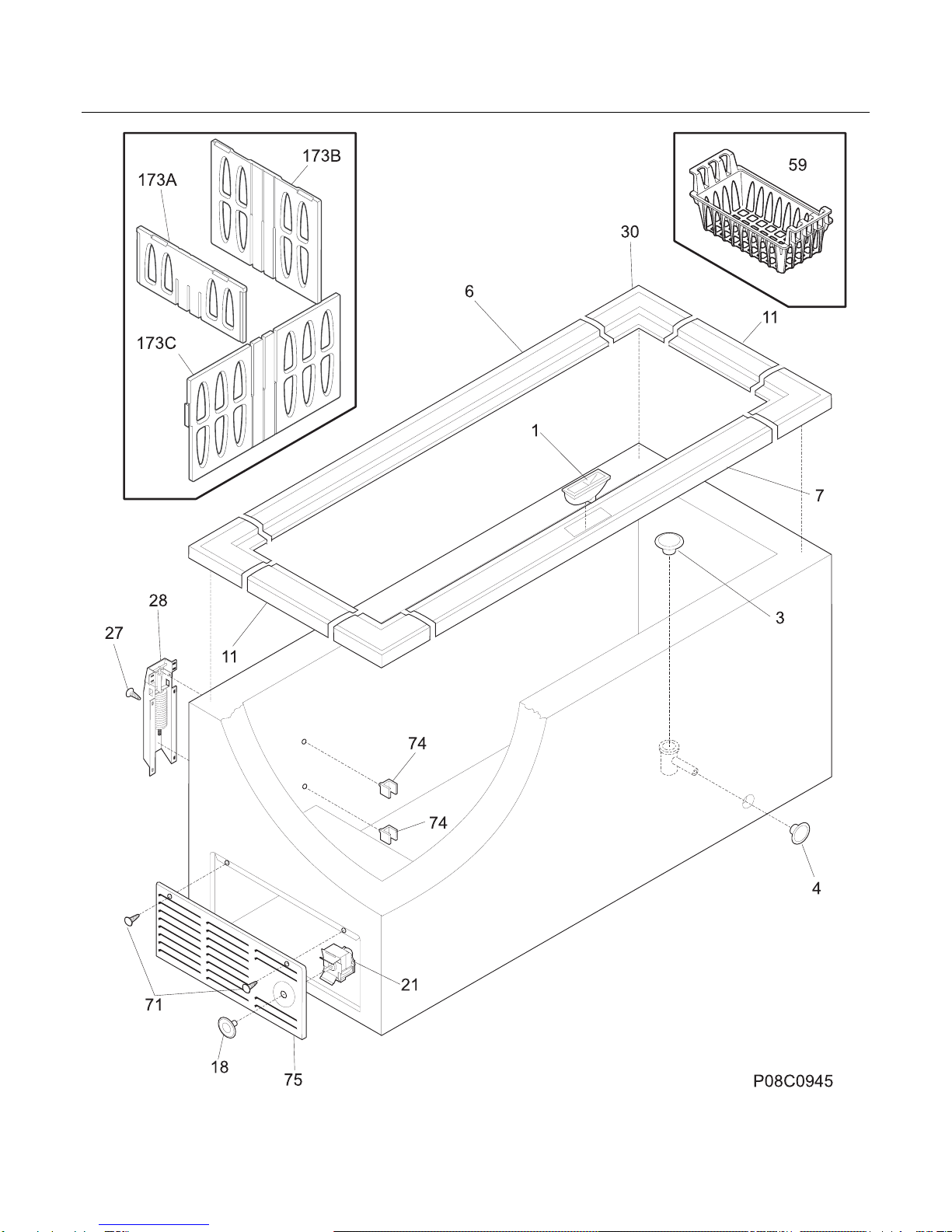

CABINET

GLFC1326FW1 Publication No: 5995477220

# Functional Parts 5 10/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 216954500 Catch-lock

3 216502600 Plug, drain, interior

4 297013600 Plug, drain, exterior

6 216955503 Breaker, Plain, white, hinge side

7 297129100 Breaker, lock side, w/lock catch

11 216955500 Breaker, chest end, (2)

18 216707200 Knob, temp control

21# 216714601 Control temperature

27 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

28 216039600 Hinge

30 216110700 Breaker, corners

59 216916203 Basket, blue/gray, upper, (2)

71 131420300 Screw, cr truss head, 8-18AB x 0.750

74 216486700 Support, divider, (4)

75 216034301 Panel, access, white

173A 297063000 Divider, chest, step

173B 297063100 Divider, small chest

173C 297073000 Divider

* 216794111 Energy Guide

* 5303305324 Paint, touch-up, white

Publication No: 5995477220 GLFC1326FW1

10/06 6

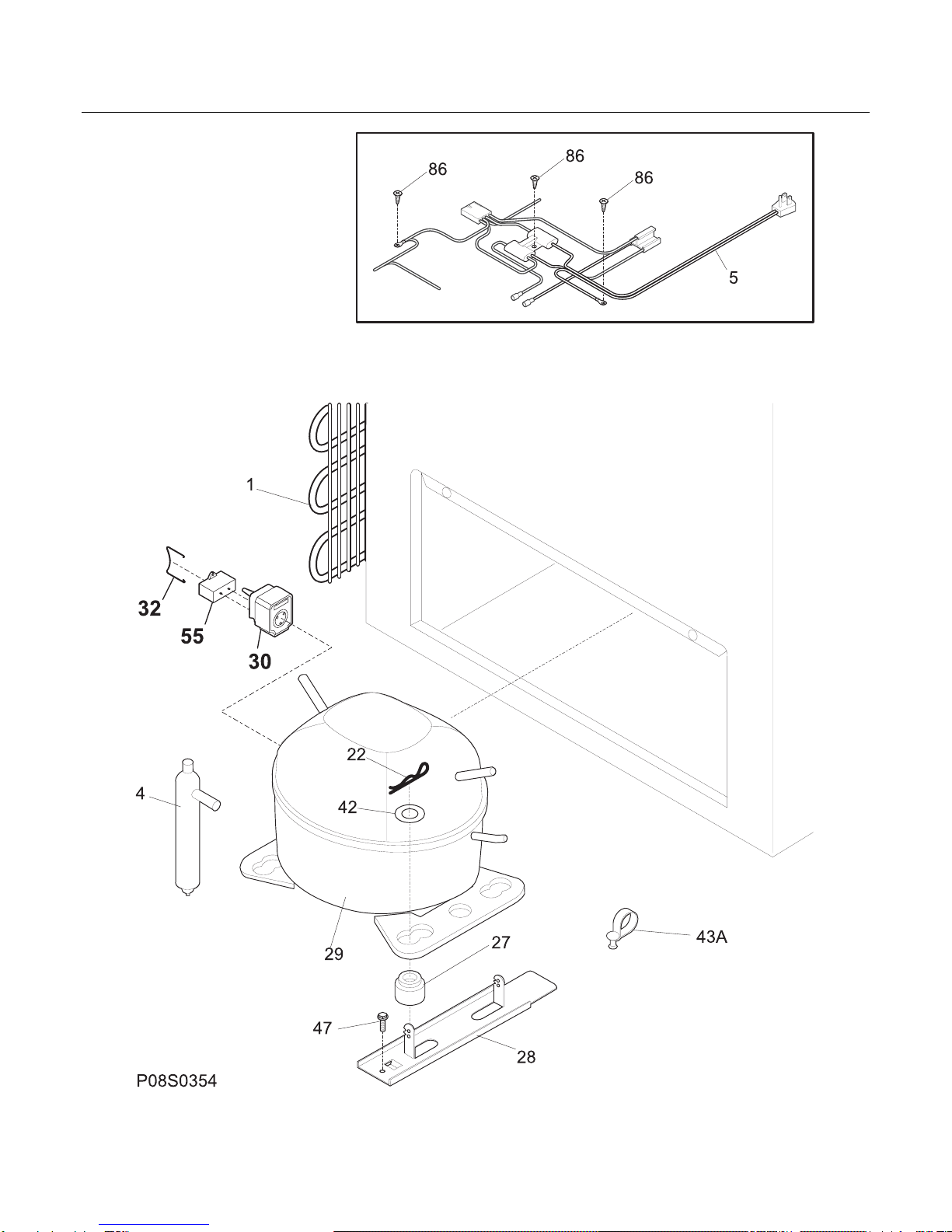

SYSTEM

GLFC1326FW1 Publication No: 5995477220

# Functional Parts 7 10/06

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 5303925238 Condenser

4 # 216938600 Drier-filter

5 # 216987300 Harness-main

22 216056400 Clip, compressor mtg, SPRING

27 5308002681 Grommet, compressor

28 5303212615 Support, compressor

29 # 216977300 Compressor, w/o electricals

30 216954201 Controller, compressor

32 216954300 Clip, controller

42 216232700 Washer, flat, 1"OD x 0.531"ID

43A 5303212614 Clip, harness mount

47 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

55 218909913 Capacitor, run, 220 VAC, 15 microfarad

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming
