Frigidaire FFC13M2AW1 Manuale utente

CHEST FREEZER

Model numbers:

FFC09M2AW

FFC13M2AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216787900-216803900

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216787900-216803900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC09M2AW1 FFC09M2AW 134A white 115

FFC13M2AW1 FFC13M2AW 134A white 115

MARKET

North America

Publication No.

5995362745

011219

-EN/SERVICE /BLT

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

12/01 2

Publication No FFC09/13M2AW1

5995362745

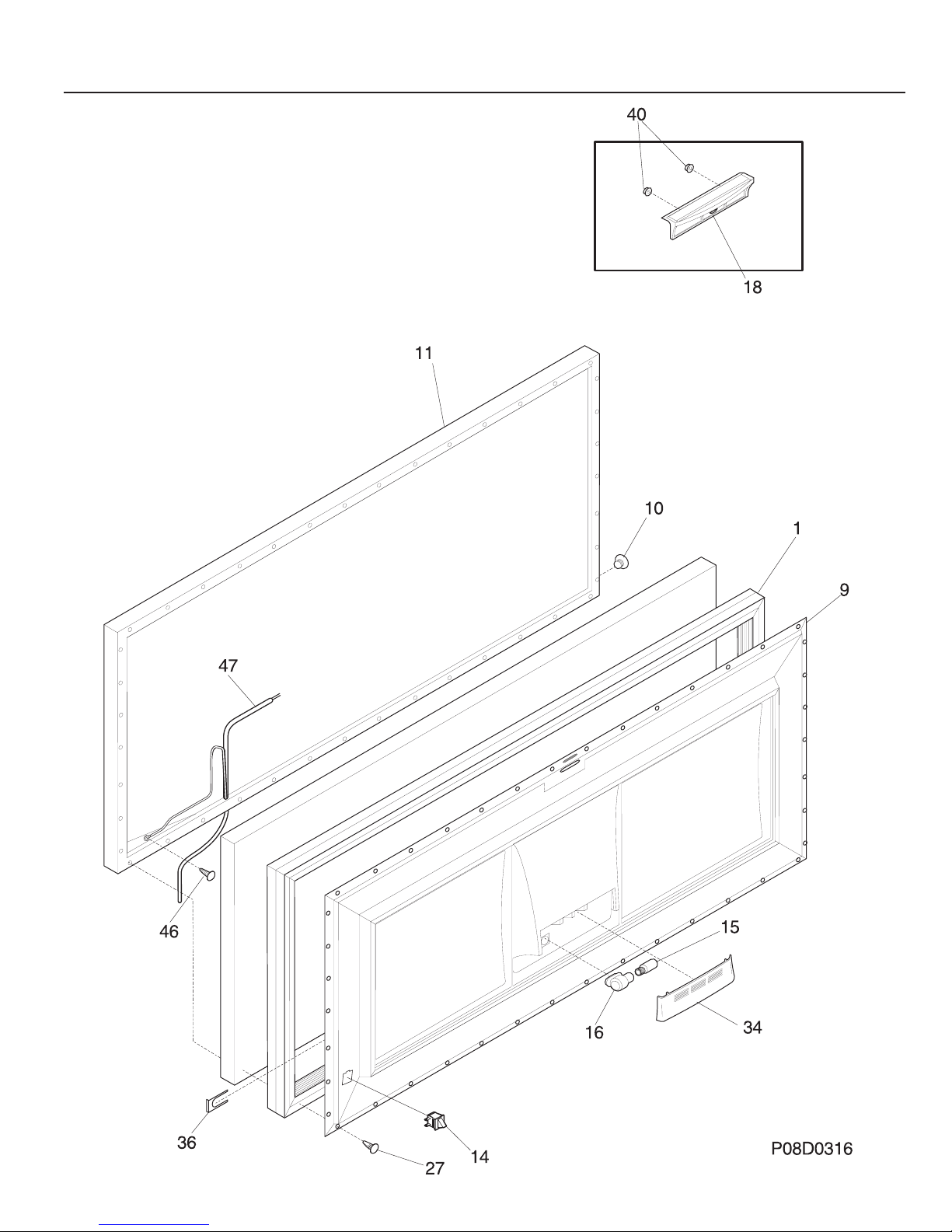

DOOR

# = Fast-moving Parts 3 12/01

* = Non-Illustrated Parts

FFC09/13M2AW1 Publication No.

5995362745

DOOR

A = FFC09M2AW (FFC09M2AW1)

B = FFC13M2A (FFC13M2AW1)

POS. NO PART NO DESCRIPTION

1 216481001 A - Gasket-door,white

1 216481101 - B Gasket-door,white

9 216061802 A - Panel-inner lid,white

9 216828906 - B Panel-lid

10 216141101 A B Plug button,white

11 216117913 A - Panel-outer door\lid,white

11 216129819 - B Panel-lid

14 216822900 - B Light/Lamp,ramp

15 # 216608600 - B Lamp,light bulb ,40 W ,120 V

16 216817600 - B Light/Lamp,indicator

18 216205000 A - Handle,white

27 5303212828 A B Clip,panel

34 216160400 - B Shield-light

36 5306599968 A B Plate,backup ,light switch

40 5309948647 A - Fastener,handle

46 216707800 - B Screw,PH ,8-32 x 1/2 ,wiring harness

47 216792200 - B Harness-lid/defrost

* 5303917276 A - Insulation-door,fiberglass ,(bulk)

* 5303925098 - B Insulation

12/01 4

Publication No FFC09/13M2AW1

5995362745

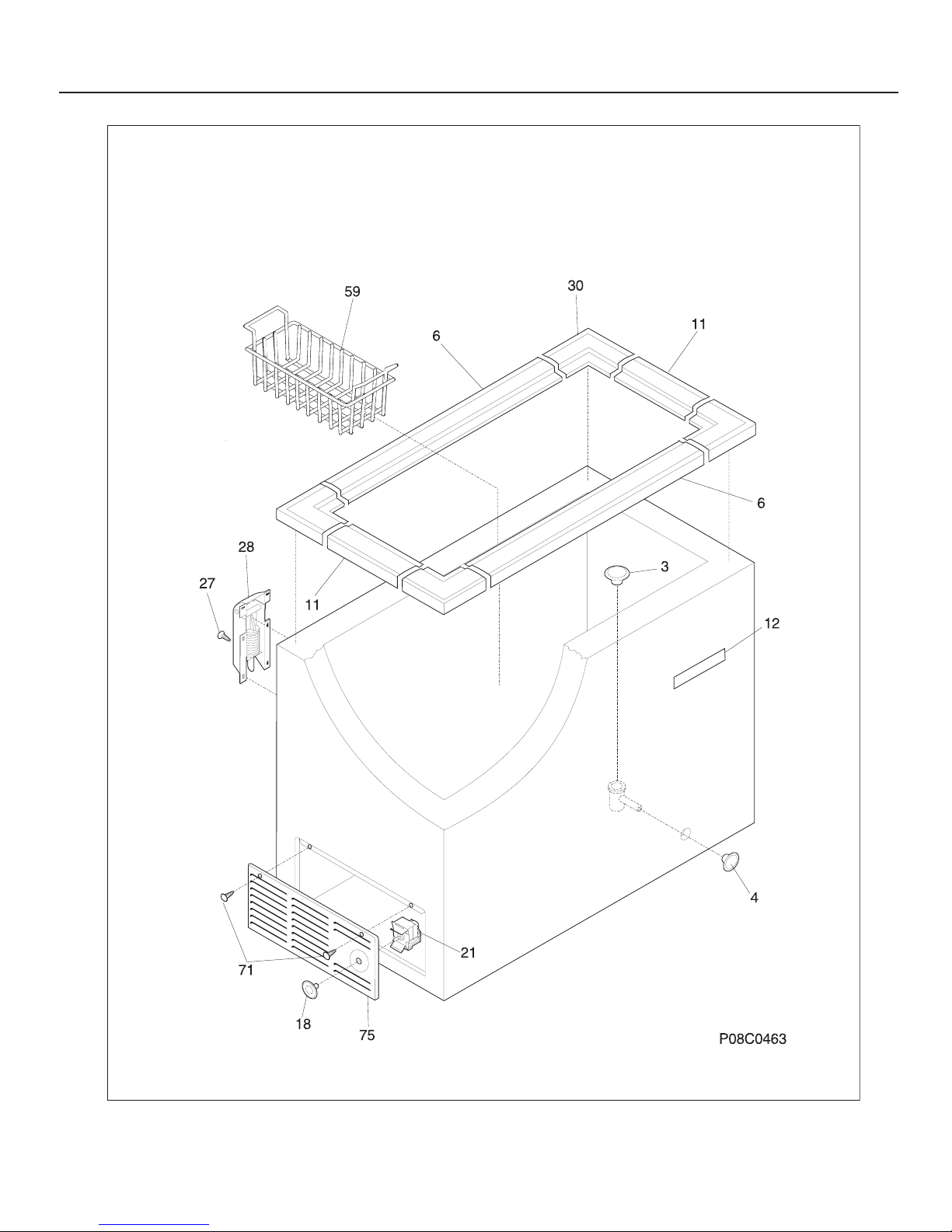

CABINET

# = Fast-moving Parts 5 12/01

* = Non-Illustrated Parts

FFC09/13M2AW1 Publication No.

5995362745

A = FFC09M2AW (FFC09M2AW1)

B = FFC13M2A (FFC13M2AW1)

POS. NO PART NO DESCRIPTION

3 216502600 A B Plug-drain,interior ,interior

4 216073905 A B Plug-drain,exterior

6 216117500 A - Breaker-hinge side,white

6 216110900 - B Breaker

11 216105600 A - Breaker-ends,white

11 216110800 - B Breaker,white ,ends

12 240415201 A B Label-nameplate,white

18 216707200 A B Knob-control cold

21 # 216787700 A - Control-temperature

21 # 216714600 - B Control-temperature

27 216337700 A - Screw,hex washer head ,10-24 x 0.500

27 216629600 - B Screw-hinge

28 216478800 A - Hinge Assy

28 216039600 - B Hinge

30 216105500 A - Breaker-corners,white

30 216110700 - B Breaker,white ,corners

59 216078600 A - Basket

59 216080300 - B Basket

71 5303302714 A B Screw,8-18x3/4 ,(2)

75 216329402 A - Panel-access,white

75 216034301 - B Panel-access,white

* 216802800 A B Owners guide

* 5303305324 A B Paint,touch-up ,white

CABINET

12/01 6

Publication No FFC09/13M2AW1

5995362745

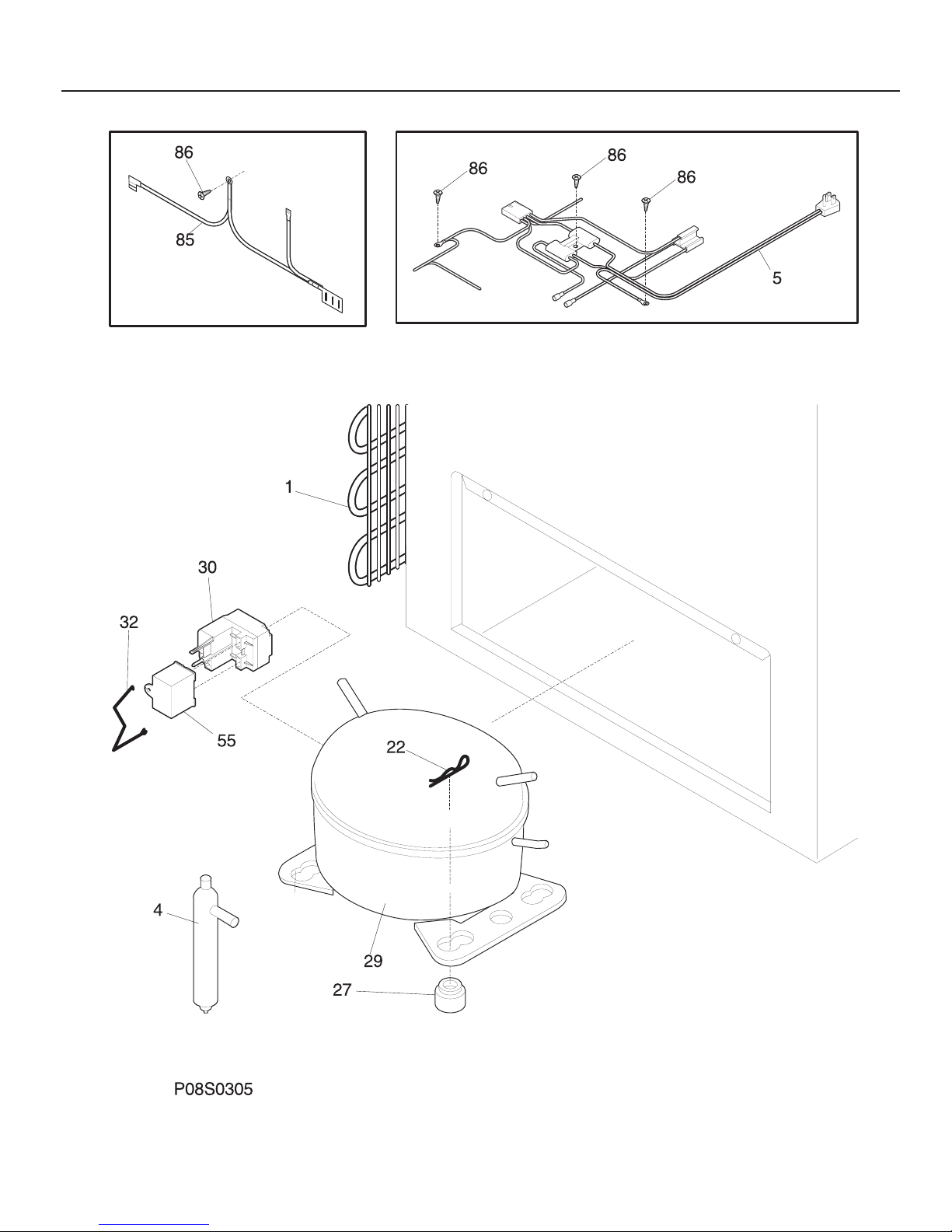

SYSTEM

# = Fast-moving Parts 7 12/01

* = Non-Illustrated Parts

FFC09/13M2AW1 Publication No.

5995362745

SYSTEM

A = FFC09M2AW (FFC09M2AW1)

B = FFC13M2A (FFC13M2AW1)

POS. NO PART NO DESCRIPTION

1 # 5300120781 A - Condenser

1 5303925238 - B Condenser

4 216634500 A B Drier-filter

5 216696400 A - Harness-electrical

5 # 216792300 - B Harness-main

22 216056400 A B Clip-spring mtg

27 5308002681 A B Grommet,compressor

29 # 216784200 A - Compressor,w/o electricals

29 # 216784300 - B Compressor,w/o electricals

30 216649314 A - Controller

30 216649313 - B Controller

32 216649200 A B Clip,controller

55 # 216787800 A B Capacitor-run

85 216818300 A - Wire-ground

86 216707700 A - Screw,8-18 X 1/2

86 216036600 - B Screw,rwhd (gx-ca) ,8-32 x 1/2
