www.curtisint.com/frigidaireUSA/Canada 1-800-968-9853

MODEL:EFRF5003/EFRF7003

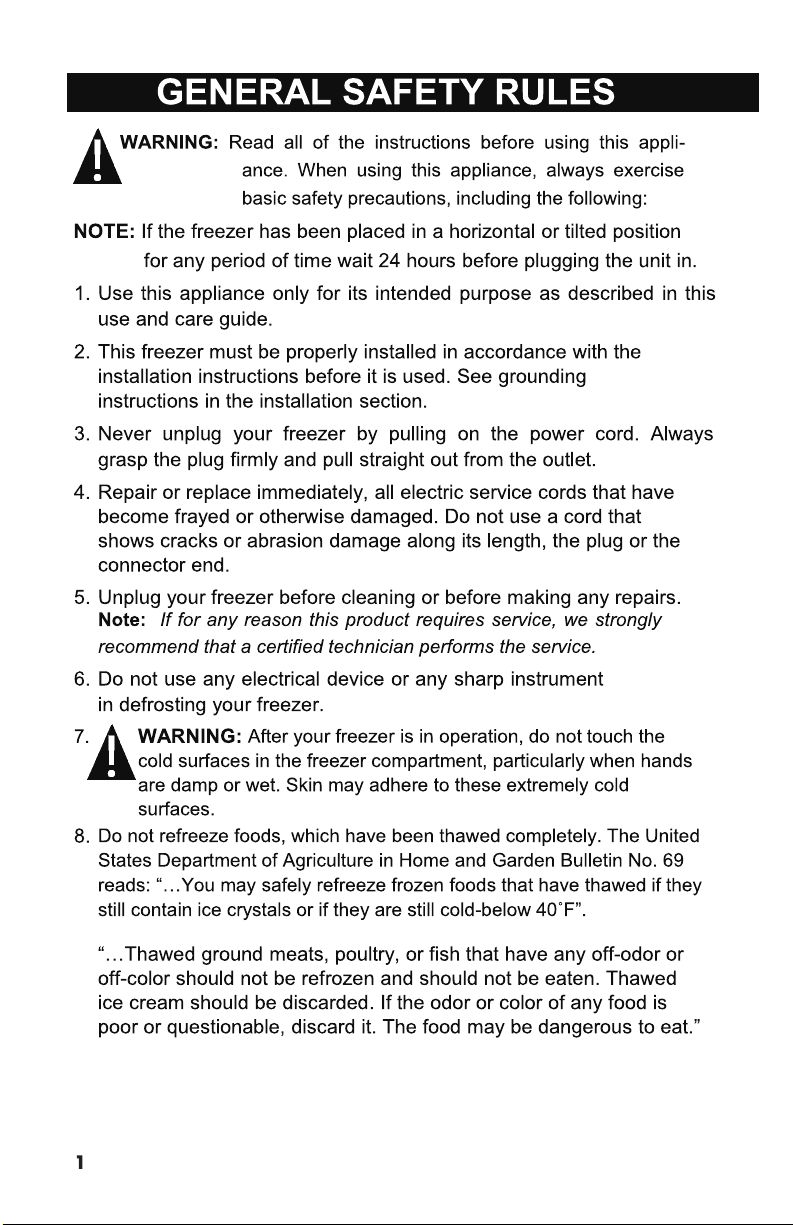

General Safety Rules ...............................................................................................1

Save These Instructions ..........................................................................................2

Parts And Features ..................................................................................................3

Installing Your Freezer.............................................................................................4

Freezer Features and Use........................................................................................6

Proper Freezer Care and Cleaning..........................................................................9

Troubleshooting.....................................................................................................11

Limited Warranty....................................................................................................12

Disposal

This appliance may not be treated as regular household waste, it

should be taken to the appropriate waste collection point for recycling

of electrical components. For information on local waste collection

points, contact your local waste removal agency or government office.

Disposal of this appliance should be in accordance with federal and

local regulations.

Note: If the temperature control knob sets to 7, the compressor may run

continuously. It's a quick-frozen mode. Please do not set to 7 frequently.

Manual Defros�on Instruc�ons

Manual Defrost Freezer models must be defrosted manually. For best

operation, the freezer should be defrosted when the frost accumulation

becomes 1/4 to 1/2 inch thick. Below are the instructions for manually

defrosting your Freezer.

Defrosting Instructions for your Freezer:

• Turn the temperature control to OFF and unplug the freezer.

• Remove all food and place in corrugated boxes, insulated bags,picnic

coolers, etc. Use towels and newspapers for insulation, as needed.

• Remove the drain plug (on models so equipped).

• With the door open, use pans of hot water to speed the loosening of frost.

Remove large pieces of frost before they melt.

• Sponge the excess water from the bottom of the freezer as it collects

to prevent overflowing.

• After defrosting, clean the inside of the freezer by wiping down with a

baking soda and water solution. Rinse and dry.

• Be sure to replace drain cap (on models so equipped). Return the drain

tube to its position and replace the grille.

• Plug the freezer in, return the temperature control to the normal position

and return food to the freezer.
