Frigidaire FFU09K0AW Manuale utente
FREEZER
Model number
FFU09K0AW
©2002 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
FREEZER
WIRING DIAGRAM - #216803100
OWNER’S GUIDE - # 216802800
SERVICE DATA SHEET - #216803100
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FFU09K0AW0 FFU09K0AW 134A white 115
FFU09K0AW1 FFU09K0AW 134A white 115
FFU09K0AW2 FFU09K0AW 115 white 115
MARKET
North America
Publication No.
5995363776
020115
-EN/SERVICE /BLT
365
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O BOX 212378, AUGUSTA , GA 30917
01/02 2
Publication No FFU09K0AW
5995363776
DOOR
# = Fast-moving Parts 3 01/02
* = Non-Illustrated Parts
FFU09K0AW Publication No.
5995363776
DOOR
A = FFU09K0A (FFU09K0AW0)
B = FFU09K0A (FFU09K0AW1)
C = FFU09K0A (FFU09K0AW2)
POS. NO PART NO DESCRIPTION
1 216522300 A B C Gasket-door
2 5303925107 A B C Lock Assy
5 # 216702900 A B C Key,lock
9 216527302 A B C Panel-inner door,frzr
11 216564205 A B C Panel-outer door,white
12 240415201 A B C Label-nameplate,white
13 08016354 A B C Door Stop
14 5303313518 A B C Washer,sealing
21A 08005520 A B C Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7
22 216443600 A B C Bearing
22A 216503200 A B C Bearing-hinge,btm
26 216524400 A B C Gasket-secondary
27 5303212828 A B C Clip,panel
32 5309950074 A B C Valve-breather
64 216403700 A B C Plug-button,door base
93 5303161215 A B C Screw
01/02 4
Publication No FFU09K0AW
5995363776

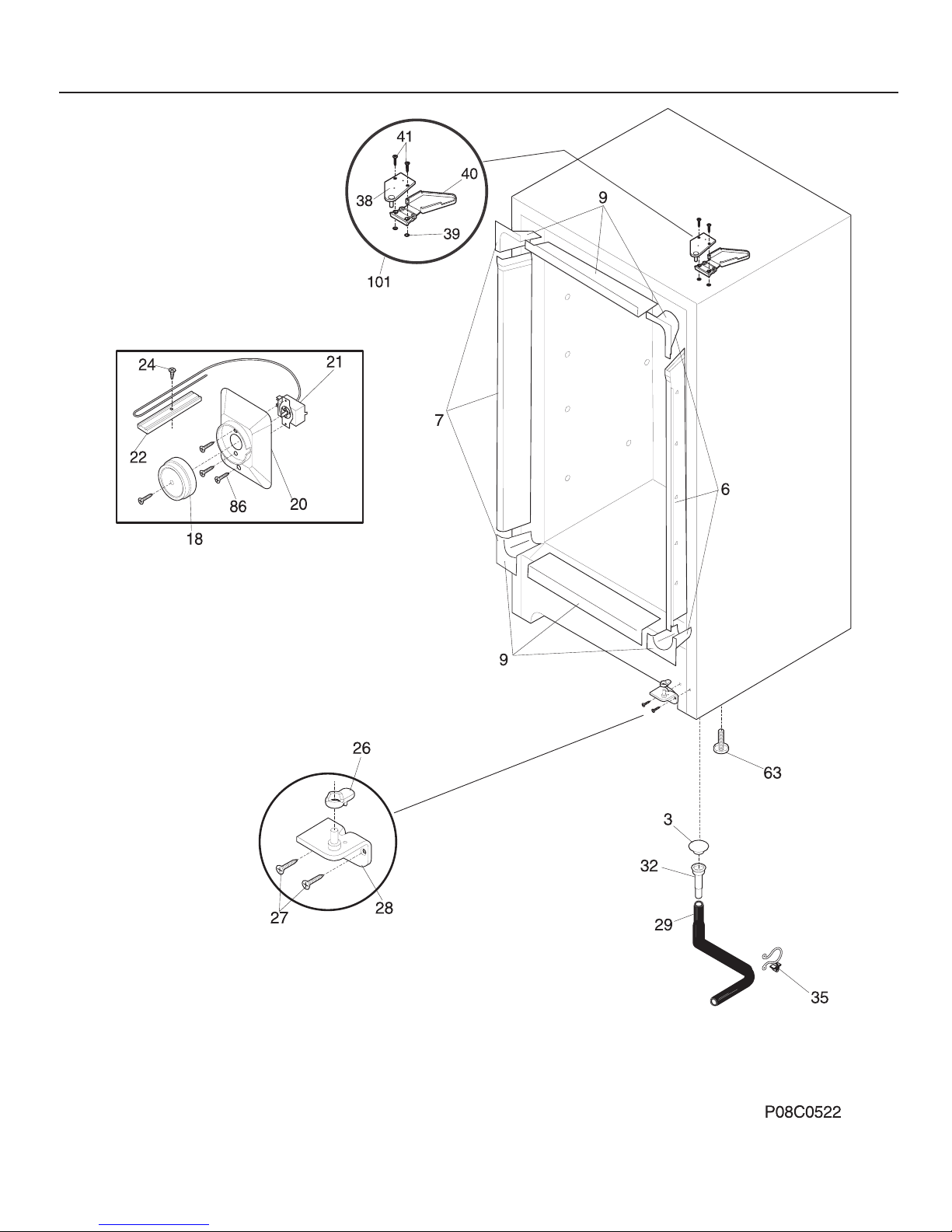

CABINET
# = Fast-moving Parts 5 01/02
* = Non-Illustrated Parts
FFU09K0AW Publication No.
5995363776
A = FFU09K0A (FFU09K0AW0)
B = FFU09K0A (FFU09K0AW1)
C = FFU09K0A (FFU09K0AW2)
POS. NO PART NO DESCRIPTION
3 216502600 A B C Plug-drain,interior ,interior
6 216604500 A B C Breaker,hinge side
7 216604000 A B C Breaker,lock side
9 216603500 A B C Breaker,top
18 216707200 A B C Knob-control cold
20 216707300 A B C Cover-control housing
21 # 216788100 A B - Control-temperature
21 # 216834500 - - C Control-temperature
22 08037931 A B - Clamp,cap tube ,cold control
22 216823500 - - C Clamp,cap tube ,cold control
24 5300052943 A B C Screw-clamp,truss hd cr ,control
26 216503300 A B C Ramp,closer ,door
27 5303205738 A B C Screw-hinge,cr ,1/4-20 x 1.000 ,btm
28 216247400 A B C Hinge-bottom
29 216313503 A B C Hose-drain
32 5308005500 A B C Drain
35 216273000 A B C Clip,drain hose
38 5303925086 A - - Hinge-upper
38 216808900 - B C Hinge-upper
39 5303294372 A B C Nut-insert,hinge
40 5303212912 A - - Cover-hinge
40 216809000 - B C Cover-hinge
41 5303212937 A - - Screw-top hinge
41 5303001479 - B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875
63 216396900 A B C Foot-adjustable
86 216036600 A B C Screw,rwhd (gx-ca) ,8-32 x 1/2
101 216835200 - B C Kit-top hinge
* 09948773 A B C Insulation,drain tube
* 216802800 A B C Owners guide
CABINET
01/02 6
Publication No FFU09K0AW
5995363776
SYSTEM
# = Fast-moving Parts 7 01/02
* = Non-Illustrated Parts
FFU09K0AW Publication No.
5995363776
SYSTEM
A = FFU09K0A (FFU09K0AW0)
B = FFU09K0A (FFU09K0AW1)
C = FFU09K0A (FFU09K0AW2)
POS. NO PART NO DESCRIPTION
1 # 5303304537 A B C Condenser
3 216612100 A B C Trim-shelf,evaporator
4 216634500 A B C Drier-filter
5 # 216761500 A - C Harness,electrical
5 # 216791400 - B - Harness,electrical
6 3091418 A B C Support-shelf,front LH
7 08037928 A B C Support-shelf,front RH
11 216474600 A B C Support-rear shelf
12 216225700 A B C Grommet-spacer
13 216138900 A B C Screw,hex sems ,8-18AB x 1.00 ,evap
15A 216404900 A B C Heat Exchanger
27 216498900 A - C Grommet,compressor
27 5308002681 - B - Grommet,compressor
29 # 216696600 A B C Compressor,w/o electricals
30 216649304 A B C Controller
32 216694500 A B C Clip,controller
34 5306594529 A B C Sleeve-compressor
35 5303272328 A B C Screw,Ind hex sems ,1/4-28 unfx ,compressor
36 # 216069300 A B C Grid-top evaporator
37 # 216069400 A B C Shelf-top evaporator
38 # 216069500 A B C Shelf-middle evaporator
40 # 216069600 A B C Shelf-bottom evaporator
43A 216629700 A B C Clip-harness
55 216696700 A B C Capacitor-run,180 VAC ,15 microfarad
86 216036600 A B C Screw,rwhd (gx-ca) ,8-32 x 1/2
* 216502500 A B C Sleeve-tube insert
