Frigidaire FFU14M8H Manuale utente

FREEZER

Model No.

FFU14M8H

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216576600

OWNER’S GUIDE - # 216768600

SERVICE DATA SHEET - #216576600

ELECTROLUX HOME PRODUCTS NORTH AMERICA.

P.O.Box 212378, Augusta, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU14M8HW1 FFU14M8H 134A white 115

MARKET

North America

Publication No.

5995345260

001019

-EN/SERVICE /GS

365

10/00 2

Publication No. FFU14M8HW1

5995345260

DOOR

# = Fast-moving Parts 3 10/00

* = Non-Illustrated Parts

FFU14M8HW1 Publication No.

5995345260

DOOR

POS. NO PART NO DESCRIPTION

1 216522306 Gasket-door,white

2 5303925107 Lock Assy

5 # 216388700 Key,lock

6 5300158222 Screw-anchor,8-18

9 5303925466 Panel-outer door,white

11 216527613 Panel-inner door,frzr

12 316095402 Label-nameplate,Frigidaire ,white

12A 216373000 Frame-nameplate

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216446900 Handle,white

21A 08005520 Screw-door stop mtg,flat hd metric , 4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

25 216022800 Screw,washer head ,8-18 X 1/2

26 216524300 Gasket,secondary

27 5303212828 Clip,panel

28 216523302 Rack-shelf

32 5309950074 Valve-breather

57 3017682 Insert-handle

64 216403700 Plug-button,base door

93 5303161215 Screw

10/00 4

Publication No. FFU14M8HW1

5995345260

CABINET

27 28

132

P08C0216

# = Fast-moving Parts 5 10/00

* = Non-Illustrated Parts

FFU14M8HW1 Publication No.

5995345260

CABINET

POS. NO PART NO DESCRIPTION

2 216269500 Adapter-drain

3 216502600 Plug-drain,interior

6 216604300 Breaker Kit w/corners

7 216603800 Breaker Kit w/corners,lock catch

9 216603400 Breaker Kit w/corners,28", top or bottom

14 216472300 Switch-light plunger

15 216608600 Bulb-light,40W ,130V

16 5300136117 Socket-light/lamp

18 216591802 Knob,temp control

20 5303288184 Cover-control housing

21 216620200 Control-temperature

22 08037931 Clamp,cap tube ,cold control

23 5308002706 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313502 Hose-drain

32 5308005500 Drain

34 216557500 Shield-light

35 216273000 Clip,drain hose

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

44 # 5303017178 Switch-rocker

46 08037851 Screw,PH type AB ,8-32x1/2 , wiring harness

56 09950853 Screw-control knob,phillips ,4-40 x 3/8

62 131420300 Screw,cr truss head ,8-18AB x 0.750

63 216396900 Foot-adjustable

64 08016369 Bracket

65 216447600 Drop front

66 # 216713700 Buzzer,alarm

72 216591212 Grille/Kickplate

81 216571000 Support-drop front,top

83 216571100 Support-drop front,btm

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

96 08016772 Light-signal,red

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216539100 Wiring Harness,alarm

10/00 6

Publication No. FFU14M8HW1

5995345260

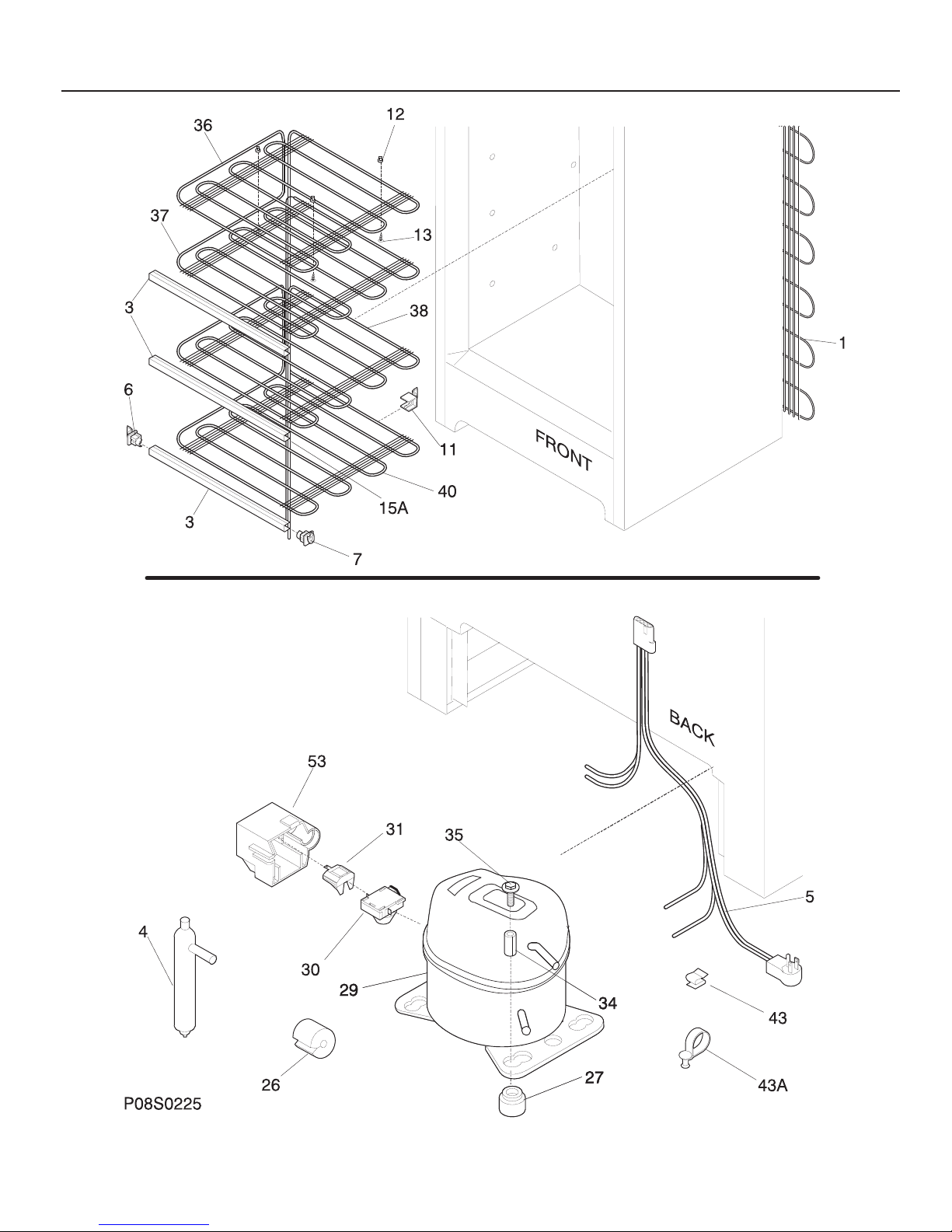

SYSTEM

# = Fast-moving Parts 7 10/00

* = Non-Illustrated Parts

FFU14M8HW1 Publication No.

5995345260

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300123788 Condenser

3 216605600 Trim-shelf,white ,evap

4 216634500 Drier-filter

5 216766300 Harness-main

6 3091418 Support-shelf,front LH

7 08037928 Support-shelf,front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216404900 Heat Exchanger

26 216511900 Spacer tube,(3)

27 216498900 Grommet,compressor

29 216557000 Compressor,assy

30 216596700 Starter,factory instal

31 216100116 Overload Protector,factory instal

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx , compressor

36 # 216070100 Grid-top evaporator

37 # 216070200 Shelf-top evaporator

38 # 216070300 Shelf-middle evaporator

40 # 216070400 Shelf-bottom evaporator

43 09950610 Clip,cord

43A 216629700 Clip-harness

53 216347800 Cover terminal,cover-comp term

* 216502500 Sleeve-tube insert

* 216762300 Harness,int
