Frigidaire FFC15M4AW Manuale utente

FREEZER

Model number

FFC15M4AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803900

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216803900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC15M4AW0 FFC15M4AW 134A white 115

MARKET

North America

Publication No.

5995356309

010719

-EN/SERVICE /GS

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

07/01 2

Publication No. FFC15M4AW

5995356309

DOOR

# = Fast-moving Parts 3 07/01

* = Non-Illustrated Parts

FFC15M4AW Publication No.

5995356309

DOOR

POS. NO PART NO DESCRIPTION

1 216481201 Gasket-door,white

2 # 5303925107 Lock Assy

5 # 216702900 Key,lock

9 216129912 Panel-outer door/lid,white

10 216141101 Plug button,white

11 216057804 Panel-inner lid,white

18 216205001 Handle,white

27 5303212828 Clip,panel

36 5306599968 Plate,backup ,light switch

40 5309948647 Fastener,handle

* 5303925098 Insulation

07/01 4

Publication No. FFC15M4AW

5995356309

CABINET

# = Fast-moving Parts 5 07/01

* = Non-Illustrated Parts

FFC15M4AW Publication No.

5995356309

CABINET

POS. NO PART NO DESCRIPTION

1 5303208488 Latch-door

1A 216080800 Support,lock

3 216502600 Plug-drain,interior ,interior

4 216073905 Plug-drain,exterior

6 216111000 Breaker,hinge side

7 216111600 Breaker,lock side

11 216110800 Breaker,white ,ends

12A 240415201 Label-nameplate,white

18 216707200 Knob-control cold

21 # 216714600 Control-temperature

27 216629600 Screw-hinge

28 216035200 Hinge

30 216110700 Breaker,white ,corners

59 216080300 Basket

71 5303302714 Screw,8-18x3/4 ,(2)

75 216034301 Panel-access,white

* 216802800 Owners guide

* 5303305324 Paint,touch-up ,white

07/01 6

Publication No. FFC15M4AW

5995356309

SYSTEM

# = Fast-moving Parts 7 07/01

* = Non-Illustrated Parts

FFC15M4AW Publication No.

5995356309

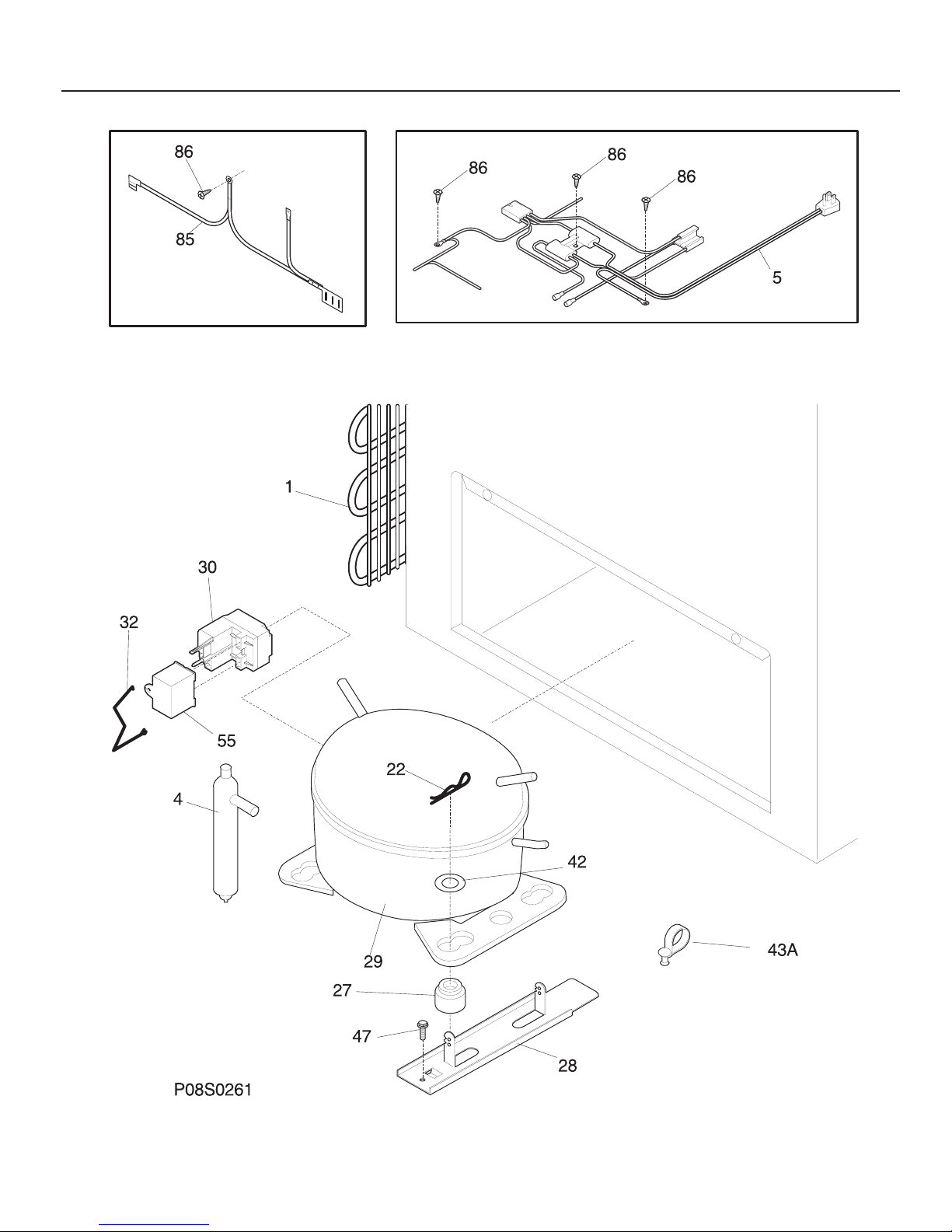

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5303925238 Condenser

4 216634500 Drier-filter

5 216551600 Wiring Harness

22 216056400 Clip-spring mtg

27 5308002681 Grommet,compressor

28 5303212615 Support-compressor

29 # 216784300 Compressor,w/o electricals

30 216649313 Controller

32 216649200 Clip,controller

42 216232700 Washer-flat

43A 5303212614 Clip-harness

47 216629600 Screw-hinge

55 # 216787800 Capacitor-run

85 216533500 Wire,ground

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2
