Frigidaire GLET1142F Manuale utente

Product No. GLET1142FS0

Market North America

Color white

Volts 240

Wiring Diagram 134807000

Owner's Guide 134809600

Installation Instructions 134809200

Energy Guide 134810500

P17L0006.eps P17U0052.eps P17B0049.eps P17C0076.eps P17R0020.eps P17t0059.eps

P17M0015.eps 134807000_en.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995483350

07/01/30

(EN/SERVICE/WC)

361

LAUNDRY CENTER

WITH ELECTRIC

DRYER

Model No.

GLET1142f

Publication No: 5995483350 GLET1142FS0

01/07 2

UPPER CABINET/DRUM HEATER

35 36 4

562

26 28

P17U0052

42 41

GLET1142FS0 Publication No: 5995483350

# Functional Parts 3 01/07

* Non-Illustrated Parts

UPPER CABINET/DRUM HEATER

POS. NO PART NO. DESCRIPTION

1 131084710 Panel, white, left side

2 131168200 Screw, pan head, 8-18B x 0.31

3 131883301 Panel, top

4 134799902 Panel, rear, steel, galvanized

5 5303281019 Ball, grounding

6 5303281020 Clip, ball, steel, flat nut

9 3204249 Panel, motor access, rear

11 3204250 Cover, terminal block

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 # 131475300 Heater Assy, w/housing

17 3204254 Baffle, heater shield

18 131477000 Screw, 10-16AB x 0.375

20 131963900 Glide, drum

21 134122552 Drum, dryer, stainless steel, service kit

22 131636237 Panel, front, white

23 134134700 Seal, felt, lower

24 134036400 Seal, felt, upper

25 131658800 Door Catch

26 # 131843101 Switch, door, with drum light

27 131359600 Lint Trap

28 134440000 Clip, guide

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5304405283 Vane, straight, gray

31 131202300 Screw, 10-16AB x 0.625

32 131777700 Shaft, drum support, ballhitch

33 # 3204267 Thermostat, safety

34 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

35 131892100 Screw, 6-20B x 0.230

36 # 134120900 Thermal Limiter

38 131084810 Panel, white, right side

39 131084402 Panel, access, white, front

41 134222900 Hinge, dryer door

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

44 131129900 Gasket, door seal

46 131789400 Handle, door, white

47 131579103 Panel, inner door, white

48 131789303 Panel, outer door, white

49 5303211430 Door Strike

50 134535300 Insulator, heat shield, outer door

54 # 134403200 Wiring Harness, door switch, with light

59 # 131843500 Lamp Assy, drum light, w/mtg bracket

62 131258400 Screw, 10-16AB x 0.500

64 # 131891000 Control Board, temperature, ATC

64*# 134805600 Wiring Harness, ATC jumper

65 131894600 Housing, temp cont board

Publication No: 5995483350 GLET1142FS0

01/07 4

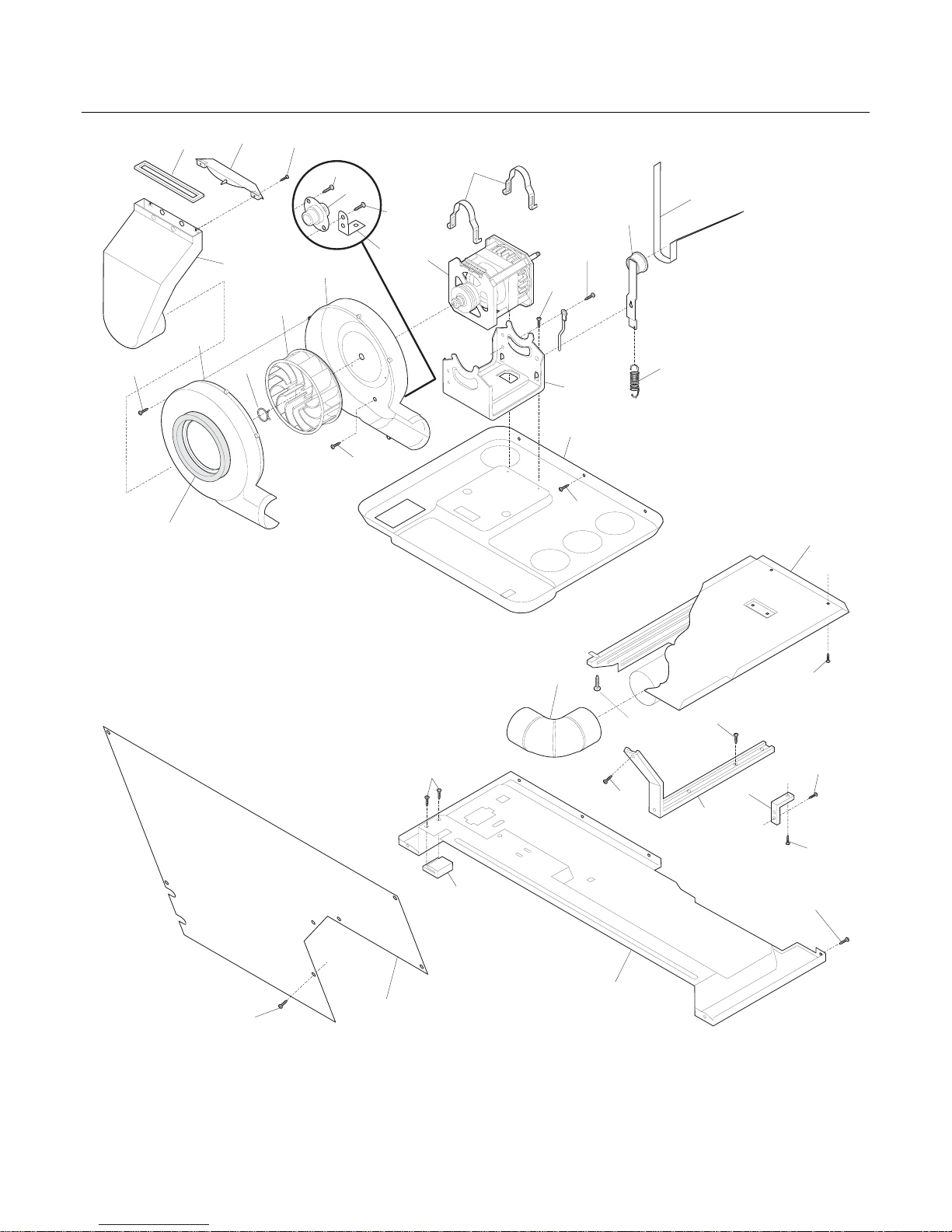

MOTOR/BLOWER/BELT

P17B0049

10A

250

GLET1142FS0 Publication No: 5995483350

# Functional Parts 5 01/07

* Non-Illustrated Parts

MOTOR/BLOWER/BELT

POS. NO PART NO. DESCRIPTION

1 131295200 Seal, air duct

2 131168200 Screw, pan head, 8-18B x 0.31

4 131477000 Screw, 10-16AB x 0.375

6 134086300 Duct, air

7 3204490 Seal, housing, to air duct

8 3205245 Screw, pan head, 6-18AB x 0.60

9 5303304824 Clamp

10 134611700 Housing, blower, front, with seal

10A 134608200 Housing, blower, rear

12 131476300 Blower Wheel

13 134608400 Ground Strap, thermostat

15 # 134048800 Thermostat, control

16 131243700 Screw, pan head, 8-18AB x 0.375

18 131413600 Cradle, motor mount, with idler stud

19 134613501 Panel, motor cradle mt, upper

22 3205241 Spring, idler

23 131863100 Idler Arm Assy, with pulley

25 # 134503900 Belt, dryer drive

26 5303212870 Block, support, bottom panel

27 134242400 Clamp, motor mtg.

28 # 134196600 Motor, dryer drive, with pulley

33 131731400 Shield, access area, cover

38 3204320 Elbow, exhaust duct

39 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

42 5304439185 Bracket, marriage, interior

43 131751500 Screw, hex head, 12-24T 0.63

44 3204326 Bracket, L mounting, cabinet rear, external

48 131731310 Panel, dryer, bottom rear

50 3204329 Cover, safety, lower front

57 131729300 Cover, moisture sensor

Publication No: 5995483350 GLET1142FS0

01/07 6

CONTROL PANEL

GLET1142FS0 Publication No: 5995483350

# Functional Parts 7 01/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 131960800 Timer, dryer, 4 off

2 131168200 Screw, pan head, 8-18B x 0.31

3 # 134136700 Wiring Harness, dryer control

4 134034970 Knob, rotary, white

5 # 134487800 Switch, pressure, infinite

6 # 134542600 Wiring Harness, washer control, w/temp switch

8 # 134237200 Timer, washer, 5 off

10 # 134399700 Switch, start, LCD

11 5303283289 Screw, cr pan head, 8-32 x 0.250, thread forming

12 # 134040800 Switch, on/off, white, round

15 # 134192400 Switch, water temp, 4 posn rotary

17 134263400 Bracket, control mount

18 134284500 Panel, trimplate, console front

20 131288101 End Cap, white, LH

21 134043000 Knob, dryer timer, white/dark gray

21A 134043200 Knob, washer timer, white

22 3161259 Screw, switch mtg, 6-32 x 0 .19, (2), sems

23 # 134605500 Wiring Harness, main

23* 5304426200 Screw, terminal block

23*# 134101400 Terminal Block, main

24 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

25 131976804 Indicator, timer pointer, white/dark gray, washer

27 131892100 Screw, 6-20B x 0.230

29 # 134769600 Wiring Harness, washer, lower

31 131288211 End Cap, white, RH

32 3204357 Clip, grounding

34 131243700 Screw, pan head, 8-18AB x 0.375

35 5308014350 Clip, end cap mtg, U-type

38 # 5303286537 Buzzer

39 # 134399900 Switch, dryer temp, LCD

51 131587400 Bracket, pc board mtg., (2)

52 134216300 Control Board, moisture sensor

Publication No: 5995483350 GLET1142FS0

01/07 8

LOWER CABINET/TOP

P17R0020

233

43A

45A

47A

GLET1142FS0 Publication No: 5995483350

# Functional Parts 9 01/07

* Non-Illustrated Parts

LOWER CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 134203900 Screw, pan hd phillips, 6-32 x 0.337, dog point

2 131168200 Screw, pan head, 8-18B x 0.31

3A 134075500 Bumper, lid, front

4 3205250 Hinge Bar

5 5303208743 Grommet, hinge

6 5303212872 Lid, washer, white

9 131390000 Lid Strike

9A 134768500 Insert, striker plate, lid slot

11 3204368 Screw, lid strike mtg, 6-20B X 0.375

20 3204374 Pin, slide, side to top

33 # 134210800 Valve, water, 115 V

34 131205500 Screw, cab body, 1/4-14 x 0.625, side-to-base

35 5308002385 Snubber Ring

36 3204380 Shipping Block

37 131658900 Screw, shipping, 1/4-20 x 1.001, yellow, unit base, thread forming

38 5303311213 Base Assembly

41 131258400 Screw, 10-16AB x 0.500

42 131104303 Panel, front, white

43 131422100 Pad, leveling leg

43A 131422200 Pad, self lvlg leg, rear

44 5303309673 Screw, leveling leg, with pad

45 131346400 Pin, panel locator

45A 131346401 Pin, panel locator, front

46 134046600 Cabinet Assy, white, back and sides

47 131106701 Bracket, marriage, RH

47A 131091001 Bracket, marriage, LH

50 # 134101800 Lock, lid, w/ext switch

53 131452510 Panel, washer top, white

54 3204394 Dispenser, bleach

55 5303212876 Spring, lid assist

56 131243700 Screw, pan head, 8-18AB x 0.375

58 131744202 Damper, vibration

Publication No: 5995483350 GLET1142FS0

01/07 10

MOTOR/TUB

P17T0059

35 36 37

23A
