PRODUCT NO. BASE MODEL NO. COLOR MARKET

FMV145KB1 FMV145K black North America

FMV145KS1 FMV145K white North America

CFMV145KB1 CFMV145K black Canada

CFMV145KS1 CFMV145K white Canada

Publication No.

5995357042

010803

-EN/SERVICE /KC

369

MICROWAVE

OVEN

Model No.

FMV145K

CFMV145K

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

MINI SERVICE MANUAL - # 5304409006

WIRING DIAGRAM - # 5304409006

OWNER’S GUIDE - # 316137205

INSTALLATION INSTRUCTIONS -# 316137211

08/01 2

Publication No. FMV145K & CFMV145K

5995357042

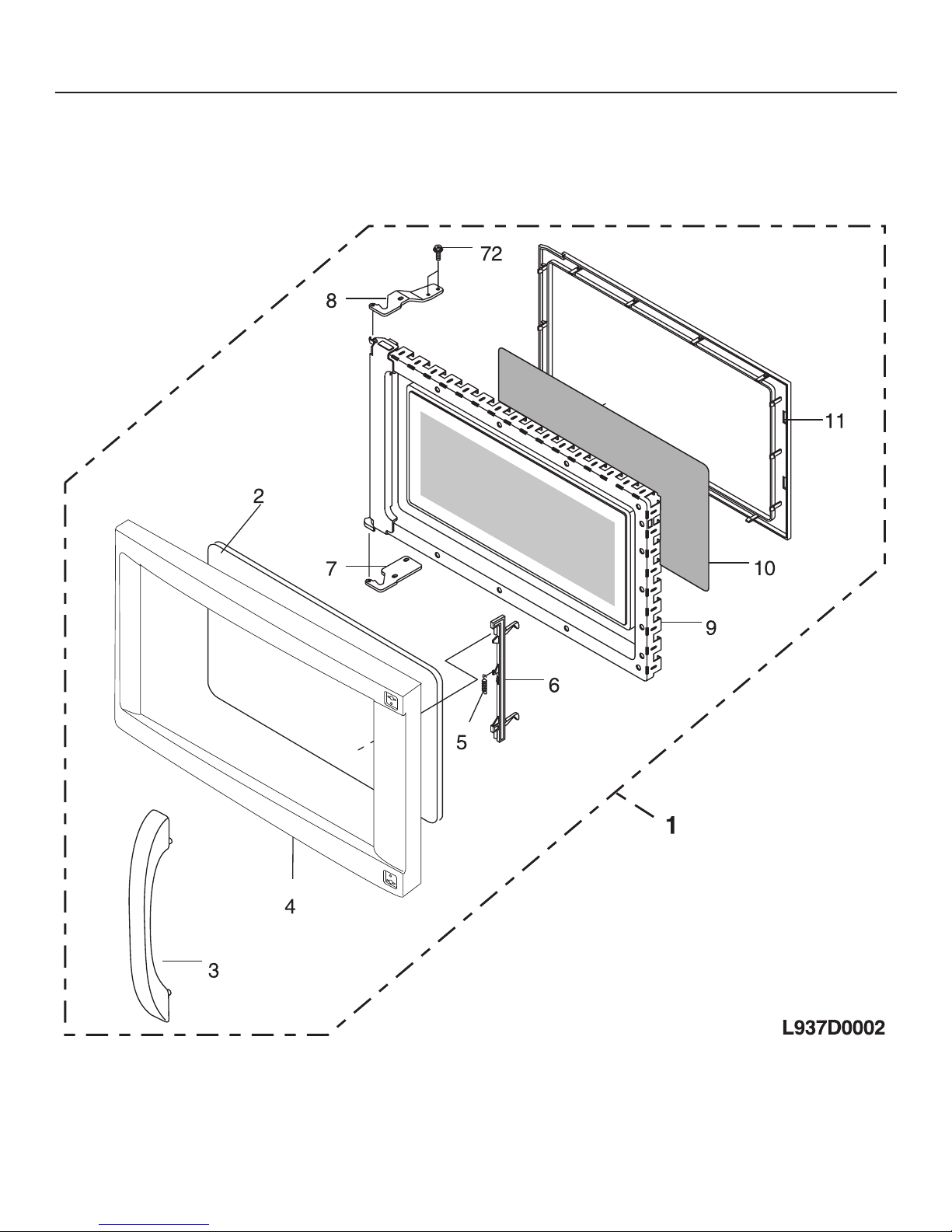

DOOR

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FMV145K & CFMV145K Publication No.

5995357042

A = FMV145K (FMV145KB1)

B = FMV145K (FMV145KS1)

C = CFMV145K (CFMV145KB1)

D = CFMV145K (CFMV145KS1)

POS. NO PART NO DESCRIPTION

1 5304424542 A - C - Door,black ,complete assy

1 5304424543 - B - D Door,white ,complete assy

2 5304408529 A B C D Screen,door ,glass ,front

3 5304408523 A - C - Handle,door ,black

3 5304408524 - B - D Handle,door ,white

4 5304423509 A - C - Frame,door ,black ,outer

4 5304423510 - B - D Frame,door ,white ,outer

5 5304423440 A B C D Spring,door latch

6 5304409137 A - C - Latch,door

6 5304409138 - B - D Latch,door

7 5304408579 A B C D Hinge,door ,lower

8 5304408578 A B C D Hinge,door ,upper

9 5304423511 A - - - Panel,door ,black ,inner

9 5304409133 - B - D Panel,door ,white ,inner

9 5304409134 - - C - Panel,door ,black ,inner

10 5304409136 A B C D Seal,door ,film

11 5304408575 A - C - Frame,choke cover ,black ,inner door

11 5304408576 - B - D Frame,choke cover ,white ,inner door

72 5304408958 A B C D Bolt,flange

DOOR

08/01 4

Publication No. FMV145K & CFMV145K

5995357042

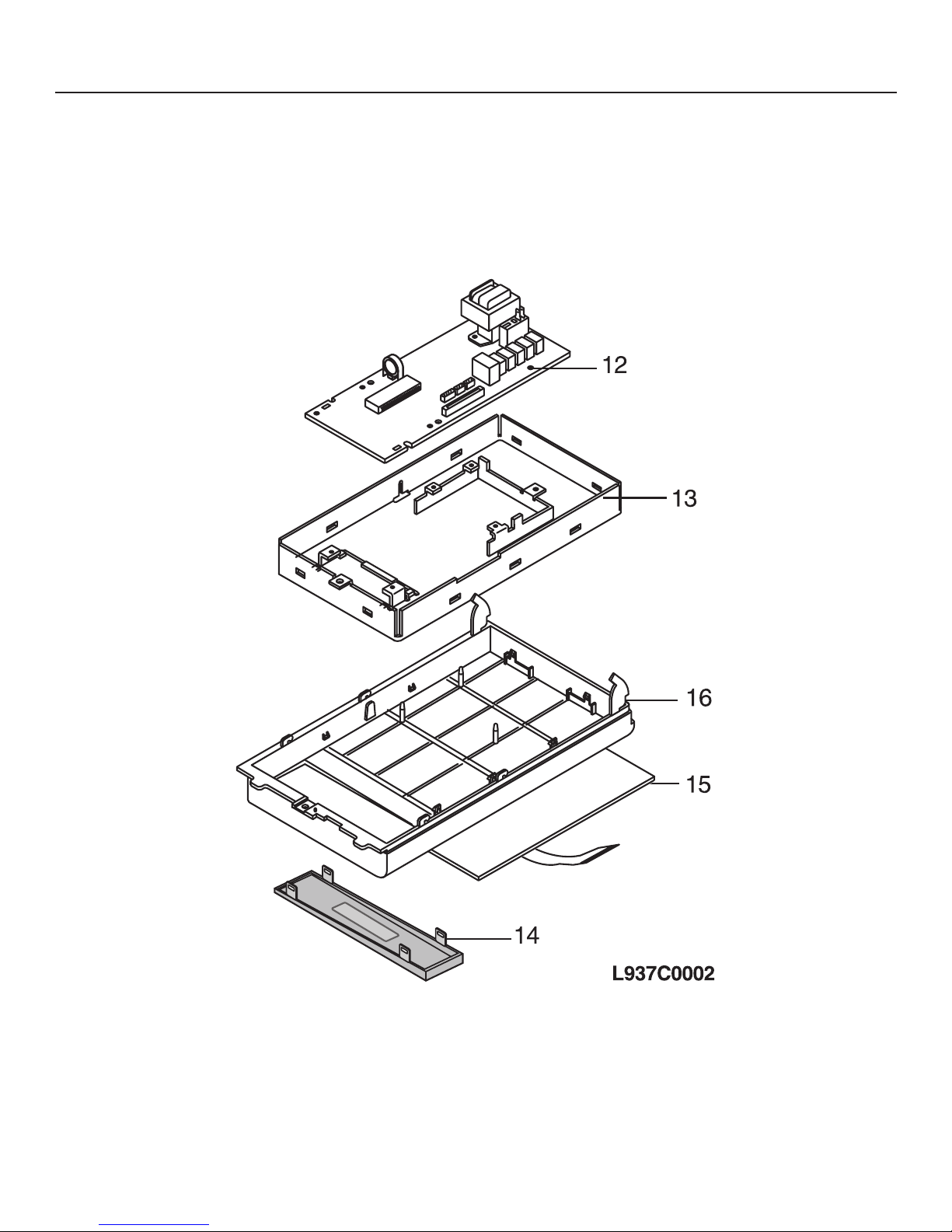

CONTROL PANEL

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FMV145K & CFMV145K Publication No.

5995357042

A = FMV145K (FMV145KB1)

B = FMV145K (FMV145KS1)

C = CFMV145K (CFMV145KB1)

D = CFMV145K (CFMV145KS1)

POS. NO PART NO DESCRIPTION

12 # 5304423362 A B C D Control Board,printed circuit

13 5304408514 A B C D Bracket,control mtg

14 5304408512 A B C D Window,control display

15 # 5304423515 A - C - Switch,touch control ,membrane ,black

15 # 5304423516 - B - D Switch,touch control ,membrane ,white

16 5304423517 A - - - Frame,control panel ,black

16 5304423518 - B - - Frame,control panel ,white

16 5304408507 - - C - Frame,control panel ,black

16 5304408508 ---D Frame,control panel ,white

CONTROL PANEL

08/01 6

Publication No. FMV145K & CFMV145K

5995357042

FUNCTIONAL PARTS

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FMV145K & CFMV145K Publication No.

5995357042

A = FMV145K (FMV145KB1)

B = FMV145K (FMV145KS1)

C = CFMV145K (CFMV145KB1)

D = CFMV145K (CFMV145KS1)

POS. NO PART NO DESCRIPTION

17 5304408954 A B C D Bracket,lamp mtg ,bottom

18 # 5304408948 A B C D Receptacle,lamp

19 5304408949 A B C D Lamp,incandescent

24 # 5304423520 A B C D Wiring Harness,D

26 # 5304408941 A B C D Capacitor,motor

27 # 5304417433 A B C D Thermostat,thermal cutout ,hood ,40/70 deg C

28 5304408960 A B C D Latch Hook

29 # 5304408938 A B C D Switch,interlock ,door/primary

30 # 5304408937 A B C D Switch,interlock ,monitor

31 5304408963 A B C D Lever,switch ,bottom

33 # 5304408952 A B C D Wiring Harness

39 5304408965 A B C D Support,rack

43 # 5304408980 A B C D Motor,turntable

45 5304408961 A B C D Bracket,air guide

46A# 5304423382 A B - - Receptacle,fuse

46B# 5304417434 - - C D Filter,noise ,assembly

47 # 5304423383 A B C D Fuse,cartridge ,20 Amp

49 # 5304423521 A B - - Capacitor,high voltage

49 # 5304423378 - - C D Capacitor,high voltage

50 # 5304417430 A B C D Diode,high voltage

51 5304408946 A B C D Bracket,capacitor mtg

57 # 5304408947 A B C D Power Cord,electric

59 # 5304408943 A B C D Fan Assy,ventilator ,with motor

60 # 5304408944 A B C D Motor,stirrer fan

61 # 5304423690 A B C D Thermostat,thermal cutout ,oven cavity

69 5304408962 A B C D Nut,flange

73 # 5304423374 A B C D Magnetron

74 # 5304408936 A B C D Thermostat,thermal cutout ,magnetron

75 # 5304408933 A B C D Transformer,high voltage

76 5304423523 A B C D Plate,xfmr base

77 # 5304408935 A B C D Thermostat,thermal cutout ,bottom ,120/0 deg C

78 5304423384 A B C D End Cap,xfmr base ,bottom

79 # 5304408942 A B C D Fan Assy,cooling ,includes motor

87 # 5304423386 A B C D Wiring Harness,C

88 # 5304423525 A B - - Wiring Harness,A

88 # 5304417432 - - C D Wiring Harness,A

89 5304423527 A B C D Screw,washer head

90 5304408964 A B C D Screw,special

93 5304423391 - - C D Wire Lead,capacitor

FUNCTIONAL PARTS

08/01 8

Publication No. FMV145K & CFMV145K

5995357042

BODY

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FMV145K & CFMV145K Publication No.

5995357042

BODY

A = FMV145K (FMV145KB1)

B = FMV145K (FMV145KS1)

C = CFMV145K (CFMV145KB1)

D = CFMV145K (CFMV145KS1)

POS. NO PART NO DESCRIPTION

20 5304408972 A - C - Plate,oven base ,black ,bottom cover

20 5304417436 - B - D Plate,oven base ,white ,bottom cover

21 5304408977 A B C D Filter,air ,(2)

22 5304408988 A B C D Lens,cooktop lamp ,glass ,(2)

23 5304408973 A - C - Cover,lens frame ,black ,lamp

23 5304408974 - B - D Cover,lens frame ,white ,lamp

34 # 5304408950 A B C D Fan Blade,stirrer/antenna

35 5304423487 A B C D Collar,motor shaft ,stirrer fan

36 5304408992 A B C D Pivot Tip,shaft collar ,stirrer motor

37 5304408986 A B C D Cover,stirrer/antenna

38 5304408979 A B C D Rivet,push mount ,plastic ,stirrer cover

40 5304417415 A B C D Bushing,motor shaft ,turntable

42 5304408990 A B C D Cover,front

54 5304417437 A B C D Bracket,motor mtg ,turntable/vent ,wrpr top plate

55 5304423504 A B C D Holder Nut,assy

58 5304408975 A - C - Casing,wrapper ,black ,outer panel

58 5304423528 - B - D Casing,wrapper ,white ,outer panel

68 5304408982 A B - - Bracket,duct assy ,upper

68 5304423508 - - C D Bracket,duct assy ,upper

70 5304423529 A - C - Grille,exhaust ,black

70 5304423530 - B - D Grille,exhaust ,white

71 5304408994 A - C - Screw,grille mtg ,black ,(2)

71 5304408993 - B - D Screw,grille mtg ,white ,(2)

80 5304409641 A B C D Filter,air ,charcoal

82 5304408995 A B C D Rack,microwave oven ,wire

84 5304417414 A B C D Support,turntable tray ,with rollers

85 5304417435 A B C D Tray,turntable ,glass

91 5304423522 A B C D Bracket,filter

93 5304423531 A B - - Label,cooking guide

93 5304423532 - - C D Label,cooking guide

08/01 10

Publication No. FMV145K & CFMV145K

5995357042

INSTALLATION
