Frigidaire FMV156D Manuale utente

Product No. FMV156DBE FMV156DCF FMV156DQE FMV156DSE

Market North America North America North America North America

Color black stainless bisque white

Volts 120 120 120 120

Watts 950 950 950 950

Wiring Diagram 5995490439 5995490439 5995490439 5995490439

Owner's Guide TINSEB445MRR2 TINSEB445MRR2 TINSEB445MRR2 TINSEB445MRR2

Installation Instructions TINSEB386MRR1 TINSEB386MRR1 TINSEB386MRR1 TINSEB386MRR1

FMV156D.tif FMV156D_E cab.wmf FMV156D-D door.eps FMV156D_E

wiring.wmf

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995490439

07/05/09

(EN/SERVICE/WTC)

099

OVER-RANGE

MICROWAVE

Model No.

FMV156D

Publication No: 5995490439 FMV156D

05/07 2

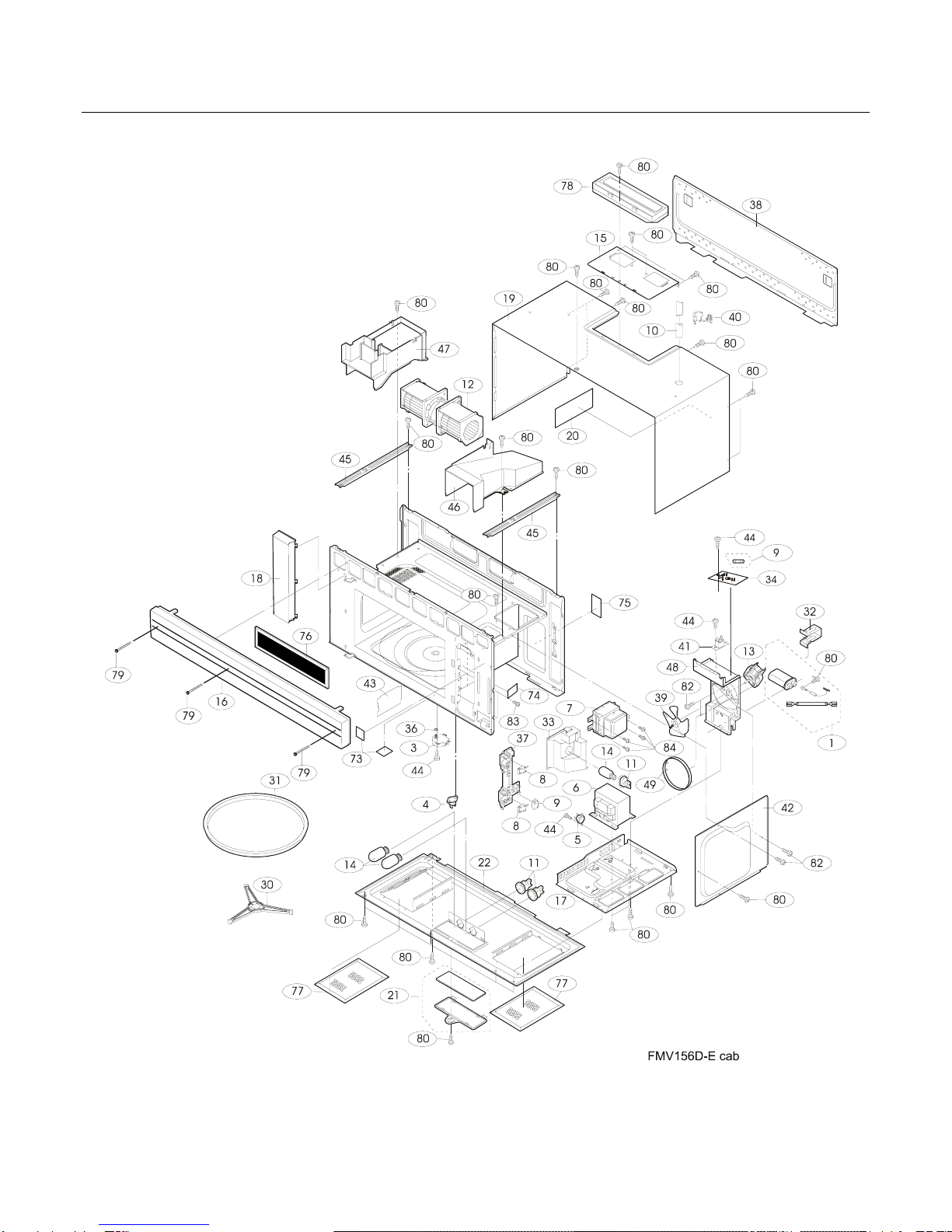

OVEN,CABINET

FMV156D Publication No: 5995490439

# Functional Parts 3 05/07

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AFMV156D (FMV156DBE)

BFMV156D (FMV156DCF)

CFMV156D (FMV156DQE)

DFMV156D (FMV156DSE)

POS. NO PART NO. DESCRIPTION

1 # 5304461618 A B C D HV ASSY, incl rectifier, capacitor, wireb

3 # 5304448488 A B C D Motor, turntable

4 # 5304440032 A B C D Thermal Cutout, oven cavity

5 # 5304440023 A B C D Thermal Cutout, hood

6 # 5304461585 A B C D Transformer, power

7 # 5304440781 A B C D Magnetron

8 # 5304440026 A B C D Switch, interlock, door sensor

9 # 5303319559 A B C D Switch, monitor, w/ceramic fuse

10 # 5304440028 A B C D Power Cord, electric

11 # 5303319561 A B C D Receptacle, lamp socket, oven

12 # 5304441847 A B C D Motor, hood fan

13 # 5304441848 A B C D Motor, cooling fan

14 5304440031 A B C D Lamp, incandescent, 20 W, (3)

15 5304441849 A B C D Plate, rear stay

16 5304458567 A B - - Grille, exhaust louver, black

16 5304461265 - - C - Grille, exhaust louver, bisque

16 5304461264 - - - D Grille, exhaust louver, white

17 5304461266 A B C D Base, transformer, right side

18 5304451942 A - - - Panel, front trim, black, LS

18 5304448841 - B - - Panel, front trim, stainless, LS

18 5304441856 - - C - Panel, front trim, bisque, LS

18 5304441857 - - - D Panel, front trim, white, LS

19 5304441858 A B - - Cabinet, outer casing, black

19 5304441859 - - C - Cabinet, outer casing, bisque

19 5304441860 - - - D Cabinet, outer casing, white

20 5304451814 A B C D Wiring Diagram, schematic, label

21 5303319573 A B C D Lens/Frame Assy, lamp

22 5304451815 A B - - Cover, unit base, black

22 5304451817 - - C - Cover, unit base, bisque

22 5304451816 - - - D Cover, unit base, white

30 5304440284 A B C D Support Assy, turntable

31 5304441872 A B C D Tray, turntable, glass

32 5304441873 A B C D Retainer, capacitor strap

33 5304441874 A B C D Duct, magnetron

34 # 5304451818 A B C D Filter, noise, electronic

36 5304440288 A B C D Bushing, motor shaft, turntable

37 5304440289 A B C D Latch Hook

38 5304461267 A B C D Bracket, mounting plate, rear

39 # 5304440843 A B C D Fan Blade, cooling fan

40 5303319605 A B C D Bushing, grommet, power cord

41 # 5303319550 A B C D Fuse, magnetron

42 5304441876 A B C D Duct, hood intake, right side

43 5304440845 A B C D Cover, waveguide

44 5304453725 A B C D Screw, 3mm x 8mm

45 5304441877 A B C D Support, chassis

46 5304441878 A B C D Duct, hood intake, right side

47 5304441879 A B C D Duct, exhaust hood, left side

Publication No: 5995490439 FMV156D

05/07 4

OVEN,CABINET

FMV156D Publication No: 5995490439

# Functional Parts 5 05/07

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AFMV156D (FMV156DBE)

BFMV156D (FMV156DCF)

CFMV156D (FMV156DQE)

DFMV156D (FMV156DSE)

POS. NO PART NO. DESCRIPTION

48 5304461586 A B C D Duct, cooling fan

49 5304441881 A B C D Ring, fan orifice

73 5304441900 A B C D Label, Caution-DHHS

74 5304440334 A B C D Label, Caution-monitor

75 5304440333 A B C D Label, Caution-DHHS

76 5304456425 A B C D Filter, inside exhaust, charcoal

77 5303319568 A B C D Filter, grease, (2)

78 5304440283 A B C D Damper Assy, exhaust

79 5303319640 A B - - Screw, black

79 5303319652 - - C - Screw, vent grille, bisque

79 5303319663 - - - D Screw, vent grille, white

80 5304451553 A B C D Screw, 4 mm x 12 mm

82 5304450253 A B C D Screw, 4 mm x 8 mm

83 5303319641 A B C D Screw

84 5303319636 A B C D Screw

Publication No: 5995490439 FMV156D

05/07 6

CONTROL PANEL,DOOR,MISC.

FMV156D Publication No: 5995490439

# Functional Parts 7 05/07

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

Model Index: AFMV156D (FMV156DBE)

BFMV156D (FMV156DCF)

CFMV156D (FMV156DQE)

DFMV156D (FMV156DSE)

POS. NO PART NO. DESCRIPTION

23 # 5304441863 A B C D Control Board, printed circuit

24 5304450254 A - - - Frame, control panel, black

24 5304448513 - B - - Frame, control panel, stainless steel

24 5304441866 - - C - Frame, control panel, bisque

24 5304441867 - - - D Frame, control panel, white

25 # 5304441868 A B - - Switch, touch pad, black

25 # 5304441869 - - C - Switch, touch pad, bisque

25 # 5304441870 - - - D Switch, touch pad, white

26 5304440281 A B C D Panel, control mount

27 5304458568 A B C D Screw

28 5304456930 A B C D Screw

29 5304441871 A B C D Door Stop

51 5304455603 A - - - Door Assy, black, w/handle

51 5304447862 - B - - Door Assy, stainless, w/handle

51 5304461269 - - C - Door Assy, bisque, w/handle

51 5304461268 - - - D Door Assy, white, w/handle

52 5304441887 A B - - Panel, inner door, black

52 5304441888 - - C - Panel, inner door, bisque

52 5304441889 - - - D Panel, inner door, white

53 5304461334 A - - - Frame, outer door, black

53 5304461271 - - C - Frame, outer door, bisque

53 5304461270 - - - D Frame, outer door, white

54 5304440314 A B C D Latch, door

55 5304440316 A B C D Spring, door latch

56 5304441894 A B C D Frame, choke cover, inner door

57 5304440860 A B C D Seal, door, film

58 5304440323 A B - - Handle, door, black

58 5304440325 - - C - Handle, door, bisque

58 5304440324 - - - D Handle, door, white

59 5304451561 A B C D Screw, 4 mm x 8 mm

60 5304458213 A B C D Screw, 4 mm x 12 mm

61 5304461272 A B C D Hardware, installation, kit

62 5303319605 A B C D Bushing, grommet, power cord

63 5303318762 A B C D Screw, toggle

64 5304453895 A B C D Screw, 5mm x 85mm

65 5304451553 A B C D Screw, 4 mm x 12 mm

66 5304453723 A B C D Screw, 5mm x 35mm

67 5304453724 A B C D Washer

68 5304441896 A B C D Bracket, scale plate

70 5304458571 A B C D Template, installation, top/wall

71 # 5304441898 A B C D Wire, high voltage-A

72 # 5304451820 A B C D Wiring Harness, main

Publication No: 5995490439 FMV156D

05/07 8

WIRING SCHEMATIC
