Frigidaire GLMV169H Manuale utente

Product No. GLMV169HBA GLMV169HQA GLMV169HSA

Market North America North America North America

Color black bisque white

Volts 120 120 120

Watts 1000 1000 1000

Wiring Diagram 5995518155 5995518155 5995518155

Owner's Guide TINSEB150WRRZ TINSEB150WRRZ TINSEB150WRRZ

Installation Instructions TINSEB151WRRZ TINSEB151WRRZ TINSEB151WRRZ

GLMV169 cover.eps GLMV169H Cabinet.eps GLMV169H Controls.eps

GLMV169H Wiring.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995518155

08/07/15

(EN/SERVICE/KC)

099

OVER-RANGE

MICROWAVE

Model No.

GLMV169H

Publication No: 5995518155 GLMV169H

07/08 2

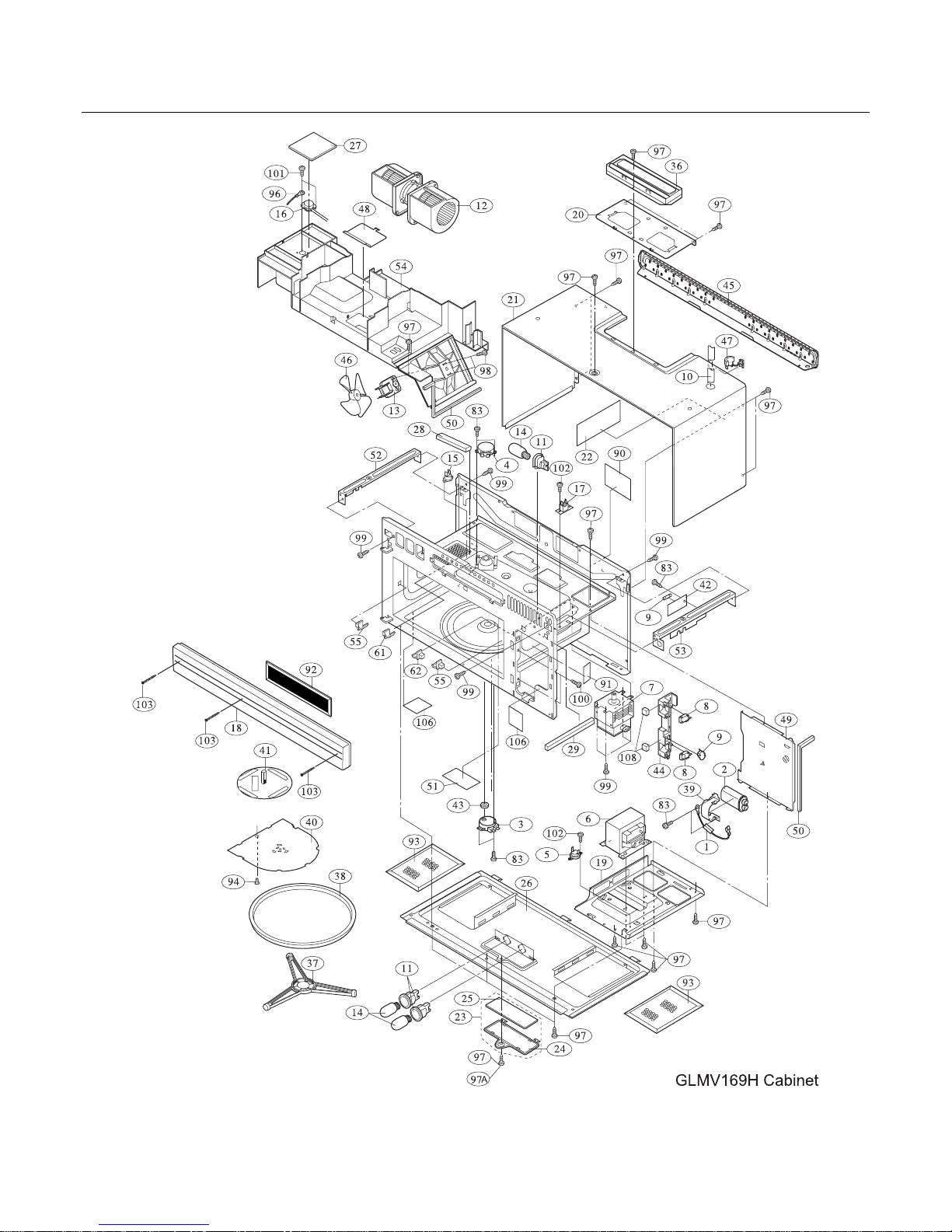

OVEN,CABINET

GLMV169H Publication No: 5995518155

# Functional Parts 3 07/08

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AGLMV169H (GLMV169HBA)

BGLMV169H (GLMV169HQA)

CGLMV169H (GLMV169HSA)

POS. NO PART NO. DESCRIPTION

1 # 5304467670 A B C Rectifier, high voltage

2 # 5304467671 A B C Capacitor, high voltage

3 # 5304448488 A B C Motor, turntable

4 # 5304448489 A B C Motor, stirrer fan

5 # 5304440023 A B C Thermal Cutout, hood

6 # 5304468156 A B C Transformer, power

7 # 5304461353 A B C Magnetron

8 # 5304440026 A B C Switch, interlock, door sensor

9 # 5304467695 A B C Switch, monitor, w/ceramic fuse

10 # 5304440028 A B C Power Cord, electric

11 # 5304461117 A B C Socket, oven lamp

12 # 5304440029 A B C Motor, hood fan

13 # 5304448490 A B C Motor, cooling fan

14 5304440031 A B C Lamp, incandescent, 20 W, (3)

15 # 5304440032 A B C Thermal Cutout, oven cavity

16 # 5304440033 A B C Sensor, humidity, cook control

17 # 5303319550 A B C Fuse, magnetron

18 5304468158 A - - Grille, exhaust, black

18 5304468159 - B - Grille, exhaust, bisque

18 5304468157 - - C Grille, exhaust, white

19 5304468161 A B C Plate, base, right

20 5304468162 A B C Plate, rear stay

21 5304468164 A - - Cabinet, outer casing, black

21 5304468165 - B - Cabinet, outer casing, bisque

21 5304468163 - - C Cabinet, outer casing, white

22 5304468166 A B C Wiring Diagram, schematic, label

23 5303319573 A - - Lens/Frame Assy, lamp

23 5304451821 - B - Lens/Frame Assy, lamp, bisque

23 5304458209 - - C Lens/Frame Assy, lamp, white

24 5303319574 A - - Frame, lens holder

24 5304451822 - B - Frame, lens holder, bisque

24 5304458210 - - C Frame, lens holder, white

25 5303319575 A B C Lens, cooktop lamp, glass

26 5304468168 A - - Cover, unit base, black

26 5304468169 - B - Cover, unit base, bisque

26 5304468167 - - C Cover, unit base, white

27 5304468170 A B C Cushion, hood duct

28 5304468173 A B C Cushion, top panel, rubber

29 5304451500 A B C Cushion, magnetron

36 5304464343 A B C Damper Assembly, exhaust

37 5304467717 A B C Support Assy, turntable,roller

38 5304440285 A B C Tray, turntable, glass

39 5304468174 A B C Retainer, capacitor strap

40 5304468175 A B C Cover, stirrer fan

41 # 5304468176 A B C Stirrer Assembly

42 # 5304467698 A B C Filter, noise, electronic

43 5304467718 A B C Bushing, motor shaft, turntable

44 5304440289 A B C Latch Hook

Publication No: 5995518155 GLMV169H

07/08 4

OVEN,CABINET

GLMV169H Publication No: 5995518155

# Functional Parts 5 07/08

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AGLMV169H (GLMV169HBA)

BGLMV169H (GLMV169HQA)

CGLMV169H (GLMV169HSA)

POS. NO PART NO. DESCRIPTION

45 5304468135 A B C Bracket, mounting plate, rear

46 # 5304468177 A B C Fan Blade, mag cooling fan

47 5304467721 A B C Bushing, grommet, power cord

48 5304468178 A B C Cover, oven lamp

49 5304468179 A B C Duct, hood intake, right side

50 5304468180 A B C Cushion, intake duct, seal

51 5304467727 A B C Lens, lamp filter

52 5304468181 A B C Support, chassis, left side

53 5304468182 A B C Support, chassis, right side

54 5304468183 A B C Duct, exhaust hood

55 5304467733 A B C Support, rack, front

61 5304467762 A B C Support, rack, left rear

62 5304467763 A B C Support, rack, right rear

83 5304451550 A B C Screw, 4 mm x 8 mm

90 5304467770 A B C Label, Caution-DHHS

91 5304468187 A B C Label, Caution-monitor

92 5304440335 A B C Filter, inside exhaust, charcoal

93 5303319568 A B C Filter, grease, (2)

94 5304467773 A B C Clip, canoe type, stirrer cover

96 # 5304467828 A B C Wire, ground

97 5304451552 A B C Screw, 4 mm x 8 mm, white

97A 5304467777 A - - Screw, 4 mm x 8 mm, black

98 5304462315 A B C Screw, 4 mm x 12 mm, ground

99 5304467780 A B C Screw, 4 mm x 8 mm, Tap Tight

100 5303319641 A B C Screw

101 5304467778 A B C Screw, 3 mm x 8 mm

102 5304467781 A B C Screw, 3 mm x 6 mm

103 5304468189 A - - Screw, black

103 5304468190 - B - Screw, bisque

103 5304468188 - - C Screw, white

106 5304468191 A B C Label, Caution-DHHS

108 5304467769 A B C Cushion, latch hook, pad

Publication No: 5995518155 GLMV169H

07/08 6

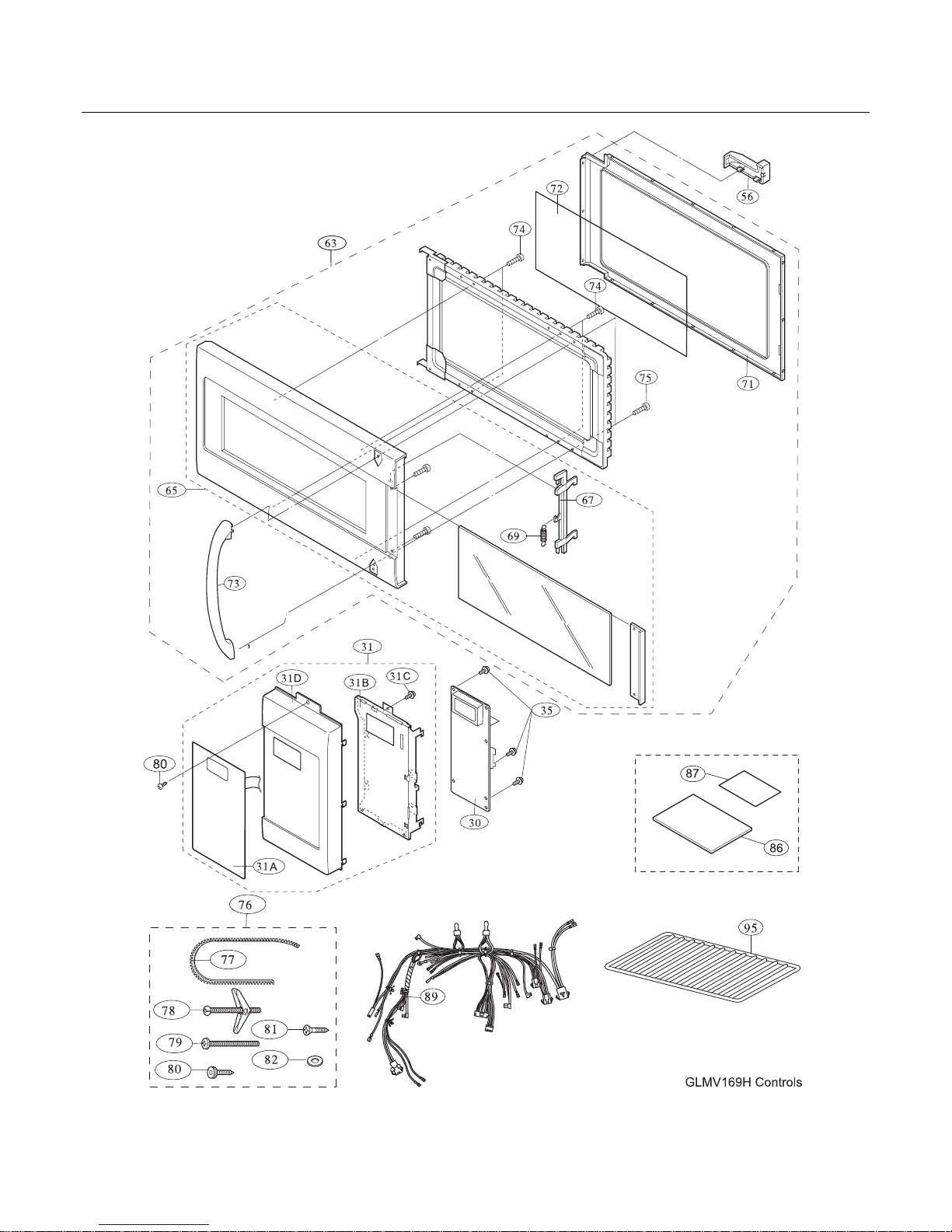

CONTROL PANEL,DOOR,MISC.

GLMV169H Publication No: 5995518155

# Functional Parts 7 07/08

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

Model Index: AGLMV169H (GLMV169HBA)

BGLMV169H (GLMV169HQA)

CGLMV169H (GLMV169HSA)

POS. NO PART NO. DESCRIPTION

30 # 5304468192 A B C Control Board, printed circuit

31 # 5304461358 A - - Control Panel Assy, black

31 # 5304468194 - B - Control Panel Assy, bisque

31 # 5304468193 - - C Control Panel Assy, white

31A# 5304461362 A - - Touch Control, key pad, black

31A# 5304461363 - B - Touch Control, key pad, bisque

31A# 5304461364 - - C Touch Control, key pad, white

31B 5304468195 A B C Panel, control mount

31C 5304456930 A B C Screw, 3 mm x 10 mm

31D 5304468197 A - - Frame, control panel, black

31D 5304468198 - B - Frame, control panel, bisque

31D 5304468196 - - C Frame, control panel, white

35 5304467710 A B C Screw, 3 mm x 8 mm

56 5304468199 A B C Door Stop

63 # 5304441374 A - - Door Assy, black, w/handle

63 # 5304468201 - B - Door Assy, bisque, w/handle

63 # 5304468200 - - C Door Assy, white, w/handle

65 5304468203 A - - Frame Assembly, door, black

65 5304468204 - B - Frame Assembly, door, bisque

65 5304468202 - - C Frame Assembly, door, white

67 5304440314 A B C Latch, door

69 5304440316 A B C Spring, door latch

71 5304440320 A B C Frame, choke cover, inner door

72 5304468205 A B C Seal, door, film

73 5304468207 A - - Handle, door, black

73 5304468208 - B - Handle, door, bisque

73 5304468206 - - C Handle, door, white

74 5304451517 A B C Screw, 4 mm x 8 mm

75 5304468209 A B C Screw, 4 mm x 30 mm

76 5304467765 A B C Hardware Kit, installation

77 5303318761 A B C Sleeve, power cord, grommet

78 5303318762 A B C Screw, toggle

79 5304453895 A B C Screw, 5mm x 85mm

80 5304451552 A B C Screw, 4 mm x 8 mm, white

81 5304453723 A B C Screw, 5mm x 35mm

82 5304453724 A B C Washer

86 5304468216 A B C Template, installation, top

87 5304468217 A B C Template, installation, wall

89 5304468215 A B C Wiring Harness, main

95 5304440338 A B C Rack, microwave oven, wire

Publication No: 5995518155 GLMV169H

07/08 8

WIRING SCHEMATIC
