Frigidaire FEB27T5DBB Manuale di istruzioni

UPPER OVEN LOWEROVEN

Low er OvenUpperOven

ean

ock

Keep

warm

Controls

Clear

/O ff

Keep

warm

Controls

Clear

/O ff

Bake

ime

Start

time

Sel

f-CleaningOvens

Oven

light

mer

On/Off

Bake

time

Oven

light

STAR T STAR T

Broil

Bake

Start

time

Broil

Bake

Product No. FEB27T5DBB FEB27T5DSB

37054741E4062 37054741E4012

Series 27" double 27" double

Color black white

Market North America North America

Wiring Diagram 318046119 318046119

Owner's Guide 318200924 318200924

Installation Instructions 316201514 316201514

Service Data Sheet 318047305 318047305

Timer Guide 318200132 318200132

FEB27T5D.eps CFEB30T5DSA.eps BUFEB27T5DCB.eps BLFEB27T5DSA.eps

DFEB30S5DSA.eps 318046119.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995442984

05/07/28

(EN/SERVICE/)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB27T5D

Publication No: 5995442984 FEB27T5D

07/05 2

CONTROL PANEL

FEB27T5D Publication No: 5995442984

# Functional Parts 3 07/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEB27T5D (FEB27T5DBB)

BFEB27T5D (FEB27T5DSB)

POS. NO PART NO. DESCRIPTION

2A 318257301 A B Shield, oven top

2B 318260101 A B Cover, box

19 318274415 A - Control Panel Assembly, glass, black, w/touch pad

19 318274414 - B Control Panel Assembly, glass, white, w/touch pad

20 # 316429702 A B Control, electronic, 5800W1, dual oven

* 316021107 A B Screw, hex head, 8-32, silver

23 318262900 A B Bracket, control mtg., (2)

97 316429800 A B Board, relay, dual oven

* 318231704 A B Harness, wiring, control-relay

* 5303211311 A B Screw, 8 x 0.500

Publication No: 5995442984 FEB27T5D

07/05 4

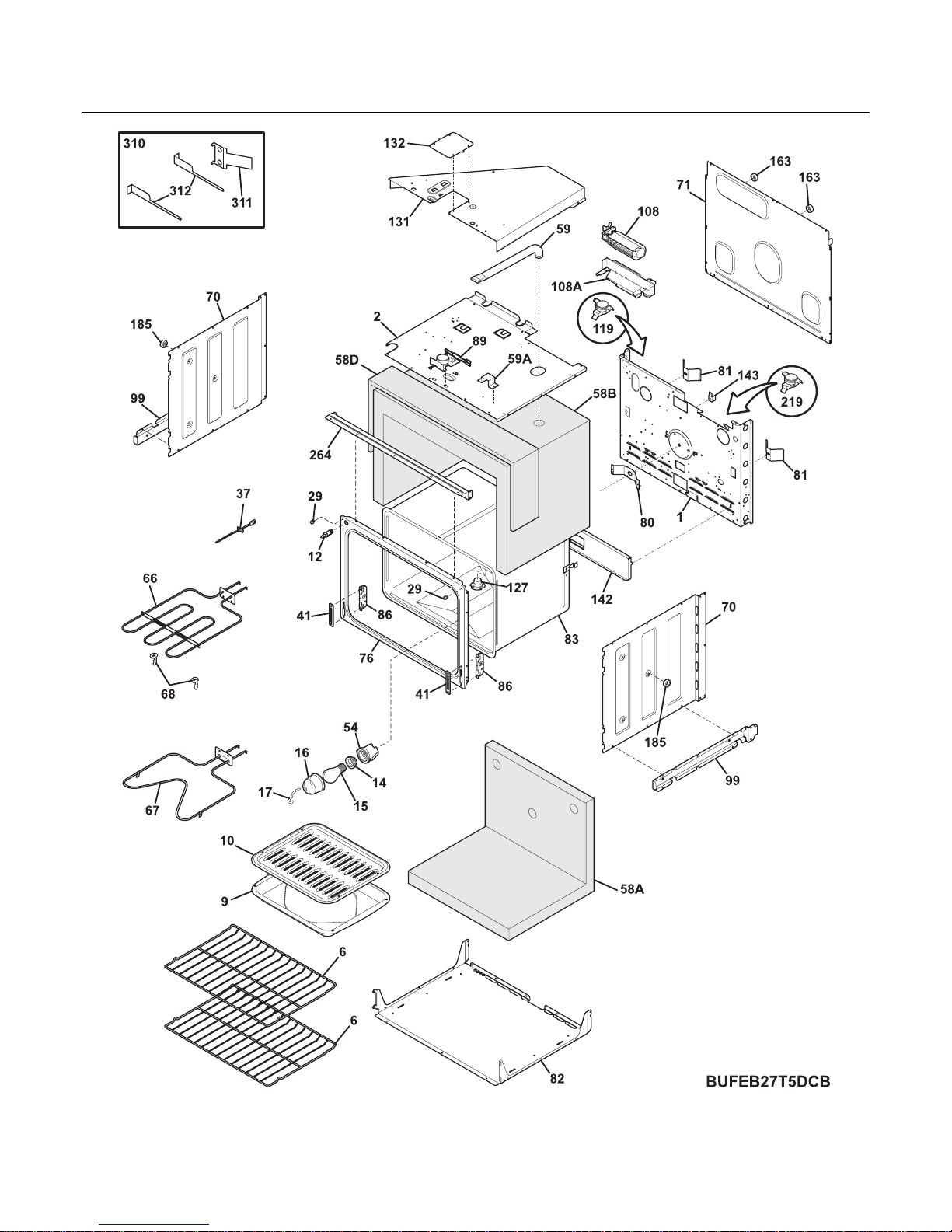

UPPER OVEN

FEB27T5D Publication No: 5995442984

# Functional Parts 5 07/05

* Non-Illustrated Parts

UPPER OVEN

Model Index: AFEB27T5D (FEB27T5DBB)

BFEB27T5D (FEB27T5DSB)

POS. NO PART NO. DESCRIPTION

1 318259210 A B Back, main

2 318258910 A B Shield, insulation, upper

6 318262602 A B Rack, oven, (2)

9 5303317977 A B Pan, broiler

10 5303317976 A B Insert, broiler pan

12 # 318089917 A B Switch, light

14 318224000 A B Receptacle, oven light

14* 318268099 A B Insulation, oven light

15 5303013071 A B Bulb/Lamp, oven light

16 3201911 A B Cover, oven light, glass

17 5304400195 A B Retainer, light cover

29 318147411 A B Bumper, (2)

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

58A 318285060 A B Insulation, rear & bottom, oven wrapper

58B 318285059 A B Insulation, top & sides, oven wrapper

58D 318285058 A B Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B Duct, oven vent

59A 318261600 A B Bracket, vent tube

66 # 318255601 A B Element, broil, 3400W

67 # 318255103 A B Element, bake, 2300W

68 5304403015 A B Support, hanger, (2), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260001 A B Panel, rear box

76 318056222 A B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

82 318258710 A B Shield, insulation, lower

83 318261502 A B Liner, ovenassy

86 5303310524 A B Receptacle, hinge

89 # 318261202 A B Motor, latch assy

* 318231705 A B Harness, latch

99 318252800 A B Support, side

108# 318073018 A B Motor, blower

* 08016432 A B Screw, truss head, 8-18 x 0.375

108A 318251300 A B Bracket, fan support

119# 318004900 A B Switch, thermal

127 318317100 A B Adapter Assembly, vent tube, w/converter

131 318272900 A B Box, vent

132 318003000 A B Plate, shield

142 318123910 A B Deflector

143 318172904 A B Support, wire/glass

163 318014111 A B Spacer

185 318014700 A B Spacer, oven shield, (4)

219# 318003614 A B Thermostat, safety

264 318257711 A B Trim, oven, black, front

310 5304440067 A B Cabinet Mounting Kit

311 318246010 A B Bracket, cabinet mtg, (2)

Publication No: 5995442984 FEB27T5D

07/05 6

UPPER OVEN

FEB27T5D Publication No: 5995442984

# Functional Parts 7 07/05

* Non-Illustrated Parts

UPPER OVEN

Model Index: AFEB27T5D (FEB27T5DBB)

BFEB27T5D (FEB27T5DSB)

POS. NO PART NO. DESCRIPTION

311* 5304438005 A B Screw, 6 x 1, black

312 318246702 A B Tool, cabinet bracket, RH

312 318246703 A B Tool, cabinet bracket, LH

* 3201861 A B Screw, 6 x 0.375, (4)

* 5303211311 A B Screw, 8 x 0.500

* 5303300265 A B Screw, 8-18 x 0.500, chrome, (3)

* 5303323277 A B Screw, 8-18 X 13/32

* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995442984 FEB27T5D

07/05 8

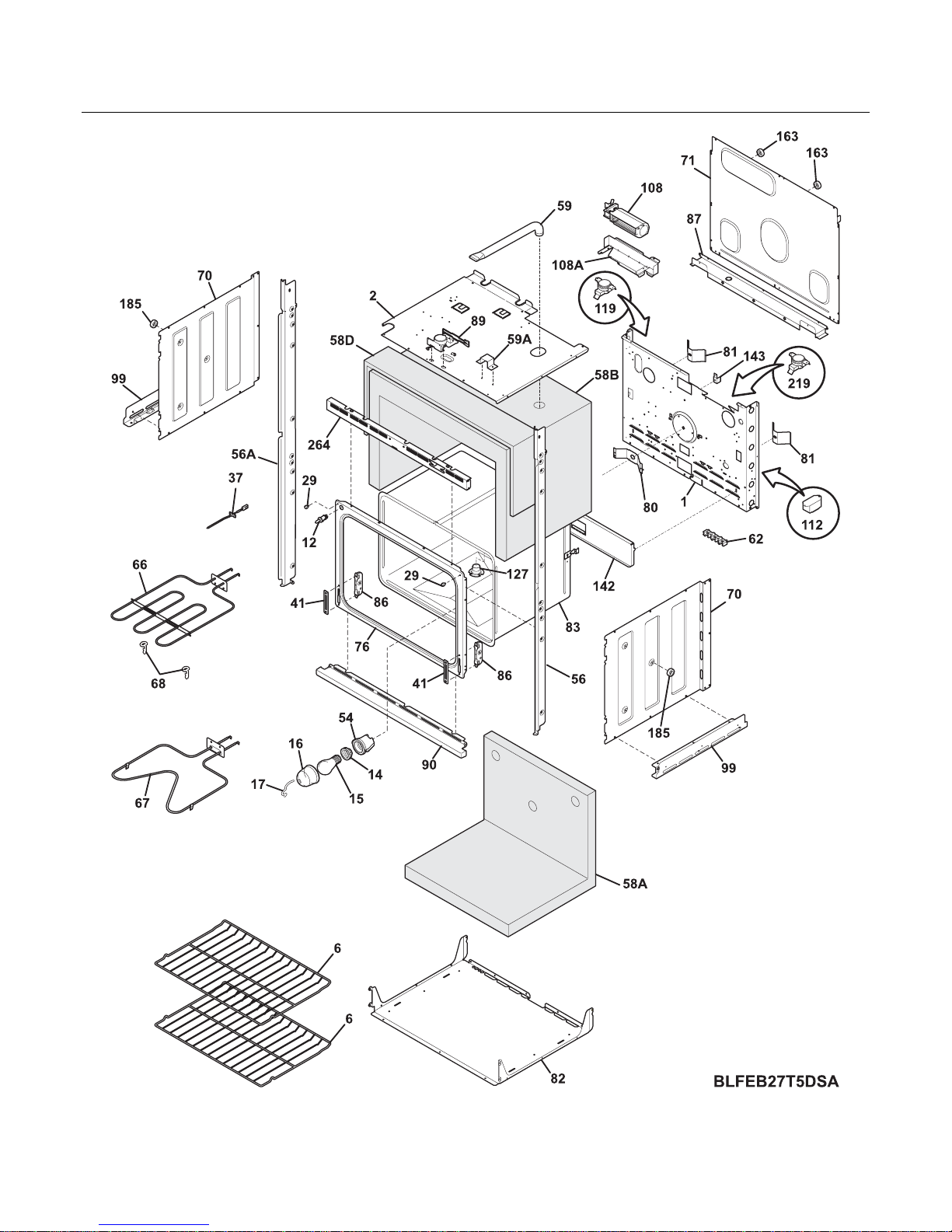

LOWER OVEN

FEB27T5D Publication No: 5995442984

# Functional Parts 9 07/05

* Non-Illustrated Parts

LOWER OVEN

Model Index: AFEB27T5D (FEB27T5DBB)

BFEB27T5D (FEB27T5DSB)

POS. NO PART NO. DESCRIPTION

1 318259210 A B Back, main

2 318258910 A B Shield, insulation, upper

6 318262602 A B Rack, oven, (2)

12 # 318089917 A B Switch, light

14 318224000 A B Receptacle, oven light

14* 318268099 A B Insulation, oven light

15 5303013071 A B Bulb/Lamp, oven light

16 3201911 A B Cover, oven light, glass

17 5304400195 A B Retainer, light cover

29 318147411 A B Bumper, (2)

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

56 318259914 A - Trim, side filler, black, RH

56 318259912 - B Trim, side filler, white, RH

56A 318259915 A - Trim, side filler, black, LH

56A 318259913 - B Trim, side filler, white, LH

58A 318285060 A B Insulation, rear & bottom, oven wrapper

58B 318285059 A B Insulation, top & sides, oven wrapper

58D 318285058 A B Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B Duct, oven vent

59A 318261600 A B Bracket, vent tube

62 316056000 A B Terminal Block

62* 5303323139 A B Screw, 10-24 x 0.906

62* 5303323144 A B Nut, 10-32

66 # 318255601 A B Element, broil, 3400W

67 # 318255103 A B Element, bake, 2300W

68 5304403015 A B Support, hanger, (2), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260001 A B Panel, rear box

76 318056222 A B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

82 318258710 A B Shield, insulation, lower

83 318261502 A B Liner, ovenassy

86 5303310524 A B Receptacle, hinge

87 318260601 A B Bracket, cable mtg.

89 # 318261202 A B Motor, latch assy

* 318231705 A B Harness, latch

90 318259711 A - Trim, oven front, black, bottom

90 318259710 - B Trim, oven front, white, bottom

99 318256200 A B Bracket, side, bottom, (2)

108# 318073018 A B Motor, blower

* 08016432 A B Screw, truss head, 8-18 x 0.375

108A 318251300 A B Bracket, fan support

119# 318004900 A B Switch, thermal

127 318317100 A B Adapter Assembly, vent tube, w/converter

142 318123910 A B Deflector

143 318172904 A B Support, wire/glass

Publication No: 5995442984 FEB27T5D

07/05 10

LOWER OVEN
