Frigidaire FEB702CE Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB702CESH 38254712D6218 WHITE U.S.A.

FEB702CEBH 38254712D6268 BLACK U.S.A.

GAS WALL OVEN

Model No.

FEB702CE

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM #- 318046004

OWNER’S GUIDE #- 318200912

INSTALLATION INSTR. # - 318128601

TIMER INSTR. GUIDE # - 318200109

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995323085

990514

-EN/SERVICE

377

OVEN

MINUTE

HOUR

TIMER

CLOCK

OVEN

LIGHT

550

500

450

400

350 300 250

200

150

THERMOS TAT

OFF

Publication No. FEB702CE

5995323085

05/99 2

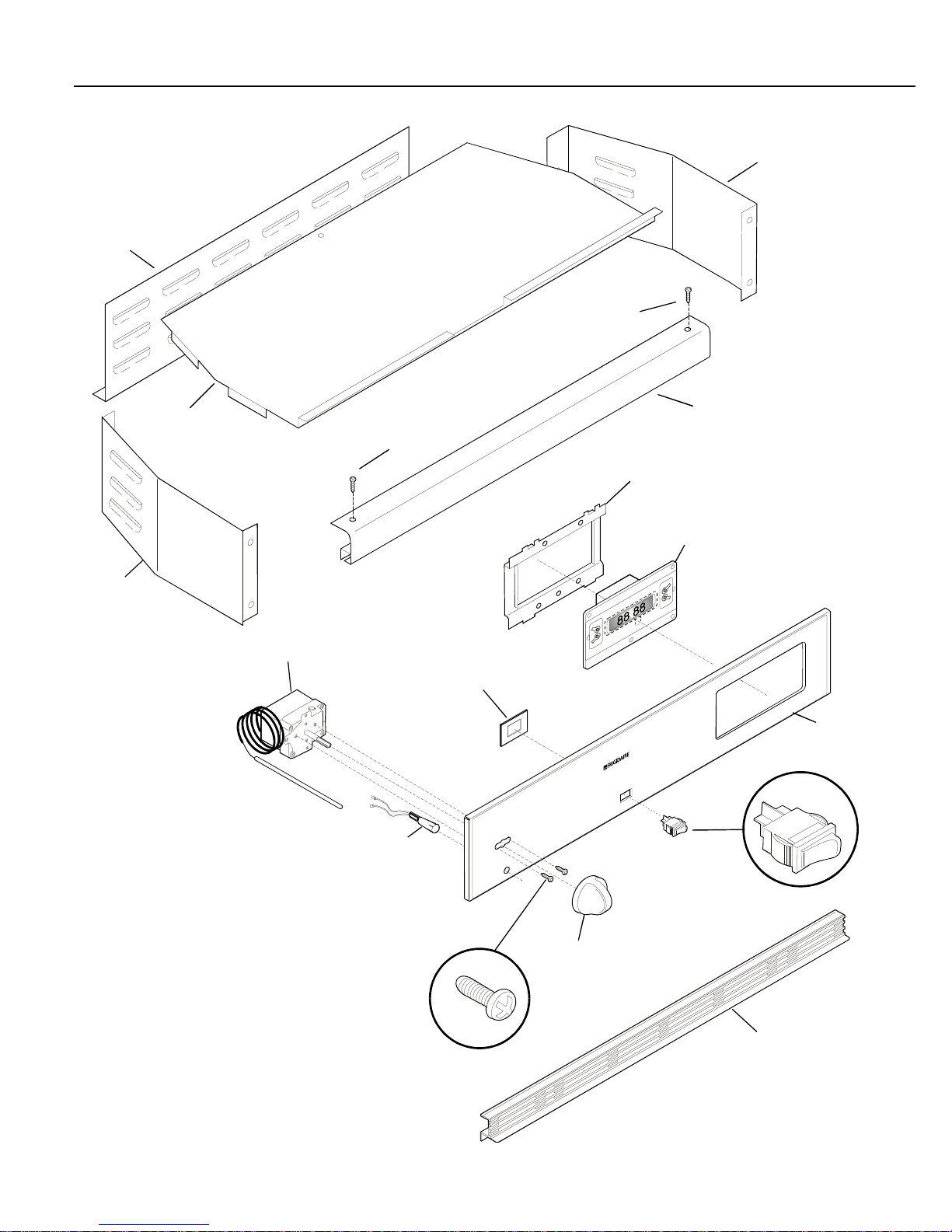

CONTROL PANEL

100

18A

LA9923G27

FEB702CE Publication No.

5995323085

# = Functional Part 305/99

* = Non-Illustrated Part

CONTROL PANEL

A=FEB702CE (FEB702CESH)

B=FEB702CE (FEB702CEBH)

POS. NO PART NO DESCRIPTION

12 # 318058300 A B Thermostat-oven

14 5303320424 A B Light/Lamp

18 318172500 A B End cover control housing

18 A 318172501 A B End cover control housing

19 318129602 APanel-control white

19 318129603 BPanel-control black

20 # 318013914 AClock/Timer

20 # 318013915 BClock/Timer

21 5303299529 ATrim-canopy white

21 318027900 BTrim-canopy black

23 318015721 A B Bracket

24 # 316005607 ASwitch-rocker white

24 # 316005602 BSwitch-rocker black

32 318017206 AKnob-thermostat white

32 318017205 BKnob-thermostat black

42 318026908 ATrim-vent white

42 318026906 BTrim-vent black

65 5304401696 A B Cover-control housing

68 318086700 A B Housing control

69 5303323134 A B Screw 8-32 X 3/16

99 5303316956 AScrew, 6-20 X 3/8 (white)

99 5303307406 BScrew, 6-32 X 3/8 (black)

100 318112200 A B Plate switch mtg

* 5303308458 A B Screw 10-24 X ¼

*5303211311 A B Screw #8 X ½

*3201861 A B Screw, 6 X 3/8

FEB702CE Publication No.

5995323085

05/99 4

CAVITY / ELEMENTS

130

158

190

189

667

56A

66 68

103

121

58B

127

LAP23V0074C

54 14 15 16

130A

186

141

58A

FEB702CE Publication No.

5995323085

# = Functional Part 505/99

* = Non-Illustrated Part

CAVITY / ELEMENTS

A=FEB702CE (FEB702CESH)

B=FEB702CE (FEB702CEBH)

POS. NO PART NO DESCRIPTION

2 5303304699 A B Shield oven-top

6 5303299719 A B Rack-oven

95303317977 A B Pan-broiler

10 5303317976 A B Insert broiler pan

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

18 318090300 A B Latch-door

27 5303284616 A B Clip thermo-bulb

54 5303310514 A B Housing-oven light

56 318034104 ATrim-bodyside white

56 318034102 BTrim-bodyside black

56A 318034105 ATrim-bodyside white

56A 318034103 BTrim-bodyside black

58A 5303304702 A B Insulation oven wrapper

58B 5303299688 A B Insulation oven back

62# 5303310518 A B Terminal block

66# 5303322963 A B Element-broil

67# 5303299718 A B Element-bake

68 5304403015 A B Support-element

71 5303304701 A B Shield-wire

76 318056107 A B Front-oven

80 5303301261 A B Spring-oven

82 5303304699 A B Shield-insulation

83 318089511 A B Liner-oven assy

96 5303316975 A B Wrapper top

97 318066701 A B Wrapper-back side

99 5303299686 A B Support-adjustable

103 5303316903 ATrim-base white

103 5303316773 BTrim-base black

121 318145002 A B Wrapper-base

127 318072800 A B Adapter assy

130 5303299671 AEnd cap trim white RH

130 5303299674 BEnd cap trim black RH

130A 5303299672 AEnd cap tirm white LH

130A 5303299673 BEnd cap trim black LH

141# 318003600 A B Thermostat safety

158 318053310 A B Seal-oven door

186 318039502 ABracket-trim base

186 318039501 BBracket-trim base

189 318042500 A B Retainer plate

190 5303299666 A B Duct oven vent

*5303320489 A B Plug

*3201861 A B Screw, 6 X 3/8

*08002868 A B Screw, 10-24 X ½

*5303211311 A B Screw, #8 X ½

*# 5303319468 A B Box & wires assy

*5303935083 AScrew, 10-16 X 1 ¼ white

*5303302745 BScrew, 10-16 X 1 1/8 black

FEB702CE Publication No.

5995323085

05/99 6

DOOR

41A

16 18

51A

23A

LAP23D0128

FEB702CE Publication No.

5995323085

# = Functional Part 705/99

* = Non-Illustrated Part

DOOR

A=FEB702CE (FEB702CESH)

B=FEB702CE (FEB702CEBH)

POS. NO PART NO DESCRIPTION

3A 5303299730 ATrim-oven door white

3A 5303299732 BTrim-oven door black

3B 5303299731 ATrim-oven door white

3B 5303299733 BTrim-oven door black

4 5303299728 AGlass-oven door white

4 5303299729 BGlass-oven door black

6 5303316954 A B Shield-insulation

7 5303302388 A B Insulation

9 5303320491 A B Liner-oven door

10 5303307980 A B Screw-handle 8-32 X 7/16

11 5303320493 A B Cover-hinge cutout

16 5303324250 A B Glass-oven door

18 5303299723 A B Seal-rope

23 5303299712 A B Hinge-oven door

23A 5303299711 A B Hinge-oven door

28 318090220 A B Strike-door

39 5303299726 AHandle-door white

39 5303299727 BHandle-door black

41 5303299746 A B Hinge-oven door upper

41A 5303299744 A B Hinge-oven door lower

51 5303299738 ABracket handle mtg white

51 5303299740 BBracket handle mtg black

51A 5303299739 ABracket handle mtg white

51A 5303299741 BBracket handle mtg black

*5303300265 A B Screw, 8-18 X ½

*5303311333 A B Screw, 8-32 X 3/8

*5303323277 A B Screw, 8-18 X 13/32

Publication No. FEB702CE

5995323085

05/99 8

WIRING DIAGRAM
