Frigidaire FEB500CEBH Manuale di istruzioni

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB500CESH 38254412B6018 WHITE U.S.A.

FEB500CEBH 38254412B6068 BLACK U.S.A.

GAS WALL OVEN

Model No.

FEB500CE

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM MODELS #- 318046004

OWNER’S GUIDE MODELS #- 318200908

INSTALLATION INSTR. # - 318064300

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995316147

981216

-EN/SERVICE

377

Publication No. FEB500CE

5995316147

12/98 2

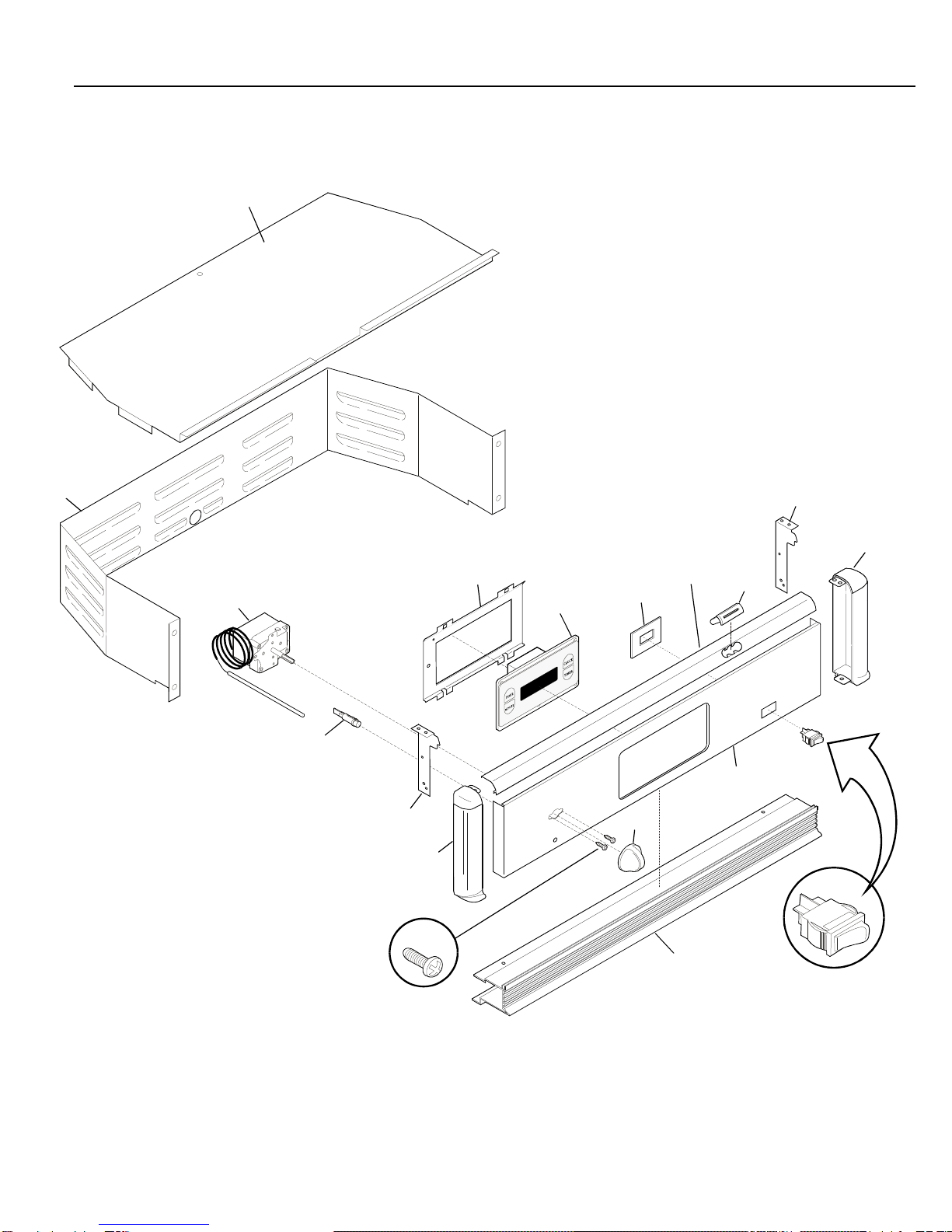

CONTROL PANEL

12 23

LAP23G0055

15A

18A

FEB500CE Publication No.

5995316147

# = Functional Part 312/98

* = Non-Illustrated Part

CONTROL PANEL

A=FEB500CE (FEB500CESH)

B=FEB500CE (FEB500CEBH)

POS. NO PART NO DESCRIPTION

12 # 318058300 A B Thermostat-oven

14 5303320424 A B Light/Lamp

15 5303302286 A B Support backguard RH

15A 5303302287 A B Support backguard LH

18 5303311208 AEnd Cap RH white

18 5303311231 BEnd Cap RH black

18A 5303311209 AEnd Cap LH white

18A 5303311232 BEnd Cap LH black

19 318129702 APanel-control white

19 318129703 BPanel-control black

20# 318013907 AClock/Timer

20# 318013908 BClock/Timer

21 5303320425 A B Trim-canopy white

21 5303300408 Trim-canopy black

23 318015701 A B Bracket clock mtg

24 # 316005607 ASwitch-rocker white

24 # 316005602 BSwitch-rocker black

32 318017206 AKnob-thermostat white

32 318017205 BKnob-thermostat black

42 5303316649 ATrim-vent white

42 5303316651 BTrim-vent black

64 318112200 A B Plate

65 318038801 A B Cover-control housing

68 5303302397 A B Housing control

69 5303323134 A B Screw 8-32 X 3/16

78 5303302394 ACover, oven vent white

78 5303302396 BCover, oven vent black

*5303211311 A B Screw #8 X ½

*5303316956 AScrew, 6-32 X 3/8, white

*5303307406 BScrew, 6-32 X 3/8, black

FEB500CE Publication No.

5995316147

12/98 4

CAVITY / ELEMENTS

58B

121

LAP23V0046A

98A

103

66 68

127

14 15 16

189

58A

227

101

119

231

FEB500CE Publication No.

5995316147

# = Functional Part 512/98

* = Non-Illustrated Part

CAVITY / ELEMENTS

A=FEB500CE (FEB500CESH)

B=FEB500CE (FEB500CEBH)

POS. NO PART NO DESCRIPTION

2 5303298946 A B Shield oven-top

2A 5303305035 A B Shield-insulation

6 5303296873 A B Rack-oven

95303317977 A B Pan-broiler

10 5303317976 A B Insert broiler pan

12# 5301314211 A B Switch-light

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

27 5303284616 A B Clip thermo-bulb

54 5303310514 A B Housing-oven light

56 5303302711 ATrim-bodyside white

56 5303298951 BTrim-bodyside black

58A 5303304702 A B Insulation oven wrapper

58B 5303299688 A B Insulation oven back

59 318072507 A B Tube-oven vent

62# 5303310518 A B Terminal block

66# 5303322963 A B Element-broil

67# 3202440 A B Element-bake

68 5304403015 A B Support-element

71 5303305037 A B Shield-wire

76 318056122 A B Front-oven

80 5303301261 A B Spring-oven

81 5303323710 A B Bracket-oven

82 5303305035 A B Shield-insulation

83 318089509 A B Liner-oven assy

86 5303310524 A B Channel-hinge

97 318066602 A B Wrapper-back side

98 318029322 A B Trim side inner RH

98A 318029323 A B Trim side inner LH

99 5303299686 A B Support-adjustable

101 318039512 ABracket-trim

101 318039511 BBracket-trim

103 318028711 ATrim-base white

103 318028710 BTrim-base black

119 3202388 A B Switch-thermal

121 318145001 A B Wrapper-base

127 5303310542 A B Adapter assy

189 318042500 A B Retainer plate

227 5303323955 A B Clip-retainer

231 5303300421 A B Cover-capillary

*08002868 A B Screw, 10-24 X ½

*5303211311 A B Screw, #8 X ½

*# 5303319468 A B Box & wires assy

*5303324184 A B Screw, 8 X 5/16

*5303320422 A B Screw, 6-20 X 5/16

FEB500CE Publication No.

5995316147

12/98 6

DOOR

LA9823D06

FEB500CE Publication No.

5995316147

# = Functional Part 712/98

* = Non-Illustrated Part

DOOR

A=FEB500CE (FEB500CESH)

B=FEB500CE (FEB500CEBH)

POS. NO PART NO DESCRIPTION

3 318026100 ATrim-oven door white

3318026510 BTrim-oven door black

4 5303302707 AGlass-oven door white

4 3202420 BGlass-oven door black

6 318073600 A B Shield-air wash

7 5303308470 A B Insulation oven door

9 318156604 A B Liner-oven door

10 5303311217 A B Screw-handle door

12 5303316768 A B Seal-oven door lower

16 5303323828 A B Glass-oven door

17 318162601 A B Spacer-glass lower

18 5303299723 ASeal-rope

18 3016338 BSeal-rope

20 318014301 ASpacer-handle white

20 318014300 BSpacer-handle black

23 5303325091 A B Hinge-oven door

29 5303210003 A B Spacer-handle mtg (2)

39 316091104 AHandle-door white

39 316091103 BHandle-door black

59 3202113 A B Button plug

60 5303316982 A B Spacer-foam

*5303308456 A B Screw, 8-18 X 0.531

Publication No. FEB500CE

5995316147

09/98 8

WIRING DIAGRAM
