Product No. FEB30S5EQA FEB30S5EQB

38254331E5041 38254331E5042

Series 30" single 30" single

Color bisque bisque

Market North America North America

Wiring Diagram 318046227 318046237

Owner's Guide 318200924 318200924

Installation Instructions 318201514 318201514

Service Data Sheet 318047413 318047413

Timer Guide 318200189 318200189

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438990

05/06/09

(EN/SERVICE/ECL)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB30S5E

Publication No: 5995438990 FEB30S5E

06/05 2

CONTROL PANEL

FEB30S5E Publication No: 5995438990

# Functional Parts 3 06/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEB30S5E (FEB30S5EQA)

BFEB30S5E (FEB30S5EQB)

POS. NO PART NO. DESCRIPTION

2A 318257300 A B Shield, oven top

2B 318260100 A B Cover, box

19 318274602 A B Control Panel Assembly, glass, bisque, w/touch pad

20 # 316418522 A B Clock/Timer, electronic, ES350W1

* 316021107 A B Screw, hex head, 8-32, silver

* 5303211311 A B Screw, 8 x 0.500

Publication No: 5995438990 FEB30S5E

06/05 4

BODY

FEB30S5E Publication No: 5995438990

# Functional Parts 5 06/05

* Non-Illustrated Parts

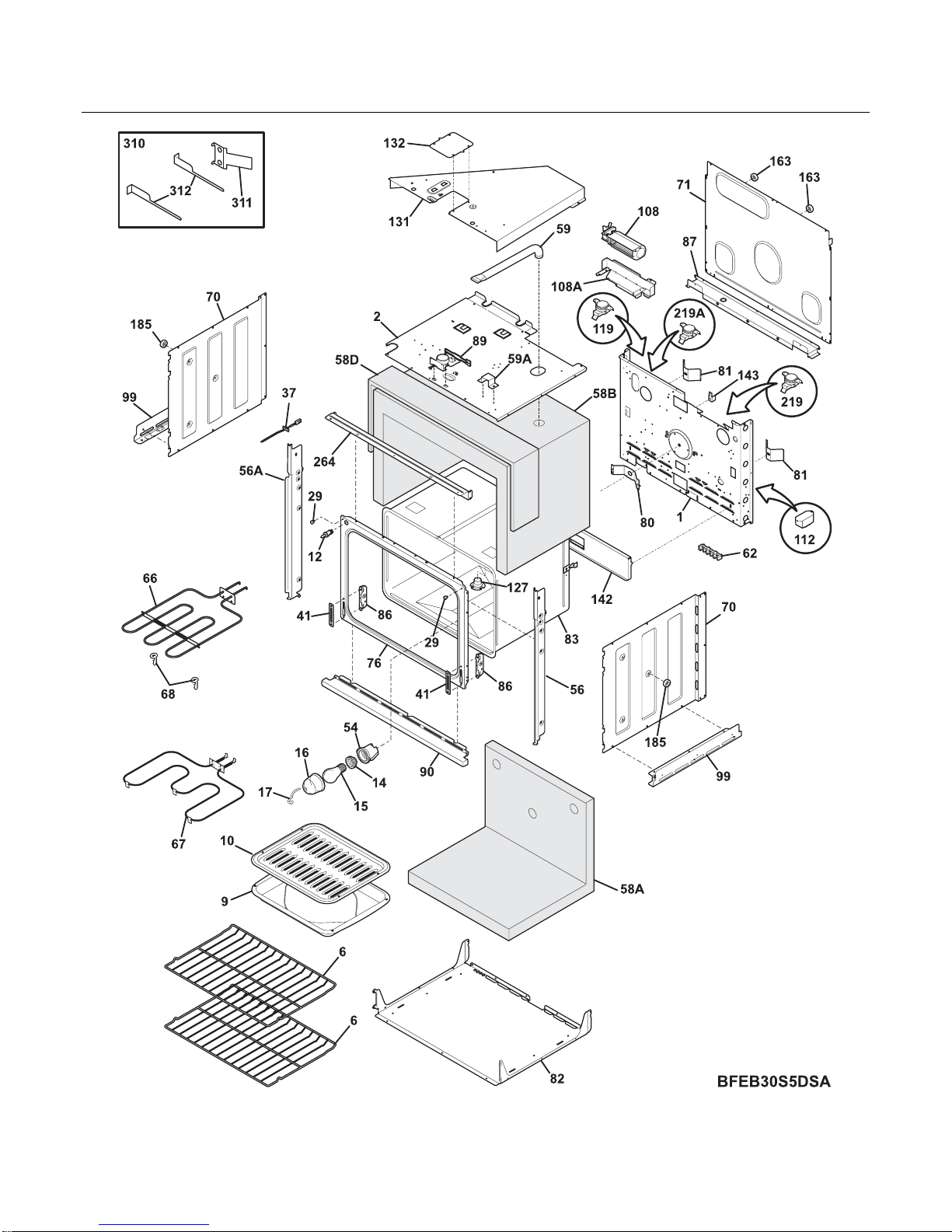

BODY

Model Index: AFEB30S5E (FEB30S5EQA)

BFEB30S5E (FEB30S5EQB)

POS. NO PART NO. DESCRIPTION

1 318259200 A B Back, main

2 318258900 A B Shield, insulation, upper

6 318262502 A B Rack, oven

9 5303317977 A B Pan, broiler

10 5303317976 A B Insert, broiler pan

12 # 318089917 A B Switch, light

14 318224000 A B Receptacle, oven light

14* 318268099 A B Insulation, oven light

15 5303013071 A B Bulb/Lamp, oven light

16 3201911 A B Cover, oven light, glass

17 5304400195 A B Retainer, light cover

29 318147411 A B Bumper, (2)

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

56 318259906 A B Trim, side filler, bisque, RH

56A 318259907 A B Trim, side filler, bisque, LH

58A 318285055 A B Insulation, oven wrapper

58B 318285056 A B Insulation, oven back

58D 318285058 A B Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B Duct, oven vent

59A 318261600 A B Bracket, vent tube

62 316056000 A B Terminal Block

62* 5303323144 A B Nut, 10-32

66 # 318255600 A B Element, broil, 2750W

67 # 318255401 A B Element, bake, 3400W

68 5304403015 A B Support, hanger, (2), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260004 A B Panel, rear box

76 318056217 A B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

82 318258700 A - Shield, insulation, lower

82 318258707 - B Shield, insulation, lower

83 318261403 A B Liner, oven assy

86 5303310524 A B Receptacle, hinge

87 318260600 A B Bracket, cable mtg.

89 # 318261201 A - Motor, latch assy

89 # 318261202 - B Motor, latch assy

90 318259702 A B Trim, oven front, bisque, bottom

99 318256200 A B Bracket, side, bottom, (2)

108# 318073018 A B Motor, blower

* 08016432 A B Screw, truss head, 8-18 x 0.375

108A 318251300 A B Bracket, fan support

112# 318112701 A B Relay

119# 318004900 A B Switch, thermal

127 318317100 A B Adapter Assembly, vent tube, w/converter

131 318272900 A B Box, vent

132 318003000 A B Plate, shield

Publication No: 5995438990 FEB30S5E

06/05 6

BODY

FEB30S5E Publication No: 5995438990

# Functional Parts 7 06/05

* Non-Illustrated Parts

BODY

Model Index: AFEB30S5E (FEB30S5EQA)

BFEB30S5E (FEB30S5EQB)

POS. NO PART NO. DESCRIPTION

142 318123910 A B Deflector

* 5303324184 A B Screw, 8-18 x 5/16, black, (4)

143 318172904 A B Support, wire/glass

163 318014111 A B Spacer

185 318014700 A B Spacer, oven shield, (4)

219# 318003606 A - Thermostat, safety

219# 318003614 - B Thermostat, safety

219A 318003613 A B Thermostat, safety

264 318257701 A B Trim, oven, black, front

310 5304440067 A B Cabinet Mounting Kit

311 318246010 A B Bracket, cabinet mtg, (2)

311* 5304438005 A B Screw, 6 x 1, black

312 318246702 A B Tool, cabinet bracket, RH

312 318246703 A B Tool, cabinet bracket, LH

* # 318078542 A B Box & wires assy

* 318231719 A - Harness, wiring, main

* 318231735 - B Harness, wiring, main

* 5303211311 A B Screw, 8 x 0.500

* 5303323136 A B Screw ground

* 5303323139 A B Screw, 10-24 x 0.906

* 5303323277 A B Screw, 8-18 X 13/32

* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995438990 FEB30S5E

06/05 8

DOOR

FEB30S5E Publication No: 5995438990

# Functional Parts 9 06/05

* Non-Illustrated Parts

DOOR

Model Index: AFEB30S5E (FEB30S5EQA)

BFEB30S5E (FEB30S5EQB)

POS. NO PART NO. DESCRIPTION

3 318260201 A B Trim, oven door, black, upper

3A 318260401 A B Trim, oven door, side, (2)

4 318261302 A B Glass Assy., oven door, bisque, outer, w/trim

6 318260500 A B Baffle, door

7 318285057 A B Insulation, oven door

7A 318285062 A B Insulation, oven door

8 316117500 A B Glass, oven door, heat barrier

9 318259601 A B Liner, oven door

10 5304416408 A B Screw, 10-24 x 1.750, handle mtg

12 318053130 A B Seal, oven door

17 316402403 A B Spacer, door glass, (2)

23 5303310828 A B Hinge, oven door, (2)

29 318014402 A B Spacer, door

39 316203003 A B Handle, door, bisque

40 318242700 A B Bracket, glass holder, (2)

56 5304436875 A B Screw, 8-18 X 1/2, black

64 318165800 A B Spacer, (2)

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303211311 A B Screw, 8 x 0.500

* 5303300265 A B Screw, 8-18 x 0.500, chrome, (3)

* 5303323277 A B Screw, 8-18 X 13/32

Publication No: 5995438990 FEB30S5E

06/05 10

WIRING DIAGRAM - FEB30S5EQA
