Frigidaire PLEB30S8C Manuale utente

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

PLEB30S8CCA PLEB30S8A 38257393H10S1 stainless North America

Publication No.

5995378170

020913

-EN/SERVICE /ECL

377

ELECTRIC

WALL OVEN

Model No.

PLEB30S8C

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318046208

OWNER’S GUIDE - # 318200919

TIMER INSTRUCTION SHEET - # 318200181

INSTALLATION INSTRUCTIONS - # 318201507

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

09/02 2

Publication No. PLEB30S8CCA

5995378170

CONTROL PANEL

# = Functional Parts 3 09/02

* = Non-Illustrated Parts

PLEB30S8CCA Publication No.

5995378170

CONTROL PANEL

POS. NO PART NO DESCRIPTION

19 318030215 Panel,control ,black ,back

19A 318192812 Panel,control ,stainless ,front

20 # 318010700 Clock/Timer,EOC

21 318029700 Trim,top ,stainless

23 318111602 Bracket,clock & relay

42 318027409 Trim,vent ,black

80 # 318111501 Relay,convection ,oven light ,(2)

99 5303300265 Screw,8-18 x 0.500 ,chrome

* 218490900 Cleaner,stainless steel

* 3201861 Screw,6 x 0.375

* 5303211311 Screw,8 x 0.500

09/02 4

Publication No. PLEB30S8CCA

5995378170

BODY

# = Functional Parts 5 09/02

* = Non-Illustrated Parts

PLEB30S8CCA Publication No.

5995378170

BODY

POS. NO PART NO DESCRIPTION

1 318066402 Panel,main back

2 318102101 Shield,oven top

2A 318071703 Shield,oven top

6 318025304 Rack,oven

6A 318219500 Rack,broiler pan

9 5303317977 Pan,broiler

10 5303317976 Insert,broiler pan

12 # 318089913 Switch,light

14 5308011085 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 3201911 Cover,oven light ,glass

17 5304400195 Retainer,light cover

37 # 316111203 Sensor,oven temp probe

41 5303310526 Cover,hinge cutout

54 5303310514 Housing,oven light

56 318029101 Trim,side ,stainless ,outer,RH

56A 318029100 Trim,side ,stainless ,outer,LH

58A 318133744 Insulation,oven wrapper

58B 318133769 Insulation,oven back

59 318072504 Tube,oven vent

62 # 5303310518 Terminal Block

62* 5303323144 Nut,10-32

66 # 5303310513 Element,broil ,2750 W

67 # 5303310512 Element,bake ,3000 W

68 5304403015 Support,element hanger

70 5303300142 Shield,insulation

71 318071201 Shield,wire

76 318056202 Front,oven

80 5303320846 Plate,oven mtg

81 318192400 Spring,oven

82 318072302 Shield,oven bottom

83 318089609 Liner,oven

86 5303310524 Receptacle,hinge

88 5303311222 Rod,latch

89 # 318095934 Motor,latch assy ,w/brkt & switch

89* 318120711 Switch

99 318055420 Support,adjustable

102 318090900 Support,oven front ,(2)

103 318028500 Trim,base ,black

103A 318027700 Trim,base ,stainless ,outer

107 318119600 Cover,fan

108# 318073001 Motor,fan

109 5303311203 Blade,fan

111 5303311205 Nut,fan retainer

119# 318004900 Switch,thermal

124 318076903 Box,vent

125# 5303311202 Motor,convection

125* 318142100 Washer,motor ,convection

127 5303310542 Adapter,vent tube ,with converter

128 5303311163 Bushing

129 5303311164 Spring

131 318102301 Cover,control housing

132 318101704 End,cover ,RH ,control housing

132A 318101705 End,cover ,LH ,control housing

150 318072205 Bracket,support ,LH

150A 318072204 Bracket,support ,RH

177 318053800 Gasket,vent

185 318014700 Spacer,oven shield

188 08007817 Spacer,(6)

222 318080000 Plate,oven temp probe

263 5303322885 Spacer,fan blade

264 318143813 Shield,wire

* # 318078511 Box & wires assy

* 5303311207 Tube,protector

* 3015722 Clip-wire

* 3201861 Screw,6 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303302745 Screw,10-16x1-1/8 ,square drive

* 5303323277 Screw (8-18X13/32)

* 5303300265 Screw,8-18 x 0.500 ,chrome

09/02 6

Publication No. PLEB30S8CCA

5995378170

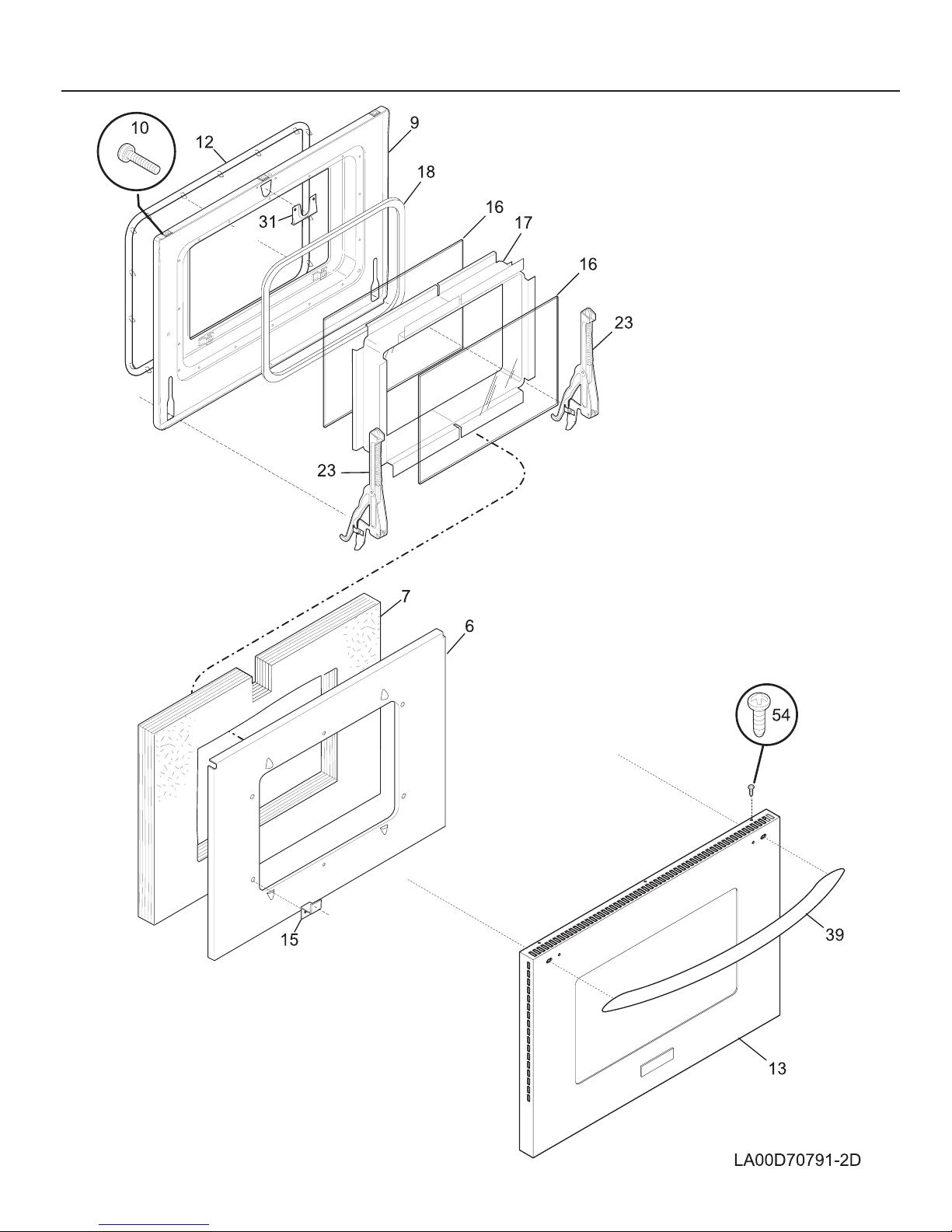

DOOR

# = Functional Parts 7 09/02

* = Non-Illustrated Parts

PLEB30S8CCA Publication No.

5995378170

DOOR

POS. NO PART NO DESCRIPTION

6 318056811 Shield,air wash

7 318133754 Insulation,oven door

9 318048612 Liner,oven door

10 5303311174 Screw,10-24 x 3/8

12 318053103 Gasket,oven door seal

13 318187933 Stainless Panel,oven door ,w/ glass/nmplt

15 318172903 Stiffener,glass

16 318041603 Panel,glass ,inner oven door

17 318042102 Spacer,glass

18 318053001 Seal,window

23 318024700 Hinge,oven door

31 318065102 Latch,door

39 318197901 Handle,oven door ,stainless

56 5303300265 Screw,8-18 x 0.500 ,chrome

* 218490900 Cleaner,stainless steel

* 5303211311 Screw,8 x 0.500

* 5303302745 Screw,10-16x1-1/8 ,square drive

* 5303323277 Screw (8-18X13/32)

09/02 8

Publication No. PLEB30S8CCA

5995378170

WIRING DIAGRAM
