Frigidaire FEB798WCCE Manuale di istruzioni

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB798WCCE 37054791G50S5 STAINLESS U.S.A.

ELECTRIC WALL OVEN

Model No.

FEB798WC

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM # - 318046110

OWNER’S GUIDE # - 318200914

INSTALLATION INSTR. # - 318201506

TIMER INSTRUCTION GUIDE # - 318200130

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995342812

000829

-EN/SERVICE

377

Galler y

PROFESSIONAL SERIES

Publication No. FEB798WC

5995342812

08/00 2

CONTROL PANEL

82A

19 19A

19B

LA00CP70791-2

FEB798WC Publication No.

5995342812

# = Functional Part 308/00

* = Non-Illustrated Part

CONTROL PANEL

POS. NO PART NO DESCRIPTION

19 318030209 APanel-control

19A 318041801 APanel control metal included in item 19B

19B 318041701 APanel control stainless ay (stainless)

20 # 318010501 AClock/Timer

21 318028331 ATrim-canopy

23 318015110 ABracket timer

42 318027310 ATrim-vent

51 316082300 ANameplate black included in item 19B

78 318037200 ACover, oven vent stainless

79 318029603 ATrim-top

80 318022001 ABoard relay

81# 318022002 ABoard relay

82 318023600 ASupport, relay board

82A 5303317199 ASupport, snap-in

96 316037700 ASeal, vent cover

97 316037801 ATape, vent cover

99 5303300265 AScrew, 8-18 X 1/2/ chrome

*3201861 AScrew, 6 X 3/8

*5303323136 AScrew ground

*5303320848 AScrew, 6-20 X ¼

*5303307406 AScrew, 6-32 X 3/8/ Black

*5303300414 ACork & rubber

A = FEB798WC (FEB798WCCE)

FEB798WC Publication No.

5995342812

08/00 4

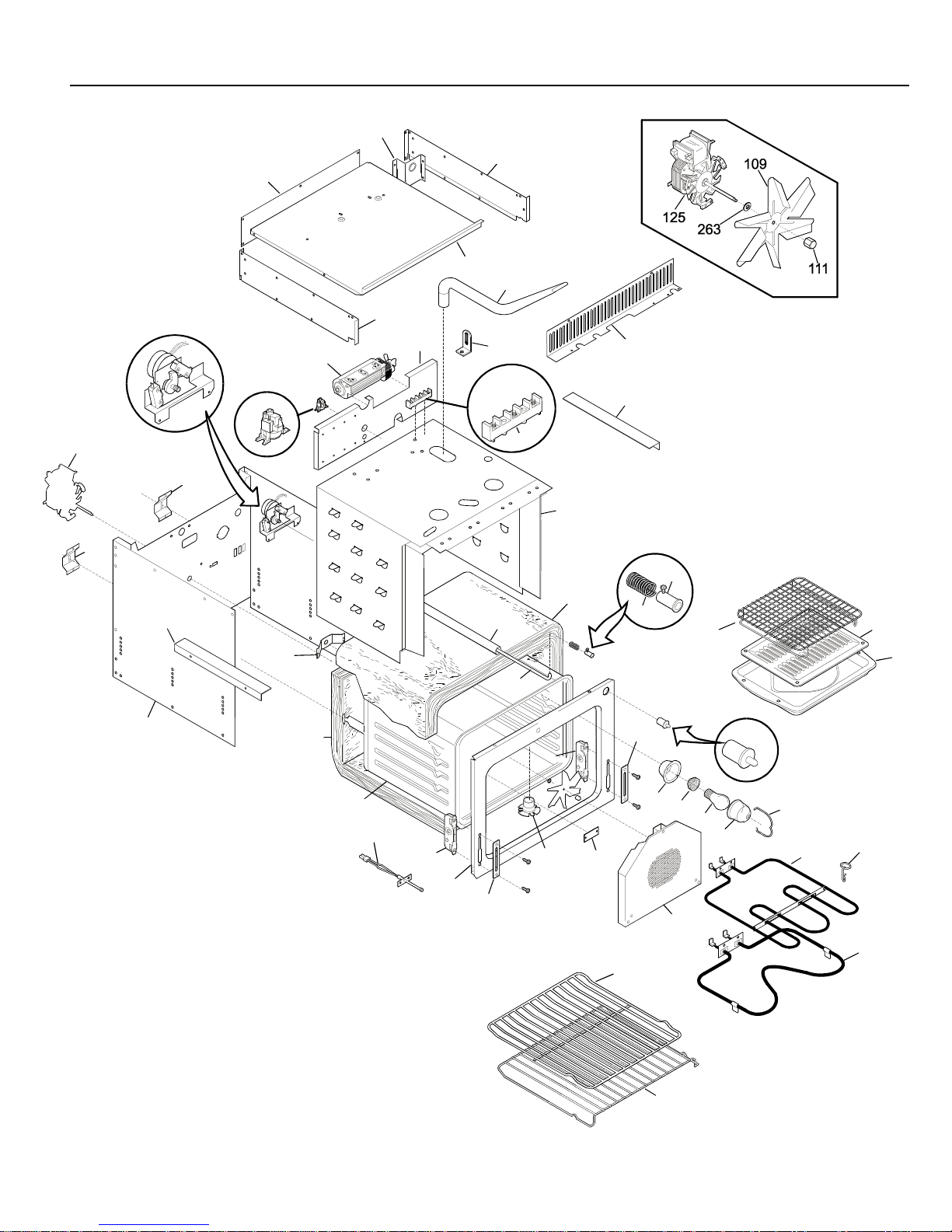

CAVITY / ELEMENTS (UPPER)

123

264

157

222

LA00B70791-1

66 68

58B

58A

156

99 187

108

125 119

127

129

128

15 16

107

UPPER BODY PARTS ONLY

FEB798WC Publication No.

5995342812

# = Functional Part 508/00

* = Non-Illustrated Part

CAVITY / ELEMENTS (UPPER)

POS. NO PART NO DESCRIPTION

1A 318071000 ARear top panel

2318070203 AShield-oven top

3318070601 APanel-bodyside upper

3A 318070600 APanel-bodyside upper

6 318025300 ARack-oven

6A 5303311206 ARack-broiler pan

6B 318025200 AShelf-oven

95303317977 APan-broiler

10 5303317976 AInsert broiler pan

12# 318089910 ASwitch-light

14 5308011085 ASocket-light/lamp

15 3201908 ALamp-oven light

16 3201911 AGlass-oven light lens

17 5304400195 ARetainer-lens

37# 316111203 AProbe-oven temp

41 5303310526 ACover-hinge cutout

54 5303310514 AHousing-oven light

57 318072100 APlate-connection

58A 5303311218 AInsulation wrapper

58B 5303311219 AInsulation oven back

59 318072511 ATube-oven vent

62# 5303310518 ATerminal block

66# 5303322963 AElement-broil

67# 5303299718 AElement-bake

68 5304403015 ASupport-element

76 318056104 AFront-oven

80 5303301261 ASpring-oven

81 5303320846 APlate-oven mtg

83 318089519 ALiner-oven assy

86 5303310524 ASupport-door hinge

88 5303311222 ARod-latch

89# 318095913 AMotor-latch/lock

89* 318120710 ASwitch latch

97 318066500 AWrapper back & sides

99 318055200 ASupport

107 5303318711 ACover fan

108 318073001 AMotor-fan

109 5303311203 AFan blade

111 5303311205 ANut fan retainer

119# 318005200 ASwitch-thermal

123 318071441 AShield-insulation top

125# 5303311202 AMotor-convection

127 5303310542 AAdapter assy

128 5303311163 ABushing

129 5303311164 ASpring

156 318024100 ABracket vent tube

157 318071601 ADivider upper oven

187 318013501 ATube (rod latch)

222 318080000 APlate, plug hole convection element

263 5303322885 ASpacer

264 318143811 AHidden wires

*318078501 ABx & wires assy

*08002868 AScrew, 10-24 x ½

*5303211311 AScrew, #8 X ½

*5303323136 AScrew ground

*5303323139 AScrew, 10-24 X 29/32

A = FEB798WC (FEB798WCCE)

Publication No. FEB798WC

5995342812 CAVITY/ELEMENTS (LOWER)

08/00 6

121

123

156

156 96

96A 96B

188

227

119

98A

101

103

265A

265

222

LA00B70791-2

58B

142

58A

187

125

127

129

128

15 16

107

LOWER BODY PARTS ONLY

FEB798WC Publication No.

CAVITY/ELEMENTS (LOWER) 5995342812

# = Functional Part 708/00

* = Non-Illustrated Part

POS. NO PART NO DESCRIPTION

6 318025300 ARack-oven

6B 318025200 AShelf-oven

12# 318089910 ASwitch-light

14 5308011085 ASocket-light/lamp

15 3201908 ALamp-oven light

16 3201911 AGlass-oven light lens

17 5304400195 ARetainer-lens

37# 316111203 AProbe-oven temp

41 5303310526 ACover-hinge cutout

54 5303310514 AHousing-oven light

56 318145515 ATrim-bodyside

58A 5303311218 AInsulation wrapper

58B 5303311219 AInsulation oven back

59 3016331 ATube-oven vent

66# 5303322963 AElement-broil

67# 5303299718 AElement-bake

68 5304403015 ASupport-element

71 318071120 AShield-wire

76 318056104 AFront-oven

80 5303301261 ASpring-oven

81 5303320846 APlate-oven mtg

82 5303304699 AShield-insulation

83 318089519 ALiner-oven assy

86 5303310524 ASupport-door hinge

88 5303311222 ARod-latch

89# 318095913 AMotor-latch/lock

89* 318120710 ASwitch-latch

96 5303317197 ADuct-oven vent

96A 3016325 ADuct-oven vent

96B 3016327 ADuct-oven pipe

97 318066604 AWrapper back & sides

98 318029310 ATrim side inner RH

98A 318029311 ATrim side inner LH

99 5303299686 ASupport-adjustable

101 318039501 ABracket-trim

103 5303316773 ATrim-base black

107 5303318711 ACover fan

109 5303311203 AFan blade

111 5303311205 ANut fan retainer

119# 318004900 ASwitch-thermal

121 318145002 AWrapper base

123 318071441 AShield-insulation top

125# 5303311202 AMotor-convection

127 318072801 AAdapter assy

128 5303311163 ABushing

129 5303311164 ASpring

142 318054900 ASupport

156 5303317198 ABracket-vent tube

187 318013501 ATube (rod latch)

188 08007817 ASpacer

222 318080000 APlate, plug hole convection element

227 5303323955 AClip retainer

263 5303322885 ASpacer

265 318029502 ATrim-bodyside stainless

265A 318029503 ATrim-bodyside stainless

*08002868 AScrew, 10-24 x ½

*5303211311 AScrew, #8 X ½

*5303323277 AScrew, 8-18 X 13/32

*5303323136 AScrew ground

*5303323139 AScrew, 10-24 X 29/32

A = FEB798WC (FEB798WCCE)

Publication No. FEB798WC

5995342812

08/00 8

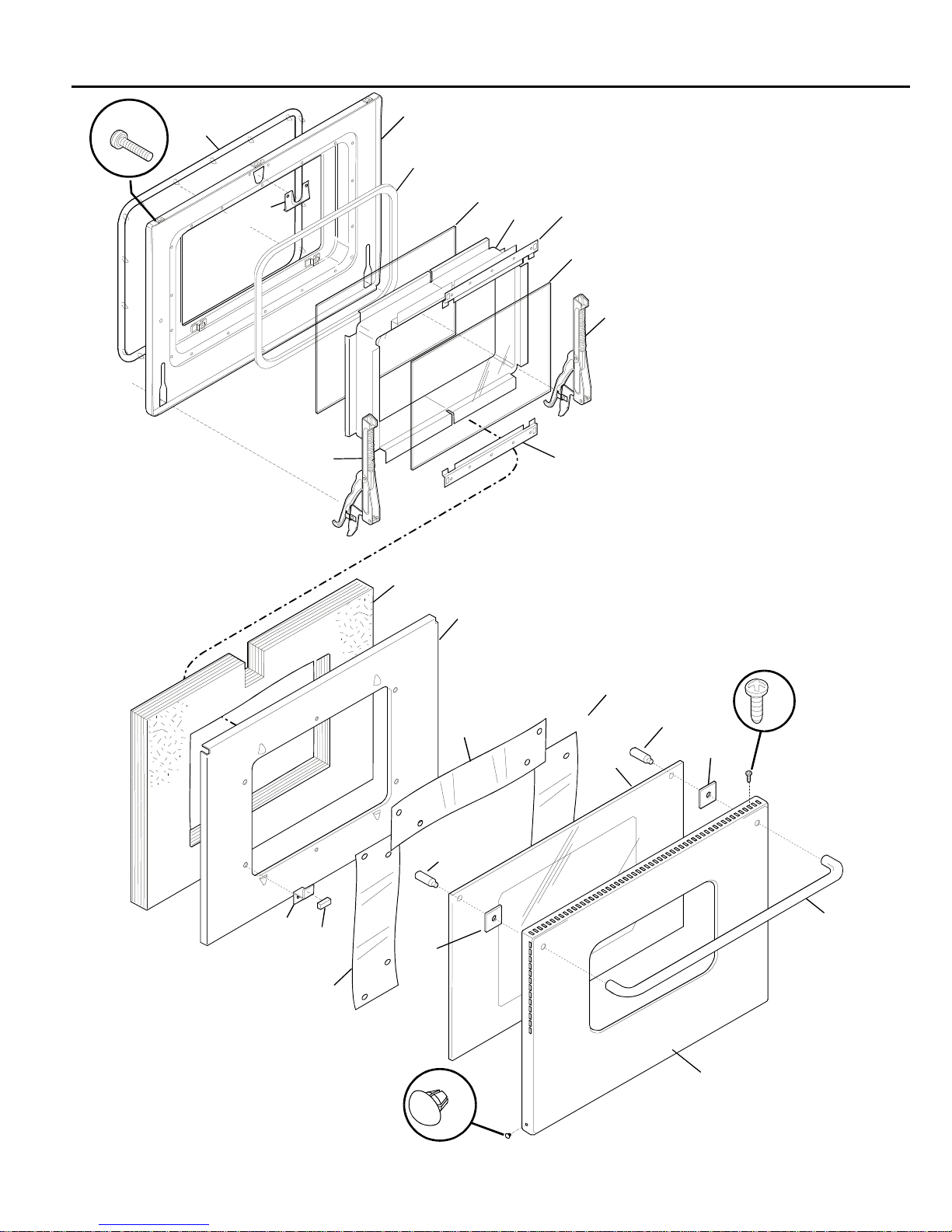

DOOR

LA00D70791-2

FEB798WC Publication No.

5995342812

# = Functional Part 908/00

* = Non-Illustrated Part

DOOR

POS. NO

PART NO

DESCRIPTION

4318041200 AGlass-oven door, white

6318073502 AShield-wool

75303311214 AInsulation, oven door

9318048503 ALiner-oven door

10 5303316953 AScrew-handle, door 10-32 x 2 1/4

12 318053100 ASeal-oven door

13 318009200 APanel-oven door stainless

15 318091101 ABracket-glass

16 318042300 AGlass-oven door, heat

17 318042000 ASpacer-glass

18 318053000 ASeal-rope

20 318086020 ASpacer-handle

22 5303310511 ARetainer-glass

23 5303311259 AHinge-oven door

29 318014400 ASpacer-handle door

31 318065102 ALatch-door

32 318056700 ADeflector

39 318039800 AHandle-door, stainless

54 5303300265 AScrew,8-18 x 1/2 chrome

59 3202113 AButton-plug

61 5303316982 AFoam seal

*5303323277 AScrew, 8-18 x 13/32

*5303308450 AScrew, 8 x 3/8

A = FEB798WC (FEB798WCCE)

Publication No. FEB798WC

5995342812

08/00 10

WIRING DIAGRAM
