Frigidaire FPET3085K Manuale di istruzioni

FPET3085KF.tif CFPET3085KFA.eps BUFPET3085KFA.eps BLFPET3085KFA.eps

DFPEW3085KFA.eps 318046134.eps

Product No. FPET3085KFA

37057373C90S1

Series 30" double

Color stainless

Market North America

Wiring Diagram 318046134

Owner's Guide 318205307

Installation Instructions 318201532

Service Data Sheet 318047450

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995539995

09/05/11

(EN/SERVICE/ECL)

377

30” DOUBLE ELECTRIC

WALL OVEN

Model No.

FPET3085K

Publication No: 5995539995 FPET3085KFA

05/09 2

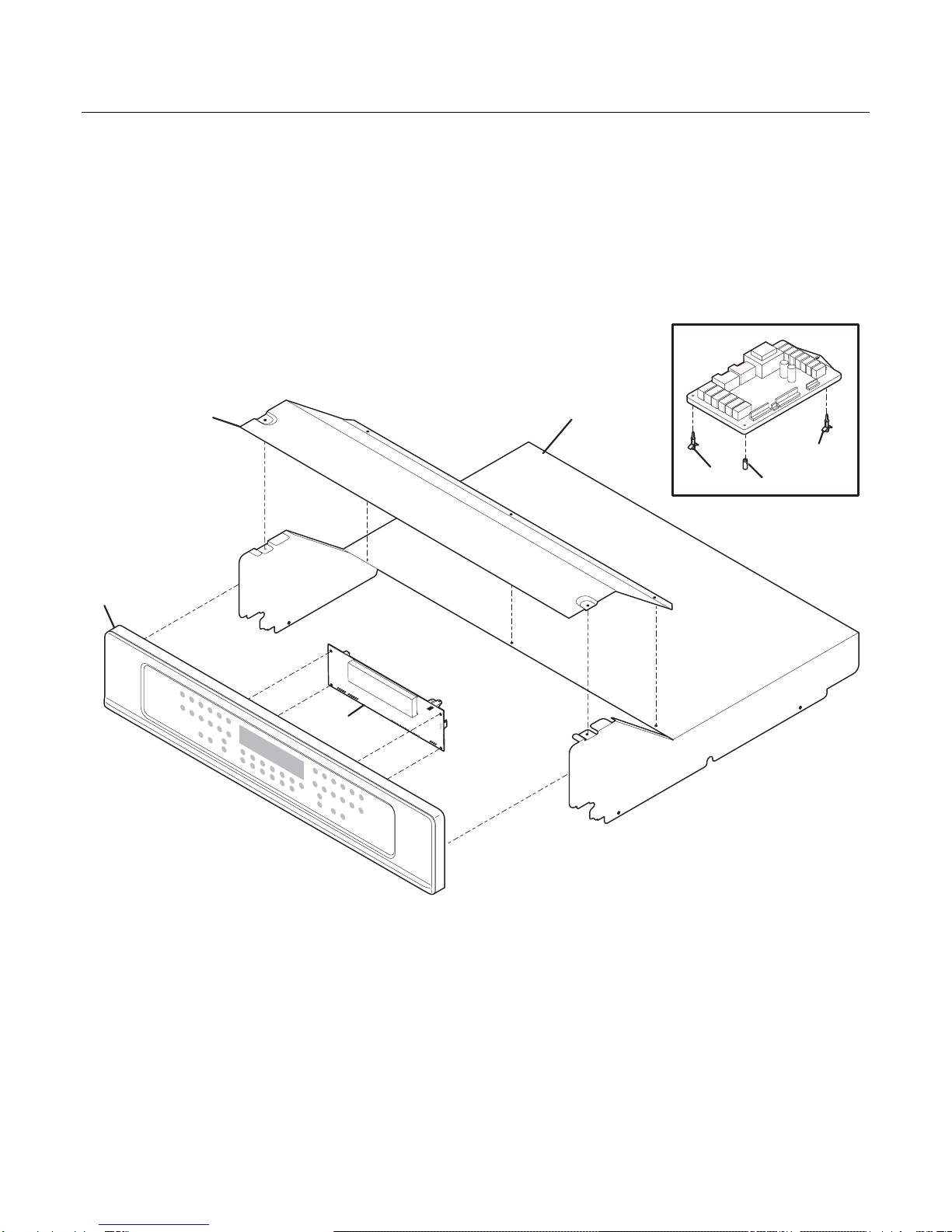

CONTROL PANEL

2B 2A

CFPET3085KFA

77A

FPET3085KFA Publication No: 5995539995

# Functional Parts 3 05/09

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 # 318575101 Panel Assembly, control, stainless, w/overlay-trim

20 # 316443842 Control, electronic, ES610W6, dual oven

* 5303311306 Screw, 8-18 x 0.375, (6)

77 316247900 Spacer, power board

77A 316114100 Spacer

97 # 316443911 Board, relay, dual oven

* 5304401490 Screw, 6-18 x 1, (2)

* # 318370374 Wiring Harness, timer, to relay board

* 5303211311 Screw, 8 x 0.500

* 5304454881 Screw, #8-18 x 3/8

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995539995 FPET3085KFA

05/09 4

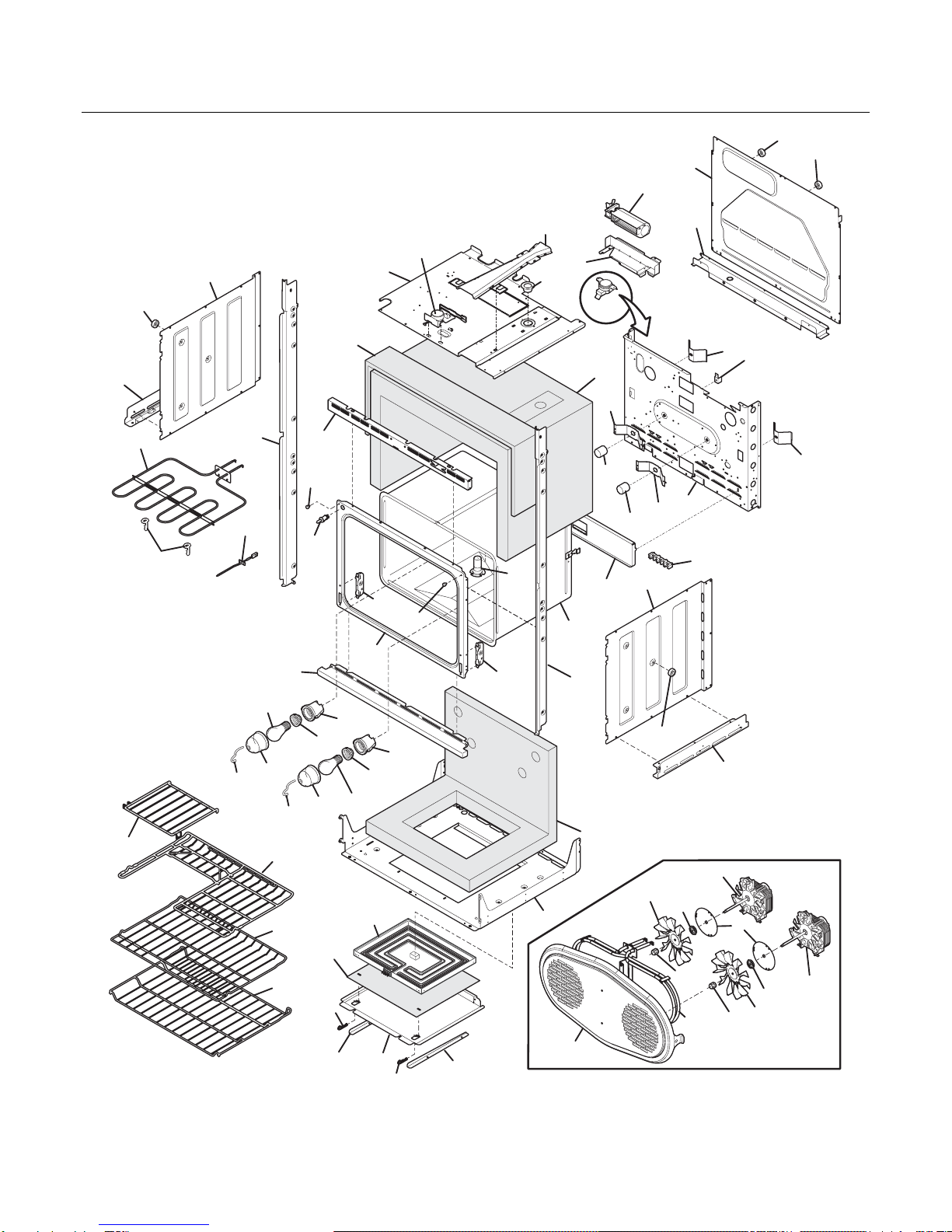

UPPER OVEN

119

143

272

161 111

111

109

125

107

58B

264

131

132

58D

133

108

108A

185

163

142

58A

127

BUFPET3085KFA

185

FPET3085KFA Publication No: 5995539995

# Functional Parts 5 05/09

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259224 Back, main

2 318258957 Shield, insulation, upper

6 318922301 Rack, oven

6A 318926803 Rack, half, oven

6B 318919801 Rack, oven

6C 318929702 Insert, half rack

7 318368300 Pin, locking, (2)

8 318361801 Bracket, element, (2)

9 5303317977 Pan, broiler, OPTIONAL ACCESS0RY

10 5303317976 Insert, broiler pan, OPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

15* 318268099 Insulation, oven light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

18 318222400 Housing, oven light

18* 318368500 Seal, housing, flat washer, lower oven

20 318389400 Plate, retainer

21 318389000 Seal, ring

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

57 318361610 Panel, service

58 318330501 Insulation, service panel, 12.47 x 14.77

58A 318536600 Insulation, wrapper, top and sides

58B 318926906 Insulation, wrapper, back and bottom

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072577 Duct, oven vent

66 # 318255800 Element, broil, 4000W

67 # 318601601 Element, hidden bake, upper oven

* # 318231870 Wiring Harness, bake element

* 5303323130 Screw, 8 x 1/4, (5)

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056292 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258730 Shield, insulation, lower

83 318261438 Liner, oven assy

86 318561100 Receptacle, hinge, (2)

* 5304461333 Screw, 10-32 x 17/32

89 # 318261215 Motor, latch assy

* # 318402206 Wiring Harness, main, latch

* # 318199768 Wiring Harness, latch, BAS

* 5303324184 Screw, 8-18 x 5/16, black, (4)

99 318252804 Support, side

107 318550200 Cover, fan, dual

108# 318073028 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

Publication No: 5995539995 FPET3085KFA

05/09 6

UPPER OVEN

119

143

272

161 111

111

109

125

107

58B

264

131

132

58D

133

108

108A

185

163

142

58A

127

BUFPET3085KFA

185

FPET3085KFA Publication No: 5995539995

# Functional Parts 7 05/09

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 318399800 Nut, fan retainer

119# 318004902 Switch, thermal

125# 318398200 Motor, fan

125* 318142100 Washer, motor, convection

127 318357001 Adapter Assembly, w/vent tube, and catalyst

131 318272901 Box, vent

132 318003000 Plate, shield

* 5304436875 Screw, 8-18 X 1/2, black

133 318347800 Chimney

142 318123910 Deflector

143 318172904 Support, wire

161# 318535300 Element, convection, duo

163 318531703 Spacer, (4)

185 318531800 Spacer, oven shield, (2)

* 5303323139 Screw, 10-24 x 0.906

264 318257723 Trim, oven, black, front

272 318249409 Tube, protector

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303323277 Screw, 8-18 X 13/32

* 5304415832 Screw, 8-18 x 0.406

* 5304470882 Screw, anti-tip, 8 - 5/8, black, (2)

Publication No: 5995539995 FPET3085KFA

05/09 8

LOWER OVEN

119

143

272

161 111

111

109

125

107

58B

264

58D

133

108

108A

185

163

142

58A

127

BLFPET3085KFA

185

56A

FPET3085KFA Publication No: 5995539995

# Functional Parts 9 05/09

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259224 Back, main

2 318258957 Shield, insulation, upper

6 318922301 Rack, oven

6A 318926803 Rack, half, oven

6B 318919801 Rack, oven

6C 318929702 Insert, half rack

7 318368300 Pin, locking, (2)

8 318361801 Bracket, element, (2)

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

15* 318268099 Insulation, oven light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

18 318222400 Housing, oven light

18* 318368500 Seal, housing, flat washer, lower oven

20 318389400 Plate, retainer

21 318389000 Seal, ring

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

56 318903604 Trim, side filler, black, RH

56A 318903605 Trim, side filler, black, LH

57 318361610 Panel, service

58 318330501 Insulation, service panel, 12.47 x 14.77

58A 318536600 Insulation, wrapper, top and sides

58B 318926906 Insulation, wrapper, back and bottom

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072577 Duct, oven vent

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255800 Element, broil, 4000W

67 # 318601601 Element, hidden bake, upper oven

* # 318231870 Wiring Harness, bake element

* 5303323130 Screw, 8 x 1/4, (5)

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056292 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258730 Shield, insulation, lower

83 318261438 Liner, oven assy

86 318561100 Receptacle, hinge, (2)

* 5304461333 Screw, 10-32 x 17/32

87 318260600 Bracket, cable mtg.

* 5303323136 Screw ground

89 # 318261215 Motor, latch assy

* # 318402206 Wiring Harness, main, latch

* # 318532135 Harness, wiring, latch, NO BAS

Publication No: 5995539995 FPET3085KFA

05/09 10

LOWER OVEN

119

143

272

161 111

111

109

125

107

58B

264

58D

133

108

108A

185

163

142

58A

127

BLFPET3085KFA

185

56A
