Frigidaire FEB702CE Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB702CESF 38254712D6216 WHITE U.S.A.

FEB702CESG 38254712D6217 WHITE U.S.A.

FEB702CEBF 38254712D6266 BLACK U.S.A.

FEB702CEBG 38254712D6267 BLACK U.S.A.

GAS WALL OVEN

Model No.

FEB702CE

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM MODELS #- 318046004

OWNER’S GUIDE MODELS #- 318094003

INSTALLATION INSTR. # - 318128601

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995315867

981210

-EN/SERVICE

377

OVEN

MINUTE

HOUR

TIMER

CLOCK

OVEN

LIGHT

550

500

450

400

350 300 250

200

150

THERMOS TAT

OFF

Publication No. FEB702CE

5995315867

12/98 2

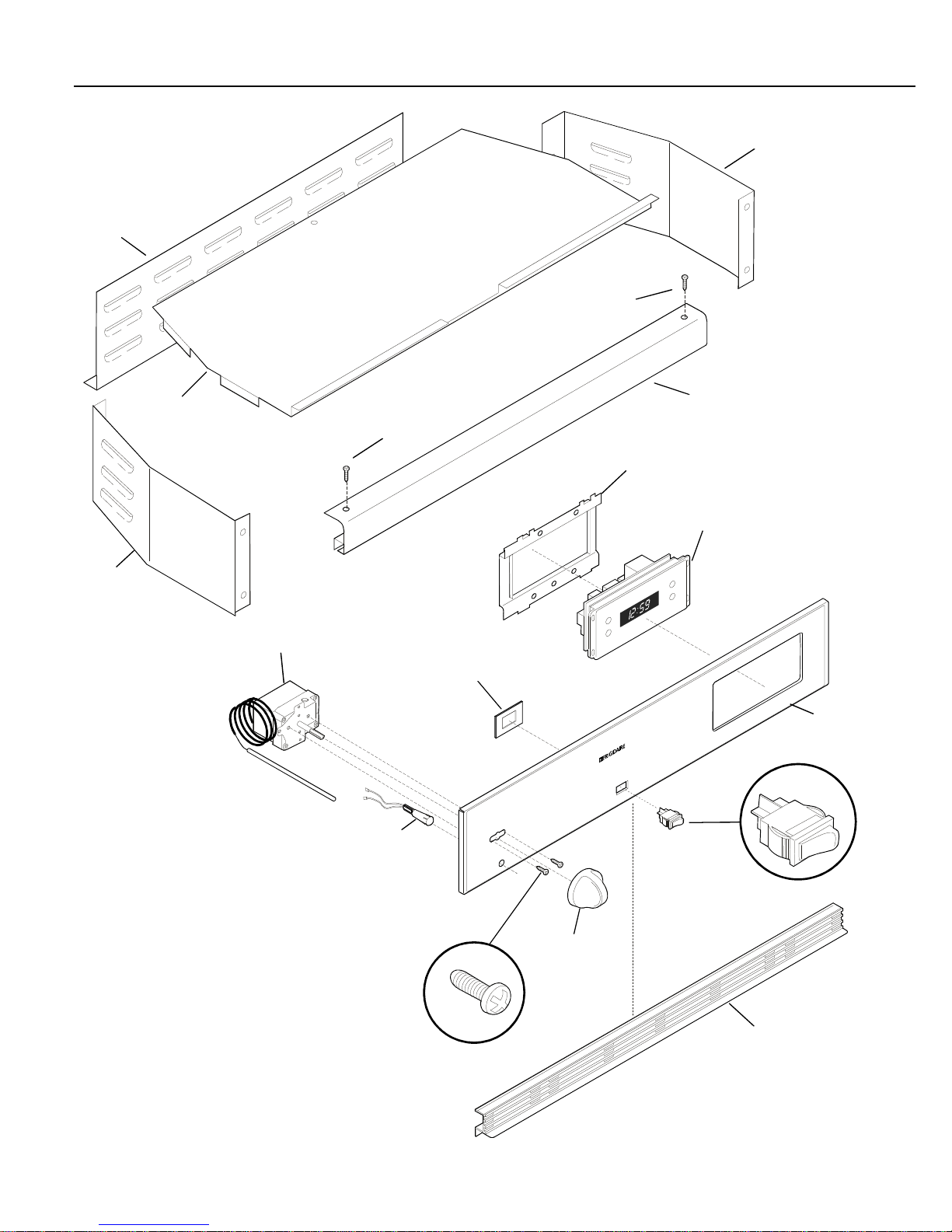

CONTROL PANEL

100

18A

LAP23G0274

FEB702CE Publication No.

5995315867

# = Functional Part 312/98

* = Non-Illustrated Part

CONTROL PANEL

A=FEB702CE (FEB702CESF)

B=FEB702CE (FEB702CESG)

C=FEB702CE (FEB702CEBF)

D=FEB702CE (FEB702CEBG)

POS. NO PART NO DESCRIPTION

12 # 318058300 A B C D Thermostat-oven

14 5303320424 A B C D Light/Lamp

18 5303302377 A B C D End Cap RH

18 A 5303302378 A B C D End Cap LH

19 318129602 A B Panel-control white

19 318129603 C D Panel-control black

20 # 318011919 AClock/Timer

20# 318013907 BClock/Timer

20 # 318011918 CClock/Timer

20# 318013908 DClock/Timer

21 5303299529 A B Trim-canopy white

21 318027900 C D Trim-canopy black

23 318015720 ACBracket

23 318015721 BDBracket

24 # 316005607 A B Switch-rocker white

24 # 316005602 C D Switch-rocker black

32 318017206 A B Knob-thermostat white

32 318017205 C D Knob-thermostat black

42 318026908 A B - - Trim-vent white

42 318026906 - - C D Trim-vent black

65 5304401696 A B C D Cover-control housing

68 5303302376 A B C D Housing control

69 5303323134 A B C D Screw 8-32 X 3/16

99 5303320683 A B Screw, 6-20 X 3/8 (white)

99 5303307406 C D Screw, 6-32 X 3/8 (black)

100 318112200 A B C D Plate switch mtg

* 5303308458 A B C D Screw 10-24 X ¼

*5303211311 A B C D Screw #8 X ½

*3201861 A B C D Screw, 6 X 3/8

FEB702CE Publication No.

5995315867

12/98 4

CAVITY / ELEMENTS

130

158

190

189

667

56A

66 68

103

121

58B

127

LAP23V0074C

54 14 15 16

130A

186

141

58A

FEB702CE Publication No.

5995315867

# = Functional Part 512/98

* = Non-Illustrated Part

CAVITY / ELEMENTS

A=FEB702CE (FEB702CESF)

B=FEB702CE (FEB702CESG)

C=FEB702CE (FEB702CEBF)

D=FEB702CE (FEB702CEBG)

POS. NO PART NO DESCRIPTION

2 5303304699 A B C D Shield oven-top

6 5303299719 A B C D Rack-oven

95303317977 A B C D Pan-broiler

10 5303317976 A B C D Insert broiler pan

14 5308011085 A B C D Socket-light/lamp

15 3201908 A B C D Lamp-oven light

16 3201911 A B C D Glass-oven light lens

17 5304400195 A B C D Retainer-lens

18 318090300 A B C D Latch-door

27 5303284616 A B C D Clip thermo-bulb

54 5303310514 A B C D Housing-oven light

56 318034104 A B Trim-bodyside white

56 318034102 C D Trim-bodyside black

56A 318034105 A B Trim-bodyside white

56A 318034103 C D Trim-bodyside black

58A 5303304702 A B C D Insulation oven wrapper

58B 5303299688 A B C D Insulation oven back

62# 5303310518 A B C D Terminal block

66# 5303322963 A B C D Element-broil

67# 5303299718 A B C D Element-bake

68 5304403015 A B C D Support-element

71 5303304701 A B C D Shield-wire

76 318056107 A B C D Front-oven

80 5303301261 A B C D Spring-oven

82 5303304699 A B C D Shield-insulation

83 318089511 A B C D Liner-oven assy

96 5303316975 A B C D Wrapper top

97 318066701 A B C D Wrapper-back side

99 5303299686 A B C D Support-adjustable

103 5303316903 A B Trim-base white

103 5303316773 C D Trim-base black

121 318145002 A B C D Wrapper-base

127 318072800 A B C D Adapter assy

130 5303299671 A B End cap trim white RH

130 5303299674 C D End cap trim black RH

130A 5303299672 A B End cap tirm white LH

130A 5303299673 C D End cap trim black LH

141# 5303299721 A B C D Thermostat safety

158 318053310 A B C D Seal-oven door

186 318039502 A B Bracket-trim base

186 318039501 C D Bracket-trim base

189 318042500 A B C D Retainer plate

190 5303299666 A B C D Duct oven vent

*5303320489 A B C D Plug

*3201861 A B C D Screw, 6 X 3/8

*08002868 A B C D Screw, 10-24 X ½

*5303211311 A B C D Screw, #8 X ½

*# 5303319468 A B C D Box & wires assy

FEB702CE Publication No.

5995315867

12/98 6

DOOR

41A

16 18

51A

23A

LAP23D0128

FEB702CE Publication No.

5995315867

# = Functional Part 712/98

* = Non-Illustrated Part

DOOR

A=FEB702CE (FEB702CESF)

B=FEB702CE (FEB702CESG)

C=FEB702CE (FEB702CEBF)

D=FEB702CE (FEB702CEBG)

POS. NO PART NO DESCRIPTION

3A 5303299730 A B Trim-oven door white

3A 5303299732 C D Trim-oven door black

3B 5303299731 A B Trim-oven door white

3B 5303299733 C D Trim-oven door black

4 5303299728 A B Glass-oven door white

4 5303299729 C D Glass-oven door black

6 5303316954 A B C D Shield-insulation

7 5303302388 A B C D Insulation

9 5303320491 A B C D Liner-oven door

10 5303307980 A B C D Screw-handle 8-32 X 7/16

11 5303320493 A B C D Cover-hinge cutout

16 5303210001 A B C D Glass-oven door

18 5303299723 A B C D Seal-rope

23 5303299712 A B C D Hinge-oven door

23A 5303299711 A B C D Hinge-oven door

28 318090220 A B C D Strike-door

39 5303299726 A B Handle-door white

39 5303299727 C D Handle-door black

41 5303299746 A B C D Hinge-oven door upper

41A 5303299744 A B C D Hinge-oven door lower

51 5303299738 A B Bracket handle mtg white

51 5303299740 C D Bracket handle mtg black

51A 5303299739 A B Bracket handle mtg white

51A 5303299741 C D Bracket handle mtg black

*5303300265 A B C D Screw, 8-18 X ½

*5303311333 A B C D Screw, 8-32 X 3/8

*5303323277 A B C D Screw, 8-18 X 13/32

Publication No. FEB702CE

5995315867

09/98 8

WIRING DIAGRAM
