Frigidaire GLEB27T9D Manuale utente

GLEB27T9D.tif CFEB30T5DSA.eps BUGLEB27T9DSA.eps BLGLEB27T9DSA.eps

DFEB30S5DSA.eps 318046116.eps

Product No. GLEB27T9DBA GLEB27T9DQA GLEB27T9DSA

37056791G4061 37056791G4041 37056791G4011

Series 27" double 27" double 27" double

Color black bisque white

Market North America North America North America

Wiring Diagram 318046116 318046116 318046116

Owner's Guide 318200924 318200924 318200924

Installation Instructions 316201514 316201514 316201514

Service Data Sheet 316047305 316047305 316047305

Timer Guide 318200133 318200133 318200133

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995422754

04/11/23

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

GLEB27T9D

Publication No: 5995422754 GLEB27T9D

11/04 2

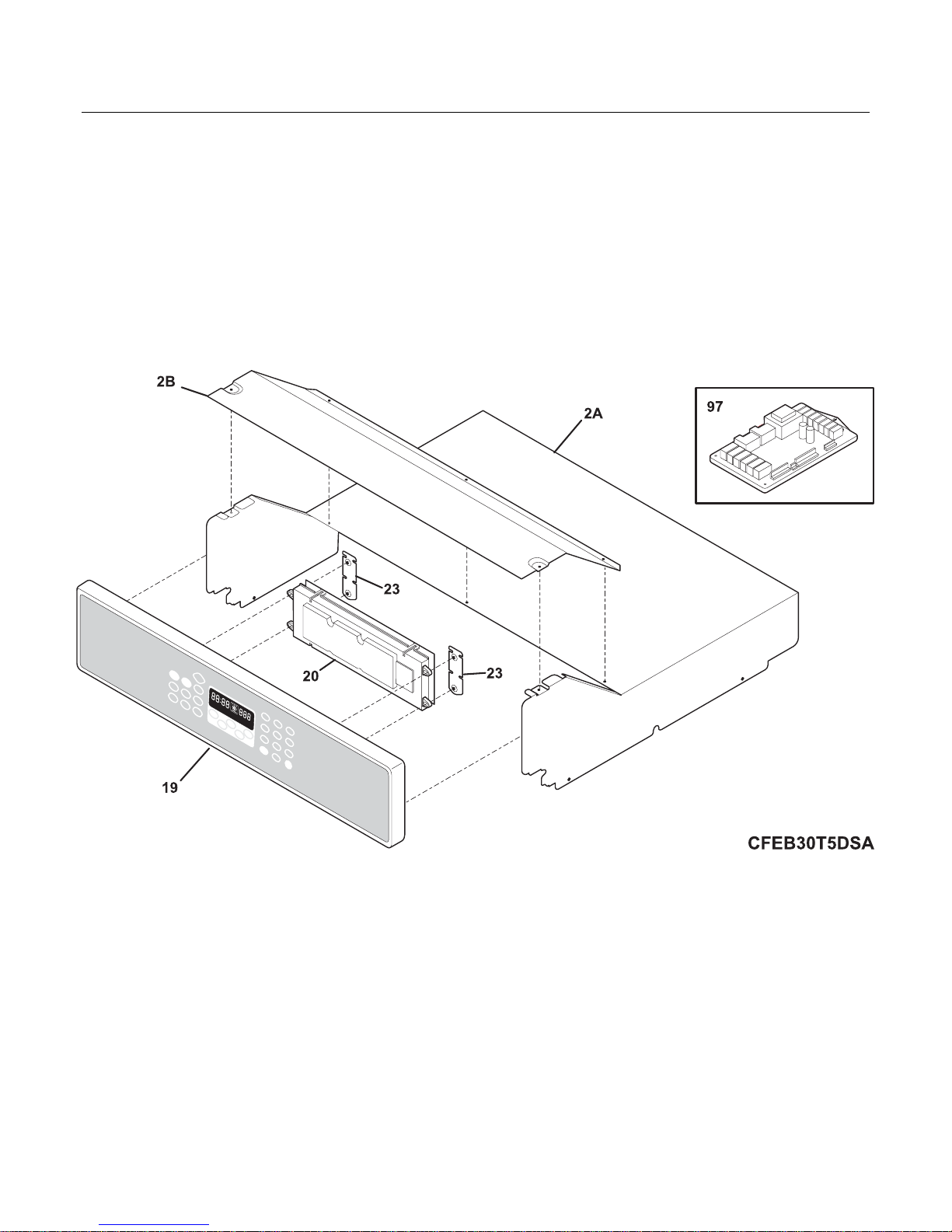

CONTROL PANEL

GLEB27T9D Publication No: 5995422754

# Functional Parts 3 11/04

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLEB27T9D (GLEB27T9DBA)

BGLEB27T9D (GLEB27T9DQA)

CGLEB27T9D (GLEB27T9DSA)

POS. NO PART NO. DESCRIPTION

2A 318257301 A B C Shield, oven top

2B 318260102 A B C Cover, box

19 318274424 A - - Control Panel Assembly, glass, black, w/ touch pad

19 318274423 - B - Control Panel Assembly, glass, bisque, w/ touch pad

19 318274422 - - C Control Panel Assembly, glass, white, w/ touch pad

20 # 316429705 A B C Control, electronic, 5800W3, dual oven

* 316021107 - B C Screw, hex head, 8-32, silver

23 318262900 A B C Bracket, control mtg., (2)

97 316429800 A B C Board, relay, dual oven

* 318231704 A B C Harness, wiring, control-relay

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995422754 GLEB27T9D

11/04 4

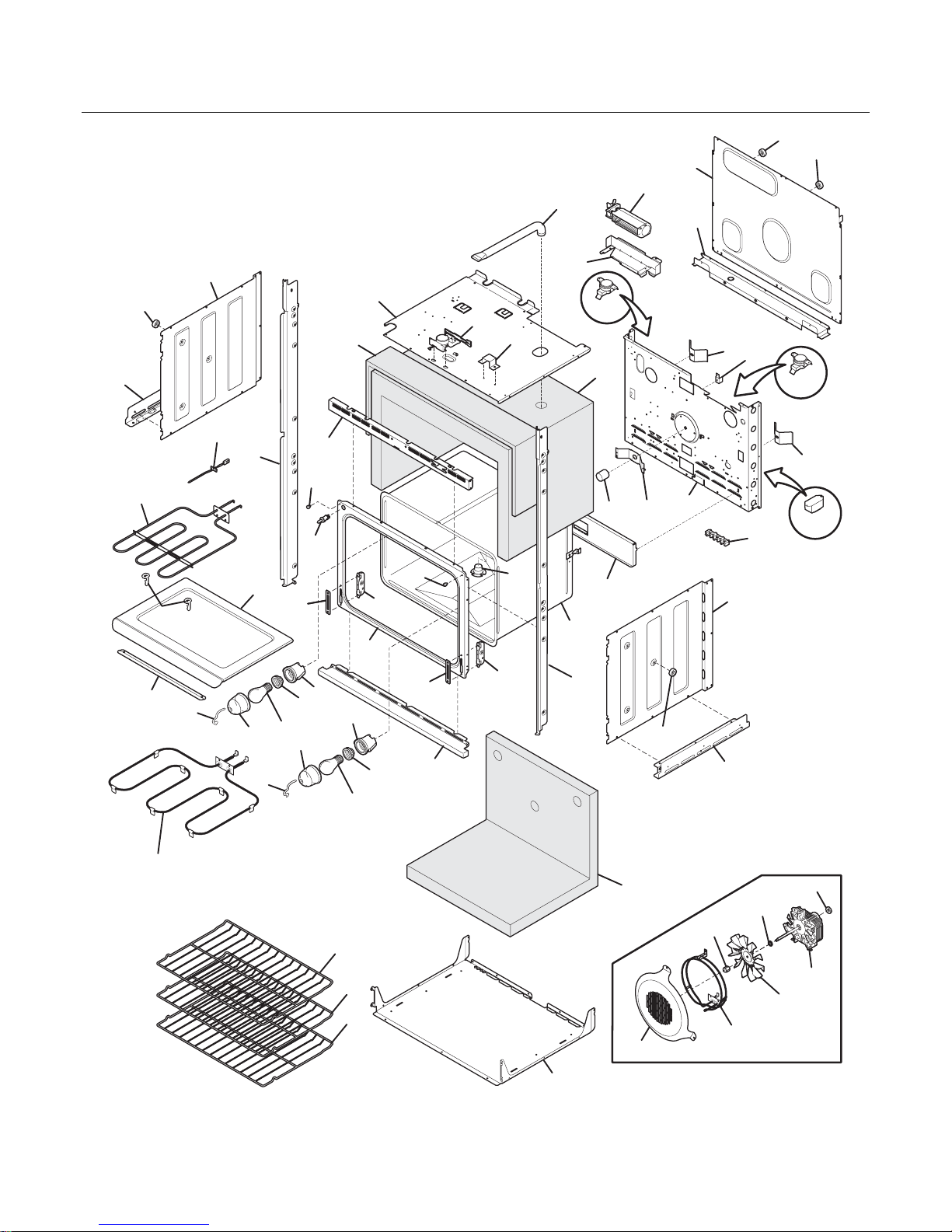

UPPER OVEN

119

108

108A

185

163

58B

264

99 37

29 127

58A

82 BUGLEB27T9DSA

185

59A

131

132

58D

143

219

112

142

310

311

312

272

107

161

111

109

263

125

126

GLEB27T9D Publication No: 5995422754

# Functional Parts 5 11/04

* Non-Illustrated Parts

UPPER OVEN

Model Index: AGLEB27T9D (GLEB27T9DBA)

BGLEB27T9D (GLEB27T9DQA)

CGLEB27T9D (GLEB27T9DSA)

POS. NO PART NO. DESCRIPTION

1 318259210 A B C Back, main

2 318258910 A B C Shield, insulation, upper

6 318262603 A B C Rack, oven, (3)

6A 318219500 A B C Rack, broiler pan

8 318262011 A B C Cover, element

8A 318285300 A B C Bracket, element cover

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

* 3015722 A B C Clip, wire retainer

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, door, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

58A 318133795 A B C Insulation, oven wrapper, back/bottom

58B 318133794 A B C Insulation, oven wrapper, top/sides

58D 318133793 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

66 # 318255601 A B C Element, broil, 3400W

67 318254902 A B C Element, bake, 2700W, 6 pass

68 5304403015 A B C Support, element hanger

70 318259100 A B C Shield, insulation, sides, (2)

71 318260001 A B C Panel, rear box

76 318056222 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258710 A B C Shield, insulation, lower

83 318261500 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

89# 318261200 A B C Motor, latch assy

* 318231705 A B C Harness, latch

99 318252800 A B C Support, side

* 5303300265 A B C Screw, 8-18 x 0.500, chrome, (3)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112701 A B C Relay

119# 318004900 A B C Switch, thermal

125# 316415800 A B C Motor, fan

Publication No: 5995422754 GLEB27T9D

11/04 6

UPPER OVEN

119

108

108A

185

163

58B

264

99 37

29 127

58A

82 BUGLEB27T9DSA

185

59A

131

132

58D

143

219

112

142

310

311

312

272

107

161

111

109

263

125

126

GLEB27T9D Publication No: 5995422754

# Functional Parts 7 11/04

* Non-Illustrated Parts

UPPER OVEN

Model Index: AGLEB27T9D (GLEB27T9DBA)

BGLEB27T9D (GLEB27T9DQA)

CGLEB27T9D (GLEB27T9DSA)

POS. NO PART NO. DESCRIPTION

126 318142100 A B C Washer, motor, RH, convection

127 5303310542 A B C Adapter, vent tube, with converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

143 318172904 A B C Support, wire/glass

161# 318255503 A B C Element, convection, 350 W

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003606 A B C Thermostat, safety

263 316136500 A B C Washer, fan motor

264 318257711 A B C Trim, oven, black, front

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

* 3201861 A B C Screw, 6 x 0.375, (4)

* 5303211311 A B C Screw, 8 x 0.500

* 5303323277 A B C Screw, 8-18 X 13/32

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995422754 GLEB27T9D

11/04 8

LOWER OVEN

143

219

119

108

112

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLGLEB27T9DSA

185

59A

58D

272

107

111

109

263

125

126

161

GLEB27T9D Publication No: 5995422754

# Functional Parts 9 11/04

* Non-Illustrated Parts

LOWER OVEN

Model Index: AGLEB27T9D (GLEB27T9DBA)

BGLEB27T9D (GLEB27T9DQA)

CGLEB27T9D (GLEB27T9DSA)

POS. NO PART NO. DESCRIPTION

1 318259210 A B C Back, main

2 318258910 A B C Shield, insulation, upper

6 318262603 A B C Rack, oven, (3)

6A 318219500 A B C Rack, broiler pan

8 318262011 A B C Cover, element

8A 318285300 A B C Bracket, element cover

12 # 318089917 A B C Switch, light

* 3015722 A B C Clip, wire retainer

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, door, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

56 318259914 A - - Trim, side filler, black, RH

56 318259916 - B - Trim, side filler, bisque, RH

56 318259912 - - C Trim, side filler, white, RH

56A 318259915 A - - Trim, side filler, black, LH

56A 318259917 - B - Trim, side filler, bisque, LH

56A 318259913 - - C Trim, side filler, white, LH

58A 318133795 A B C Insulation, oven wrapper, back/bottom

58B 318133794 A B C Insulation, oven wrapper, top/sides

58D 318133793 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255601 A B C Element, broil, 3400W

67 318254902 A B C Element, bake, 2700W, 6 pass

68 5304403015 A B C Support, element hanger

70 318259100 A B C Shield, insulation, sides, (2)

71 318260001 A B C Panel, rear box

76 318056222 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258710 A B C Shield, insulation, lower

83 318261500 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260601 A B C Bracket, cable mtg.

89# 318261201 A B C Motor, latch assy

* 318231705 A B C Harness, latch

90 318259711 A - - Trim, oven front, black, bottom

90 318259712 - B - Trim, oven front, bisque, bottom

90 318259710 - - C Trim, oven front, white, bottom

Publication No: 5995422754 GLEB27T9D

11/04 10

LOWER OVEN

143

219

119

108

112

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLGLEB27T9DSA

185

59A

58D

272

107

111

109

263

125

126

161
