Frigidaire FEB27S7FCD Manuale di istruzioni

FEB27S7FC.tif CPLEB27S9DCA.eps BFEB27S7FCA.eps DFEB27S7FCB.eps

318046254.eps

Product No. FEB27S7FCD

38254783F60S4

Series 27" single

Color stainless

Market North America

Wiring Diagram 318046254

Owner's Guide 318205119

Installation Instructions 318201514

Service Data Sheet 318047413

Timer Guide 318200189

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995513446

08/05/06

(EN/SERVICE/BJH)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB27S7F

Publication No: 5995513446 FEB27S7FCD

05/08 2

CONTROL PANEL

FEB27S7FCD Publication No: 5995513446

# Functional Parts 3 05/08

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257301 Shield, oven top

2B 318260101 Cover, box

19 318271530 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316418526 Clock/Timer, electronic, ES350W2

* # 318231755 Harness, wiring

* 5303211311 Screw, 8 x 0.500

Publication No: 5995513446 FEB27S7FCD

05/08 4

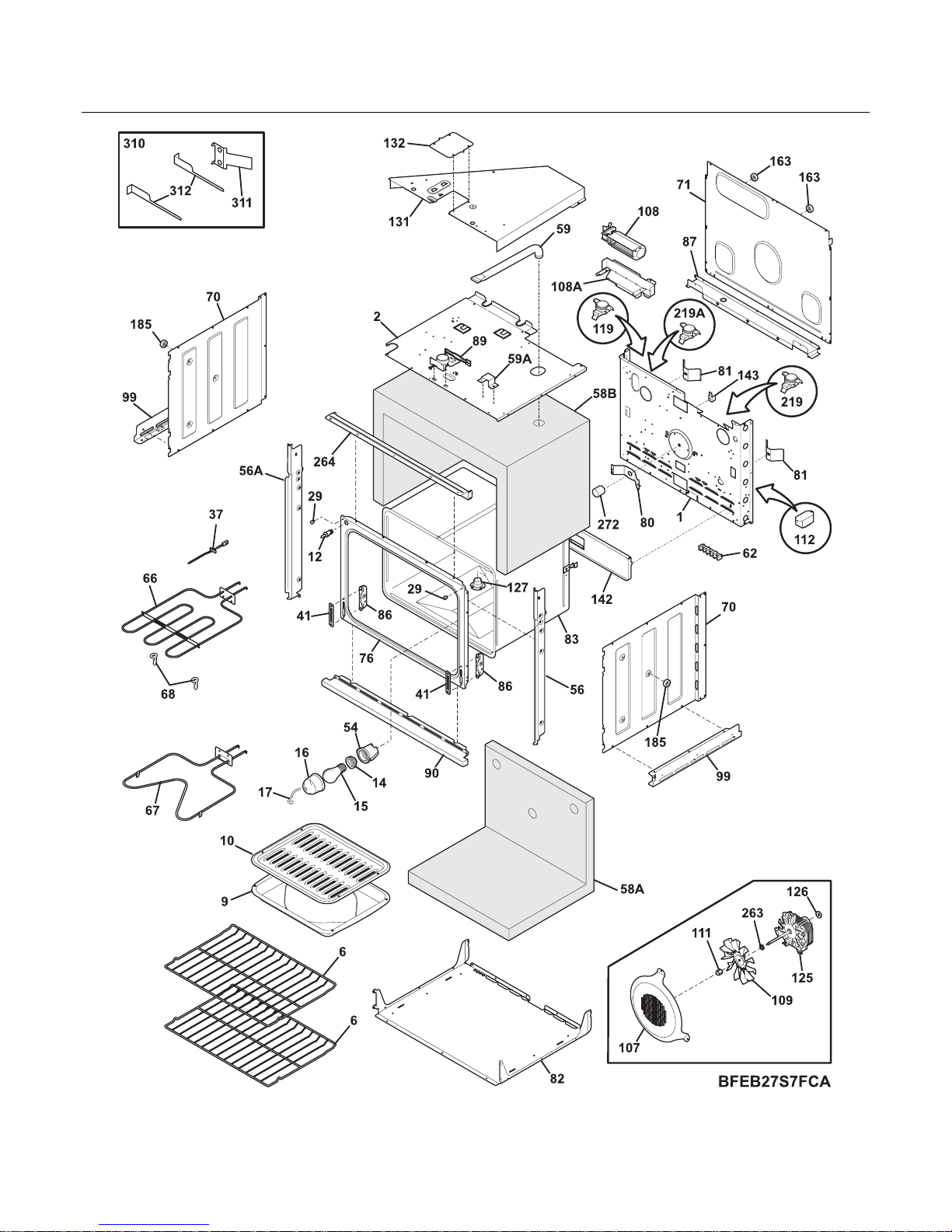

BODY

FEB27S7FCD Publication No: 5995513446

# Functional Parts 5 05/08

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259213 Back, main

2 318258910 Shield, insulation, upper

6 318345209 Rack, oven, (3)

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318903704 Trim, side, black, RH

56A 318903705 Trim, side, black, LH

58A 318285060 Insulation, rear & bottom, oven wrapper

58B 318285059 Insulation, top & sides, oven wrapper

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, oven assy

86 318328010 Receptacle, hinge

87 318260601 Bracket, cable mtg.

89 # 318261205 Motor, latch assy

90 318259812 Trim, base, stainless

99 318256201 Bracket, side, bottom, (2)

107 318219405 Cover, fan

108# 318073028 Motor, blower

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 318399800 Nut-fan retainer

112# 318112703 Relay

119# 318004900 Switch, thermal

125# 318398200 Motor, fan

125* 5303316994 Insulation, 3.81 x 3.13

126 3016303 Clip, insulator

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272901 Box, vent

Publication No: 5995513446 FEB27S7FCD

05/08 6

BODY

FEB27S7FCD Publication No: 5995513446

# Functional Parts 7 05/08

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

163 318531703 Spacer, (2)

185 318531800 Spacer, oven shield, (2)

219# 318003614 Thermostat, safety

219A 318003613 Thermostat, safety, 1.375" mtg, 105/120

264 318257711 Trim, oven, black, front

272 318249403 Tube, protector

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* # 318370375 Wiring Harness, main

* # 318394441 Box & wires assy

* 318165800 Spacer

* 3201861 Screw, 6 x 0.375, (4)

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303323277 Screw, 8-18 X 13/32

* 5303324184 Screw, 8-18 x 5/16, black, (4)

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995513446 FEB27S7FCD

05/08 8

DOOR

DFEB27S7FCB

4142

FEB27S7FCD Publication No: 5995513446

# Functional Parts 9 05/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260510 Baffle, door

7 318372000 Insulation, door, (2)

7A 318372001 Insulation, door, 20.5 x 2.375, (2)

8 318212200 Glass, oven door, heat barrier

9 318259615 Liner, upper door

10 5303325980 Screw, 10-32 x 0.437

12 318053135 Seal, oven door, upper

13 318272109 Door Assy, glass, stainless steel, upper door, w/tape & foil

17 318264700 Spacer, glass, (2)

23 318024722 Hinge, door, upper, (2)

24 318260311 Trim, door, black, lower

39 318219805 Handle, door/drawer, stainless

40 318242702 Bracket, glass holder, upper door, (2)

41 318370600 Bracket, glass retainer, (2)

42 318382301 Bracket, glass retainer, (4)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995513446 FEB27S7FCD

05/08 10

WIRING DIAGRAM
