Frigidaire GLEB30S9F Manuale utente

GLEB30S9F.tif CGLEB30S9DSA.eps BPLEB27S9DCB.eps DGLEB30S9FSA.eps

318046235.eps

Product No. GLEB30S9FBA GLEB30S9FQA GLEB30S9FSA

38256361G6061 38256361G6041 38256361G6011

Series 30" single 30" single 30" single

Color black bisque white

Market North America North America North America

Wiring Diagram 318046235 318046235 318046235

Owner's Guide 318200924 318200924 318200924

Installation Instructions 318201514 318201514 318201514

Service Data Sheet 318047414 318047414 318047414

Timer Guide 318200197 318200197 318200197

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995470852

06/07/26

(EN/SERVICE/ECL)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

GLEB30S9F

Publication No: 5995470852 GLEB30S9F

07/06 2

CONTROL PANEL

GLEB30S9F Publication No: 5995470852

# Functional Parts 3 07/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLEB30S9F (GLEB30S9FSA)

BGLEB30S9F (GLEB30S9FBA)

CGLEB30S9F (GLEB30S9FQA)

POS. NO PART NO. DESCRIPTION

2A 318257300 A B C Shield, oven top

2B 318260100 A B C Cover, box

19 318274608 A - - Control Panel Assembly, glass, white, w/touch pad

19 318274610 - B - Control Panel Assembly, glass, black, w/touch pad

19 318274609 - - C Control Panel Assembly, glass, bisque, w/touch pad

20 # 316418720 A B C Clock/Timer, electronic, ES510W1

* 316021107 A B C Screw, hex head, 8-32, silver

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995470852 GLEB30S9F

07/06 4

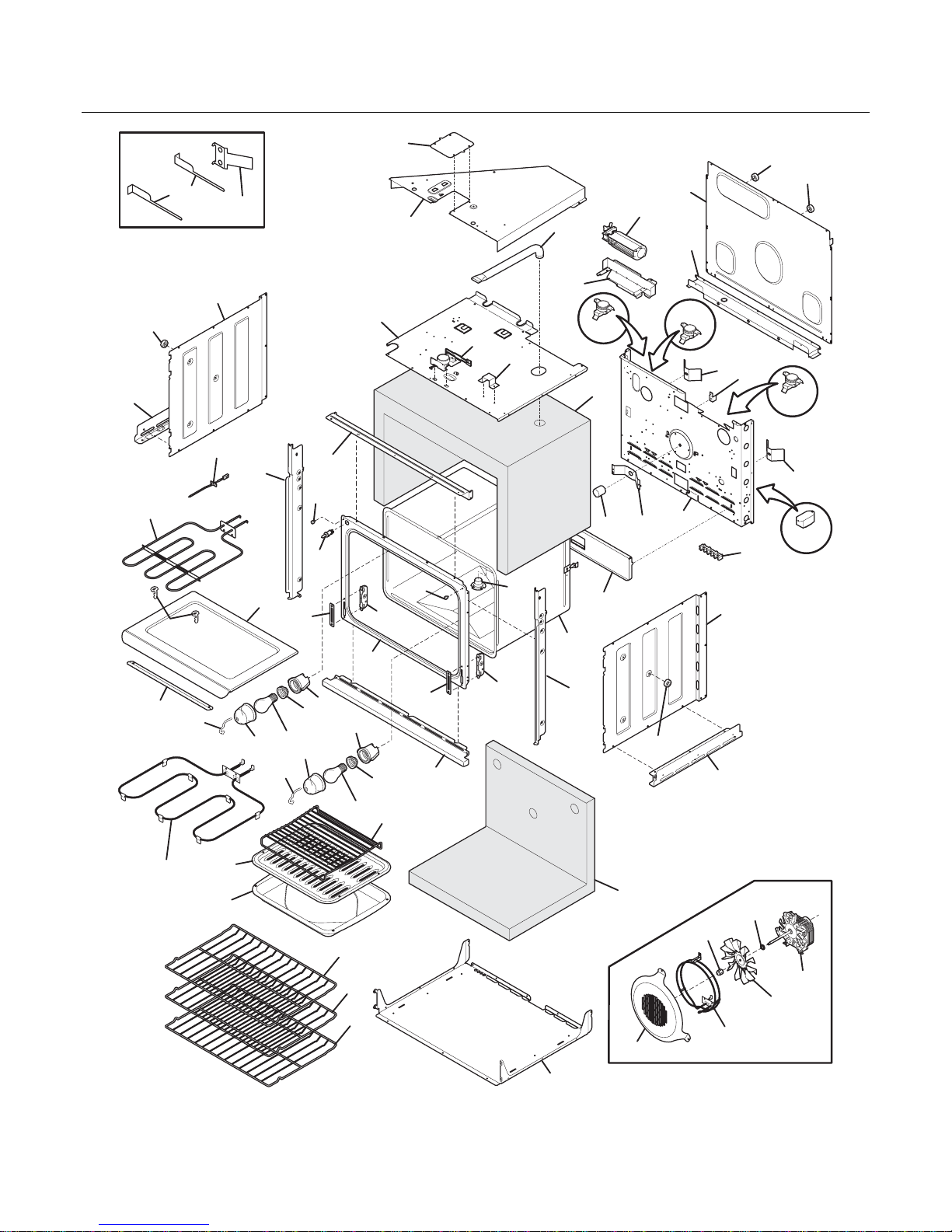

BODY

310

311

143

219

119

312

108

112

108A

185

163

142

58B

264

29 127

58A

82 BPLEB27S9DCB

185

59A

56A

1067

131

132

219A

272

107

161

111

109

263

125

GLEB30S9F Publication No: 5995470852

# Functional Parts 5 07/06

* Non-Illustrated Parts

BODY

Model Index: AGLEB30S9F (GLEB30S9FSA)

BGLEB30S9F (GLEB30S9FBA)

CGLEB30S9F (GLEB30S9FQA)

POS. NO PART NO. DESCRIPTION

1 318259204 A B C Back, main

2 318258902 A B C Shield, insulation, upper

6 318345208 A B C Rack, oven

6A 318219500 A B C Rack, broiler pan

8 318262001 A B C Cover, element

8A 318318600 A B C Bracket, element, hidden bake

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 08011086 A B C Lens, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

56 318259902 A - - Trim, side filler, white, RH

56 318259904 - B - Trim, side filler, black, RH

56 318259906 - - C Trim, side filler, bisque, RH

56A 318259903 A - - Trim, side filler, white, LH

56A 318259905 - B - Trim, side filler, black, LH

56A 318259907 - - C Trim, side filler, bisque, LH

58A 318285055 A B C Insulation, oven wrapper

58B 318285056 A B C Insulation, oven back

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323144 A B C Nut, 10-32

66 # 318255600 A B C Element, broil, 2750W

67 318254901 A B C Element, bake, 3400W, 8 pass

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260007 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258707 A B C Shield, insulation, lower

83 318261400 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260600 A B C Bracket, cable mtg.

89 # 318261209 A B C Motor, latch assy

90 318259700 A - - Trim, oven front, white, bottom

90 318259701 - B - Trim, oven front, black, bottom

90 318259702 - - C Trim, oven front, bisque, bottom

99 318256200 A B C Bracket, side, bottom, (2)

107 318219401 A B C Cover, fan

Publication No: 5995470852 GLEB30S9F

07/06 6

BODY

310

311

143

219

119

312

108

112

108A

185

163

142

58B

264

29 127

58A

82 BPLEB27S9DCB

185

59A

56A

1067

131

132

219A

272

107

161

111

109

263

125

GLEB30S9F Publication No: 5995470852

# Functional Parts 7 07/06

* Non-Illustrated Parts

BODY

Model Index: AGLEB30S9F (GLEB30S9FSA)

BGLEB30S9F (GLEB30S9FBA)

CGLEB30S9F (GLEB30S9FQA)

POS. NO PART NO. DESCRIPTION

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112701 A B C Relay

119# 318004900 A B C Switch, thermal

125# 316415800 A B C Motor, fan

125* 5303316994 A B C Insulation, 3.81 x 3.13

126 318142100 A B C Washer, motor, RH, convection

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

* 5303324184 A B C Screw, 8-18 x 5/16, black, (4)

143 318172904 A B C Support, wire

161# 318255503 A B C Element, convection, 350 W

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003614 A B C Thermostat, safety

219A 318003613 A B C Thermostat, safety, 1.375" mtg, 105/120

263 316136500 A B C Washer, flat

264 318257701 A B C Trim, oven, black, front

272 318249401 A B C Tube, protector

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

* # 318078542 A B C Box & wires assy

* 318231737 A B C Harness, wiring, main

* 5303323136 A B C Screw ground

* 318165800 A B C Spacer

* 3201861 A B C Screw, 6 x 0.375, (4)

* 5303211311 A B C Screw, 8 x 0.500

* 5303323139 A B C Screw, 10-24 x 0.906

* 5303323277 A B C Screw, 8-18 X 13/32

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995470852 GLEB30S9F

07/06 8

DOOR

GLEB30S9F Publication No: 5995470852

# Functional Parts 9 07/06

* Non-Illustrated Parts

DOOR

Model Index: AGLEB30S9F (GLEB30S9FSA)

BGLEB30S9F (GLEB30S9FBA)

CGLEB30S9F (GLEB30S9FQA)

POS. NO PART NO. DESCRIPTION

3 318260201 A B C Trim, oven door, black, upper

3A 318260401 A B C Trim, oven door, side, (2)

4 318261301 A - - Glass Assy., oven door, white, outer, w/trim

4 318261300 - B - Glass Assy., oven door, black, outer, w/trim

4 318261302 - - C Glass Assy., oven door, bisque, outer, w/trim

6 318260520 A B C Baffle, door

7 318285057 A B C Insulation, oven door

7A 318285062 A B C Insulation, oven door

8 316117500 A B C Glass, oven door, heat barrier

9 318259601 A B C Liner, oven door, upper

10 5304416408 A B C Screw, 10-24 x 1.750, handle mtg

12 318053130 A B C Seal, oven door, upper

17 316402403 A B C Spacer, door glass, (2)

23 318024722 A B C Hinge, door, (2)

29 318014402 A B C Spacer, door

39 5304457012 A - - Handle, door, white, w/spacer

39 5304457011 - B - Handle, door, black, w/spacer

39 5304457013 - - C Handle, door, bisque, w/spacer

40 318242700 A B C Bracket, glass holder, (2)

56 5304436875 A B C Screw, 8-18 X 1/2, black

64 318165800 A B C Spacer

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

* 5303323277 A B C Screw, 8-18 X 13/32

Publication No: 5995470852 GLEB30S9F

07/06 10

WIRING DIAGRAM
