Frigidaire PLEB30M9E Manuale utente

PLEB30M9EC.eps CPLEB27M9ECA.eps MPLEB27M9ECA.eps BGLEB30M9ESA.eps

DPLEB27M9ECA.eps 318046238.eps

Even-Cook Con vectionO ven

Timer

On/Off

Oven

ligh t

Controls

Speed

clean

Clean

Maxx

clean STAR T

Clear

/O ff

Broil

Pre

Heat

Keep

Warm

Bake

Conv

roa st

Start

tim e

Bake

tim e

Clock

Conv

bake

Conv

conve rt

789

456

123

Product No. PLEB30M9ECA

39257391G50S1

Series 30" elec

Color stainless

Market North America

Wiring Diagram 318046238

Owner's Guide 318200941

Installation Instructions 318201521

Service Data Sheet 318047418

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995458030

06/01/10

(EN/SERVICE/ECL)

377

WALL OVEN/

MICROWAVE COMBO

Model No.

PLEB30M9E

Publication No: 5995458030 PLEB30M9ECA

01/06 2

CONTROL PANELS

PLEB30M9ECA Publication No: 5995458030

# Functional Parts 3 01/06

* Non-Illustrated Parts

CONTROL PANELS

POS. NO PART NO. DESCRIPTION

1 318331313 Control Panel Assembly, glass, black, w/touch pad

2 # 316418720 Clock/Timer, electronic, ES510W1

* 316021107 Screw, hex head, 8-32, silver

3 318295701 Deflector, timer

4 318271415 Frame, control panel, stainless

16 # 5304440820 Control Board, printed circuit

17 5304452253 Frame, control panel, stainless steel

18 # 5304440824 Switch Assy, touch control, black

19 5304448833 Push Button, door opener, stainless steel

20 5304442134 Spring, button

21 5304440282 Screw, control board, 3mm x 10mm

22 5304440832 Connector, rubber, control board

23 5304440833 Panel, touch pad mount

24 # 5304440834 LED Sheet, backlight

25 # 5304440835 LCD, display

26 5304440836 Bracket, PCB support

* 5303211311 Screw, 8 x 0.500

Publication No: 5995458030 PLEB30M9ECA

01/06 4

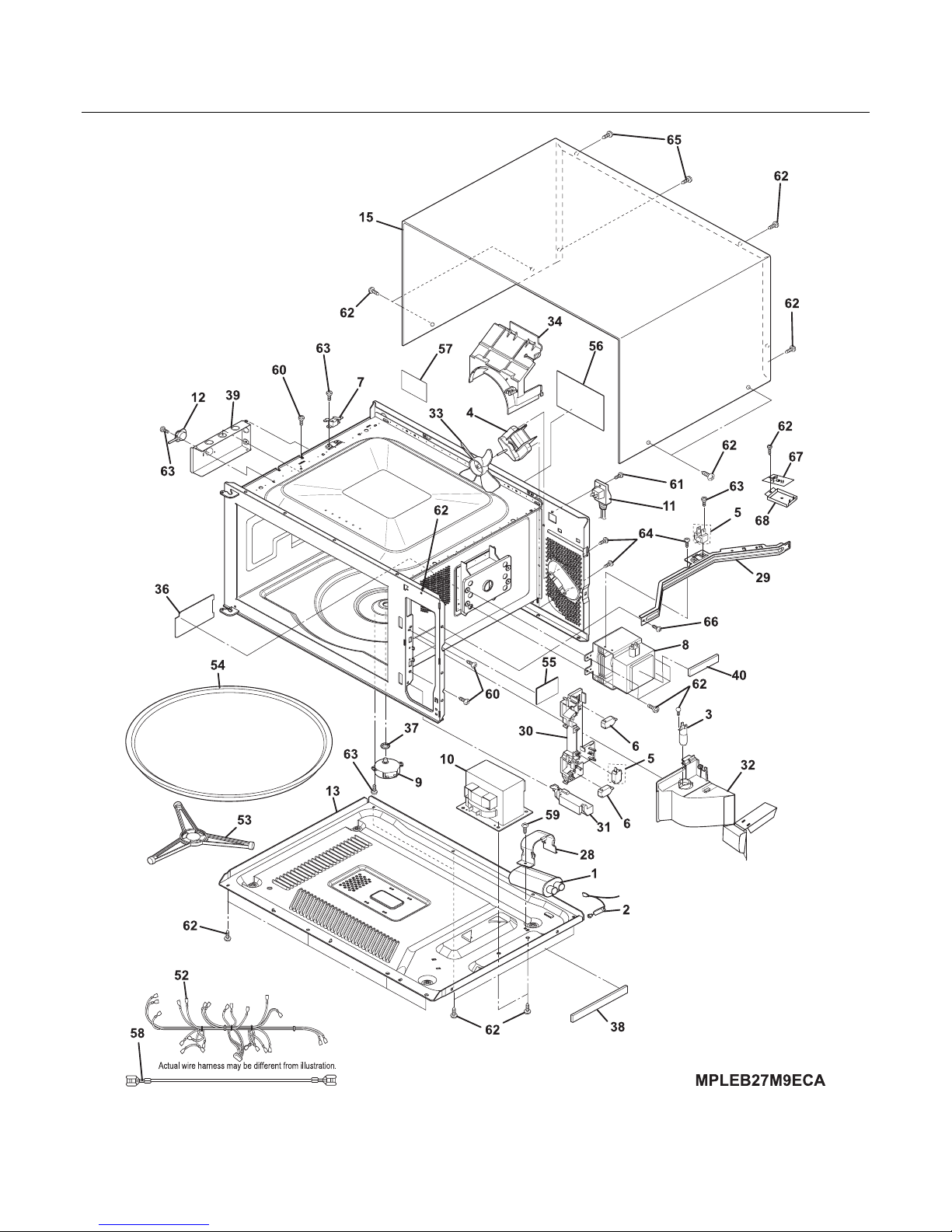

UPPER OVEN

PLEB30M9ECA Publication No: 5995458030

# Functional Parts 5 01/06

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 # 5304440777 Capacitor, high voltage

2 # 5304440778 Rectifier, high voltage

3 # 5304440779 Lamp Assy, with socket

4 # 5304448490 Motor, cooling fan

5 # 5303319559 Switch, monitor, with CT fuse

6 # 5304440026 Switch, interlock, door sensor

7 # 5304440780 Fuse, cavity temp, 20 Amp, 250 V

8 # 5304440781 Magnetron

9 # 5304448832 Motor, turntable

10 # 5304440783 Transformer, power

11 # 5304440784 Power Cord, electric

12 # 5304440785 Sensor, humidity, cook control

13 5304440814 Base, unit chassis

15 5304440816 Cabinet, outer casing, black

28 5304440838 Retainer, capacitor strap

29 5304440839 Bracket, chassis support

30 5304440840 Latch Hook

31 5304440841 Lever, door release

32 5304440842 Duct, magnetron

33 # 5304440843 Fan Blade, cooling fan

34 5304440844 Duct, cooling fan

36 5304440845 Cover, waveguide

37 5304440288 Bushing, motor shaft, turntable

38 5304441909 Cushion, base plate pad

39 5304440847 Duct, AH sensor

40 5304441910 Cushion, magnetron pad

52 5304452260 Wiring Harness, main

53 5304440284 Support Assy, turntable

54 5304440868 Tray, turntable, glass

55 5304440334 Label, Caution-monitor

56 5304440333 Label, Caution-DHHS

57 5304453941 Label, caution, UL screw

58 # 5304440870 Wire, high voltage-A

59 5303319636 Screw

60 5303319641 Screw

61 5304440871 Screw, 4mm x 12mm, ground

62 5304440340 Screw, 4mm x 12mm

62 5304452261 Screw, outer casing

63 5303319633 Screw, 3mm x 8mm

64 5304440872 Screw, 4mm x 8mm

65 5304440873 Screw, torx head, tamper proof

66 5304440874 Screw

67 # 5304451818 Filter, noise, electronic

68 5303322975 Bracket, noise filter, angle

Publication No: 5995458030 PLEB30M9ECA

01/06 6

LOWER OVEN

PLEB30M9ECA Publication No: 5995458030

# Functional Parts 7 01/06

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259202 Back, main

2 318258902 Shield, insulation, upper

6 318262503 Rack, oven

6A 318219500 Rack, broiler pan

8 318262001 Cover, element

8A 318318600 Bracket, element, hidden bake

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

* 5303325980 Screw, 10-32 x 0.437

54 318222400 Housing, oven light

56 318276304 Trim, side filler, black, RH

56A 318276305 Trim, side filler, black, LH

58A 318285055 Insulation, oven wrapper

58B 318285056 Insulation, oven back

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 318254901 Element, bake, 3400W, 8 pass

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261400 Liner, oven assy

84 # 318146828 Outlet-electrical, miniature, black-glossy

86 5303310524 Receptacle, hinge

87 318260600 Bracket, cable mtg.

89# 318261202 Motor, latch assy

90 318259802 Trim, base, stainless

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

Publication No: 5995458030 PLEB30M9ECA

01/06 8

LOWER OVEN

PLEB30M9ECA Publication No: 5995458030

# Functional Parts 9 01/06

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

112# 318112701 Relay

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

125* 5303316994 Insulation, 3.81 x 3.13

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

161# 318255503 Element, convection, 350 W

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003614 Thermostat, safety

219A 318003613 Thermostat, safety

263 316136500 Washer, flat

264 318257701 Trim, oven, black, front

272 318249401 Tube, protector

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

400 318275703 Trim Assembly, microwave, 30", stainless

401 318297201 Plate, support, microwave, 30"

402 318276202 Bracket, base pad, RH

403 318276203 Bracket,base pad, LH

406 318277200 Shield, microwave rear

409 318295300 Bracket, top trim

410 318297101 Flue, black

411# 5304442354 Holder, fuse

412# 5304442353 Fuse, 20 Amp

* # 318078543 Box & wires assy

* 318231737 Harness, wiring, main

* 5303323136 Screw ground

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5303324184 Screw, 8-18 x 5/16, black, (4)

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995458030 PLEB30M9ECA

01/06 10

DOORS
