Frigidaire FGB24T3A Manuale utente
PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET
FGB24T3ABA FGB24T3A 38454410B1061 black North America
FGB24T3ASA FGB24T3A 38454410B1011 white North America
Publication No.
5995363255
020104
-EN/SERVICE /ECL
377
GAS
WALL OVEN
Model No.
FGB24T3A
©2002 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
RANGE
WIRING DIAGRAM - # 318046113
OWNER’S GUIDE - # 318200953
INSTALLATION INSTRUCTIONS - # 318201551
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
01/02 2
Publication No. FGB24T3A
5995363255

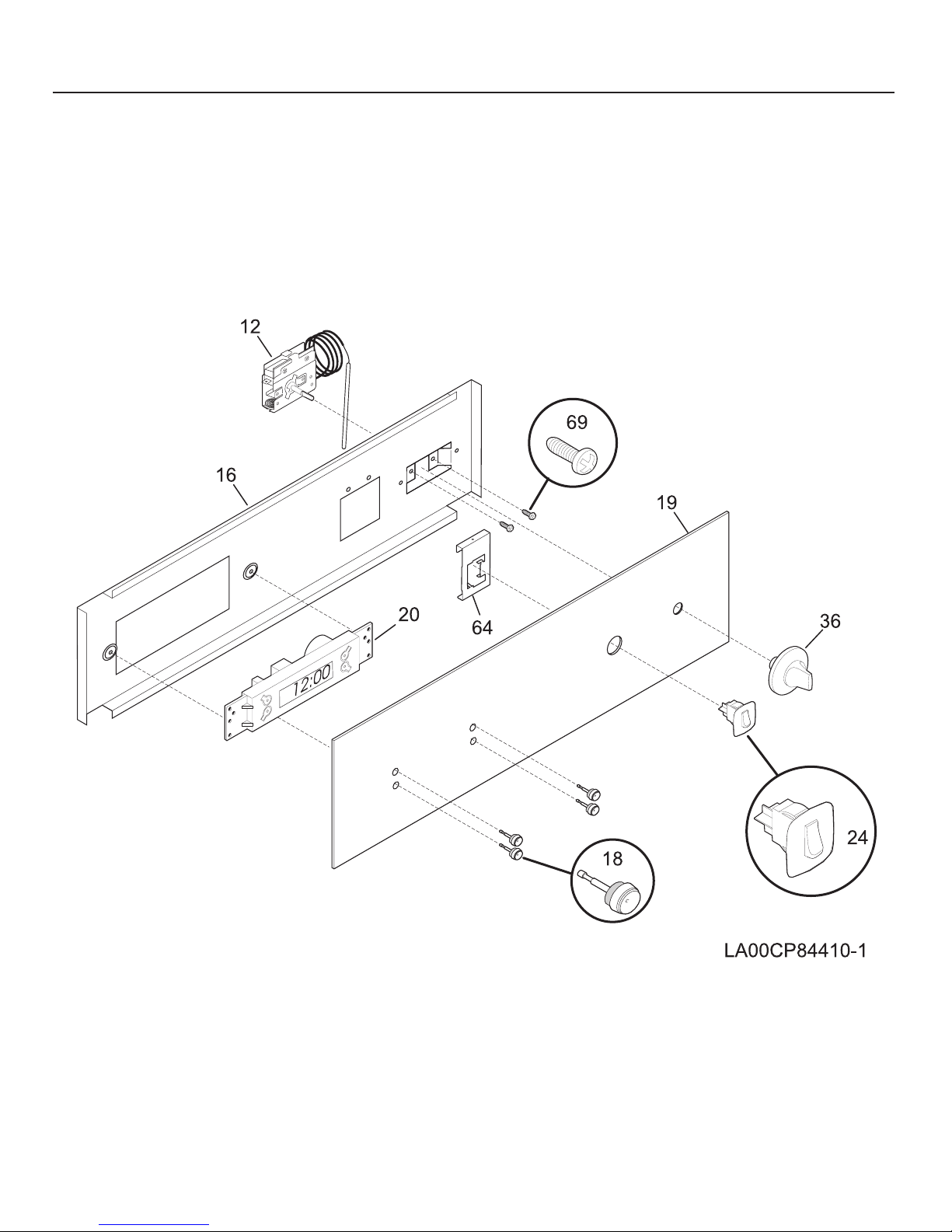

CONTROL PANEL
# = Functional Parts 3 01/02
* = Non-Illustrated Parts
FGB24T3A Publication No.
5995363255
CONTROL PANEL
A = FGB24T3A (FGB24T3ASA)
B = FGB24T3A (FGB24T3ABA)
POS. NO PART NO DESCRIPTION
12 # 318059202 A B Thermostat,oven
16 318116904 A B Plate,instrument mtg
18 316017303 A - Button,clock set ,white
18 5303272306 - B Button,clock set ,black
19 318212502 A - Glass,control panel ,white
19 318212503 - B Glass,control panel ,black
20 # 318184801 A B Clock/Timer
24 # 316090901 A - Switch,oven light ,white
24 # 316090900 - B Switch,oven light ,black
36 318196400 A - Knob,thermostat ,white
36 318196401 - B Knob,thermostat ,black
64 318110700 A B Bracket,light switch
69 5303323134 A B Screw,switch mtg. ,8-32 x 0.188
* 5303211311 A B Screw,8 x 0.500
* 5303324181 A B Screw 6-18 x 3/8
* 5303316956 A - Screw,6-32 x 3/8 ,white ,(2)
* 5303307406 - B Screw,6-32 x 3/8 ,black ,(2)
01/02 4
Publication No. FGB24T3A
5995363255

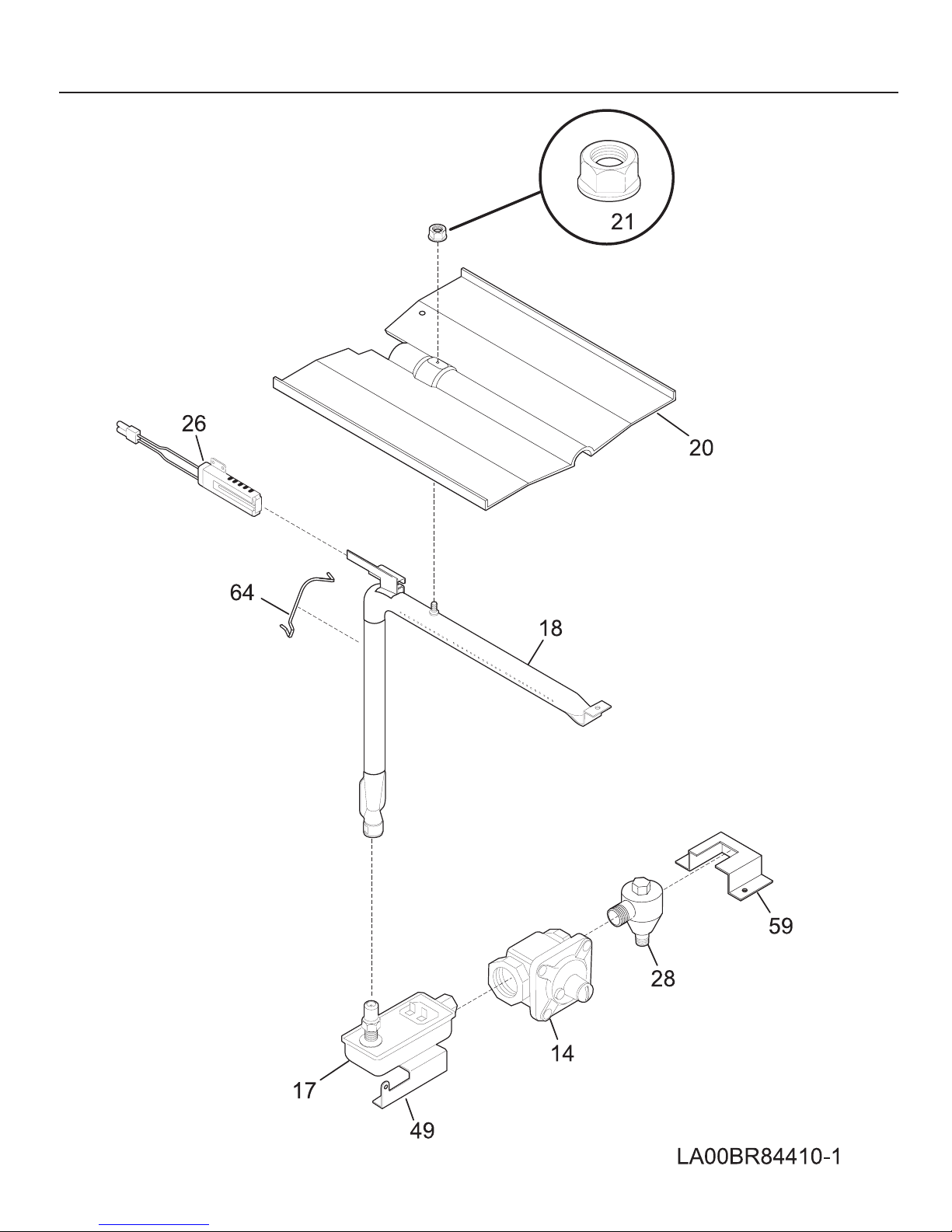

BURNER
# = Functional Parts 5 01/02
* = Non-Illustrated Parts
FGB24T3A Publication No.
5995363255
BURNER
A = FGB24T3A (FGB24T3ASA)
B = FGB24T3A (FGB24T3ABA)
POS. NO PART NO DESCRIPTION
14 # 5303210167 A B Regulator,pressure
17 # 5303210156 A B Valve,safety
18 # 5303207603 A B Burner,oven
20 5303317122 A B Baffle,oven burner
21 3201885 A B Nut,Keps ,10-24
26 # 318177710 A B Ignitor,oven burner
28 # 5303295305 A B Valve,shut off
49 5303317124 A B Bracket,safety valve
59 5303317123 A B Bracket,safety valve ,support
64 5303295303 A B Retainer,oven burner
* 5303211311 A B Screw,8 x 0.500
* 5303311333 A B Screw,8-32 x 3/8 ,(6)
* 5303323135 A B Screw,10 x 1-7/8
01/02 6
Publication No. FGB24T3A
5995363255

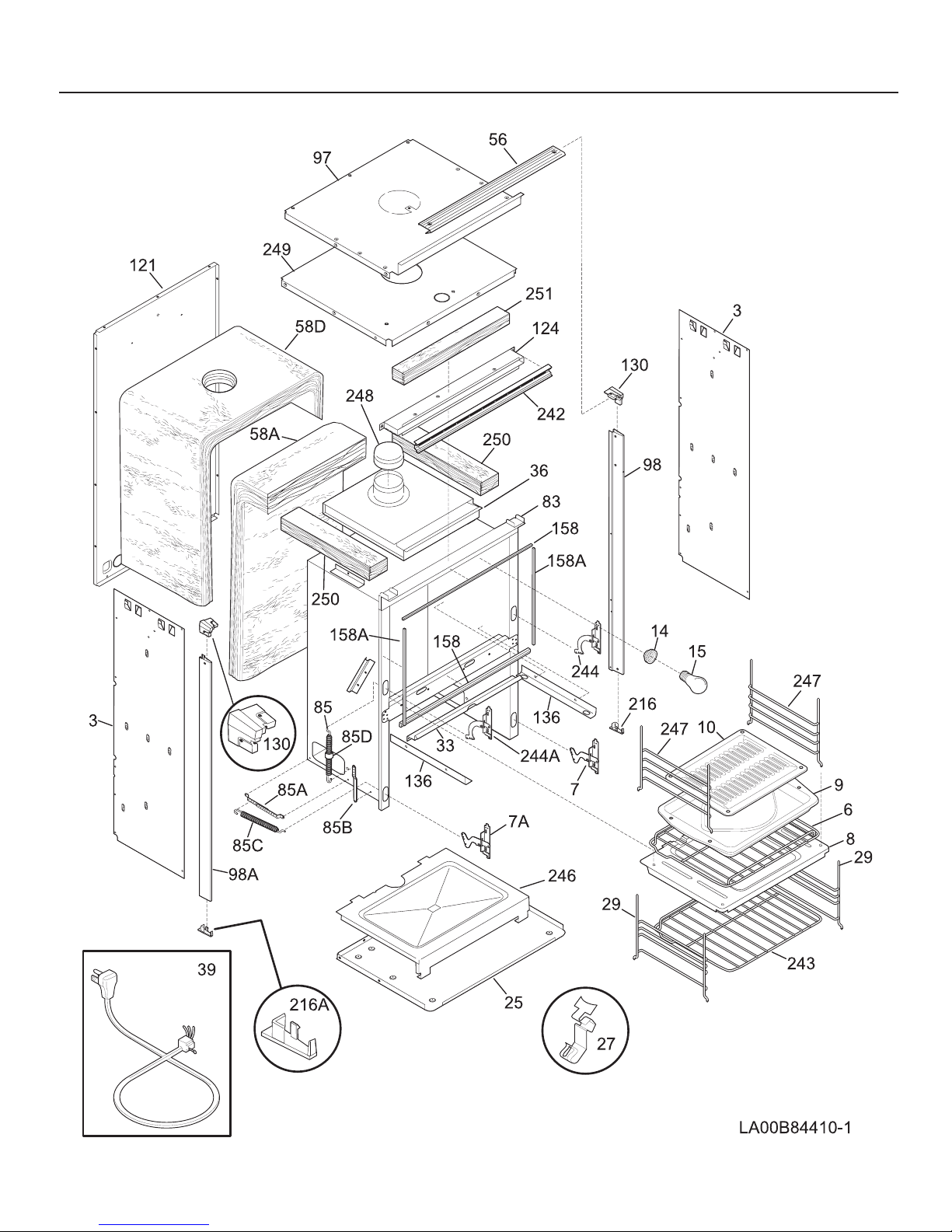

BODY
# = Functional Parts 7 01/02
* = Non-Illustrated Parts
FGB24T3A Publication No.
5995363255
BODY
A = FGB24T3A (FGB24T3ASA)
B = FGB24T3A (FGB24T3ABA)
POS. NO PART NO DESCRIPTION
3 5303317132 A B Wrapper,side ,outer
6 08012158 A B Rack,oven ,upper ,(2)
7 5303298313 A B Hinge Assy,RH lower
7A 5303298312 A B Hinge Assy,LH lower
8 318136500 A B Panel,oven bottom
9 5303317977 A B Pan,broiler
10 5303317976 A B Insert,broiler pan
14 08011171 A B Socket,oven light
15 # 3201908 A B Light,oven
25 5303317712 A B Shield,heat ,lower
27 5303284616 A B Clip,thermo bulb mtg
29 5303209887 A B Glide,broiler rack
33 5303317128 A B Shield,heat
36 5303298341 A B Flue
39 3202006 A B Cord,electric power
56 318028201 A - Trim,oven top
56 318028200 - B Trim,oven top
58A 318133723 A B Insulation,oven back
58D 318133724 A B Insulation,oven wrapper
83 318109510 A B Liner,oven assy
85 5303317711 A B Spring,oven door ,lower
85A 318113300 A B Bracket,door spring ,lower
85B 5303317126 A B Bracket,door spring ,upper
85C 5303207651 A B Spring,oven door ,upper
85D 318166900 A B Sleeve,door spring
97 5303317130 A B Wrapper,top ,outer
98 318029003 A - Trim,bodyside ,white ,RH
98 318029001 - B Trim,bodyside ,black ,RH
98A 318029002 A - Trim,bodyside ,white ,LH
98A 318029000 - B Trim,bodyside ,black ,LH
121 5303317131 A B Wrapper,back
124 318076801 A B Box,horizontal flue
130 318034601 A - Cap,end top ,white ,(2)
130 318034600 - B Cap,end top ,black ,(2)
136 5303317129 A B Angle,rack guide
158 5303207644 A B Seal,door ,black ,top broiler
158A 5303295311 A B Seal,side ,bake oven
216 318034502 A - Cap,end bottom ,white ,RH
216 318034500 - B Cap,end bottom ,black ,RH
216A 318034503 A - Cap,end bottom ,white ,LH
216A 318034501 - B Cap,end bottom ,black ,LH
242 318027201 A - Trim,center ,satin
242 318027200 - B Trim,center ,black
243 3201495 A B Rack,oven ,lower
244 5303205940 A B Hinge Assy,oven door ,RH upper
244A 5303205939 A B Hinge Assy,oven door ,LH upper
246 318133600 A B Panel,oven bottom
247 3018717 A B Glide,oven rack
248 5303317121 A B Cap,flue
249 5304400385 A B Wrapper,top ,inner
250 318133756 A B Insulation
251 318133772 A B Insulation
* 5303211311 A B Screw,8 x 0.500
* 5303308450 A B Screw,8 x 0.375
* 5303311333 A B Screw,8-32 x 3/8 ,(6)
* 5304400428 A B Screw,shoulder head ,8-15A x 0.125
* 5304400429 A B Screw (8-18X1)
* 5303300265 A B Screw,8-18 x 0.500 ,chrome
01/02 8
Publication No. FGB24T3A
5995363255
DOOR
# = Functional Parts 9 01/02
* = Non-Illustrated Parts
FGB24T3A Publication No.
5995363255
DOOR
A = FGB24T3A (FGB24T3ASA)
B = FGB24T3A (FGB24T3ABA)
POS. NO PART NO DESCRIPTION
3 318026501 A - Trim,oven door ,white
3 318026500 - B Trim,oven door ,black
4 318211001 A - Glass,oven door ,white ,outer
4 318211002 - B Glass,oven door ,black ,outer
6 318116600 A B Shield,wool
7 318133725 A B Insulation,oven door
9 318048901 A B Liner,oven door
10 5304416408 A B Screw,10-24 x 1.750 ,handle mtg
16 318211500 A B Glass,oven door ,inner
17 5304400397 A B Fastener,spacer
20 5303300173 A - Spacer,handle ,white
20 5303300175 - B Spacer,handle ,black
29 318014401 A B Spacer,door
39 318186100 A - Handle,door ,white
39 318186101 - B Handle,door ,black
54 5303317175 A - Screw,8-18 X 17/32 ,white
54 5303308456 A B Screw,8-18 x 0.531 ,black ,door frame
62 08010463 A B Fastener,clip
* 08016432 A B Screw,truss head ,8-18 x 0.375
* 5303211311 A B Screw,8 x 0.500
* 5303308450 A B Screw,8 x 0.375
* 5303311333 A B Screw,8-32 x 3/8 ,(6)
01/02 10
Publication No. FGB24T3A
5995363255

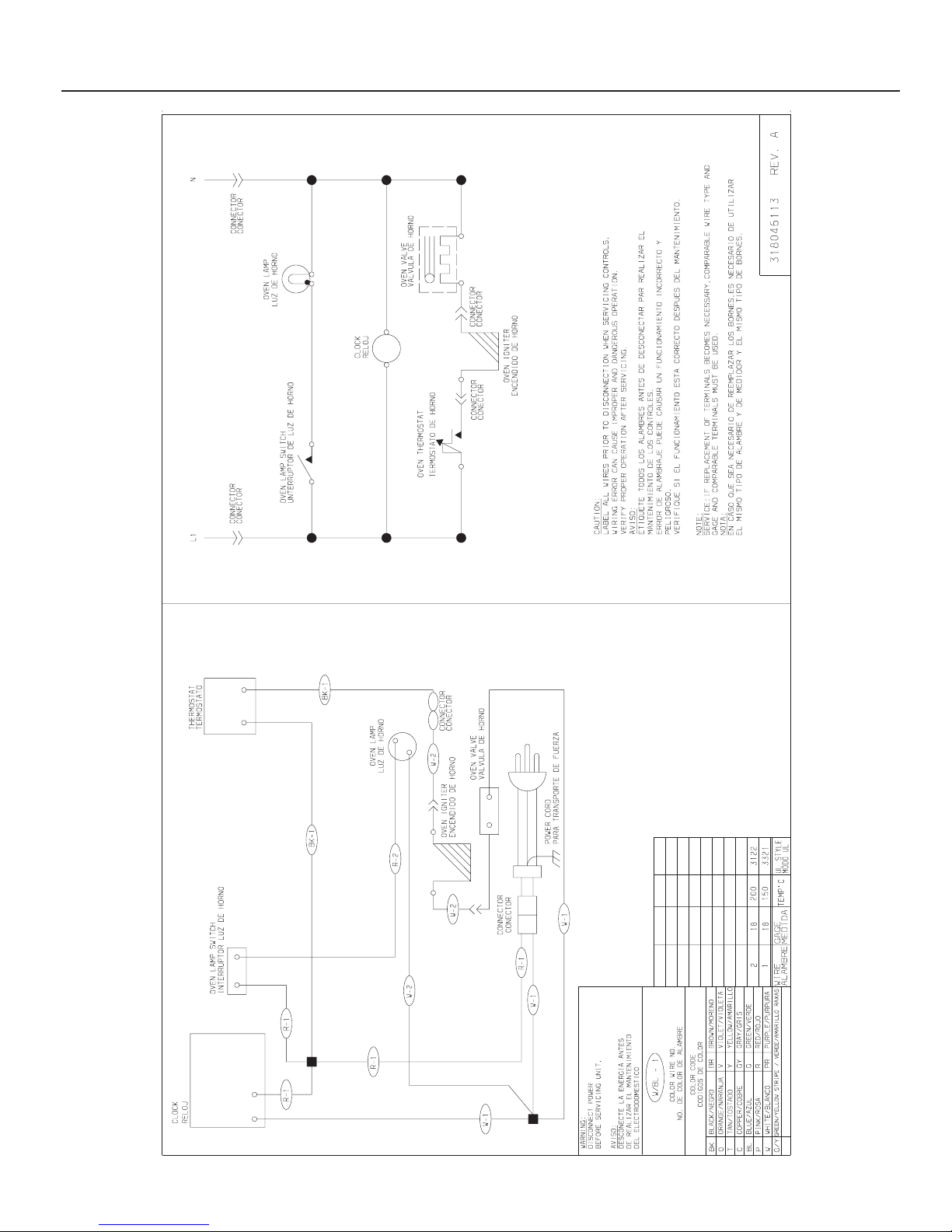

WIRING DIAGRAM
