Frigidaire FEB30T6F Manuale utente

FEB30T6FC.tif CPLEB30T9FCA.eps BUFEB30T6DSD.eps BLFEB30T6DSC.eps

DCFEB30S5GC2.eps 318046123.eps

Product No. FEB30T6FCC

37054383E60S3

Series 30" double

Color stainless

Market North America

Wiring Diagram 318046123

Owner's Guide 318205119

Installation Instructions 318201514

Service Data Sheet 318047309

Timer Guide 318200129

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995493805

07/06/27

(EN/SERVICE/BJH)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB30T6F

Publication No: 5995493805 FEB30T6FCC

06/07 2

CONTROL PANEL

FEB30T6FCC Publication No: 5995493805

# Functional Parts 3 06/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 318271533 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316443834 Control, electronic, ES610W2, dual oven

77 316247900 Spacer, power board, (4)

77A 316114100 Spacer, (2)

97 316443912 Board, relay, dual oven

* 5303211311 Screw, 8 x 0.500

Publication No: 5995493805 FEB30T6FCC

06/07 4

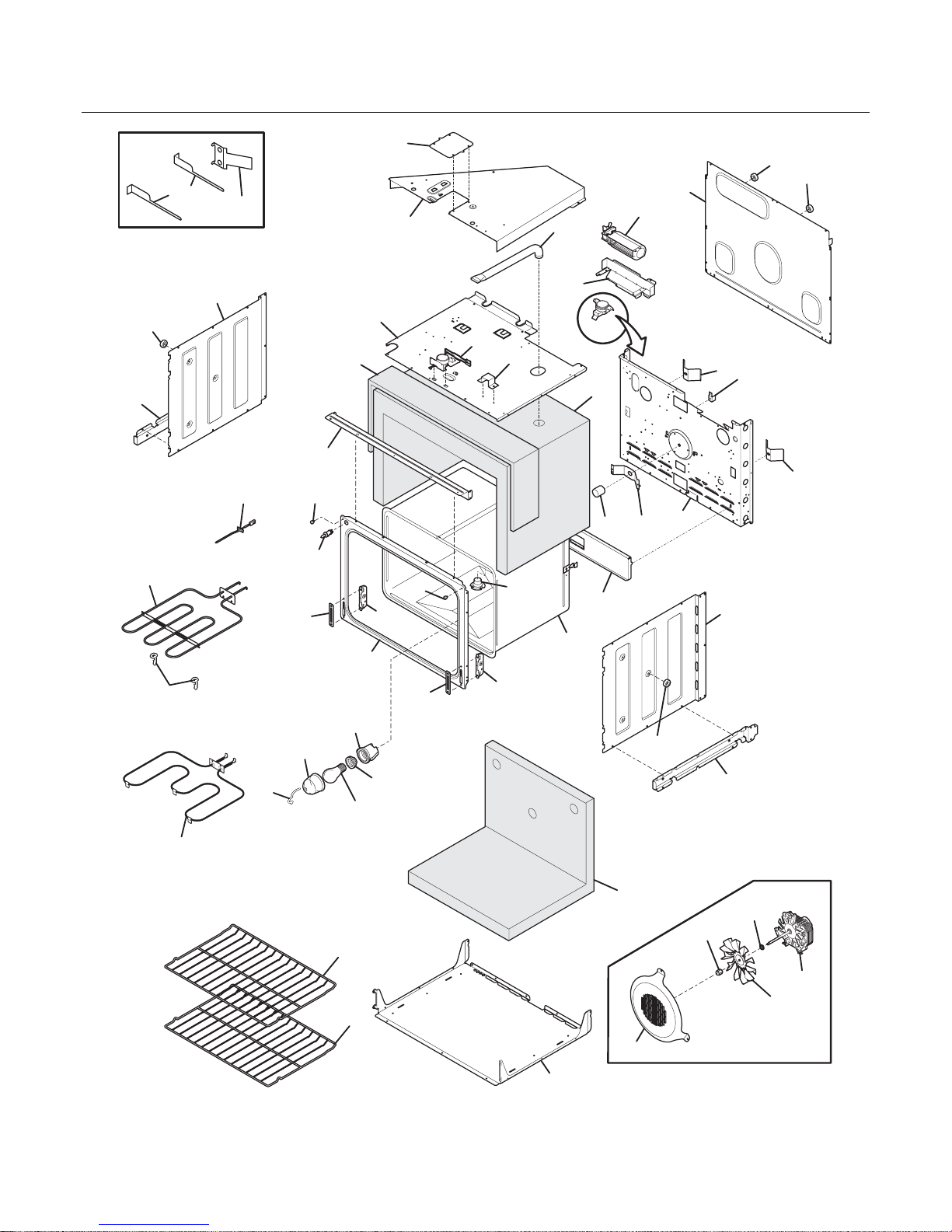

UPPER OVEN

119

108

108A

185

163

58B

264

29 127

58A

BUFEB30T6DSD

185

59A

131

132

58D

143

142

310

311

312

272

107

111

109

263

125

FEB30T6FCC Publication No: 5995493805

# Functional Parts 5 06/07

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259205 Back, main

2 318258902 Shield, insulation, upper

6 318262502 Rack, oven

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

* 5303325980 Screw, 10-32 x 0.437

54 318222400 Housing, oven light

58A 318285055 Insulation, oven wrapper

58B 318285056 Insulation, oven back

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

71* 318340201 Bracket, insul. panel

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261404 Liner, oven assy

86 318342400 Receptacle, hinge

89 # 318261211 Motor, latch assy

* # 318231750 Harness, wiring, main, latch

* # 318199744 Wiring Harness, latch, BAS

* 318199746 Wiring Harness, latch, NO BAS

99 318252800 Support, side

* 5303300265 Screw, 8-18 X 1/2, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125* 5303316994 Insulation, 3.81 x 3.13

125# 316415800 Motor, fan

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

Publication No: 5995493805 FEB30T6FCC

06/07 6

UPPER OVEN

119

108

108A

185

163

58B

264

29 127

58A

BUFEB30T6DSD

185

59A

131

132

58D

143

142

310

311

312

272

107

111

109

263

125

FEB30T6FCC Publication No: 5995493805

# Functional Parts 7 06/07

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

263 316136500 Washer, flat

264 318257701 Trim, oven, black, front

272 318249401 Tube, protector

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995493805 FEB30T6FCC

06/07 8

LOWER OVEN

143

119

108

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLFEB30T6DSC

185

59A

58D

272

107

111

109

263

125

FEB30T6FCC Publication No: 5995493805

# Functional Parts 9 06/07

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259205 Back, main

2 318258902 Shield, insulation, upper

6 318345207 Rack, oven

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

* 5303325980 Screw, 10-32 x 0.437

54 318222400 Housing, oven light

56 318903604 Trim, side filler, black, RH

56A 318903605 Trim, side filler, black, LH

58A 318285055 Insulation, oven wrapper

58B 318285056 Insulation, oven back

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

71* 318340201 Bracket, insul. panel

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261404 Liner, oven assy

86 318342400 Receptacle, hinge

87 318260600 Bracket, cable mtg.

89 # 318261211 Motor, latch assy

* # 318231750 Harness, wiring, main, latch

* # 318199744 Wiring Harness, latch, BAS

* # 318199746 Wiring Harness, latch, NO BAS

90 318259701 Trim, oven front, black, bottom

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125* 5303316994 Insulation, 3.81 x 3.13

Publication No: 5995493805 FEB30T6FCC

06/07 10

LOWER OVEN

143

119

108

108A

185

163

142

58B

264

56A

29 127

86 56

58A

82 BLFEB30T6DSC

185

59A

58D

272

107

111

109

263

125
