Frigidaire FGB500CG Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FGB500CGS1 37454412C8011 WHITE U.S.A.

FGB500CGB1 37454412C8061 BLACK U.S.A.

GAS - WALL OVEN

Model No.

FGB500CG

FACTORY PARTS CATALOG

GAS WALL OVEN

WIRING DIAGRAM # - 318046303

OWNER’S GUIDE # - 318200903

INSTALLATION INSTRUCTIONS # - 318064002

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

5995316071

981215

-EN/SERVICE

377

Publication No.

12/98 2

Publication no. FGB500CGS/B

5995316071 CONTROL PANEL

LA9822G019

100

# = Functional Part 312/98

* = Non-Illustrated Part

FGB500CGS/B Publication No.

5995316071

CONTROL PANEL

POS. NO PART NO DESCRIPTION

12 318059200 AB Thermostat-oven

19 318129508 APanel-control white

19 318129509 BPanel-control black

20# 318013907 AClock/Timer

20# 318013908 BClock/Timer

21 318176501 ATrim-top (satin)

21 318176500 BTrim-top black

23 318015711 A B Bracket-clock mtg

24# 316005607 ASwitch-rocker oven light (white)

24# 316005602 BSwitch-rocker oven light (black)

32 318016328 AKnob-thermostat (white)

32 318016329 BKnob-thermostat (black)

42 5303271089 ATrim splasher (satin)

42 318027101 BTrim splasher (black)

65 318038801 A B Cover-control housing

68 5303302397 A B Housing-control

69 5303323134 A B Screw, switch mtg 8-32 X 7/16

100 318112200 A B Plate switch

*5303211311 A B Screw, #8 X1/2

*5303311528 A B Screw, oval hd 6-20 X 5/8

*5303308458 A B Screw, 10-24 X 1/4

A= FGB500CG (FGB500CGS1)

B= FGB500CG (FGB500CGB1)

12/98 4

Publication No. FGB500CGS/B

5995316071 BURNER

P22B0008

# = Functional Part 512/98

* = Non-Illustrated Part

FGB500CGS/B Publication No.

5995316071

POS. NO PART NO DESCRIPTION

14# 5303210167 AB Regulator-pressure

17# 3203702 A B Valve-safety

18# 5303210787 A B Burner-oven

19# 5303308452 A B Ignitor-oven

20 3203676 A B Baffle-oven burner

21 3201885 A B Nut

28 5303295305 A B Valve-shut off

49 5303308469 A B Bracket-safety valve

*08002868 A B Screw, 10-24 X ½

*5303311549 A B Screw-burner, mtg

*3051070 A B Screw, 10-24 X 7/16

BURNER

A= FGB500CG (FGB500CGS1)

B= FGB500CG )FGB500CGB1)

12/98 6

Publication No. FGB500CGS/B

5995316071 CAVITY

102

121 227

132

103

LA9822V014

25 232

101

58B

58C

76 41

98A

233

104

231

# = Functional Part 712/98

* = Non-Illustrated Part

FGB500CGS/B Publication No.

CAVITY 5995316071

POS. NO PART NO DESCRIPTION

2318101901 AB Wrapper top

2A 5303305035 A B Shield, insulation

4318161500 A B Box-oven burner

65303296873 A B Rack-oven

8318121400 A B Panel-oven bottom

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

25 318179000 A B Shield-insulation

27 5303284616 A B Clip-thermo bulb

36 318176001 A B Flue

39# 5303308453 A B Cord-electric power

41 5303310526 A B Cover-hinge

54 5303310514 A B Housing-oven light

57 5303308476 A B Shield-rear wall

58 5303280377 A B Insulation-oven bottom

58B 5303304703 A B Insulation oven back

58C 318132600 A B Insulation oven top & sides

76 318056124 A B Front-oven

80 5303301261 A B Spring-oven

81 5303323710 A B Bracket-oven

83 318089400 A B Liner-oven assy

86 5303310524 A B Channel-hinge

87 5303308475 A B Bracket-safety valve

97 318066801 A B Wrapper-back side

98 318176802 ATrim-side inner RH (white)

98 318176800 BTrim side inner RH (black)

98A 318176803 ATrim-side inner LH (white)

98A 318176801 BTrim side inner LH (black)

99 5303299686 A B Support-adjustable

101 5303308474 A B Shield-vent

102 3203688 A B Support-oven front

103 5303316734 ATrim-base

103 5303316735 BTrim-base

104 318070200 A B Flue box adapter

121 318145001 A B Wrapper-base

132 3201437 A B Bushing-snap

227 5303323958 A B Retainer oven bottom

231 5303300421 A B Cover-capillary

232 5303308473 A B Plug

233 318166801 APlug button (white)

233 318166800 BPlug button (black)

*08002868 A B Screw, 10-24 X ½

*08011955 A B Screw, 10-24 X 3/8

*5303211311 A B Screw, #8 X ½

*5303300195 A B Screw, 10-32 X 3/8

A= FGB500CG (FGB500CGS1)

B=FGB500CG (FGB500CGB1)

12/98 8

Publication No. FGB500CGS/B

5995316071 DOOR / DRAWER

45A

37A

46 45

LAP22D0013C

# = Functional Part 912/98

* = Non-Illustrated Part

FGB500CGS/B Publication No.

5995316071

DOOR / DRAWER

POS. NO PART NO DESCRIPTION

3318026510 A B Trim-oven door black

45303302707 AGlass-oven door white

43202420 BGlass-oven door black

6318073600 A B Shield-air wash

75303308470 A B Insulation oven door

85303323828 A B Glass-oven door

9318156604 A B Liner oven door

10 5303311217 A B Screw handle door (10-24 X 2 3/16)

12 5303316768 A B Seal-oven door lower

17 318162601 A B Spacer-glass lower

18 5303299723 A B Seal-rope

20 318014301 ASpacer-handle white

20 318014300 BSpacer-handle black

23 5303325091 A B Hinge-oven door

29 5303210003 A B Spacer handle mtg

33 5303308464 AGlass-drawer front (white)

33 3203715 BGlass-drawer front (black)

34 318116000 A B Front frame drawer

35 318107000 A B Drawer-broiler

36 5303935079 A B Roller

37 3203722 A B Rail-drawer RH

37A 3203723 A B Rail-drawer LH

39 316091104 AHandle-door oven (white)

39 316091103 BHandle-door oven (black)

43 318107800 A B Liner-broiler door

44 318088300 A B Spring-broiler

45 318024401 A B Hinge-broiler

45A 318024400 A B Hinge-broiler

46 318126200 A B Pan-broiler

47 318126300 A B Insert-broiler pan

54 5303308456 A B Screw, 8-18 X 0.531

59 3202113 A B Button-plug

*5303323277 A B Screw, 8-18 X 13/32

A= FGB500CG (FGB500CGS1)

B= FGB500CG (FGB500CGB1)

12/98 10

Publication No. FGB500CGS/B

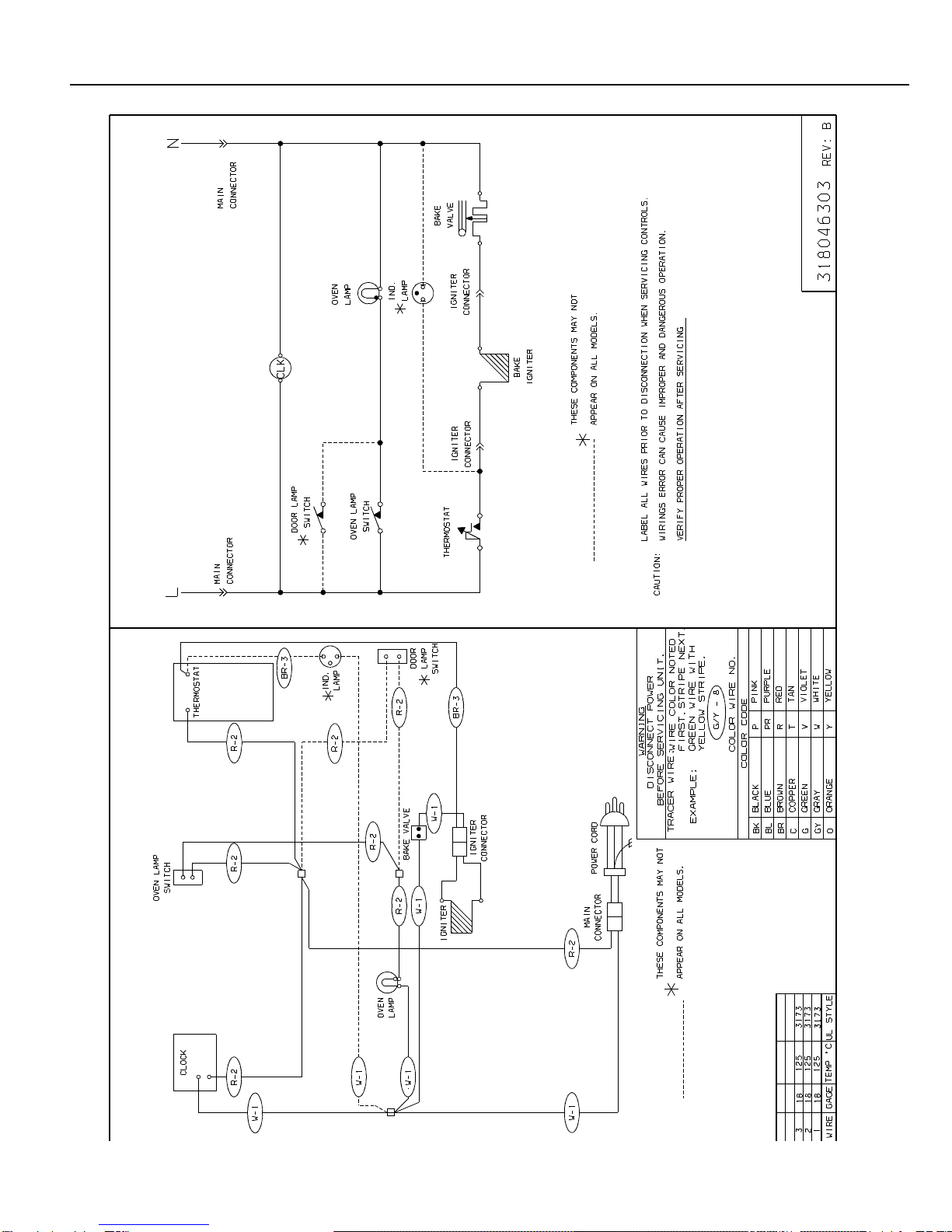

5995316071 WIRING DIAGRAM
