Frigidaire FEB500CESE Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB500CESE 38254412B6015 WHITE U.S.A.

FEB500CEBE 38254412B6065 BLACK U.S.A.

GAS WALL OVEN

Model No.

FEB500CE

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM #- 318046004

OWNER’S GUIDE #- 318200912

INSTALLATION INSTR. # - 318201509

TIMER INSTR. GUIDE # - 318200109

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995344925

001016

-EN/SERVICE

377

Publication No. FEB500CE

5995344925

10/00 2

CONTROL PANEL

12 23

LA00CP82412-1

15A

18A

FEB500CE Publication No.

5995344925

# = Functional Part 310/00

* = Non-Illustrated Part

CONTROL PANEL

POS. NO PART NO DESCRIPTION

12 # 318058300 A B Thermostat-oven

14 5303320424 A B Light/Lamp

15 5303302286 A B Support backguard RH

15A 5303302287 A B Support backguard LH

18 5303311208 AEnd Cap RH white

18 5303311231 BEnd Cap RH black

18A 5303311209 AEnd Cap LH white

18A 5303311232 BEnd Cap LH black

19 318129702 APanel-control white

19 318129703 BPanel-control black

20# 318013914 AClock/Timer

20# 318013915 BClock/Timer

21 5303320425 ATrim-canopy white

21 5303300408 BTrim-canopy black

23 318015701 A B Bracket clock mtg

24 # 316005607 ASwitch-rocker white

24 # 316005602 BSwitch-rocker black

32 318017206 AKnob-thermostat white

32 318017205 BKnob-thermostat black

42 5303316649 ATrim-vent white

42 5303316651 BTrim-vent black

64 318112200 A B Plate

65 318038804 A B Cover-control housing

68 5303302397 A B Housing control

69 5303323134 A B Screw 8-32 X 3/16

78 5303302394 ACover, oven vent white

78 5303302396 BCover, oven vent black

99 5303316956 AScrew, 6-32 X 3/8, white

99 5303307406 BScrew, 6-32 X 3/8, black

*5303211311 A B Screw #8 X ½

A = FEB500CE (FEB500CESE)

B = FEB500CE (FEB500CEBE)

FEB500CE Publication No.

5995344925

10/00 4

CAVITY / ELEMENTS

58B

121

LA00B82412-1

98A

103

66 68

127

14 15 16

189

58A

227

101

119

231

FEB500CE Publication No.

5995344925

# = Functional Part 510/00

* = Non-Illustrated Part

CAVITY / ELEMENTS

POS. NO PART NO DESCRIPTION

2 5303298946 A B Shield oven-top

6 5303296873 A B Rack-oven

95303317977 A B Pan-broiler

10 5303317976 A B Insert broiler pan

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer-lens

27 5303284616 A B Clip thermo-bulb

41 5303310526 A B Cover hinge cutout/ Plaque décorative

54 5303310514 A B Housing-oven light

56 5303302711 ATrim-bodyside white

56 5303298951 BTrim-bodyside black

58A 5303304702 A B Insulation oven wrapper

58B 5303299688 A B Insulation oven back

59 318072507 A B Tube-oven vent

62# 5303310518 A B Terminal block

66# 5303322963 A B Element-broil

67# 3202440 A B Element-bake

68 5304403015 A B Support-element

71 318071111 A B Shield-wire

76 318056124 A B Front-oven

80 5303301261 A B Spring-oven

81 5303323710 A B Bracket-oven

82 5303305035 A B Shield insulation/ Panneau isolant

83 318089509 A B Liner-oven assy

86 5303310524 A B Channel-hinge

97 318066602 A B Wrapper-back side

98 318029322 A B Trim side inner RH

98A 318029323 A B Trim side inner LH

99 5303299686 A B Support-adjustable

101 318039512 ABracket-trim

101 318039511 BBracket-trim

103 318028711 ATrim-base white

103 318028710 BTrim-base black

119 3202388 A B Switch-thermal

121 318145001 A B Wrapper-base

127 5303310542 A B Adapter assy

189 318042500 A B Retainer plate

227 5303323955 A B Clip-retainer

231 5303300421 A B Cover-capillary

*08002868 A B Screw, 10-24 X ½

*5303211311 A B Screw, #8 X ½

*# 5303319468 A B Box & wires assy

*5303324184 A B Screw, 8 X 5/16

*5303320422 A B Screw, 6-20 X 5/16

*5303302745 A B Screw, 10-16 X 1 1/8/ Vis

*5303935083 AScrew, 10-16 X 1 ¼ white/ Vis

A = FEB500CE (FEB500CESE)

B = FEB500CE (FEB500CEBE)

FEB500CE Publication No.

5995344925

10/00 6

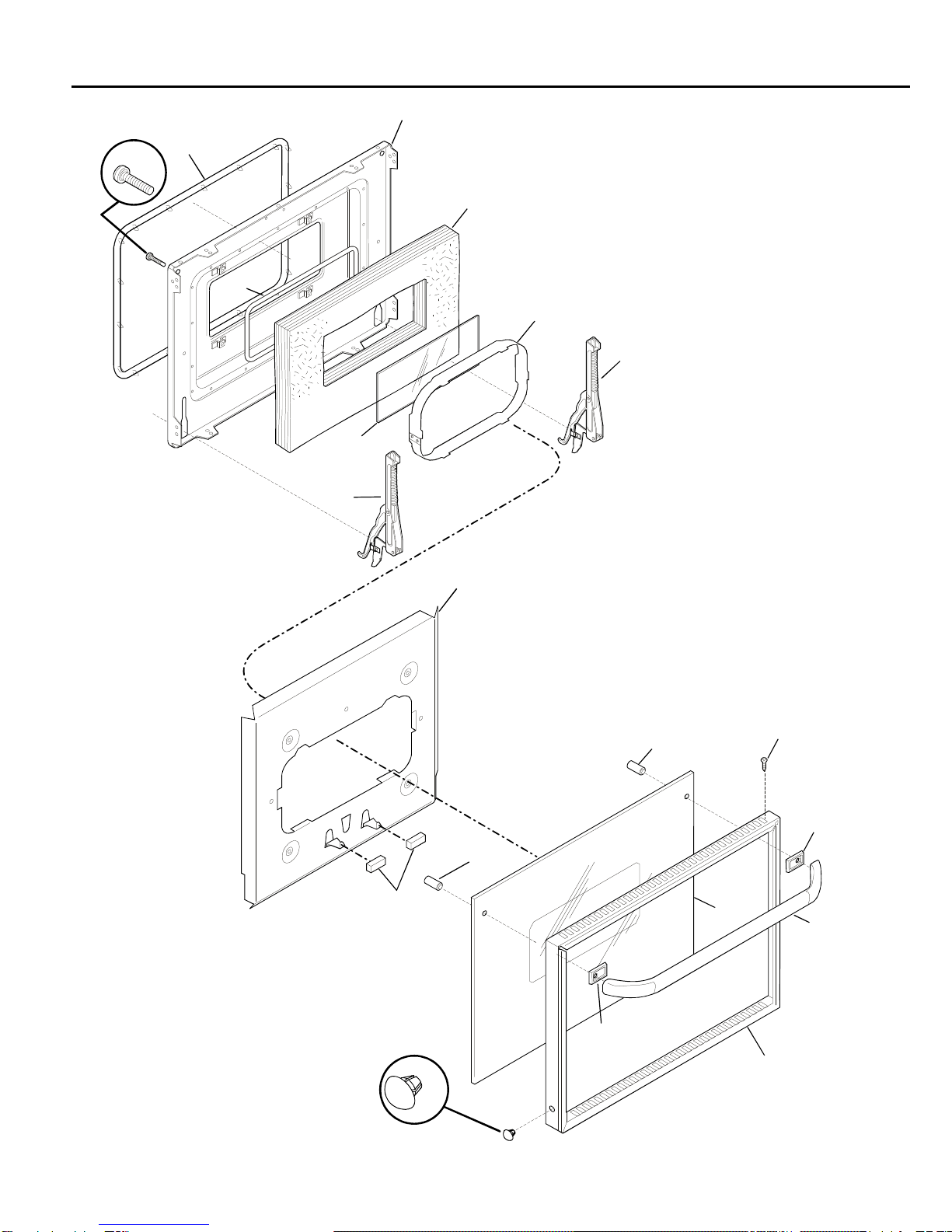

DOOR

LA00D82412-1

FEB500CE Publication No.

5995344925

# = Functional Part 710/00

* = Non-Illustrated Part

DOOR

POS. NO PART NO DESCRIPTION

3 318026102 ATrim-oven door white

3318026520 BTrim-oven door black

4 5303302707 AGlass-oven door white

4 3202420 BGlass-oven door black

6 318073600 A B Shield-air wash

7 5303308470 A B Insulation oven door

9 318156604 A B Liner-oven door

10 5303311217 A B Screw, 1024X2 3/16-handle door

12 5303316768 A B Seal-oven door lower

16 5303323828 A B Glass-oven door

17 318162601 A B Spacer-glass lower

18 318053204 A B Seal-rope

20 318014301 ASpacer-handle white

20 318014300 BSpacer-handle black

23 5303325091 A B Hinge-oven door

29 5303210003 A B Spacer-handle mtg (2)

39 316091104 AHandle-door white

39 316091103 BHandle-door black

54 5303308456 A B Screw, 8-18 X 17/32 (black)

59 3202113 A B Button plug

60 5303316982 A B Spacer-foam

*5303308456 A B Screw, 8-18 X 0.531

A = FEB500CE (FEB500CESE)

B = FEB500CE (FEB500CEBE)

Publication No. FEB500CE

5995344925

10/00 8

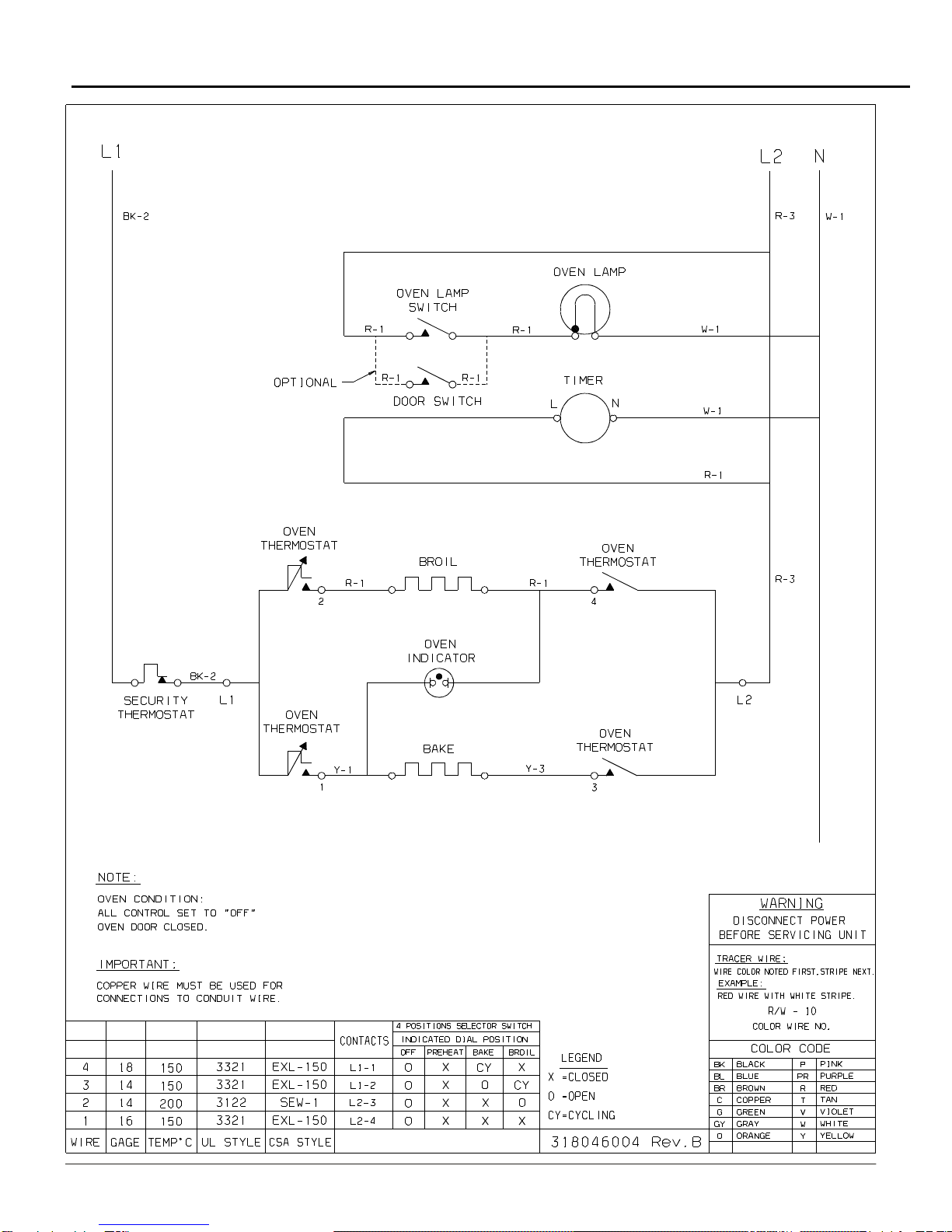

WIRING DIAGRAM
