Frigidaire FRIGIDAIRE FEB24S2A Manuale utente

FEB24S2A.eps LAP23G0055A.eps B40432801.eps DFEB24S2ASE.eps

318046222.eps

Product No. FEB24S2ABF FEB24S2ASF

38254412B1066 38254412B1016

Series 24" wall oven 24" wall oven

Color black white

Market North America North America

Wiring Diagram 318046222 318046222

Owner's Guide 318205114 318205114

Installation Instructions 318201509 318201509

Service Data Sheet 318047420 318047420

Timer Guide 318200144 318200144

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995556767

09/12/08

(EN/SERVICE/BJH)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB24S2A

Publication No: 5995556767 FEB24S2A

12/09 2

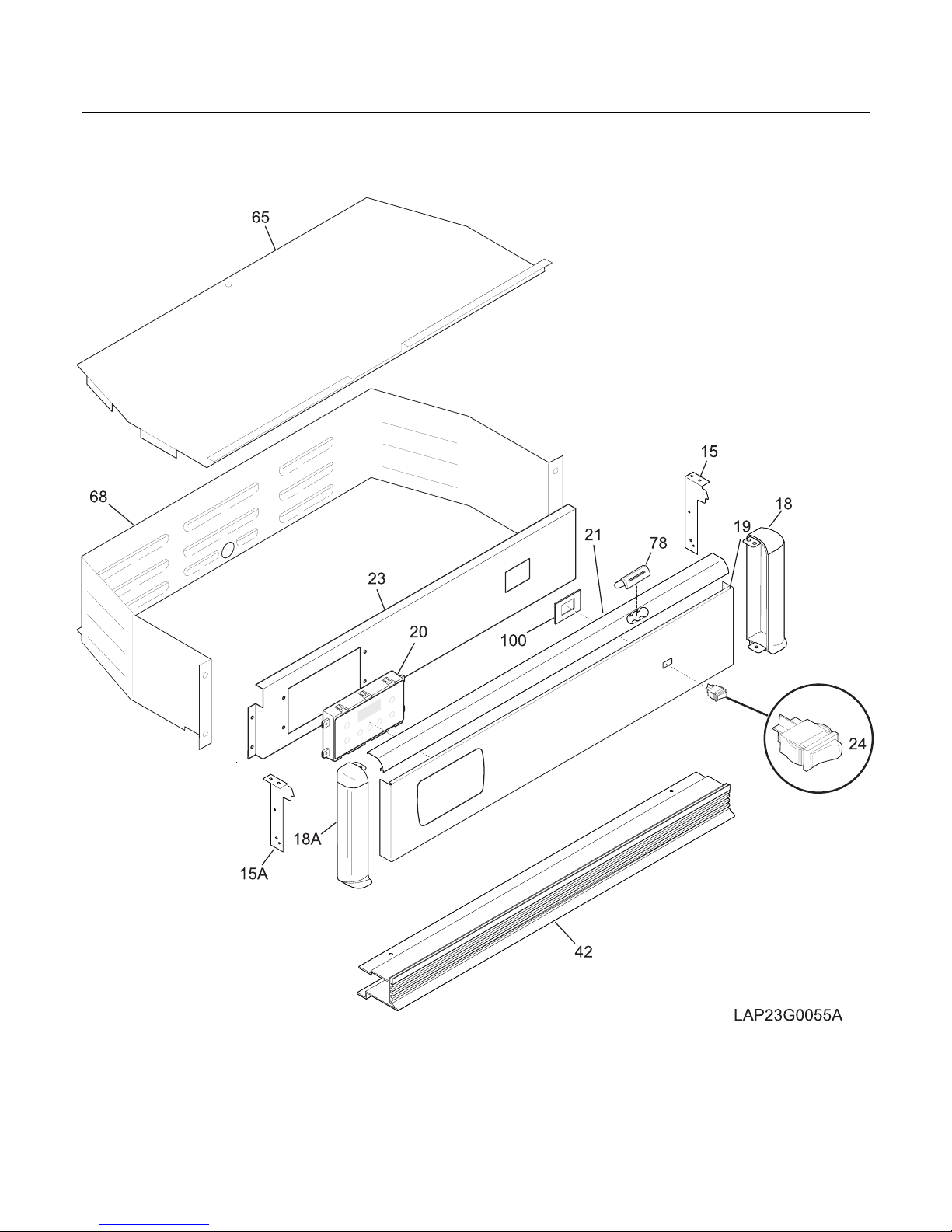

CONTROL PANEL

FEB24S2A Publication No: 5995556767

# Functional Parts 3 12/09

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEB24S2A (FEB24S2ABF)

BFEB24S2A (FEB24S2ASF)

POS. NO PART NO. DESCRIPTION

15 5303302286 A B Support, backguard, RH

15A 5303302287 A B Support, backguard, LH

18 5303311231 A - End Cap, black, RH

18 5303311208 - B End Cap, white, RH

18A 5303311232 A - End Cap, black, LH

18A 5303311209 - B End Cap, white, LH

19 318234101 A - Panel, control, black

19 318234100 - B Panel, control, white

20 # 318185330 A - Clock/Timer, EOC, black, ES100

20 # 318185329 - B Clock/Timer, EOC, white, ES100

20* 318214401 A - Overlay, clock, black

20* 318214400 - B Overlay, clock, white

21 5303300408 A - Trim, top, black

21 5303320425 - B Trim, top, white

23 318015036 A B Bracket, clock/timer mtg

24 # 316005602 A - Switch, rocker, black

24 # 316005607 - B Switch, rocker, white

42 318027517 - B Trim, vent, white

42 318027519 A - Trim, vent, black

65 318038804 A B Cover, control housing

68 5303302397 A B Housing, control

78 318037121 A - Cover, oven vent, black

78 318037122 - B Cover, oven vent, white

100 318112200 A B Plate, mounting, rocker switch

* 5303211311 A B Screw, 8-18 x 0.500

Publication No: 5995556767 FEB24S2A

12/09 4

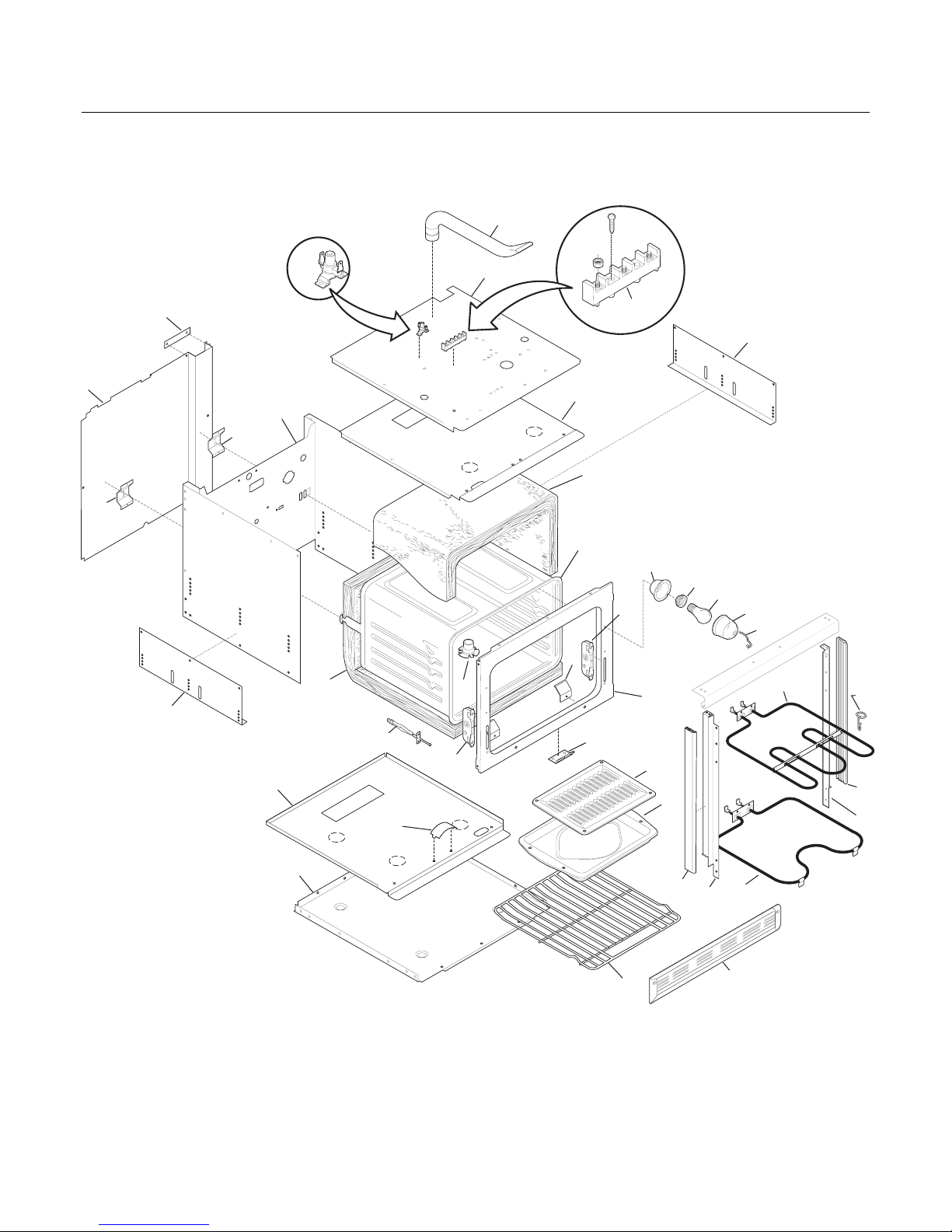

BODY

58B

121

B40432801

98A

103

127

189

58A

227

101

119

FEB24S2A Publication No: 5995556767

# Functional Parts 5 12/09

* Non-Illustrated Parts

BODY

Model Index: AFEB24S2A (FEB24S2ABF)

BFEB24S2A (FEB24S2ASF)

POS. NO PART NO. DESCRIPTION

2 318195900 A B Wrapper, outer, top

2A 5303305035 A B Shield, insulation

6 318345216 A B Rack, oven, (2)

9 316081900 A B Pan, broilerOPTIONAL ACCESS0RY

10 316082000 A B Insert, broiler panOPTIONAL ACCESS0RY

14 318224000 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, light

16 318406100 A B Lens, oven light, glass

17 5304400195 A B Retainer, light cover

37 # 316217002 A B Probe, oven temp

54 318222400 A B Housing, oven light

56 5303298951 A - Trim, bodyside, black

56 5303302711 - B Trim, bodyside, white

58A 318285004 A B Insulation, oven wrapper

58B 318285003 A B Insulation, oven back

59 318549800 A B Tube, oven vent

62 # 316056000 A B Terminal Block

62* 5303323144 A B Nut, 10-32

66 # 318255601 A B Element, broil, 3400W

67 # 318255101 A B Element, bake, 2100W

68 5304403015 A B Support, hanger, (4), broil element

71 318071111 A B Shield, rear wall

76 318056141 A B Front-oven

80 318192400 A B Spring, oven

81 5303323710 A B Bracket, oven

83 318089520 A B Liner, oven

86 318561100 A B Receptacle, hinge, (2)

86* 5304461333 A B Screw, 10-32 x 17/32

97 318066602 A B Wrapper, back & sides

98 318029384 A B Trim, side, inner, RH

98A 318029385 A B Trim, side, inner, LH

99 318284201 A B Panel, adjustable, side, (2)

101 318039511 A - Bracket, trim, black

101 318039512 - B Bracket, trim, white

103 318028710 A - Trim, base, black

103 318028711 - B Trim, base, white

119# 318003605 A B Thermostat, safety, backguard

121 318145005 A B Wrapper, base

127 318317000 A B Adapter, vent tube

189 318042500 A B Plate, retainer

227 318370900 A B Clip, retainer

* # 318078563 A B Box & wires assy

* # 318199750 A B Wiring Harness, main

* 3015722 A B Clip, wire retainer

* 08002868 A B Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303211311 A B Screw, 8-18 x 0.500

* 5303302745 A B Screw, 10-16X1-1/4, square drive

* 5303324184 A B Screw, 8-18 x 5/16, black, (4)

* 5303307406 A - Screw, 6-32 x 3/8, black, (2)

* 5303935083 - B Screw 10-16X1-1/4

Publication No: 5995556767 FEB24S2A

12/09 6

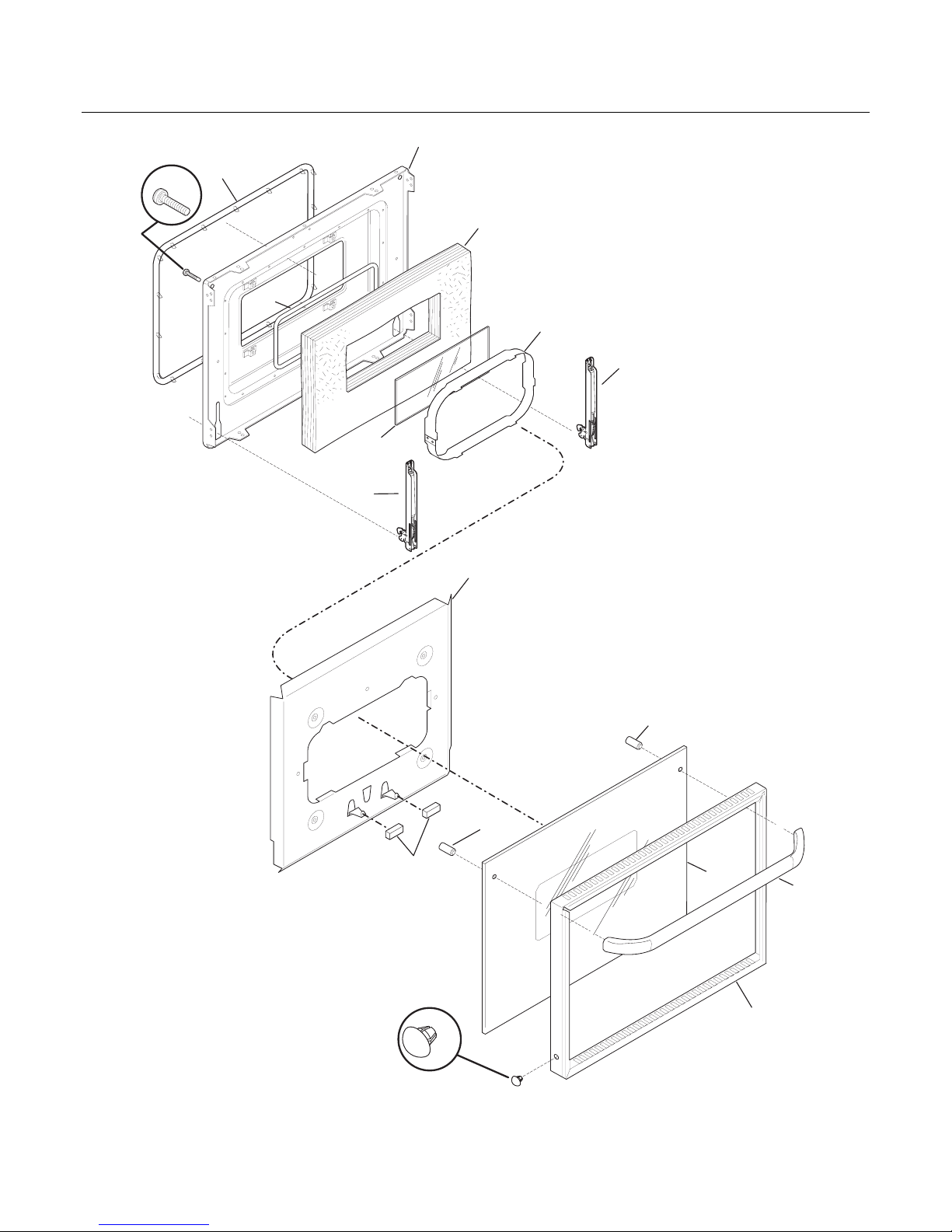

DOOR

DFEB24S2ASE

FEB24S2A Publication No: 5995556767

# Functional Parts 7 12/09

* Non-Illustrated Parts

DOOR

Model Index: AFEB24S2A (FEB24S2ABF)

BFEB24S2A (FEB24S2ASF)

POS. NO PART NO. DESCRIPTION

3 318026520 A - Trim, oven door, black

3 318026102 - B Trim, oven door, white

4 318051516 A - Glass, oven door, black, outer

4 318051553 - B Glass, oven door, white, outer

6 318073600 A B Shield, air wash

7 318285037 A B Insulation, oven door

9 318156615 A B Liner, oven door

10 5303311217 A B Screw, 10-24 x 2 3/16

12 # 5303316768 A B Seal, oven door, lower oven

16 318381402 A B Glass-oven door, heat barrier, lower oven

17 318162601 A B Support, glass

18 318053204 A B Seal, rope, lower oven

23 318567104 A B Hinge, oven door

29 318014403 A B Spacer, door

39 318362822 A - Handle Assembly, door, black, w/spacer

39 318362820 - B Handle Assembly, door, white, w/spacer

59 3202113 A B Plug, button

60 5303316982 A B Foam seal, (2)

* 08002868 A B Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303211311 A B Screw, 8-18 x 0.500

Publication No: 5995556767 FEB24S2A

12/09 8

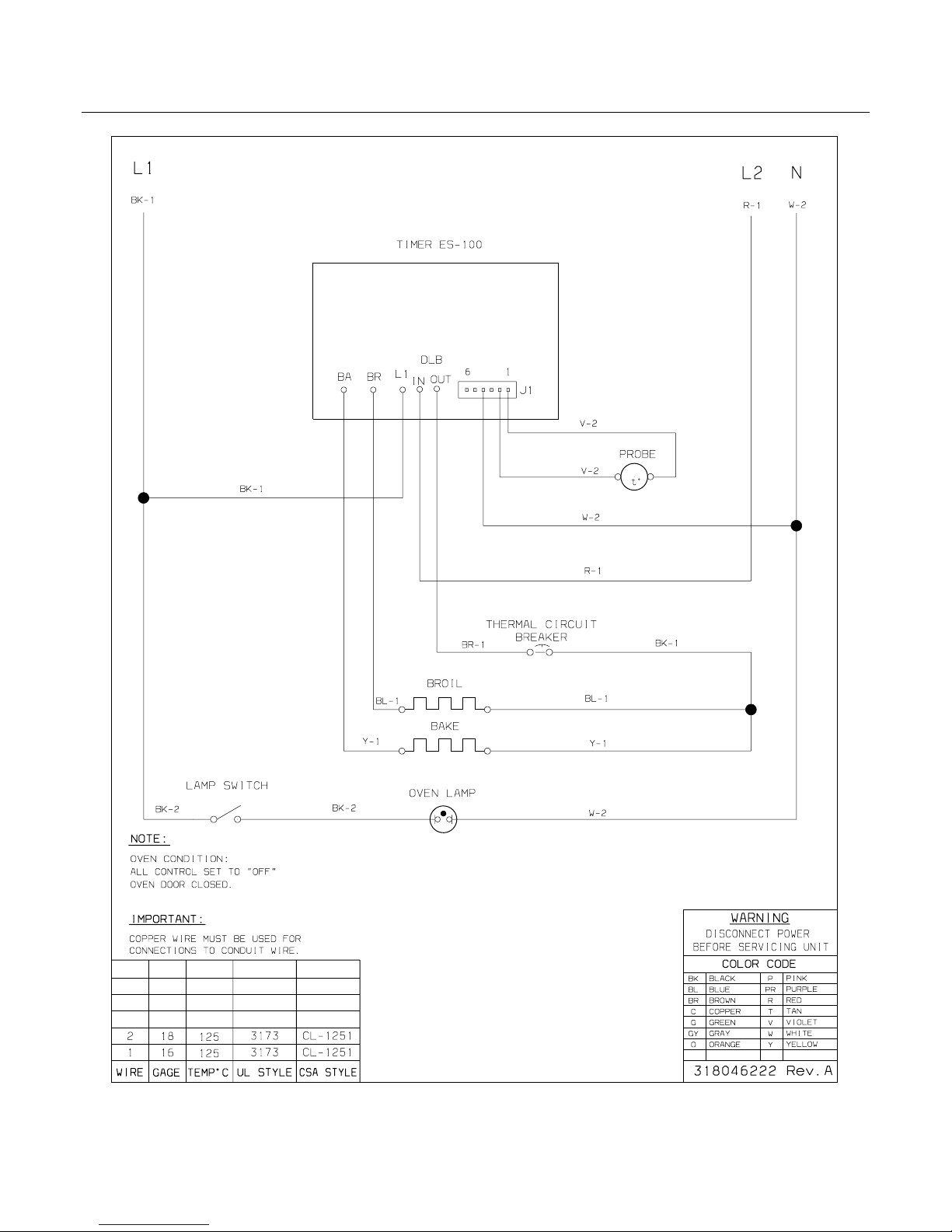

WIRING DIAGRAM
