Frigidaire FEB27T7DCB Manuale di istruzioni

FEB27T7DC.eps CFEB30T7DCA.eps BUFEB27T6DSB.eps BLFEB27T6DSB.eps

DFEB30T7DCA.eps 318046119.eps

UPPEROVEN LOWER OVEN

Low er OvenUpper Oven

Clock

Keep

warm

Controls

Clear

/Off

Bake

time

Start

tim e

Oven

ligh t

Timer

On/Off

STAR T

Broil

Bake Speed

clean

Speed

bake

Clean

Speed Bake O vens

Keep

warm

Controls

Clear

/Off

Bake

tim e

Start

time

Oven

light

STAR T

Broil

Bake Speed

clean

Speed

bake

Clean

Product No. FEB27T7DCB

37054781F40S2

Series 27" double

Color stainless

Market North America

Wiring Diagram 318046119

Owner's Guide 318200924

Installation Instructions 318201514

Timer Guide 318200132

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995455267

05/12/05

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB27T7D

Publication No: 5995455267 FEB27T7DCB

12/05 2

CONTROL PANEL

FEB27T7DCB Publication No: 5995455267

# Functional Parts 3 12/05

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257301 Shield, oven top

2B 318260102 Cover, box

19 318271508 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316429704 Control, electronic, 5800W2, dual oven

* 316021107 Screw, hex head, 8-32, silver

23 318262900 Bracket, control mtg., (2)

97 316429800 Board, relay, dual oven

* 318231704 Harness, wiring, control-relay

* 5303211311 Screw, 8 x 0.500

Publication No: 5995455267 FEB27T7DCB

12/05 4

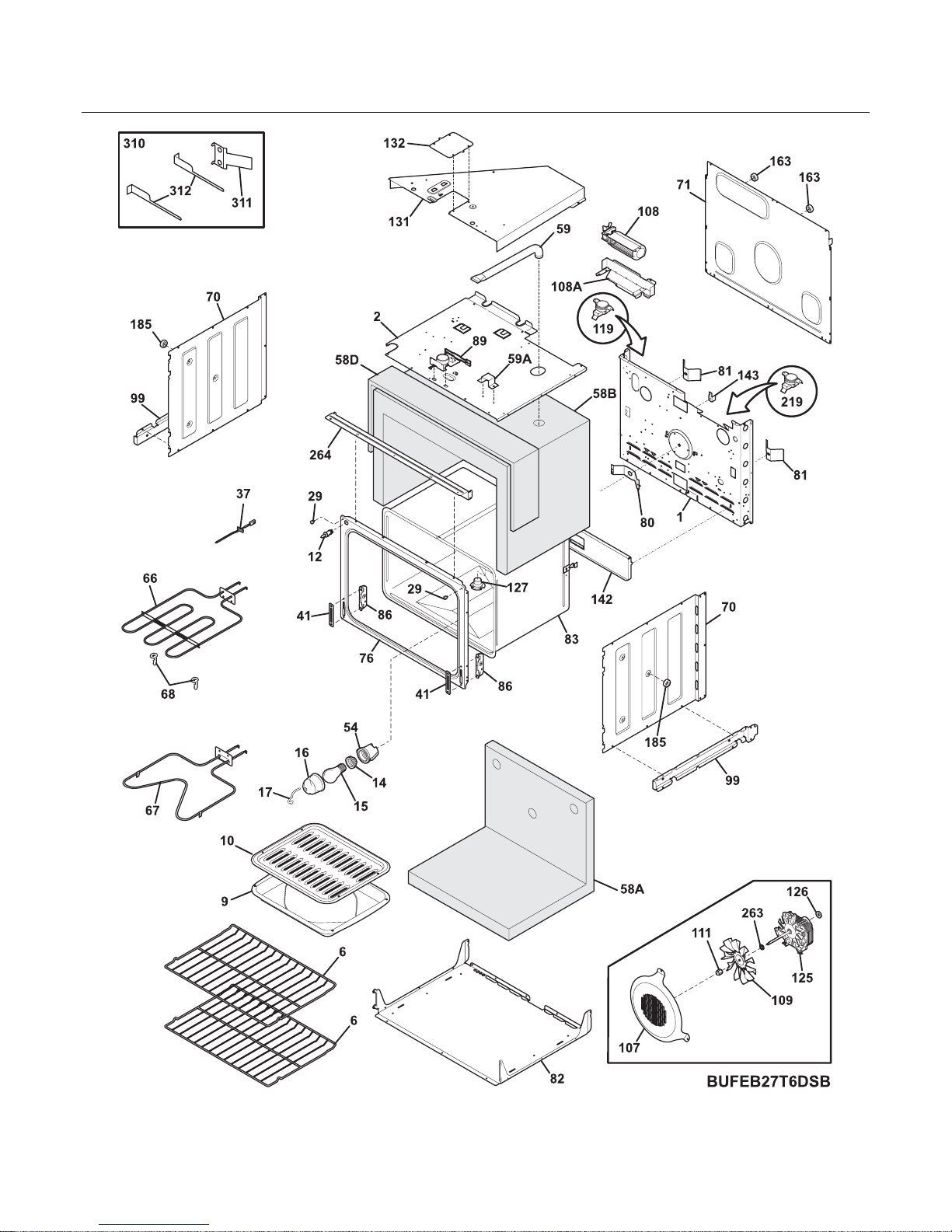

UPPER OVEN

FEB27T7DCB Publication No: 5995455267

# Functional Parts 5 12/05

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259210 Back, main

2 318258910 Shield, insulation, upper

6 318262602 Rack, oven, (2)

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318285060 Insulation, rear & bottom, oven wrapper

58B 318285059 Insulation, top & sides, oven wrapper

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

* 318249401 Tube, protector

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, oven assy

86 5303310524 Receptacle, hinge

89 # 318261202 Motor, latch assy

* 318231705 Harness, latch

99 318252800 Support, side

* 5303300265 Screw, 8-18 X 1/2, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

125* 5303316994 Insulation, 3.81 x 3.13

126 318142100 Washer, motor, RH, convection

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003614 Thermostat, safety

263 316136500 Washer, flat

264 318257711 Trim, oven, black, front

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* 3201861 Screw, 6 x 0.375, (4)

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995455267 FEB27T7DCB

12/05 6

LOWER OVEN

FEB27T7DCB Publication No: 5995455267

# Functional Parts 7 12/05

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259210 Back, main

2 318258910 Shield, insulation, upper

6 318262602 Rack, oven, (2)

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318259914 Trim, side filler, black, RH

56A 318259915 Trim, side filler, black, LH

58A 318285060 Insulation, rear & bottom, oven wrapper

58B 318285059 Insulation, top & sides, oven wrapper

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

71* 318340200 Bracket, insul. panel

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

* 318249401 Tube, protector

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, oven assy

86 5303310524 Receptacle, hinge

87 318260601 Bracket, cable mtg.

89 # 318261202 Motor, latch assy

* 318231705 Harness, latch

90 318259811 Trim, base, stainless

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

125* 5303316994 Insulation, 3.81 x 3.13

126 318142100 Washer, motor, RH, convection

127 318317100 Adapter Assembly, vent tube, w/converter

142 318123910 Deflector

143 318172904 Support, wire

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003614 Thermostat, safety

263 316136500 Washer, flat

264 318257811 Trim, oven, black, front

* # 318078543 Box & wires assy

* 318231741 Harness, wiring, main

* 3201861 Screw, 6 x 0.375, (4)

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995455267 FEB27T7DCB

12/05 8

DOORS

FEB27T7DCB Publication No: 5995455267

# Functional Parts 9 12/05

* Non-Illustrated Parts

DOORS

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260510 Baffle, door

7 318285057 Insulation, oven door

8 318212200 Glass, oven door, heat barrier

9 318259615 Liner, upper door

10 5304400794 Screw, handle mtg, 10-32 x 3/4

12 318053125 Seal, door

13 318272103 Door Assy, w/glass, stainless steel, outer, w/tape& foil

17 318264700 Spacer, glass, (2)

23 318024722 Hinge, door, (2)

24 318260311 Trim, door, black, lower

39 318039804 Handle, door, stainless steel

40 318242700 Bracket, glass holder, (2)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer, (2)

* 318163602 Cleaner, stainless steel

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995455267 FEB27T7DCB

12/05 10

WIRING DIAGRAM
