Product No. FEB27S6DCB

38254781E40S2

Series 27" single

Color stainless

Market North America

Wiring Diagram 318046237

Owner's Guide 318200924

Installation Instructions 318201514

Service Data Sheet 318047413

Timer Guide 318200189

FEB27S6DC.eps CPLEB27S9DCA.eps BFEB27S6DSA.eps DFEB30S5DCA.eps

318045066.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995442661

05/07/25

(EN/SERVICE/BJH)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB27S6D

Publication No: 5995442661 FEB27S6DCB

07/05 2

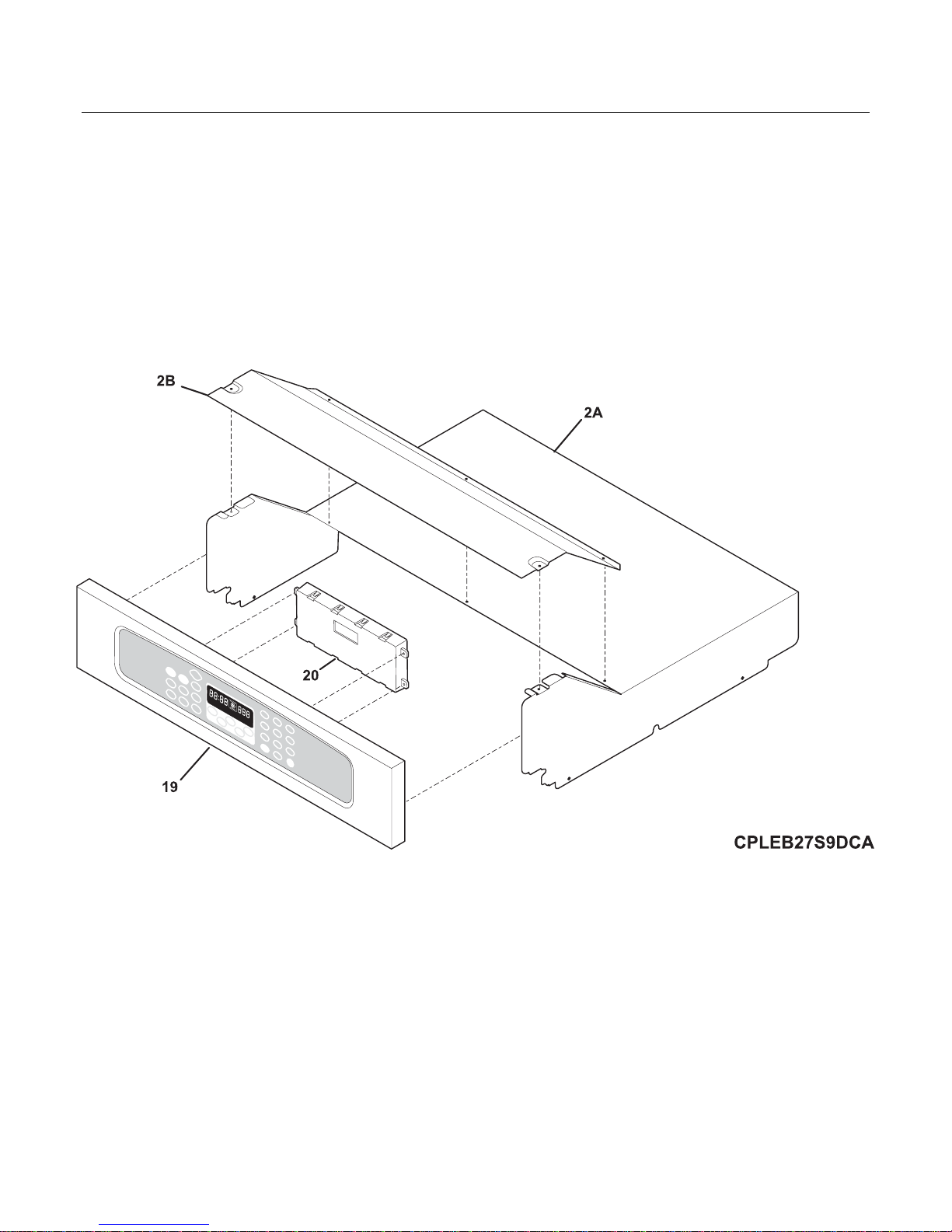

CONTROL PANEL

FEB27S6DCB Publication No: 5995442661

# Functional Parts 3 07/05

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257301 Shield, oven top

2B 318260101 Cover, box

19 318271505 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316418521 Clock/Timer, electronic, ES350W2

* 316021107 Screw, hex head, 8-32, silver

* 5303211311 Screw, 8 x 0.500

Publication No: 5995442661 FEB27S6DCB

07/05 4

BODY

FEB27S6DCB Publication No: 5995442661

# Functional Parts 5 07/05

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259210 Back, main

2 318258910 Shield, insulation, upper

6 318262602 Rack, oven, (2)

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318259904 Trim, side filler, black, RH

56A 318259905 Trim, side filler, black, LH

58A 318285060 Insulation, rear & bottom, oven wrapper

58B 318285059 Insulation, top & sides, oven wrapper

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, ovenassy

86 5303310524 Receptacle, hinge

87 318260601 Bracket, cable mtg.

89 # 318261202 Motor, latch assy

90 318259711 Trim, oven front, black, bottom

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112701 Relay

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

126 3016303 Clip, insulator

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

Publication No: 5995442661 FEB27S6DCB

07/05 6

BODY

FEB27S6DCB Publication No: 5995442661

# Functional Parts 7 07/05

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire/glass

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003614 Thermostat, safety

219A 318003613 Thermostat, safety

263 316136500 Washer, fan motor

264 318257711 Trim, oven, black, front

272 318249401 Tube, protector

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* # 318078542 Box & wires assy

* 318231736 Harness, wiring, main

* 3201861 Screw, 6 x 0.375, (4)

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 x 0.500, chrome, (3)

* 5303324184 Screw, 8-18 x 5/16, black, (4)

* 5304436875 Screw, 8-18 X 1/2, black

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995442661 FEB27S6DCB

07/05 8

DOOR

FEB27S6DCB Publication No: 5995442661

# Functional Parts 9 07/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260510 Baffle, door

7 318285057 Insulation, oven door

7A 318285061 Insulation, (2)

8 318212200 Glass, oven door, heat barrier

9 318259615 Liner, upper door

10 5303311174 Screw, 10-24 x 3/8

12 318053125 Seal, upper door

13 318272103 Door Assy, w/glass, stainless steel, outer, w/tape & foil

17 318264700 Spacer, glass, (2)

23 318024722 Hinge, upper door, (2)

24 318260311 Trim, door, black, lower

39 318264500 Handle, oven door, black

40 318242700 Bracket, glass holder, (2)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer, (2)

* 318163602 Cleaner, stainless steel

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995442661 FEB27S6DCB

07/05 10

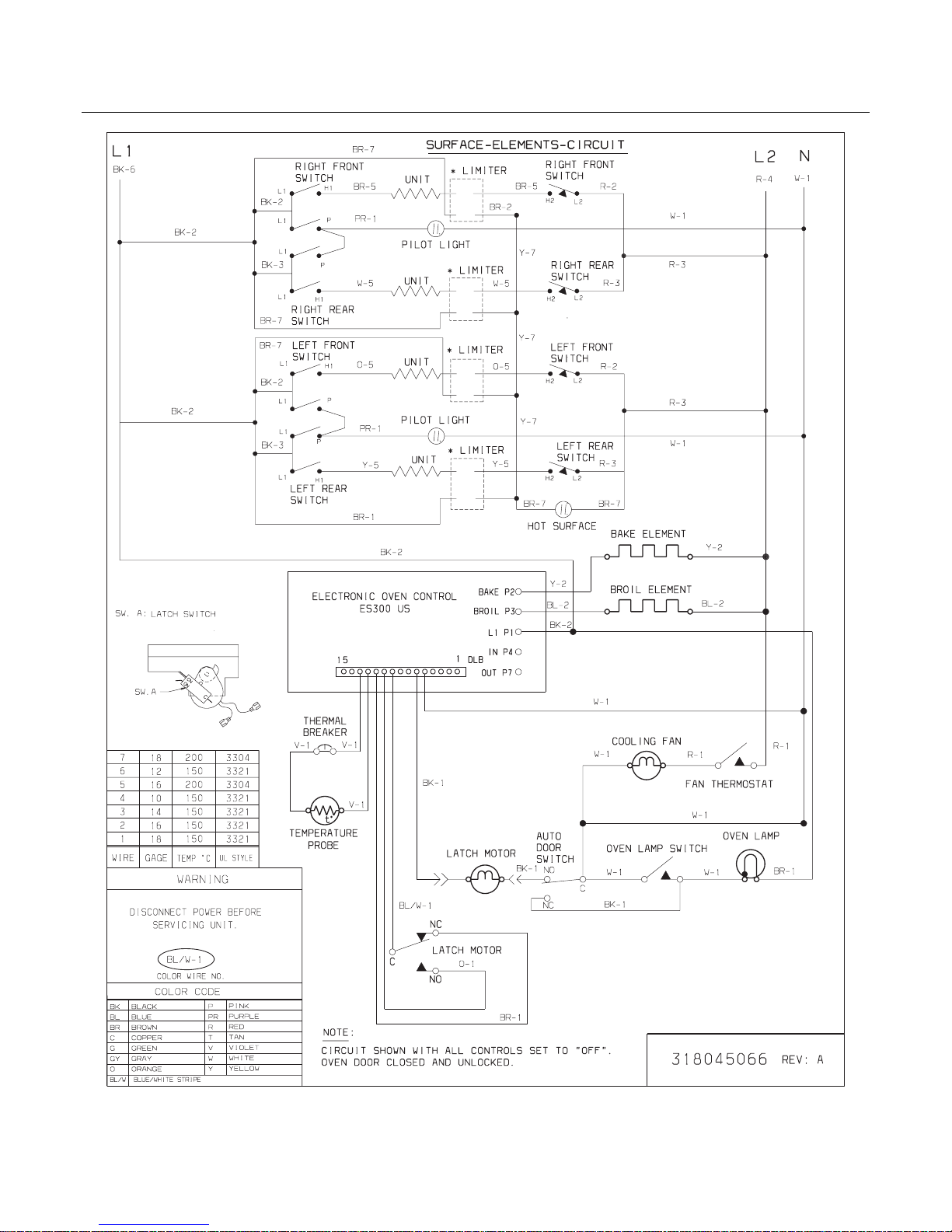

WIRING DIAGRAM
