Frigidaire FEB30S7FCB Guida utente

SERVICE DATA SHEET 318047413 (0405) Rev. A

Electric Wall Oven with Electronic Oven Control

To avoid the possibility of personal injury and/or property damage, it is important that safe servicing practices be

observed. The following are examples of some, but not all, of these practices.

1. Do not attempt a product repair if you have any doubts as to your ability to complete it in a safe and satisfactory

manner.

2. Before servicing or moving an appliance, remove power cord from electric outlet, trip circuit breaker to OFF, or

remove fuse and turn off gas supply.

3. Never interfere with the proper installation of any safety device.

4. USE ONLY REPLACEMENT PARTS CATALOGED FOR THIS APPLIANCE. SUBSTITUTIONS MAY DEFEAT COMPLIANCE

WITH SAFETY STANDARDS SET FOR HOME APPLIANCES.

5. GROUNDING: The standard color coding for safety ground wires is GREEN OR GREEN WITH YELLOW STRIPES.

Ground leads are not to be used as current carrying conductors. IT IS EXTREMELY IMPORTANT THAT THE SERVICE

TECHNICIAN REESTABLISH ALL SAFETY GROUNDS PRIOR TO COMPLETION OF SERVICE. FAILURE TO DO SO

WILL CREATE A POTENTIAL HAZARD.

6. Prior to returning the product to service, ensure that:

• All electric connections are correct and secure.

• All electrical leads are properly dressed and secured away from sharp edges, high-temperature components,

and moving parts.

• All non-insulated electrical terminals, connectors, heaters, etc. are adequately spaced away from all metal

parts and panels.

• All safety grounds (both internal and external) are correctly and securely reassembled.

• All panels are properly and securely reassembled.

SAFE SERVICING PRACTICES

This service data sheet is intended for use by persons having electrical and mechanical training and a level of

knowledge of these subjects generally considered acceptable in the appliance repair trade. The manufacturer

cannot be responsible, nor assume any liability, for injury or damage of any kind arising from the use of

this data sheet.

NOTICE

NOTE: The Controller's are not field repairable. Only temperature settings can be changed. See oven calibration.

1. This self-cleaning controller offers Bake, Broil, Speed Bake (some models) modes, Timed and Delayed Baking, and

Cleaning functions.

2. This Controller has a touch sensitive membrane.

ES350/355 ELECTRONIC OVEN CONTROL

ES350

Door Locked

Oven

Preheat

Clean

Speed

Clean Clock

Timer

On/Off

Broil

Bake

Clear

/Off

Controls

Speed

Bake

Keep

Warm

Start

time

Bake

time Oven

light

Speed Bake Oven

Self-Cleaning Oven

Cook

Time

Timer

Set/Off

Oven

Preheat

Door Locked

Add 1

Minute

STOP

Clear

Oven

Lockout

Broil

Warm &

Hold

Bake

Delay

Start

Select

Clean

ES355

Cook

Time

Timer

Set/Off

Oven

Preheat

Broil

Warm &

Hold

Delay

Start

STOP

Clear

Oven

Lockout

Bake

P15

BAKE

L2 OUT

BROIL

P10

P11

P14

L2 IN

set point

First rise overshoot

T°

t (sec)

The speed bake oven uses the addition of a fan to move the air already in the oven. Moving the heated air helps to

destratify the heat and cause uniform heat distribution. Cooking times can be reduced by as much as 30%. The air

is drawn in through a fan shroud located on the rear wall of the oven. It is then discharged around the outer edges

of this shroud. The air circulates around the food and then enters the shroud again. There is still an oven vent which

discharges through the bottom of the control panel.

To set the control in speed bake mode, follow these steps:

1.Press the SPEED BAKE pad.

2. Enter the desired temperature on the keypad (set point).

3. Press the START pad.

The oven will automatically start and the fan will begin to run. To cancel the speed bake function, press the CANCEL

pad.

NOTE: The fan runs continuously while in the speed bake mode. The fan will stop if the door is opened. The bake

element will continue to operate if the door is opened.

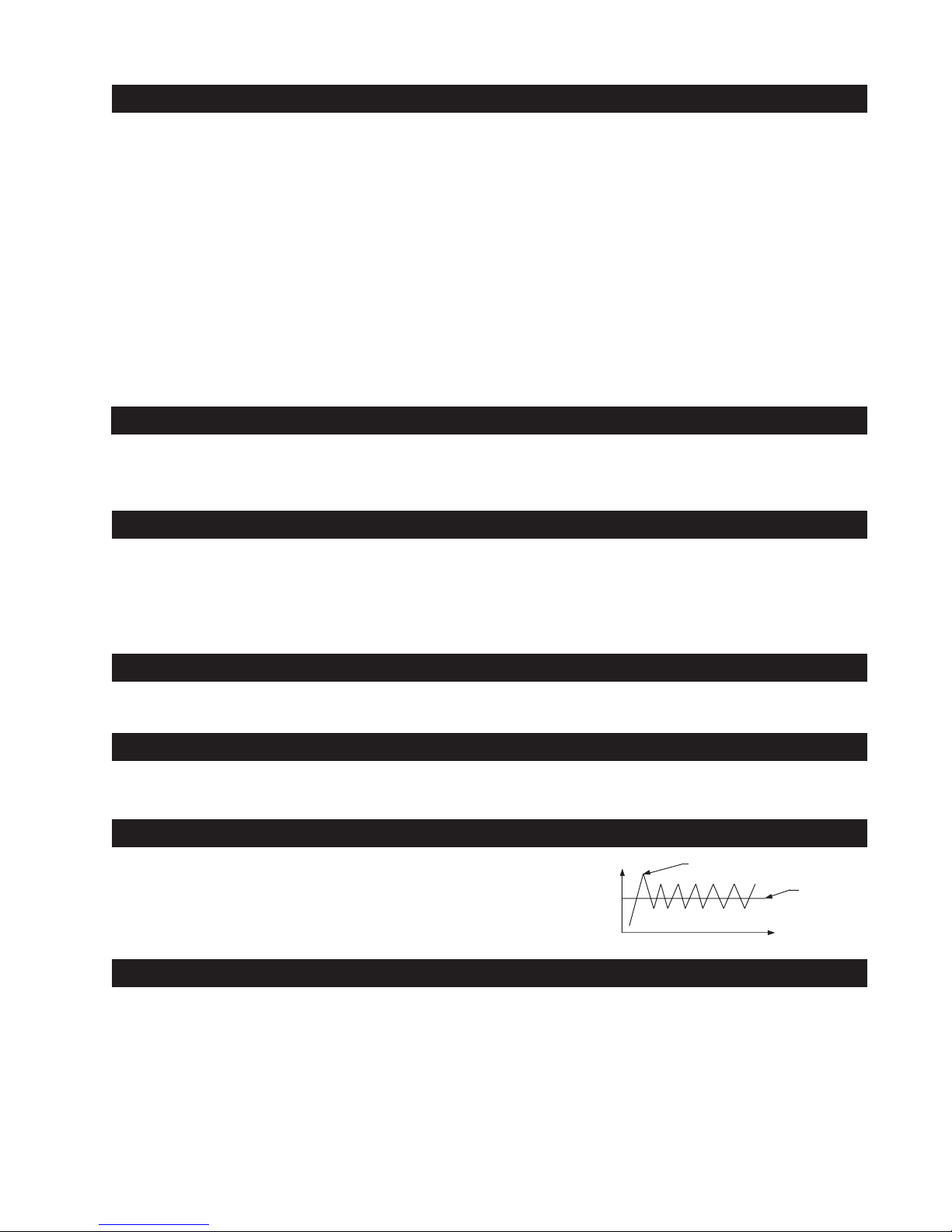

It is normal to see a temperature overshoot in the

first rise of all modes when you monitor the temperature.

FIRST RISE

When these modes are selected, the door locks right after start button is pushed.

CLEAN AND TIMED CLEAN

During a cleaning process, the oven uses bake element.

CLEAN

During a normal bake mode, the controller preheats the oven with the bake element. When the desired temperature

is reached, the controller adds top heat by cycling the broil element on for 12 to 18 seconds per minute. The bake

element is on for the remaining time of the minute. Both elements use full power when they are on but they are never

on at the same time.

NORMAL BAKE

During a preheat mode, the oven uses a bake element to reach the controller set point. The element uses full power

when it's on. When the set point is reached, the preheat mode is converted to a normal bake mode.

PREHEAT

SPEED BAKE MODE (some models)

OVEN CALIBRATION

Set the electronic oven control for normal baking at 350°F/176°C. Obtain an average oven temperature after a

minimum of 5 cycles. Press Cancel to end bake mode.

Note: Changing calibration affects all the cooking modes but not the clean mode.

Note: Only three fault codes series are displayed by this control “F1”, "F3" and “F9”. Generally speaking “F1” implies a

control failure, “F3” an oven probe problem, and “F9” a latch motor problem. In all occurrences the alarm is accompanied

by a display of “F1“.

(F10) Control has sensed a potential

runaway oven condition. Control

may have shorted relay, RTD sensor

probe may have gone bad.

(F11) Shorted keypad.

(F13) Control's internal checksum may

have become corrupted.

(F14) Misconnected flat cables.

(F30) Open RTD sensor probe/ wiring

problem. Note: EOC may initially

display an "F1", thinking a

runaway condition exists.

(F31) Shorted RTD sensor probe / wiring

problem. Note: "F3" is displayed

when oven is in active mode or an

attempt to enter an active mode is

made.

(F90 Door motor mechanism failure.

F94)

Likely Failure Condition/Cause Suggested Corrective Action

Fault Code

Series

1. Check RTD sensor probe and replace if necessary. If oven is

overheating, disconnect power. If oven continues to overheat

when the power is reapplied, replace EOC. Severe overheating

may require the entire oven to be replaced, should damage

be extensive.

2. Press CLEAR key.

3. Disconnect power, wait 30 seconds and reapply power. If

fault returns upon power-up, replace EOC.

4. Disconnect power; verify flat cable connections (P6 or P12).

1. Press CLEAR key.

2. Check wiring in probe circuit for possible open condition.

Check RTD resistance at room temperature (compare to

probe resistance chart). If resistance does not match the

chart, replace the RTD sensor probe.

3. Let the oven cool down and restart the function

1. Press CLEAR key.

2. If CLEAR key does not eliminate problem, turn off power for

30 seconds, then turn on power.

3. Check wiring of Lock Motor, and Lock Switch and Door

Switch circuits.

4. Unplug P5, apply power (L1) directly to the Lock Motor, if the

motor does not rotate, replace Lock Motor Assembly. Plug

P5.

5. Check Lock Switch A for proper operation (do they open and

close, check with ohmmeter). The Lock Motor may be

powered as in above step to open and close Lock Switch. If

the Lock Switch is defective, replace Motor Lock Assembly.

6. If all above steps fail to correct situation, replace control.

ELECTRONIC OVEN CONTROL (EOC) FAULT CODE DESCRIPTIONS AND RTD SCALE

ELECTRONIC OVEN CONTROL

Bake X X* X

Broil X X

Speed Bake X X X

Clean X X

Locking X NC NO

Locked NO NC

Unlocking X NO NC

Unlocked NC NO

Light X

Door Open X X

DoorClosed

Coolingfan

DLB

L2 out

CIRCUIT ANALYSIS MATRIX

Bake

Lock Motor Switches

P15-1

P15-2

Door Switch

P15-3

COM-NO

Broil

ELEMENTS Speed

Bake

P5-3

Light

P5-8

Door Motor

P5-6

P15-1

P15-7

* Denotes Topheat ** Stage 1 + Stage 2 Relay will operate in this condition only

OVEN TEMPERATURE

SENSOR

RTD SCALE

Temp. °F Temp. °C Resistance (ohms)

32 ± 1.9 0.0 ± 1.1 1000 ± 4.0

75 ± 2.5 23.9 ± 1.4 1091 ± 5.3

250 ± 4.4 121.1 ± 2.4 1453 ± 8.9

350 ± 5.4 176.7 ± 3.0 1654 ± 10.8

450 ± 6.9 232.2 ± 3.8 1852 ± 13.5

550 ± 8.2 287.8 ± 4.6 2047 ± 15.8

650 ± 9.6 343.3 ± 5.3 2237 ± 18.5

900 ± 13.6 482.2 ± 7.6 2697 ± 24.4

ELECTRICAL RATING

27" Wall Oven 30" Wall Oven

KW Rating 240/208 V See nameplate See nameplate

Broil Element Wattage 3400W / 2554W 2750W / 2066W

Bake ElementWattage 2300W / 1728W 3400W / 2553W or

3000W / 2253W

2 SPEEDS COOLING FAN

A relay and a thermostat (170°/140°) control the speeds of the blower.

FAN BLADE

The fan blade is mounted in the rear of the unit and has a "D" shaped mounting hole. Only minimum clearance exists

between the oven back, fan blade, and fan shroud. Be careful not to bend blade when removing or installing.

Access to the fan blade is gained by removing the fan shroud, held in place by three screws, from the inside of the oven.

The fan blade is held in place with a hex nut that has left handed threads. When removing this nut, gently hold the

fan blade, and turn the nut clockwise. If one of the blades becomes deformed, it may be bent back into shape using

a flat surface as a reference.

A flat washer is located on the motor shaft between the snap ring on the shaft and the fan blade.

NOTE: If the fan blade is bent and motor vibrations increase, the noise made by the fan will be greater.

MOUNTING PLATE OVEN

The fan motor on the rear of the unit is mounted to the main back (with three screws). There is a mounting plate held

in place between the main back (with 2 screws) and the rear oven wall (with 2 screws). Should it be necessary to replace

the oven cavity, you must remove the 2 screws located inside the unit at the rear of the oven cavity.

FAN MOTOR

The 120 volt fan motor is located on the outside of the rear of the oven.

EXPLODED VIEW OF SPEED BAKE SYSTEM (some models)

Speed Bake Fan

Motor Assembly

Mounting Plate

Oven Cavity

Speed Bake

Fan Blade

Fan Nut

Convection

Fan Cover

Fan Cover Screws

FAN RELAY

The fan motor runs continuously while in the speed bake mode unless the door is opened. If the fan does not operate,

check the following:

• Display illuminated on the electronic control.

• Voltage output between terminals P5-3 and Neutral.

• 120 Volts available at fan motor.

• Fan motor coil resistance 56.5 ohms ± 10%.

• Door/light switch.

DOOR LOCK MECHANISM

The appliance is equipped with an electronic oven control

and has an auto locking door latch feature. When the self

clean cycle is programmed, the door is locked by a motor

operated latch system. The interior of oven doesn't need to

heat up to 500°F/260°C before the door locks. However, until

the temperature inside oven reaches 500°F/260°C, the self-

clean program can be canceled and door will unlock

immediately. After oven reaches temperatures over 500°F/

260°C, the door will not unlock until temperature drops

below 500°F/260°C.

If a problem appears and the door stays locked it is possible

for the servicer to unlock the door without removing the

appliance from its place. Follow the steps below:

1. Trip the circuit breaker to OFF position.

2. Remove the 2 screws, which are fixing the oven door

latch, located between the control panel and the oven

door.

3. When the screws are removed it is possible to unlock the

latch with a flat screwdriver, or one of the tools supplied

with the wall oven which are used to take off the oven

from the cabinet. Insert the tool tip through the slot on top

of the oven door. During this step it's important to take

care to not damage the appliance.

4. As soon as the latch is in the unlock position, you can

open the door.

5. Replace the motor latch:

1. To have access to the door latch assembly, remove the 3 screws under the control panel which are fixing it.

2. Remove the access plate located on the upper air channel by removing the screw.

3. Replace the motor latch by a new one and reassemble in reverse order.

Motor Cooling Fan

Door Locking

Mechanism

Assembly

Safety

Thermostat

Upper Air Channel

Access Plate

To Remove the Oven Door:

1. Open the door to the fully opened position.

2. Pull up the lock located on each hinge supports and engage it in the hinge lever. You may have to apply a little

downward pressure on the door to pull the locks fully over the hooks.

3. Grab the door by the sides, pull the bottom of the door up and toward you to disengage the hinge supports.

Keep pulling the bottom of the door toward you while rotating the top of the door toward the range to com-

pletely disengage the hinge levers.

To Replace the Oven Door:

1. Grab the door by the sides; place the hinge supports in the hinge slots. Open the door to the fully opened

position.

2. Disengage the lock from the hinge levers on both sides.

Note: Make sure the hinge supports are fully engaged before unlocking the hinge levers.

3. Close the oven door.

The door is heavy. After removing door, lay it flat on the floor with the inside of the door facing down.

OVEN DOOR REMOVAL AND REPLACEMENT

Lock in normal position Lock engaged for door

removal

HINGE SLOT

Door removed

from the range

Hinge

support

Hinge

lever

HOJA DE SERVICIO 318047413 (0405) Rev. A

Horno Eléctrico de Pared con Control Electrónico de Horno

Para evitar heridas o daños a la propiedad, es importante de seguir estas practicas medidas. A continuación, son

ejemplos, pero sin limitación, de estas medidas.

1. No trate de reparar el aparato a menos que crea poder hacerlo satisfactoriamente.

2. Antes de reparar o de desplazar el aparato, retire el cable del toma corriente, APAGUE el suministro de energía

o retire los fusibles y apague el suministro de gas.

3. Nunca interfiera con la instalación adecuada de un aparato.

4. UTILICE SOLAMENTE EL CATALOGO DE PIEZAS DESIGNADO PARA ESTE APARATO. EL SUBSTITUIRLAS PODRIA

ESTAR EN DESACUERDO CON LAS MEDIDAS NECESARIAS PARA LOS APARATOS DE CASA.

5. PUESTA A TIERRA: los cables de seguridad a tierra son VERDES CON LINEAS AMARILLAS. Los cables de tierra no

pueden ser utilizados como conductores. ES MUY IMPORTANTE QUE EL TECNICO ESTABLEZCA LA SEGURIDAD

DE LA PUESTA TIERRA ANTES DE TERMINAR EL SERVICIO. EL NO HACERLO PUEDE CREAR MUCHO PELIGRO.

6. Antes de devolver el aparato al servicio, asegúrese que:

• Todas las conexiones electricas estan bien conectadas y aseguradas.

• Todos los cables de tierra deben estar bien asegurados, lejos de elementos afilados, lejos de altas temperaturas

y cualquier elemento movible.

• Todos los cables no aislados, conectadores, calentadores, etc. deben estar lo suficientemente lejos de las

partes metálicas y de los paneles.

• Todos los cables de tierra (externos y internos) estan correctamente y bien asamblados.

• Todos los paneles estan bien y correctamente asamblados.

PRACTICAS DE SERVICIO SEGURAS

Esta hoja de servicio esta dirigida a las personas con entrenamiento tecnico y a los que tienen un buen nivel de

comprehension en la reparación de estos aparatos. El fabricante no puede ser responsable de heridas o daños

de algún tipo por el uso de esta hoja de información.

NOTICIA

1. Este controlador de auto-limpieza ofrece horneo, asado, "SPEED BAKE", horneado a retardo y cronometrado y

funciones de limpieza.

2. Este Controlador tiene una membrana sensible al tacto.

ES500 CONTROL DEL HORNO ELECTRICO

NOTA: Los ES350/355 no son reparables. Solo los ajustes de temperaturas pueden ambiarse. Vea calibracíon del

horno.

ES350

Door Locked

Oven

Preheat

Clean

Speed

Clean Clock

Timer

On/Off

Broil

Bake

Clear

/Off

Controls

Speed

Bake

Keep

Warm

Start

time

Bake

time Oven

light

Speed Bake Oven

Self-Cleaning Oven

Cook

Time

Timer

Set/Off

Oven

Preheat

Door Locked

Add 1

Minute

STOP

Clear

Oven

Lockout

Broil

Warm &

Hold

Bake

Delay

Start

Select

Clean

ES355

Cook

Time

Timer

Set/Off

Oven

Preheat

Broil

Warm &

Hold

Delay

Start

STOP

Clear

Oven

Lockout

Bake

P15

BAKE

L2 OUT

BROIL

P10

P11

P14

L2 IN

Altri manuali per FEB30S7FCB

Indice

Lingue:

Altri manuali Frigidaire Forno

Frigidaire

Frigidaire FEFB68CJSA Manuale d'uso e manutenzione

Frigidaire

Frigidaire FRG612SC Manuale utente

Frigidaire

Frigidaire FGB24S5ABF Manuale utente

Frigidaire

Frigidaire FEB24S2ASA Guida rapida

Frigidaire

Frigidaire FEB702CA Manuale utente

Frigidaire

Frigidaire FEB798CC Manuale utente

Frigidaire

Frigidaire FPEW3077RFF Manuale del proprietario

Frigidaire

Frigidaire FPET3085PF Manuale elenco delle parti

Frigidaire

Frigidaire GMOS196CAF Manuale utente

Frigidaire

Frigidaire FGET2765KFA Manuale utente

Frigidaire

Frigidaire FEB798WCCE Manuale di istruzioni

Frigidaire

Frigidaire FGB24S5AS - 24 Inch Single Gas Wall Oven Manuale utente

Frigidaire

Frigidaire FEB27T7F Manuale utente

Frigidaire

Frigidaire FEB27T5D Manuale utente

Frigidaire

Frigidaire FGEW2765P W Manuale di installazione e funzionamento

Frigidaire

Frigidaire FEB702CESG Manuale d'uso e manutenzione

Frigidaire

Frigidaire FGES3045KBA Guida utente

Frigidaire

Frigidaire FEB30S7FCB Manuale d'uso e manutenzione

Frigidaire

Frigidaire FEB30T7F Manuale di istruzioni

Frigidaire

Frigidaire FEB398CESA Control Manuale d'uso e manutenzione

Frigidaire

Frigidaire FGB24S5DCA Manuale utente

Frigidaire

Frigidaire FGB24L2EC - 24" Gas Wall Oven Manuale utente

Frigidaire

Frigidaire FEB386CEBH Manuale di istruzioni

Frigidaire

Frigidaire GLCS389FSA Manuale d'uso e manutenzione

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Smeg

Smeg DOSPA38X Manuale di installazione e funzionamento

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente

DeLonghi

DeLonghi XA660 Manuale
