Frigidaire FEB27S5G Manuale di istruzioni

FEB27S5GC.tif CFEB30S7DCA.eps BFEB27S7FCB.eps DCFEB30S5GC1.eps

318046254.eps

Product No. FEB27S5GCC

38254733F70S3

Series 27" single

Color stainless

Market North America

Wiring Diagram 318046254

Owner's Guide 318205119

Installation Instructions 318201514

Service Data Sheet 318047413

Timer Guide 318200189

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995513990

08/05/12

(EN/SERVICE/BJH)

377

SINGLE ELECTRIC

WALL OVEN

Model No.

FEB27S5G

Publication No: 5995513990 FEB27S5GCC

05/08 2

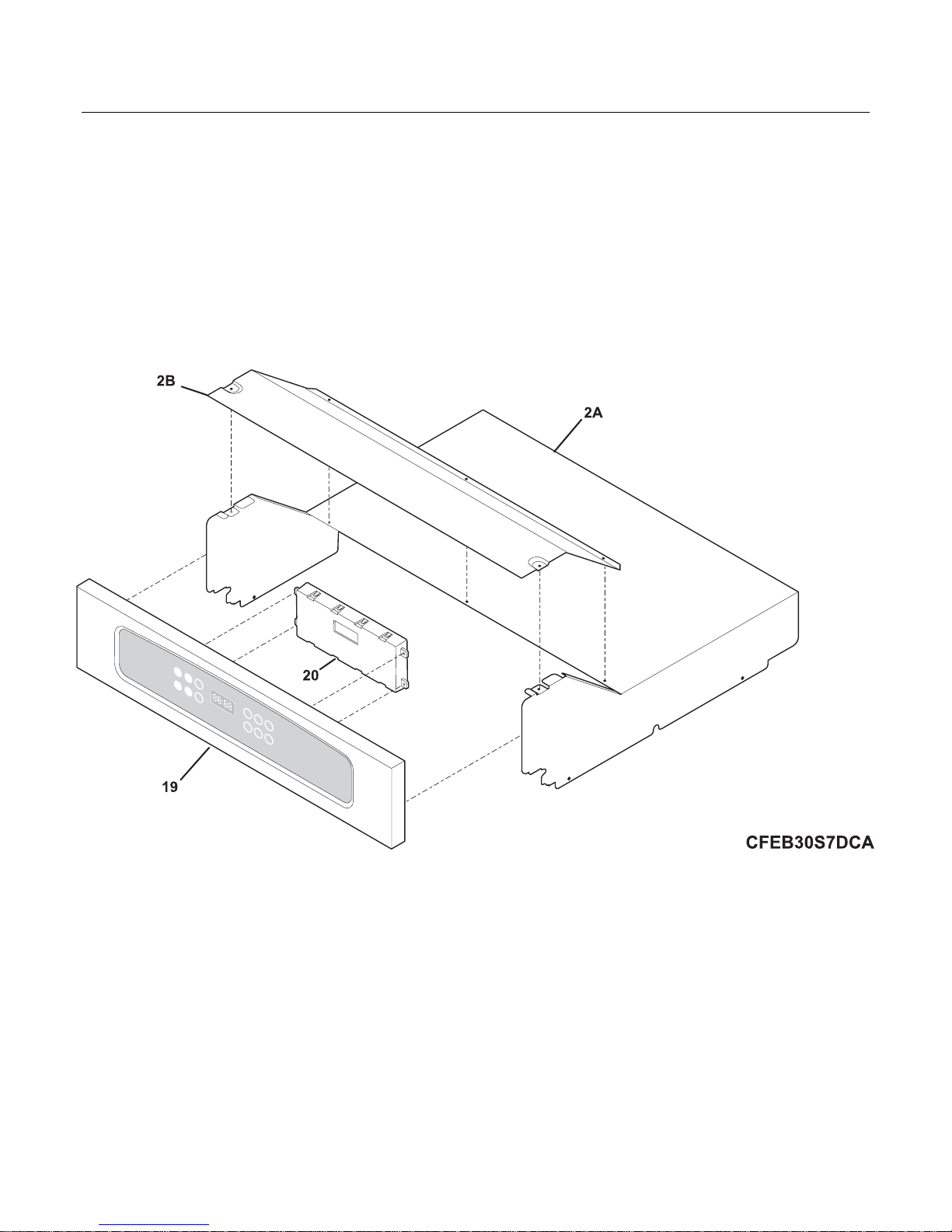

CONTROL PANEL

FEB27S5GCC Publication No: 5995513990

# Functional Parts 3 05/08

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257301 Shield, oven top

2B 318260101 Cover, box

19 318271550 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316418525 Clock/Timer, electronic, ES350W1

20* 5303311306 Screw, 8-18 x 0.375, (8)

* 5303211311 Screw, 8 x 0.500

Publication No: 5995513990 FEB27S5GCC

05/08 4

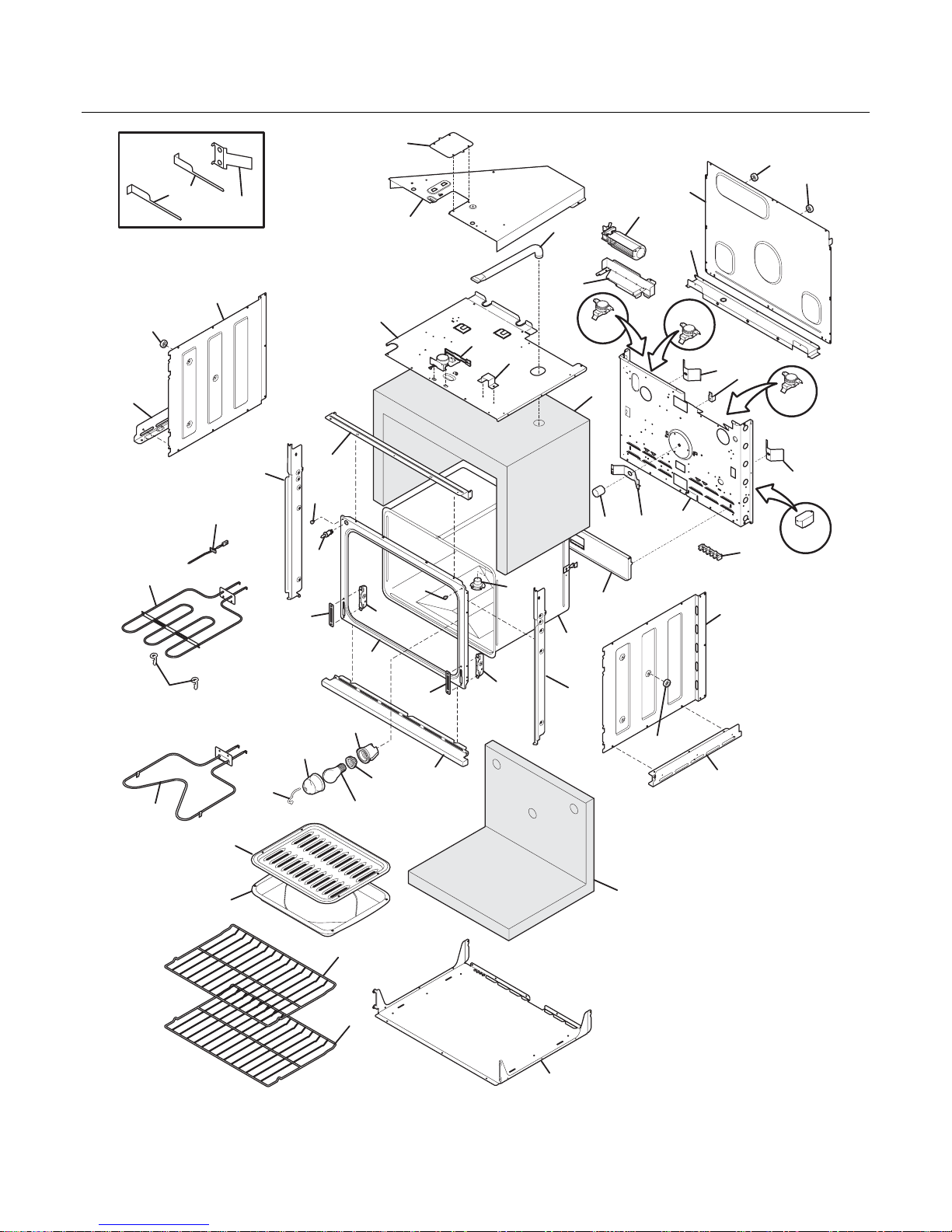

BODY

310

311

143

219

119

312

108

112

108A

185

163

142

58B

264

29 127

58A

BFEB27S7FCB

185

59A

56A

131

132

219A

272

FEB27S5GCC Publication No: 5995513990

# Functional Parts 5 05/08

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259213 Back, main

2 318258910 Shield, insulation, upper

6 318345209 Rack, oven, (3)

9 5303317977 Pan, broilerOPTIONAL ACCESS0RY

10 5303317976 Insert, broiler panOPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318903704 Trim, side, black, RH

56A 318903705 Trim, side, black, LH

58A 318285060 Insulation, rear & bottom, oven wrapper

58B 318285059 Insulation, top & sides, oven wrapper

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261502 Liner, oven assy

86 318328010 Receptacle, hinge

87 318260601 Bracket, cable mtg.

89 # 318261205 Motor, latch assy

90 318259711 Trim, oven front, black, bottom

99 318256201 Bracket, side, bottom, (2)

108# 318073028 Motor, blower

108A 318251300 Bracket, fan support

112# 318112703 Relay

119# 318004900 Switch, thermal

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272901 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

163 318531703 Spacer, (2)

185 318531800 Spacer, oven shield, (2)

219# 318003614 Thermostat, safety

Publication No: 5995513990 FEB27S5GCC

05/08 6

BODY

310

311

143

219

119

312

108

112

108A

185

163

142

58B

264

29 127

58A

BFEB27S7FCB

185

59A

56A

131

132

219A

272

FEB27S5GCC Publication No: 5995513990

# Functional Parts 7 05/08

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

219A 318003613 Thermostat, safety, 1.375" mtg, 105/120

264 318257711 Trim, oven, black, front

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* # 318394441 Box & wires assy

* # 318231754 Harness, wiring, main

* 3201861 Screw, 6 x 0.375, (4)

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303323136 Screw ground

* 5303323277 Screw, 8-18 X 13/32

* 5303324184 Screw, 8-18 x 5/16, black, (4)

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995513990 FEB27S5GCC

05/08 8

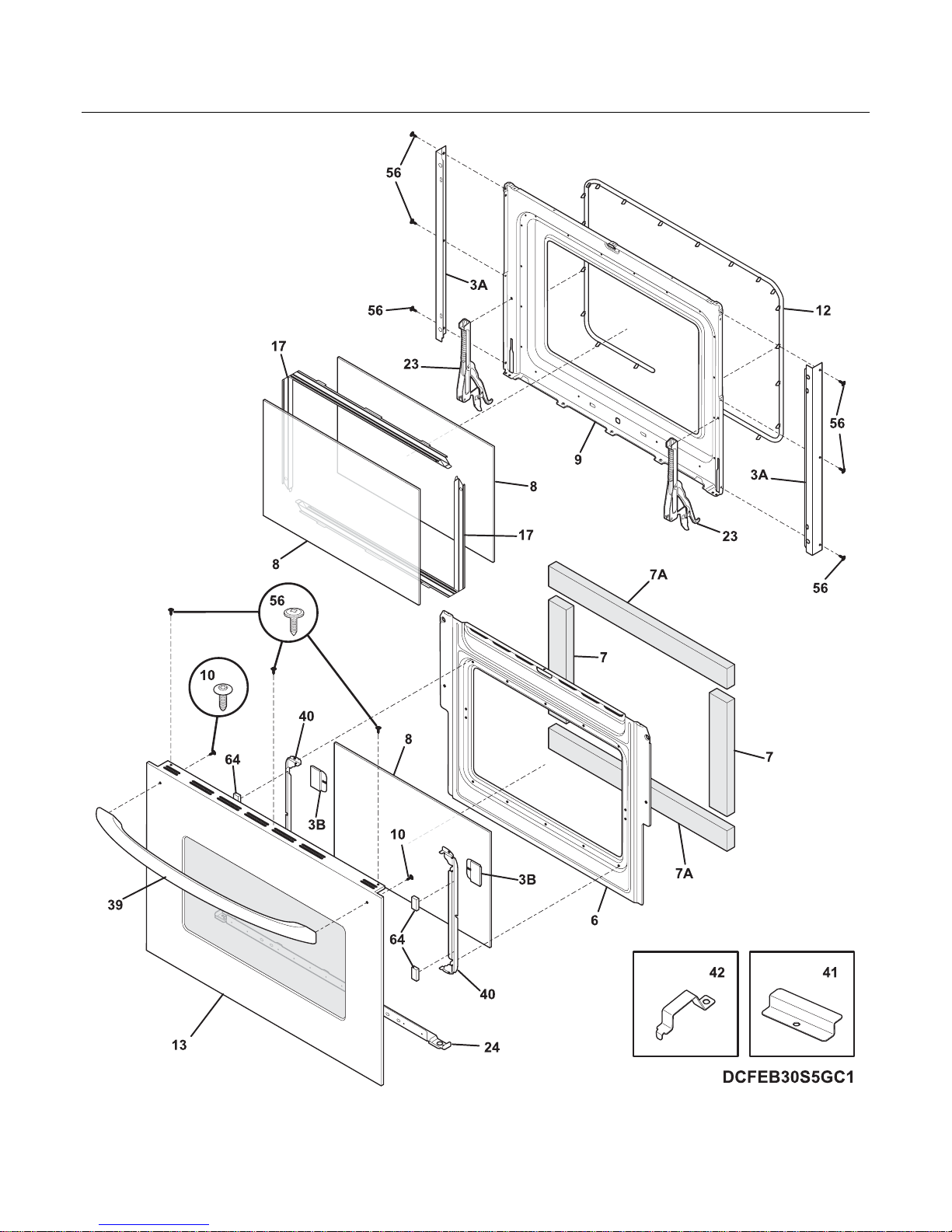

DOOR

FEB27S5GCC Publication No: 5995513990

# Functional Parts 9 05/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260510 Baffle, door

7 318372000 Insulation, door, (2)

7A 318372001 Insulation, door, 20.5 x 2.375, (2)

8 318212200 Glass, oven door, heat barrier

9 318259615 Liner, upper door

10 5303311174 Screw, 10-24 x 3/8

12 318053135 Seal, oven door, upper

13 318272111 Door Assy, w/glass, stainless steel, outer, w/tape& foil

17 318264700 Spacer, glass, (2)

23 318024722 Hinge, door, upper, (2)

24 318260311 Trim, door, black, lower

39 318264500 Handle, oven door, black

40 318242702 Bracket, glass holder, upper door, (2)

41 318370600 Bracket, glass retainer, (2)

42 318382301 Bracket, glass retainer, (4)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995513990 FEB27S5GCC

05/08 10

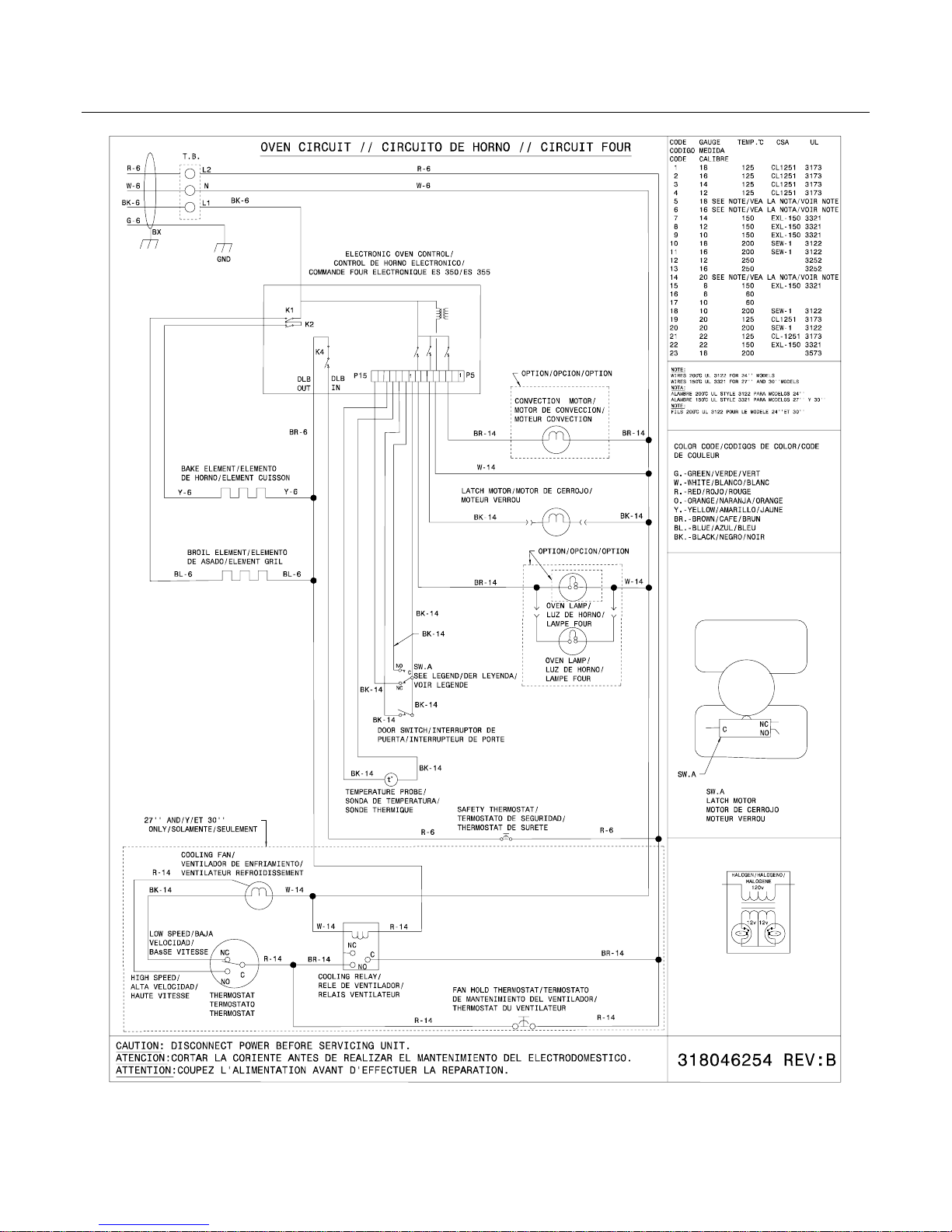

WIRING DIAGRAM
