Frigidaire FEC32C4ACD Manuale di istruzioni

Product No. FEC32C4ACD FEC32C4AQD FEC32C4ASD

38054311610C4 3805431161044 3805431161014

Series 32" elec 32" elec 32" elec

Color stainless bisque white

Market North America North America North America

Wiring Diagram 318046901 318046901 318046901

Owner's Guide 318200612 318200612 318200612

FEC32C4A.eps LA9923G28A.eps LA9923V31.eps 318046901.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995403036

04/02/02

(EN/SERVICE/ECL)

377

ELECTRIC COOK-TOP

RANGE

Model No.

FEC32C4A

Publication No: 5995403036 FEC32C4A

02/04 2

CONTROL PANEL

FEC32C4A Publication No: 5995403036

# Functional Parts 3 02/04

* Non-Ilustrated Parts

CONTROL PANEL

Model Index: AFEC32C4A (FEC32C4ASD)

BFEC32C4A (FEC32C4ACD)

CFEC32C4A (FEC32C4AQD)

POS. NO PART NO. DESCRIPTION

14 5303323991 A B C Lamp, indicator

19 318183502 A - - Insert, white

19 318183504 - B - Insert, black

19 318183503 - - C Insert, bisque

36 318196633 A - - Knob, control, white

36 318196634 - B - Knob, control, black

36 318196635 - - C Knob, control, bisque

46 5303200418 A B C Lens, indicator light

54 # 318220014 A B C Switch, surface unit, small

54A# 318220015 A B C Switch, surface unit, large

69 5303305528 A B C Screw, 8-32 x 1/4

74 318146010 A B C Bushing, switch

* 5303308449 A B C Fastener, wire tie

* 08002868 A B C Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303323140 A B C Screw, ground, 10-32 x 0.375

Publication No: 5995403036 FEC32C4A

02/04 4

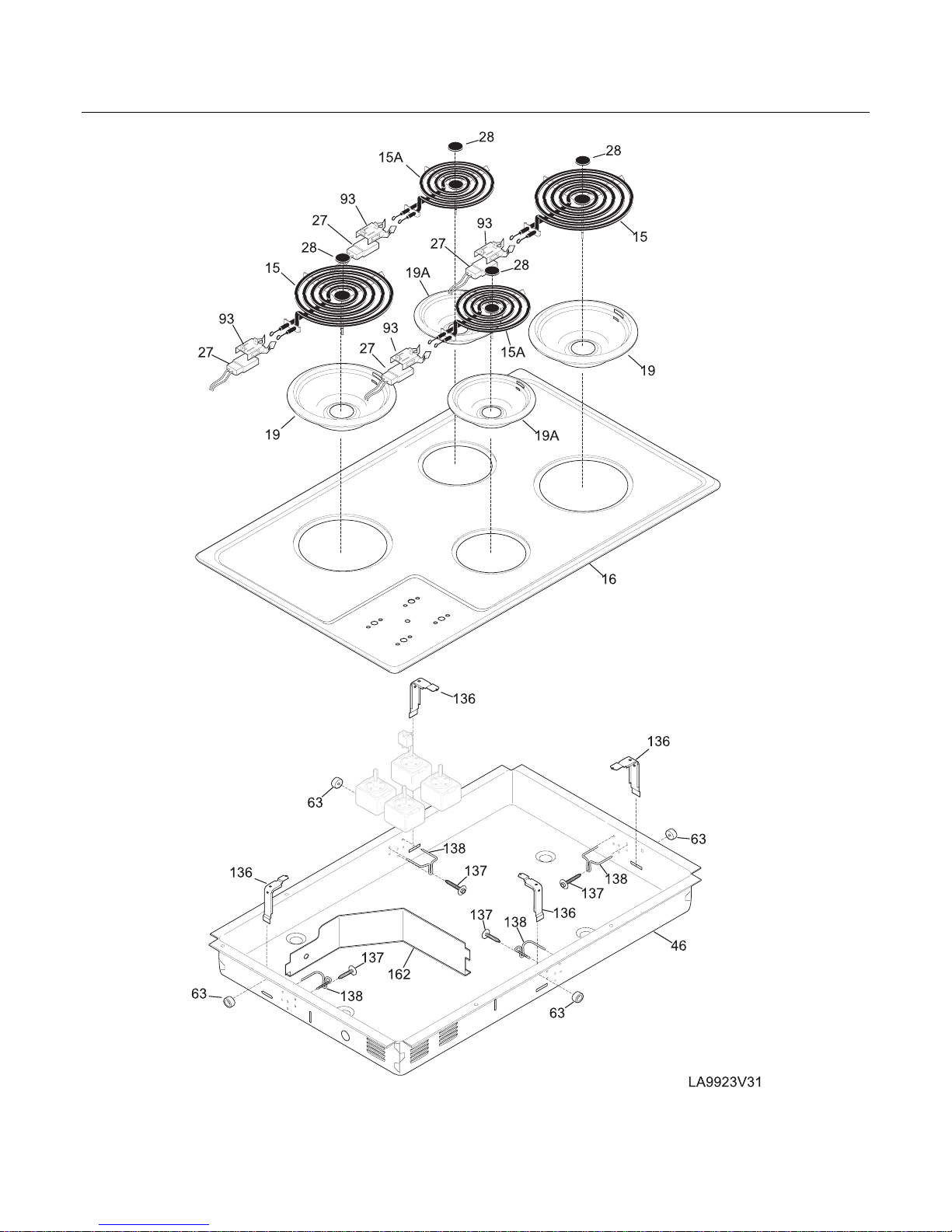

MAIN TOP/SURFACE UNITS

FEC32C4A Publication No: 5995403036

# Functional Parts 5 02/04

* Non-Ilustrated Parts

MAIN TOP/SURFACE UNITS

Model Index: AFEC32C4A (FEC32C4ASD)

BFEC32C4A (FEC32C4ACD)

CFEC32C4A (FEC32C4AQD)

POS. NO PART NO. DESCRIPTION

15 # 5308011964 A B C Element, surface, large/8 inch, (2), medallion incl

15A# 5304437241 A B C Element, surface, small/6 inch, 1250W, medallion incl

16 5303299756 A - - Main Top, white

16 5303299758 - B - Main Top, stainless

16 318158900 - - C Main Top, bisque

19 # 318067056 A B C Pan, surface element, large, chrome

19A# 318067046 A B C Pan, surface element, small, chrome

27 # 318223405 A B C Terminal Block, surface element, 6", yellow leads

27 # 318223406 A B C Terminal Block, surface element, 12", white leads

27 # 318223408 A B C Terminal Block, surface element, 18", orange leads

27 # 318223425 A B C Terminal Block, surface element, 12", brown leads

28 5303301461 A B C Medallion, surface element

46 5304410269 A B C Burner Box

63 318014110 A B C Spacer

93 318122500 A B C Support, terminal block, (4)

136 3008711 A B C Bracket, mounting

137 5303325981 A B C Screw, 10-16 x 1 1/2

138 08016269 A B C Clip

162 3008713 A B C Shield wire

* # 318078525 A B C Box & wires assy

* 08002868 A B C Screw, 10-24 x 0.500, probe, thrm brkt, shield, drwr, box

* 5303300195 A B C Screw, 10-32 x 0.375, terminal block, (2)

* 5303323140 A B C Screw, ground, 10-32 x 0.375

Publication No: 5995403036 FEC32C4A

02/04 6

WIRING DIAGRAM
