Frigidaire FFGF3013LW Istruzioni per l'installazione

frigidaire.com

Drop-In Cooktop

FPEC3085K S

30" Electric30" Gas

Signature Features

Ready-Select® Controls

Select options or control cooking

temperature with our easy-to-use

controls.

Even Baking Technology

Our latest technology ensures

even baking every time.

Sealed Gas Burners

Enjoy easier cleanup and a burner

that stays looking great.

Hi /Lo Broil Option

Offers two-position broiling and

variable temperature control for

more control.

Product Dimensions

Height (Max.) 47-1/2"

Width 29-7/8"

Depth (Including Handle) 28-1/2"

More Easy-To-Use Features

Color-Coordinated Oven Door

with Large Window

Stylish look with a large window

makes it easy to check on what’s

cooking without opening the door.

Steel Grates

Timed Cook Option

Electronic Kitchen Timer

Bright Lighting

Our bright lighting makes it easy

to see what’s inside.

Manual Clean Oven

Broil and Serve™ Drawer

LP Gas Conversion Option

Available in:

Burners

Right Front

Right Rear

Left Front

Left Rear

BTU

9,500

White

(W)

Black

(B)

Freestanding Ranges

FFGF3013L W/ B

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

Features

Oven Control / Timing System

Surface Type

Sealed Gas Burners

Grates

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake

Broil

Add-a-Minute

Delay Bake

Self-Clean

Quick Clean Option

Delay Clean

Kitchen Timer

Timed Cook Option

Auto Oven Shuto

Cooktop Features

Right Front Burner (BTU)

Right Rear Burner (BTU)

Left Front Burner (BTU)

Left Rear Burner (BTU)

Center Extra Zone Burner (BTU)

Oven Features

Capacity (Cu. Ft.)

Oven Light

Rack Conﬁguration

Even Baking System

Broiling System

Bake Burner / Broil Burner (BTU)

Optional Accessories

LP Gas Conversion Kit

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Gas Supply Connection Location

Voltage Rating

Connected Load

(kW Rating) @ 120 Volts 1

Amps @ 120 Volts

Shipping Weight (Approx.)

1 For use on adequately wired 120V, dedicated circuit having

2-wire service with a separate ground wire. Appliance must be

grounded for safe operation.

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

47-1/2"

29-7/8"

28-1/2"

46-5/8"

30" Gas Freestanding Ranges (4 Burners)

Frigidaire Baseline

36"

(Adjustable)

Ready-Select® Controls

Color-Coordinated Porcelain

Yes

Black Square Steel

Large

Color-Coordinated

Manual Clean

Broil

Yes

Low and High

Yes

9,500

4.2

2 Standard

Yes

Vari-Broil™ Hi / Lo

18,000 / 18,000

PN # GRLP3

17-5/8" x 24-3/8" x 19-3/4"

Left Bottom Rear

Right Bottom Rear

120V / 60 Hz / 15A

1.8

150 Lbs.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Ranges

FFGF3013L W/ B 30" Gas

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30"

24"

NOTE: For planning purposes only. Always consult local and national electric and gas codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

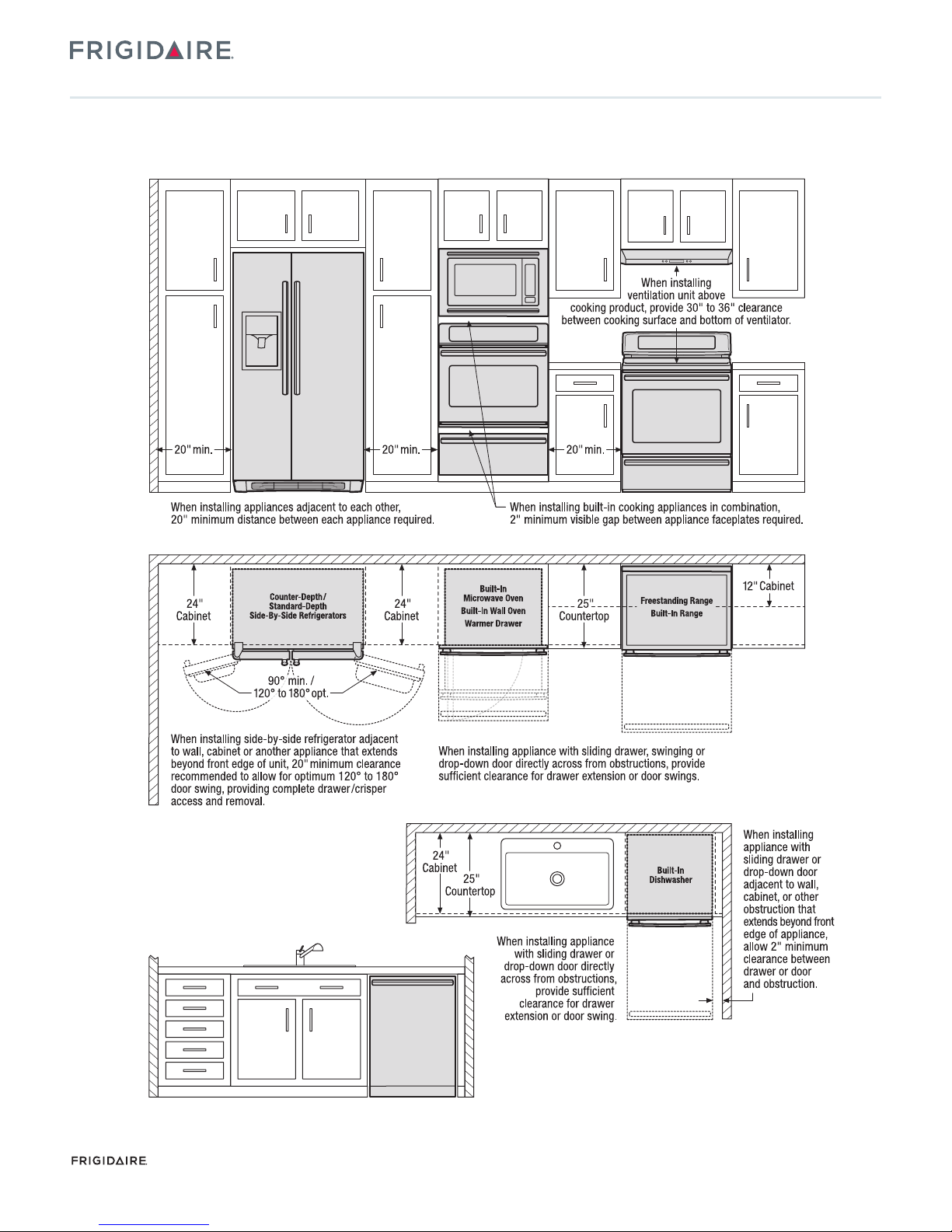

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator
