Frigidaire FGC30S4D Manuale utente

FGC30S4D.eps LA9922T15.eps LA00BR77490-1.eps 318047111.eps

Product No. FGC30S4DBA

3775421264061

Series 30" gas

Color black

Market North America

Wiring Diagram 318047111

Owner's Guide 318200657

Installation Instructions 318201451

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995424388

04/12/15

(EN/SERVICE/ECL)

377

GAS COOK-TOP

RANGE

Model No.

FGC30S4D

Publication No: 5995424388 FGC30S4DBA

12/04 2

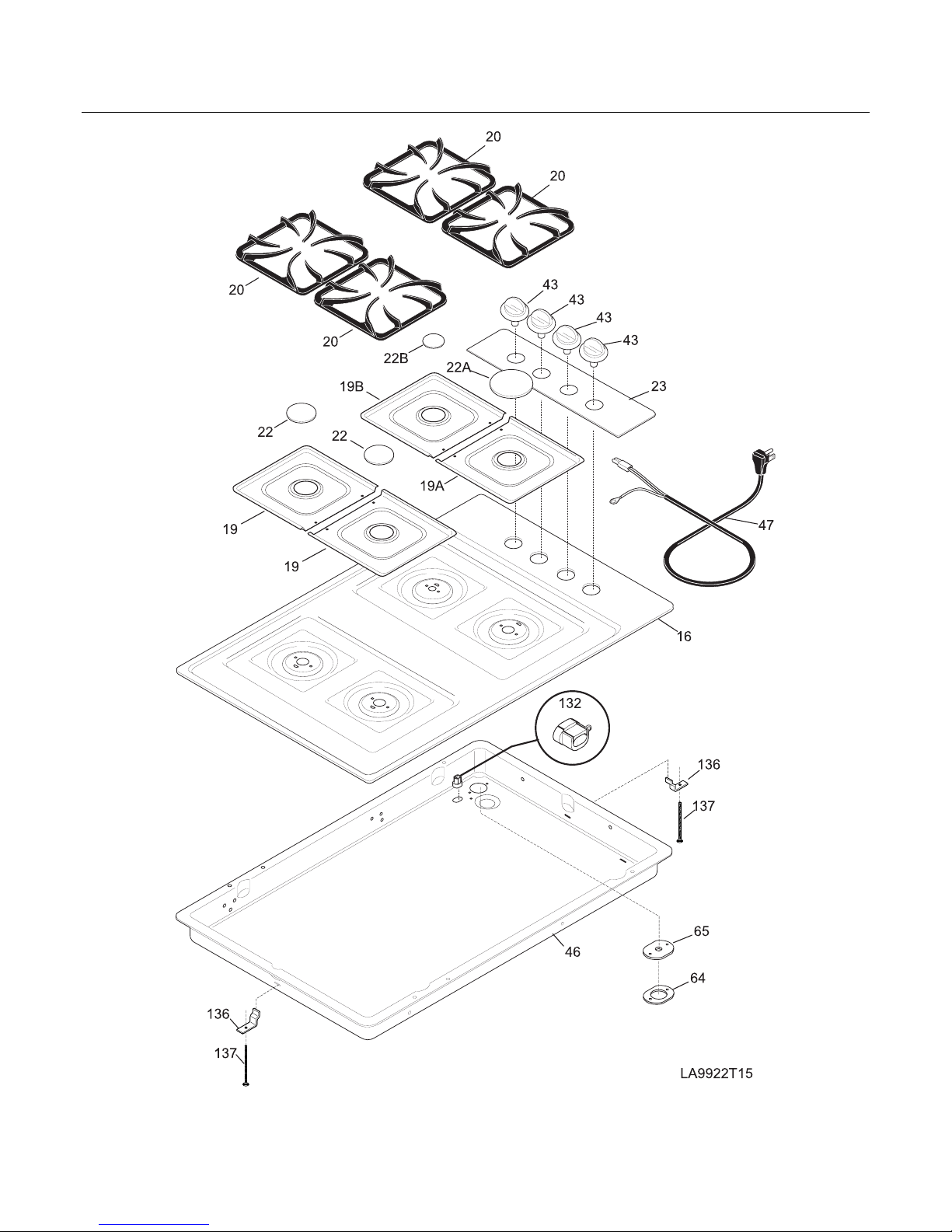

COOK TOP

FGC30S4DBA Publication No: 5995424388

# Functional Parts 3 12/04

* Non-Illustrated Parts

COOK TOP

POS. NO PART NO. DESCRIPTION

16 318159144 Panel, main top, black

19 318167903 Pan, burner, medium, black

19A 318167904 Pan, burner, large, black

19B 318167905 Pan, burner, small, black

20 318227002 Grate, burner, black, (4)

22 318076410 Cap, burner, black, medium LF & LR

22A 318076420 Cap, burner, black, large RF

22B 318076400 Cap, burner, black, small RR

23 318242314 Panel, control, black

43 318196141 Knob, control, black

46 318156000 Burner Box

47 318144002 Cord, service

64 5303304033 Bracket, retainer

65 5303304032 Seal, rubber

132 3201437 Strain relief

136 5303935029 Support

137 5303285443 Screw, lock bracket, 10-24 x 2.00

* 5303307980 Screw, 8-32 x 0.437

Publication No: 5995424388 FGC30S4DBA

12/04 4

BURNER

FGC30S4DBA Publication No: 5995424388

# Functional Parts 5 12/04

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 318177003 Manifold Pipe

2 # 318087040 Valve, top burner, 13000 BTU

2A # 318087001 Valve, top burner, 5000 BTU

2B # 5303935042 Valve, top burner, 2-position, 9100 BTU

3 # 318232604 Wiring Harness, w/igntr switch

4 # 318167714 Tube, burner, RF

5 # 318167700 Tube, burner, LF

6 # 318167702 Tube, burner, RR

7 # 318167701 Tube, burner, LR

8 # 316135701 Module, spark

8* 318024200 Bracket, spark module

10 # 318148001 Burner, top, 9100 BTU, medium LF & LR

10A# 318148002 Burner, top, 13000 BTU, large RF

10B# 318148000 Burner, top, 5000 BTU, small RR

14 # 5308007974 Regulator, pressure

35 318146300 Bushing

72 5303323141 Screw, valve mtg, 1/4-20 x 5/16

73 318024201 Bracket, spark module

74 # 318148700 Ignitor, top burner

75 318148800 Clip, electrode

76 # 318167801 Tube, mixing, medium & large

76A# 318167800 Tube, mixing, small

77 318112010 Bracket, burner mtg, medium & large

77A 318112000 Bracket, burner mtg, small

77B 318180900 Bracket, burner tube

78 318220100 Shield, burner box

* # 318127407 LP Conversion Kit

* 318199729 Wiring Harness, ignitor

* 08011955 Screw, 10-24 x 0.375, square drive

* 5303311532 Screw, 6-32 x 1/4", back

* 5304403558 Screw, 10-16 x 0.250

Publication No: 5995424388 FGC30S4DBA

12/04 6

WIRING DIAGRAM
