Frigidaire FED387CH Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FED387CHSA 37856396G9011 WHITE U.S.A.

ELECTRIC - RANGE

Model No.

FED387CH

Inc.

FACTORY PARTS CATALOG

DROP-IN RANGE

WIRING DIAGRAM # - 318045025

OWNER’S GUIDE # - 318200813

TIMER INSTRUCTION GUIDE # - 318130805

INSTALLATION INSTR. # - 318064101

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995323291

990518

-EN/SERVICE

377

OVENLIGHT

LEFT FRONT LEFTREAR

SURF ACE

BAKE

TIME STOP

TIME CLOCK CANCECLEAN BROIL

TIMER

ON/OFF

PRE-

HEATBAKE

TEMP

SELF-CLEANINGCONVECTION OVEN

Galler

DUALRADIANT BAKINGAND ROASTING SURFACE

RIGHTREAR RIGHTFRONT

WARM & SER VE

ZONE

OFF HI

MED

HOTSURF ACE

WARMING ZONE

Publication No. FED387CHS

5995323291

05/99 2

BACKGUARD

LAP23G0047D

13A

18A

102

64 18

36A

36 42

2424

24B

24B 46

FED387CHS Publication No.

5995323291

# = Functional Part 305/99

* = Non-Illustrated Part

BACKGUARD

POS. NO PART NO DESCRIPTION

13A 316095500 ASwitch-warmer infinite

14 5303051533 ALight/Lamp

18 5303304668 AEnd Cap white RH

18A 5303304671 AEnd Cap white LH

19 318005550 APanel-control

20 # 318012901 AClock/Timer

21 318027804 ATrim-backguard

23 318015020 ABracket-clock mtg

24 # 316005607 ASwitch-rocker white

24B# 316076301 ASwitch-rocker white

36 318016300 AKnob-surface unit white

36A 318165101 AKnob-warmer white

42 318106904 ATrim-vent

46 5308006417 ALens-light/lamp

54 # 318120501 ASwitch-surface unit

64 318112200 APlate

69 5303323134 AScrew mtg 8-32 X 3/16

102 318055601 ABracket-mounting

*5303211311 AScrew, #8 X ½

*08016432 AScrew, 8-18 X 3/8

*5303323145 ANut

*5303311124 AScrew, clock

A= FED387CH (FED387CHSA)

FED387CHS Publication No.

5995323291

05/99 4

BODY

221

LAP23V005B

58B

58A

127

222

114

218

54 15 16

217

220

103

142

177

141

129

128

89 108

125

107

FED387CHS Publication No.

5995323291

# = Functional Part 505/99

* = Non-Illustrated Part

BODY

POS. NO

PART NO

DESCRIPTION

1 5303310527 A

Back-main

1A 318070901 A Panel-back

2A 318108600 AShield-oven top

3 5303300143 APanel-bodyside

6 5303310522 ARack-oven

6A 5303311206 ARack, broiler pan

9 5303317977 APan-broiler

10 5303317976 AInsert-broiler pan

12 # 318089910 ASwitch-light

14 5308011085 ASocket-light/lamp

15 3201908 ALamp-oven light

16 3201911 AGlass-oven light lens

17 5304400195 ARetainer-lens

25 318179100 AShield-heat

37 # 316111203 AProbe-oven temp

41 5303310526 ACover-hinge cutout

54 5303310514 AHousing-oven light

56 318002702 ATrim-oven front white

58A 5303310539 AInsulation

58B 5303310538 AInsulation oven back

59 318072502 ATube-oven vent

62 # 5303310518 ATerminal Block

63 5303310517 APlate-ground strap

66 # 5303310513 AElement-broil

67 # 5303310512 AElement-bake

68 5304403015 ASupport-element

70 5303300142 AShield-insulation

71 5303310515 ACover-wiring

76 318124100 AFront-oven

80 5303320846 APlate oven

81 5303301261 ASpring-oven

83 318089609 ALiner-oven

86 5303310524 AChannel-hinge

87 318111800 APlate-mounting

88 5303311160 ARod-latch

89 * 318120702 ASwitch latch

89 # 5304404899 AMotor-latch

103 5303300213 ATrim base

107 318119600 ACover-fan

108# 318073001 AMotor-fan

109 5303311203 AFan blade

111 5303311205 ANut-fan retainer

114 3051827 APlate-filler

125# 5303311202 AMotor-convection

127 5303310542 AAdapter assy

128 5303311163 ABushing

129 5303311164 ASpring

141 # 5303284446 ASwitch

142 318123901 AAir Deflector

177 5303324040 AGasket-vent

217 316042300 AWarning plate

218 318054700 APlate Anti-tip

220 5304401475 ABracket

221 5304401476 ABracket

222 318080000 ACovering plate

263 5303322885 ASpacer

* 5303211311 AScrew #8 X ½

*5303311124 AScrew clock

*5303307980 AScrew, 8-32 X 7/16

*318078515 ABx & wires ay/ Ass. Cable arme

A= FED387CH (FED387CHSA)

FED387CHS Publication No.

5995323291

05/99 6

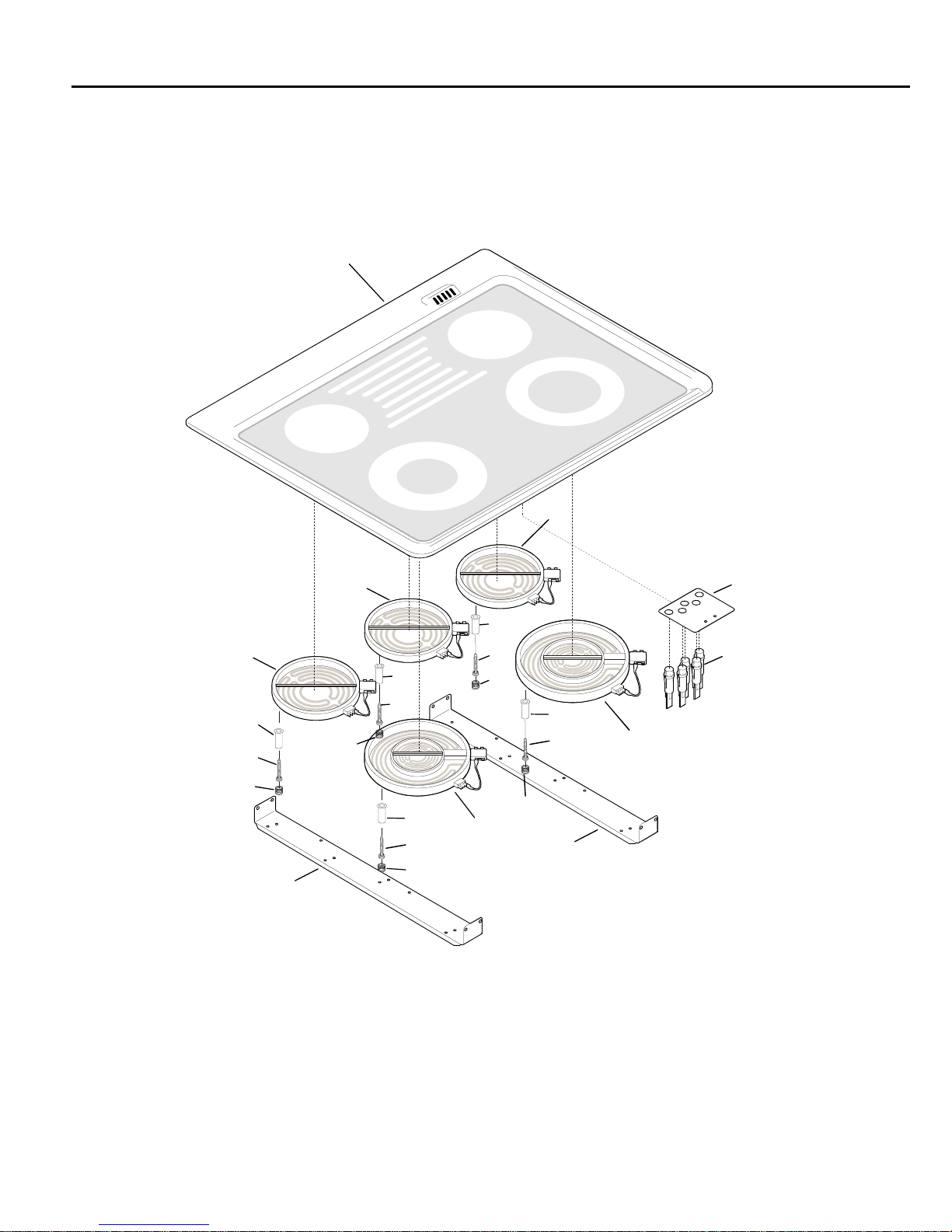

TOP/DRAWER

LAP23T0016

15C

15A

52 15B

FED387CHS Publication No.

5995323291

# = Functional Part 705/99

* = Non-Illustrated Part

TOP/DRAWER

POS.NO

PART NO DESCRIPTION

6318111101 ASupport-element

15# 318178100 AElement-surface1200W

15A# 318178000 A Element-surface 700/2100W

15B# 318178001 AElement-surface 1000/2100W

15C# 318178103 AElement-drawer 120W

16 318079509 AMain Top

51# 5303297484 ALight-indicator hot surface

52 5303317177 ASpring-element mtg

53 318125930 ABracket-indicator light

55 5303317178 ASpacer-element

56 5303317179 AScrew, element 6 X 3/4

*5303211311 AScrew, #8 X ½/

A= FED387CH (FED387CHSA)

Publication No. FED387CHS

5995323291

05/99 8

DOOR

A23CD018

FED387CHS Publication No.

5995323291

# = Functional Part 905/99

* = Non-Illustrated Part

DOOR

POS. NO PART NO DESCRIPTION

1 318043100 ABracket-trim

3 318049206 A Trim-oven door white

3A 318028900 ATrim-oven door

3B 318049020 A Trim-oven door white

4 318041102 AGlass-oven door white

6 318056802 AShield-wool

7 318106001 AInsulation-door

9 318048802 ALiner-oven door

10 5303324305 AScrew 10-24 X 5/8

12 318053103 ASeal-oven door

16 318041603 AGlass-oven door

17 318042102 ASpacer-glass

18 318053001 ASeal-window

20 318014301 ASpacer-handle white

23 5303311215 AHinge-oven door assy.

29 5303310535 ABumper base

31 5303310536 ALatch-door

39 316091119 AHandle-door white

42 5303311194 ATrim-oven door white

54 5303317175 AScrew 8-18 X ½ white

*08016432 AScrew, 8-18 X 3/8

*5303211311 AScrew, #8 X ½

*5303307980 AScrew, 8-32 X 7/16

A= FED387CH (FED387CHSA)

Publication No. FED387CHS

5995323291

05/99 10

WIRING DIAGRAM
