Frigidaire FEF303C Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF303CWA FEF303C black/white North America

Publication No.

5995384939

030129

-EN/SERVICE /ECL

369

ELECTRIC

RANGE

Model No.

FEF303C

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - #316002674

OWNER’S GUIDE - # 316257101

INSTALLATION INSTRUCTIONS -# 316259200

01/03 2

Publication No. FEF303CWA

5995384939

BACKGUARD

# = Fast-moving Parts 3 01/03

* = Non-Illustrated Parts

FEF303CWA Publication No.

5995384939

POS. NO PART NO DESCRIPTION

12 # 316032409 Thermostat

14 316022503 Light/Lamp,indicator ,surface ,250 V

18 316263900 Bracket,backguard

32 316102330 Knob,thermostat ,black

36 316102307 Knob,control ,black

40 316201838 Panel,manifold ,black

46 316040201 Lens,indicator light ,red

49 316263802 Panel,backguard ,white

53 316238500 Shield,heat ,extrusion

54 # 5303051540 Switch,element ,6"

54A# 5301313767 Switch,element ,8"

69 5303288565 Screw,truss sqdr ,8-32 x 3/16 ,switch mtg

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

01/03 4

Publication No. FEF303CWA

5995384939

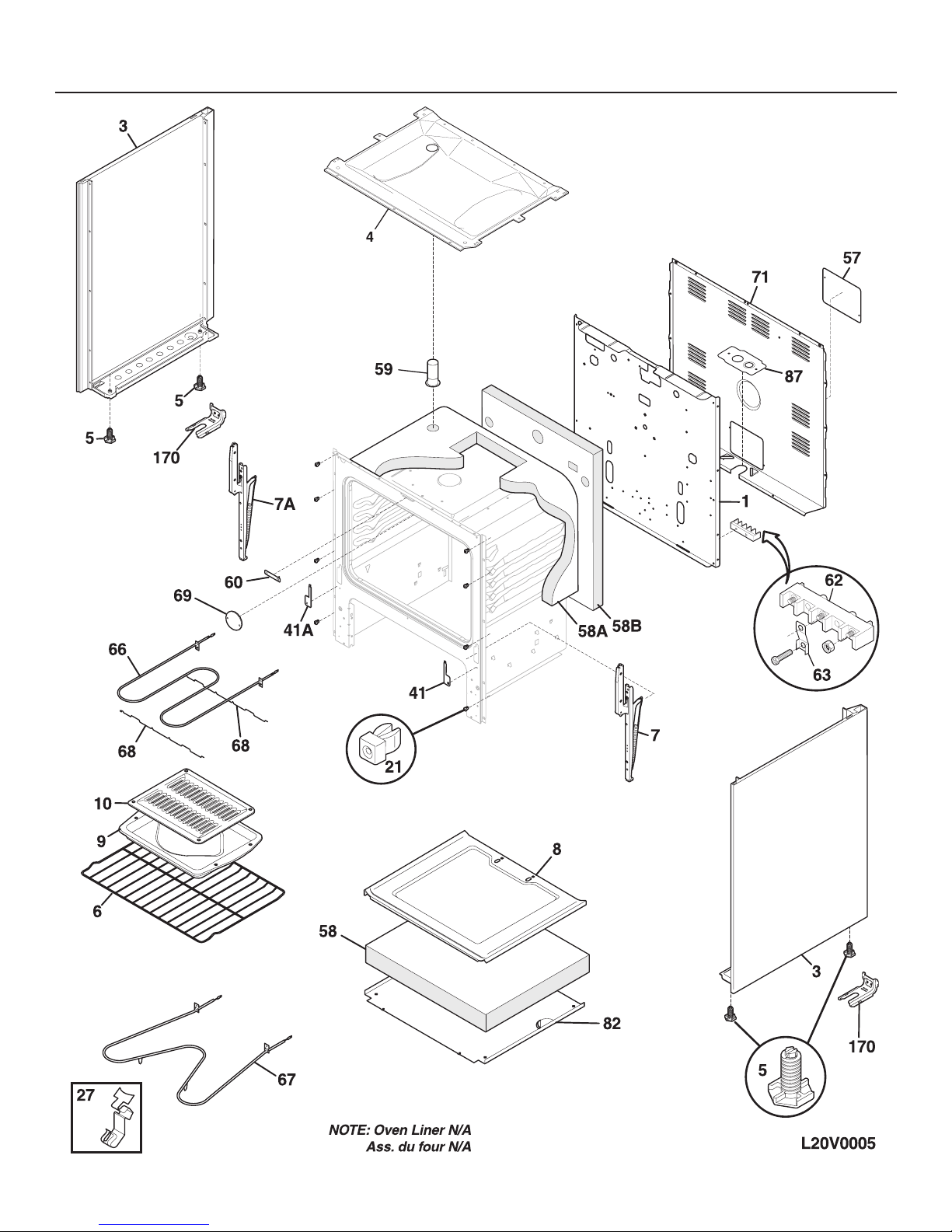

BODY

# = Fast-moving Parts 5 01/03

* = Non-Illustrated Parts

FEF303CWA Publication No.

5995384939

POS. NO PART NO DESCRIPTION

1 316080805 Panel,main back ,dipped ,black ,short

3 316230114 Panel,bodyside ,white ,RH

3 316230115 Panel,bodyside ,white ,LH

3* 316021131 Screw,bodyside ,8-18 X 11/16 ,white

4 316210101 Burner Box

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316216502 Hinge,oven door ,RH

7A 316216503 Hinge,oven door ,LH

8 3203540 Panel,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

21 3014099 Spacer,bodyside

27 5303284616 Clip,thermo bulb mtg

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

57 316081100 Cover,access

58 3200847 Insulation,oven bottom

58A 316047707 Insulation,1" ,oven wrapper

58B 316054202 Insulation,1" ,oven back

59 316073601 Tube,oven vent

60 316239100 Cover,oven front

62 # 5303935061 Terminal Block Kit

62* 316205500 Nut,hex flange ,3/8 10-32

63 316208500 Plate,grounding strap

66 # 316203200 Element,broil

67 316075103 Element,bake

68 316203400 Support,broil element

69 3051218 Plate,oven light

71 316015812 Shield,rear wall

71* 316248900 Spacer,shield ,rear wall

82 5303289913 Shield,insulation

87 316081200 Bracket,cable mtg

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete ,1.75" ,anti-tip brkt

* # 316253123 Wiring Harness,main

* 3051367 Clip,wire

* 3203550 Plug,button ,oven bottom

* 316210800 Plug,button ,oven light

* 316246400 Plug,button ,oven probe

* 316073400 Plate,weight ,(3)

* 5303305324 Paint,touch-up ,white

* 5303305345 Paint,touch-up ,black

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 Screw,6-20 x 0.312

BODY

01/03 6

Publication No. FEF303CWA

5995384939

TOP/DRAWER

# = Fast-moving Parts 7 01/03

* = Non-Illustrated Parts

FEF303CWA Publication No.

5995384939

POS. NO PART NO DESCRIPTION

2 316211900 Bracket,dummy ,drawer front

4 316231216 Panel,dummy ,white ,drawer front

15 # 3051450 Element,surface ,8" large

15A# 3051449 Element,surface ,6" small

16 316245406 Main Top,white

17 316066900 Rod,maintop support

18 08067747 Bracket,hinge ,main top RH

18A 08067746 Bracket,hinge ,main top LH

19 # 316048413 Pan-surface element,chrome ,large/8 inch,(2)

19A# 316048414 Pan-surface element,chrome ,small/6 inch,(2)

27 # 5303912666 Terminal Block Kit,surface element

28 5303017715 Medallion,1 1/2"dia ,black ,surface element

* # 5303290291 Wiring Harness,surface element

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 Screw,6-20 x 0.312

TOP/DRAWER

01/03 8

Publication No. FEF303CWA

5995384939

DOOR

# = Fast-moving Parts 9 01/03

* = Non-Illustrated Parts

FEF303CWA Publication No.

5995384939

POS. NO PART NO DESCRIPTION

6 316222705 Shield,wool ,oven door

7 316236801 Insulation,oven door

9 316230603 Liner,oven door

10 316001009 Screw,waf hd sq ,10-24 x 1.88 ,(2) ,handle mtg

10B 316008401 Washer,3/4 OD x 1/4 ID ,steel

12 316239700 Seal,oven door

13 316202603 Panel,oven door ,white

39 316020204 Handle,door ,black ,oven

49 316137003 End Cap,handle ,black ,(2)

60B 316021110 Screw,8-18 x 0.5 ,black

* 316221001 Label,anti-tip

* 316021109 Screw,8-18 x 0.5 ,chrome

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

DOOR

01/03 10

Publication No. FEF303CWA

5995384939

WIRING DIAGRAM
