Frigidaire FES367B Manuale utente

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

FES367BCA FES367B 37954336H20S1 stainless North America

Publication No.

5995375564

020710

-EN/SERVICE /ECL

377

ELECTRIC

RANGE

Model No.

FES367B

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318045066

OWNER’S GUIDE - # 318200823

TIMER INSTRUCTION SHEET - # 318200191

INSTALLATION INSTRUCTIONS - # 318201600

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

07/02 2

Publication No. FES367BCA

5995375564

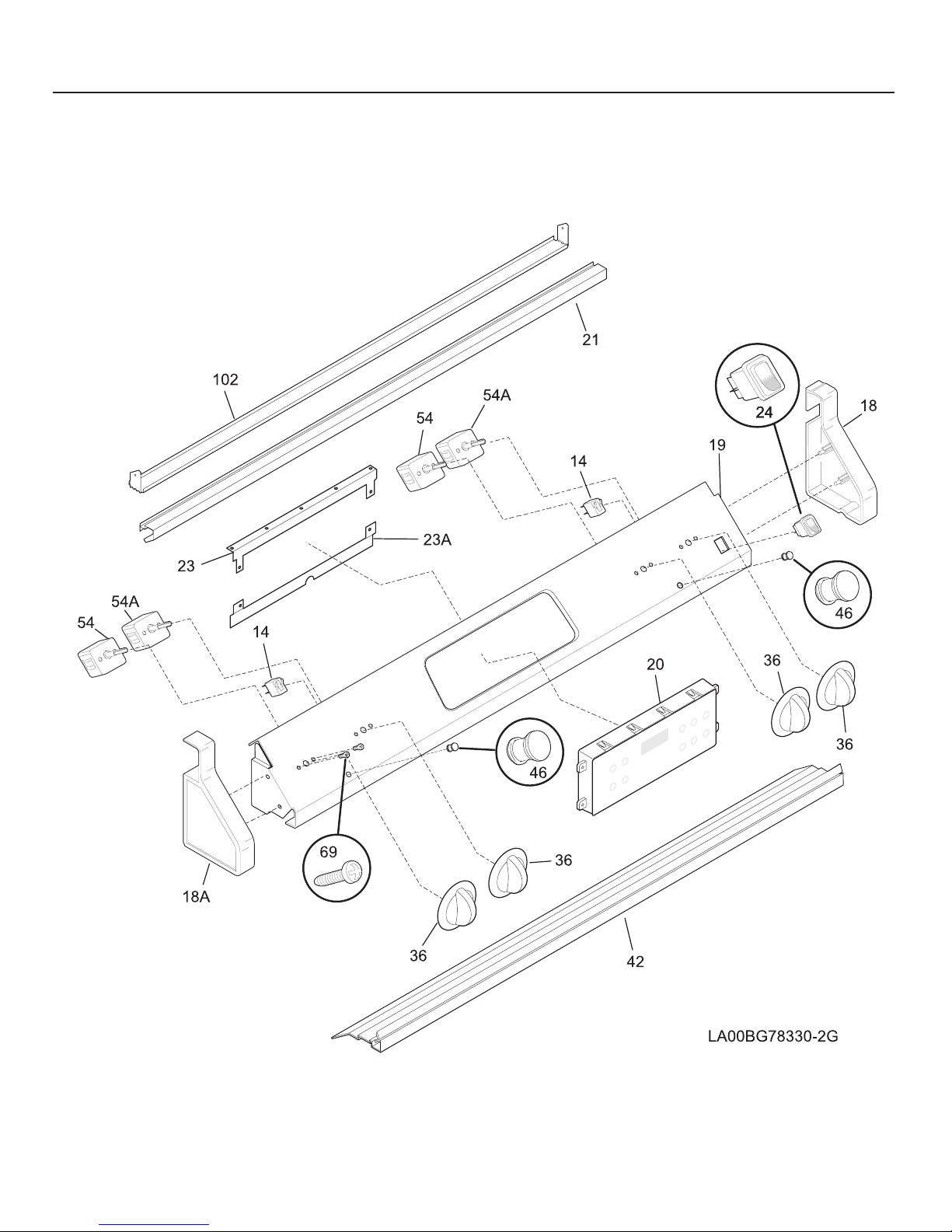

BACKGUARD

# = Functional Parts 3 07/02

* = Non-Illustrated Parts

FES367BCA Publication No.

5995375564

BACKGUARD

POS. NO PART NO DESCRIPTION

14 # 318076700 Light,indicator ,125v

18 5303300160 End Cap,black ,RH

18A 5303300161 End Cap,black ,LH

19 318182991 Panel,control mtg. ,black

20 # 318185414 Clock/Timer,electronic ,black

21 318027810 Trim,backguard ,black ,top

23 318015042 Bracket,clock mtg ,upper

23A 318015043 Bracket,clock mtg ,lower

24 # 316005602 Switch,rocker ,black

36 318196634 Knob,control ,black

42 318106927 Trim,backguard ,black ,bottom

46 5303297274 Lens,indicator light

54 # 318220006 Switch,surface unit ,small

54A# 318220007 Switch,surface unit ,large

69 5303305528 Screw,8-32 x 1/4

102 318055601 Bracket,mounting

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

07/02 4

Publication No. FES367BCA

5995375564

BODY

# = Functional Parts 5 07/02

* = Non-Illustrated Parts

FES367BCA Publication No.

5995375564

BODY

POS. NO PART NO DESCRIPTION

1 318066402 Panel,main back

1A 318070910 Panel,main back ,upper

2A 318108600 Shield,oven top

3 318159800 Panel,body side ,upper

3A 318160004 Panel,lower side ,RH

3B 318160005 Panel,lower side ,LH

5 318175503 Screw,leveling

6 318025303 Rack,oven

9 5303317977 Pan,broiler

10 5303317976 Insert,broiler pan

12 # 318089913 Switch,light

14 # 5308011085 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 3201911 Cover,oven light ,glass

17 5304400195 Retainer,light cover

25 318179107 Panel,heat shield ,sm oven bottom

37 # 318198510 Probe,oven temp

41 5303310526 Cover,hinge cutout

54 5303310514 Housing,oven light

56 318002611 Trim,oven ,black ,front

58A 318133744 Insulation,oven wrapper

58B 318133769 Insulation,oven back

59 318072502 Tube,oven vent

62 # 5303310518 Terminal Block

62* 5303323144 Nut,10-32

63 5303310517 Plate,ground strap

66 # 5303310513 Element,broil ,2750 W

67 # 5303310512 Element,bake ,3000 W

68 5304403015 Support,element hanger

70 318194400 Shield,insulation

70A 318199801 Deflector

71 5303310515 Panel,wiring cover ,rear

76 318124100 Front,oven

80 5303324473 Bracket,oven mounting

81 318192400 Spring,oven

83 318089613 Liner,oven

86 5303310524 Receptacle,hinge

87 318111803 Plate,mounting

88 318118904 Rod,latch

89 # 318095937 Motor,latch assy ,w/brkt & switch

89* 318120711 Switch

102 5303311142 Support,oven front

108# 318073012 Motor,blower

114 318175100 Plate,filler

127 5303310542 Adapter,vent tube ,with converter

128 5303311163 Bushing

129 5303311164 Spring

141# 318005201 Switch,thermal cutout

142 318123901 Deflector

170 5304405244 Anti-tip & accessories

177 5303324040 Gasket,vent

191 5303304030 Bracket,angle ,corner

217 318112102 Plate,warning

* # 318003606 Thermostat,safety

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303307980 Screw,8-32 x 0.437

07/02 6

Publication No. FES367BCA

5995375564

TOP

# = Functional Parts 7 07/02

* = Non-Illustrated Parts

FES367BCA Publication No.

5995375564

TOP

POS. NO PART NO DESCRIPTION

1 5303310500 Drawer

4 318107903 Panel,drawer ,stainless

6 318194800 Support,element ,(2)

11 5303311125 Bracket,drawer

13 5303311129 Channel,drawer ,RH

13A 5303311130 Channel,drawer ,LH

15 # 316224200 Element,surface ,9" ,2500W ,radiant

15A# 318198812 Element,surface ,8" ,2200 W

15B# 318198810 Element,surface ,6" ,1200 W

16 318079550 Main Top,glass ,black

39 316108802 Handle,door ,black ,oven

51 # 318044822 Light,indicator ,clear

52 5303317177 Spring,element mtg.

53 318125932 Bracket,indicator light ,hot surface

55 5303317178 Spacer,element

56 5303317179 Screw,element ,6 x 3/4

60 5303311174 Screw,10-24 x 3/8

60* 5304417411 Screw,handle mtg. ,10-12 x 1

70 5303311143 Bracket,slide ,rear

71 5303311144 Magnet & spring assy

72 5303311145 Bracket & wheel assy

* 5303325171 Washer,plastic

* 5303325173 Cap,plug

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

07/02 8

Publication No. FES367BCA

5995375564

DOOR

# = Functional Parts 9 07/02

* = Non-Illustrated Parts

FES367BCA Publication No.

5995375564

DOOR

POS. NO PART NO DESCRIPTION

6 318056802 Shield,insulation

7 318133754 Insulation,oven door

9 318157011 Liner,door

10 5303311174 Screw,10-24 x 3/8

10A 5304417411 Screw,handle mtg. ,10-12 x 1

12 318053103 Gasket,oven door seal

13 318187916 Stainless Panel,oven door ,w/ glass

16 318041603 Panel,glass ,inner oven door

17 318042102 Spacer,glass

18 318053001 Seal,window

21 3201909 Washer

22 5303310511 Bar,glass retainer

23 5303310828 Hinge,oven door ,(2)

29 318147410 Bumper,base

31 5303310536 Latch,oven door

39 316108802 Handle,door ,black ,oven

54 5303300265 Screw,8-18 x 0.500 ,chrome

57 318172902 Stiffener,glass

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303307980 Screw,8-32 x 0.437

07/02 10

Publication No. FES367BCA

5995375564

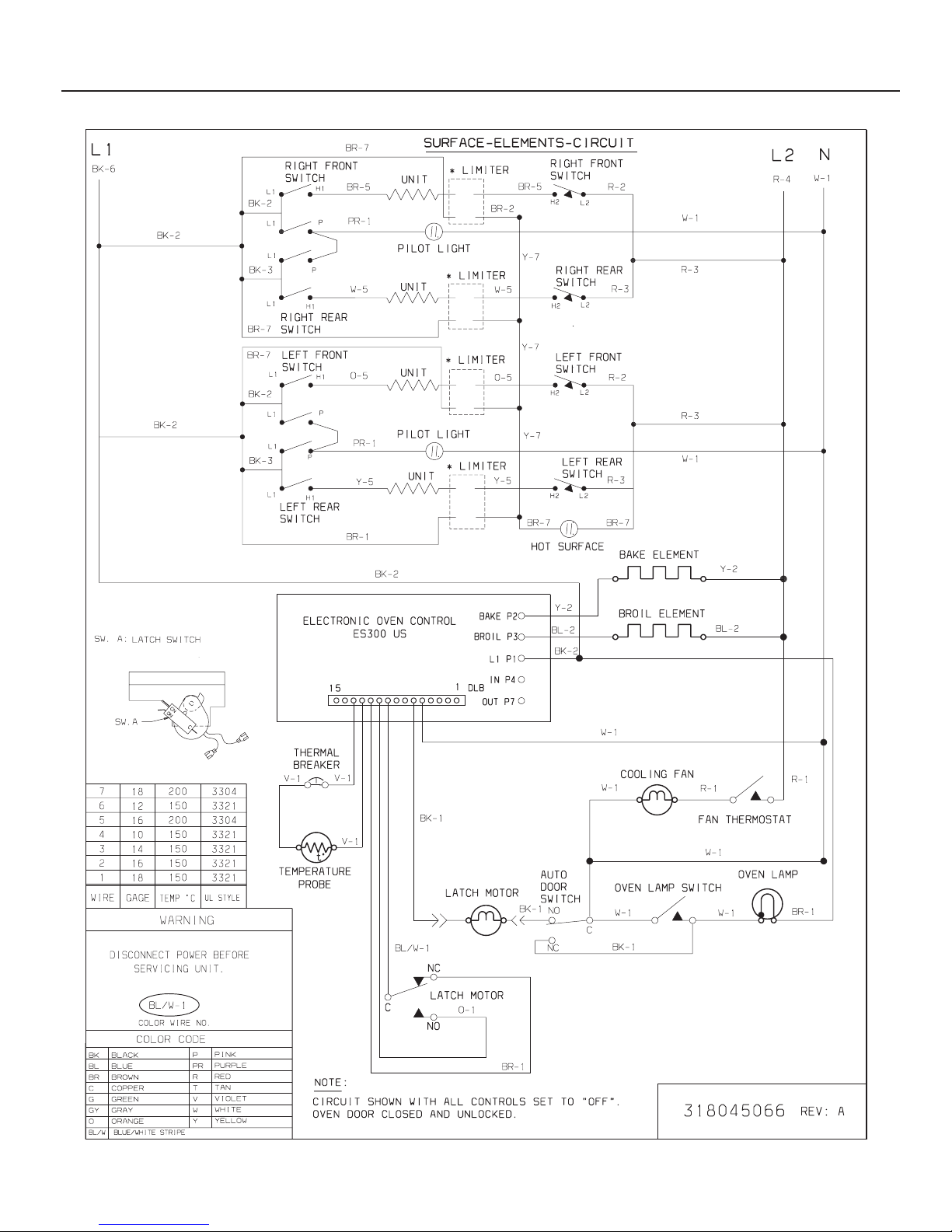

WIRING DIAGRAM
