Frigidaire FEF305PH Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF305PHSC FEF305PH white North America

FEF305PHWC FEF305PH black/white North America

Publication No.

5995362331

011213

-EN/SERVICE /ECL

369

ELECTRIC

RANGE

Model No.

FEF305PH

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 316002675

OWNER’S GUIDE - # 316135916

INSTALLATION INSTRUCTIONS - # 316003025

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

12/01 2

Publication No. FEF305PH

5995362331

BACKGUARD

# = Fast-moving Parts 3 12/01

* = Non-Illustrated Parts

FEF305PH Publication No.

5995362331

BACKGUARD

A = FEF305PH (FEF305PHSC)

B = FEF305PH (FEF305PHWC)

POS. NO PART NO DESCRIPTION

1 5303289640 A B Shield,backguard ,rear wall

9 316133501 A B Trim,splasher ,white ,lower

11 316057003 A - Trim,wrapper ,white

11 316057002 - B Trim,wrapper ,black

12 # 316032408 A B Thermostat,oven

14 3201726 A B Light/Lamp,indicator ,blue ,250 V

16 316042602 A B Plate,instrument mtg

19 316034128 A - Panel,control ,white

19 316034120 - B Panel,control ,black

30A 316064300 A B Nut,nylon

32 316123306 A - Knob,thermostat ,white

32 316123307 - B Knob,thermostat ,black

36 316123304 A - Knob,infinite switch ,white

36 316123303 - B Knob,infinite switch ,black

40 316064030 A - Panel,manifold ,white

40 316064009 - B Panel,manifold ,black

44 3131468 A B Bracket,backguard

45A 316056903 A - Bolt,fastener ,nylon ,white ,(2)

45A 316056902 - B Bolt,fastener ,nylon ,black

46 316065801 A B Lens,indicator light ,red

50 316096900 - B Bezel,nameplate ,black

51 316095420 - B Nameplate,Frigidaire ,black

54 # 5303285142 A B Switch,element ,6"

54A# 5303285143 A B Switch,element ,8"

* 5303272555 A B Clip,backguard

* 316021105 A B Screw,hex head cup pt ,8-18 x 0.375 ,black

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 A B Screw,8-18 x 0.5 ,black

12/01 4

Publication No. FEF305PH

5995362331

BODY

# = Fast-moving Parts 5 12/01

* = Non-Illustrated Parts

FEF305PH Publication No.

5995362331

BODY

A = FEF305PH (FEF305PHSC)

B = FEF305PH (FEF305PHWC)

POS. NO PART NO DESCRIPTION

1 316080805 A B Panel,main back ,dipped ,black ,short

3 316081034 A B Panel,bodyside ,white ,RH

3 316081035 A B Panel,bodyside ,white ,LH

4 5303271756 A B Burner Box

5 316129200 A B Screw,leveling ,plastic ,with stop

6 316067902 A B Rack,oven

7 316007007 A B Hinge,oven door ,(2)

8 3203540 A B Panel,oven bottom

9 316081900 A B Pan,broiler

10 316082000 A B Insert,broiler pan

21 3014099 A B Spacer,bodyside

27 5303284616 A B Clip,thermo bulb mtg

29 3051162 A B Glide,drawer ,front

41 3131570 A B Cover,hinge cut-out

57 316081100 A B Cover,access

58 3200847 A B Insulation,oven bottom

58A 316047707 A B Insulation,1" ,oven wrapper

58B 316054202 A B Insulation,1" ,oven back

59 316073601 A B Tube,oven vent

62 # 5303935061 A B Terminal Block Kit

62* 5303308427 A B Nut,hex ,10-32

63 5301145190 A B Plate,grounding strap

66 # 5303051140 A B Element,broil ,2950 W

67 # 316075103 A B Element,bake

68 316075300 A B Support,element ,broil

69 3051218 A B Plate,oven light

71 316015810 A B Shield,rear wall ,galv steel

82 5303289913 A B Shield,insulation

87 316081200 A B Bracket,cable mtg

170 5303935180 A B Anti-tip Kit,w/bracket,screw

170* 316107200 A B Bracket,anti-tip

170* 316112500 A B Template,anti-tip

170* 316116000 A B Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* # 316001559 A B Harness,main

* 3051367 A B Clip,wire

* 3203550 A B Plug,button ,oven bottom

* 5303305324 A B Paint,touch-up ,white

* 5303305345 - B Paint,touch-up ,black

* 316021105 A B Screw,hex head cup pt ,8-18 x 0.375 ,black

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 A B Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 A B Screw,6-20 x 0.312

12/01 6

Publication No. FEF305PH

5995362331

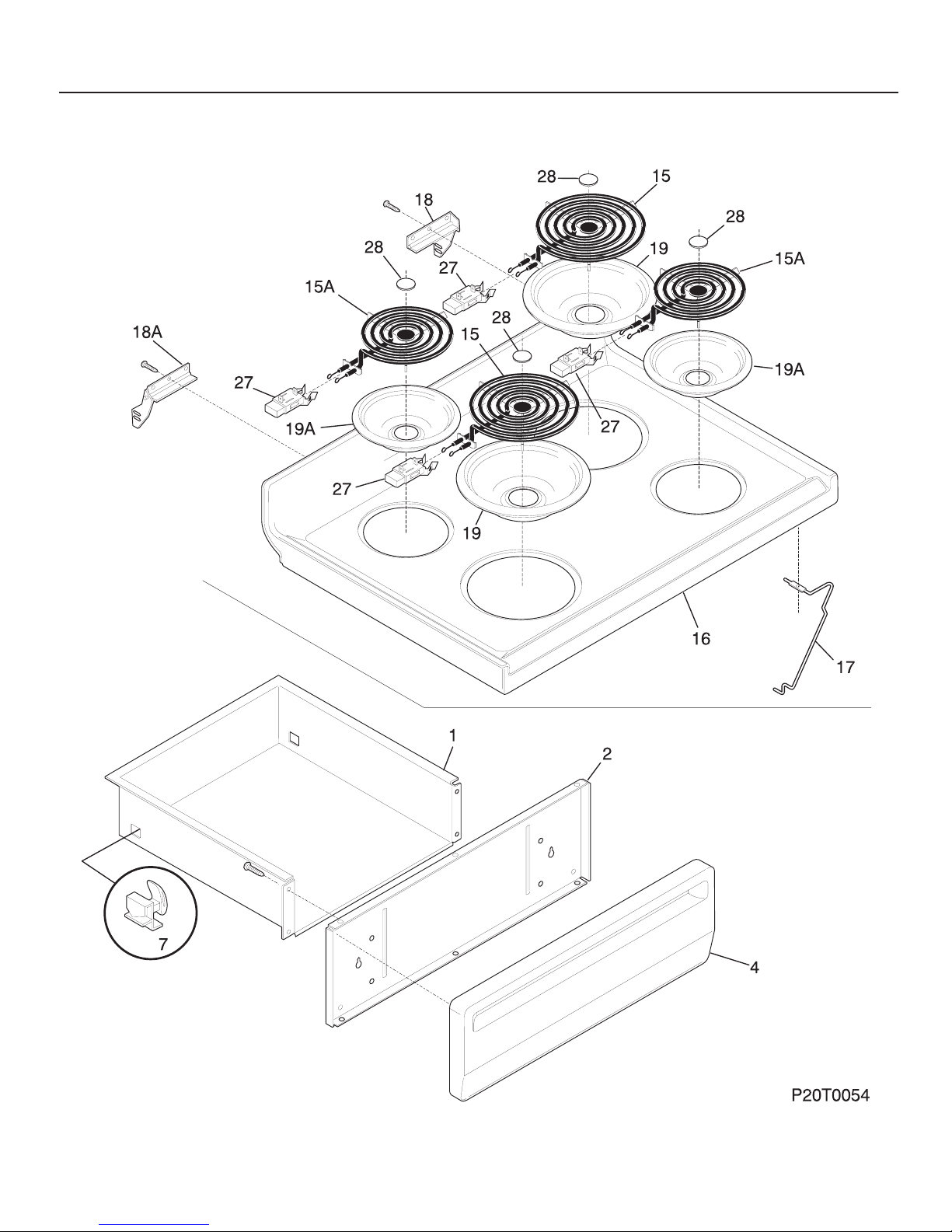

TOP/DRAWER

# = Fast-moving Parts 7 12/01

* = Non-Illustrated Parts

FEF305PH Publication No.

5995362331

TOP/DRAWER

A = FEF305PH (FEF305PHSC)

B = FEF305PH (FEF305PHWC)

POS. NO PART NO DESCRIPTION

1 316011503 A B Drawer

2 5303288582 A B Liner,drawer ,galv steel ,front panel

4 316084405 A B Panel,drawer ,white

7 3051163 A B Glide,drawer ,rear

15 # 3051450 A B Element,surface ,8" large

15A# 3051449 A B Element,surface ,6" small

16 316245402 A B Main Top,white

17 316066900 A B Rod,maintop support

18 08067747 A B Bracket,hinge ,main top RH

18A 08067746 A B Bracket,hinge ,main top LH

19 # 318067056 A B Pan,surface element ,large ,chrome

19A# 318067046 A B Pan,surface element ,small ,chrome

27 # 5303912666 A B Terminal Block Kit,surface element

28 5303017715 A B Medallion,1 1/2"dia ,black ,surface element

* # 316001731 A B Wiring Harness,surface element

* 316089600 A B Spacer,drawer ,(2)

* 316021105 A B Screw,hex head cup pt ,8-18 x 0.375 ,black

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021112 A B Screw,8-18 x 0.500 ,white

* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 A B Screw,6-20 x 0.312

12/01 8

Publication No. FEF305PH

5995362331

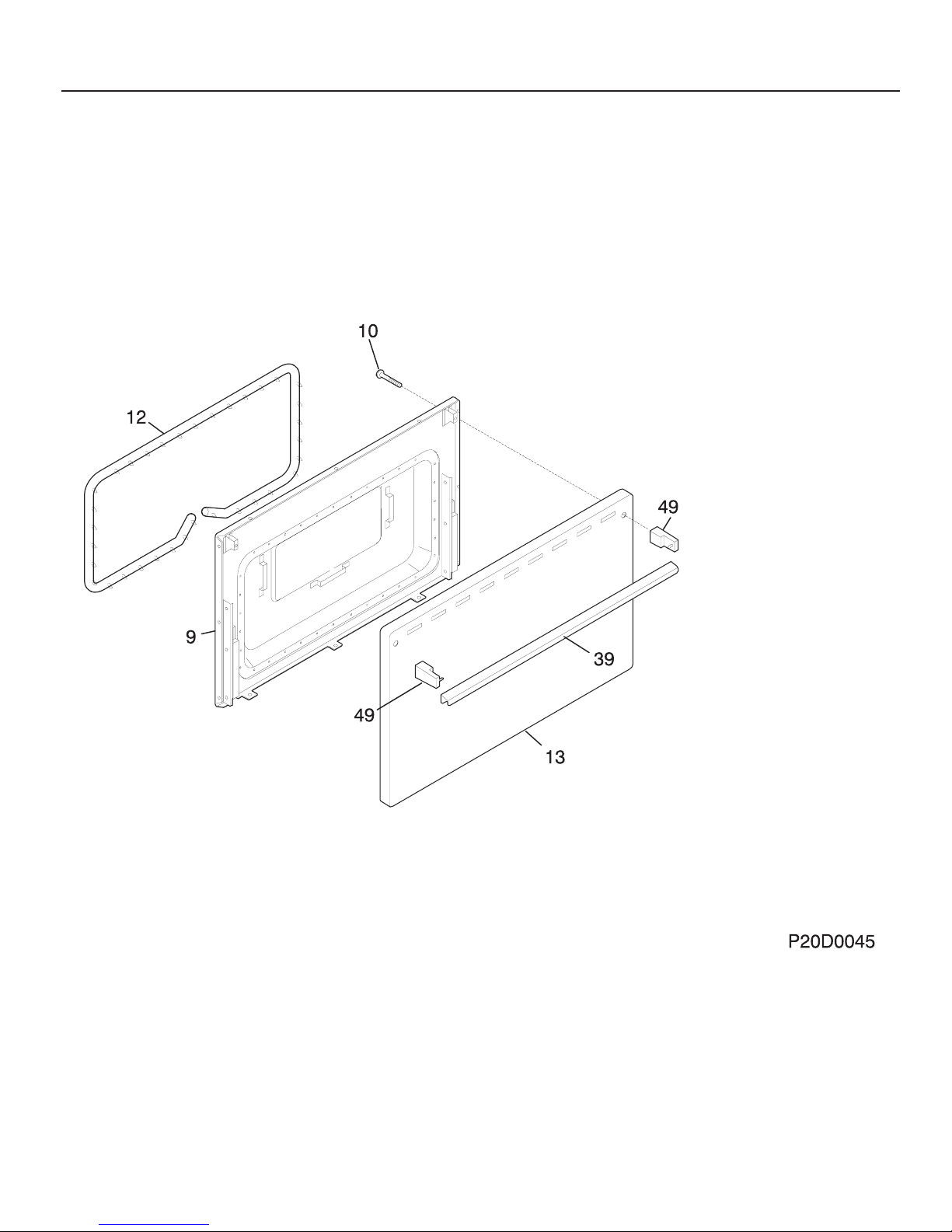

DOOR

# = Fast-moving Parts 9 12/01

* = Non-Illustrated Parts

FEF305PH Publication No.

5995362331

DOOR

A = FEF305PH (FEF305PHSC)

B = FEF305PH (FEF305PHWC)

POS. NO PART NO DESCRIPTION

9 316066611 A B Liner,oven door

10 5303281378 A B Screw,wafer head ,10-24F x 3 ,handle mtg

10* 316008401 A B Washer,3/4 OD x 1/4 ID ,steel

12 5303202011 A B Seal,oven door ,non self clean

13 3202315 A B Panel,oven door ,white

39 316020202 A - Handle,oven door ,white

39 316020204 - B Handle,door ,black ,oven

49 316137000 A - End Cap,handle ,white ,(2)

49 316137003 - B End Cap,handle ,black ,(2)

* 316102200 A B Foil,aluminum

* 316132100 A B Spacer,sponge pad

* 316021110 A B Screw,8-18 x 0.5 ,black

* 316021112 A B Screw,8-18 x 0.500 ,white

* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 A B Screw,wafer head ,8-32T x 0.500 ,black

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 0.5

12/01 10

Publication No. FEF305PH

5995362331

WIRING DIAGRAM
