Frigidaire FEF336BGDD Manuale utente

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF336BGWD FEF336BG WHITE USA

FEF336BGDD FEF336BG ALMOND USA

Publication No.

5995319927

990407

-EN/SERVICE /VLM

369

WIRING DIAGRAM # - 316002660

OWNER’S GUIDE # - 316000290

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF336BGWD

FEF336BGDD

03/99 2

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 3/99

Publication number

FEF336BGWD, FEF336BGDD 5995319927

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A=FEF336BG (FEF336BGWD)

B=FEF336BG (FEF336BGDD)

POS. NO PART NO DESCRIPTION

* 316000290 A B Owner’s Guide

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

B ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316112500 A B Template, Anti-tip bracket

1 316081601 A B Shield-backguard,rear wall

2 316015905 A B Shield-backguard,inner

11 316083719 A B Trim-wrapper,textured ,black

12 # 316032405 A B Thermostat, oven non sc

13 # 316032500 A B Switch-selector

14 316022504 A B Light-indicator,250v

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100529 A B Panel-backguard,black

20* 316098007 A B Overlay-clock

20# 316120500 A B Clock-timer

23 316033204 A B Bracket-timer

24 # 316005602 A B Switch-rocker,oven light ,black

31 316109602 A B Knob-selector

32 316109600 A B Knob-thermostat

36 316025108 A B Knob-control, infinite sw, black

39* 5303292005 A B Screw-switch/handle,8-32 x 5/32

40 316025800 A B Panel-manifold

46 316040201 A B Lens-light/lamp,indicator ,red

54 # 316021500 A B Switch-infinite, 6" element

54A# 316021501 A B Switch-infinite, 8" element

03/99 4

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

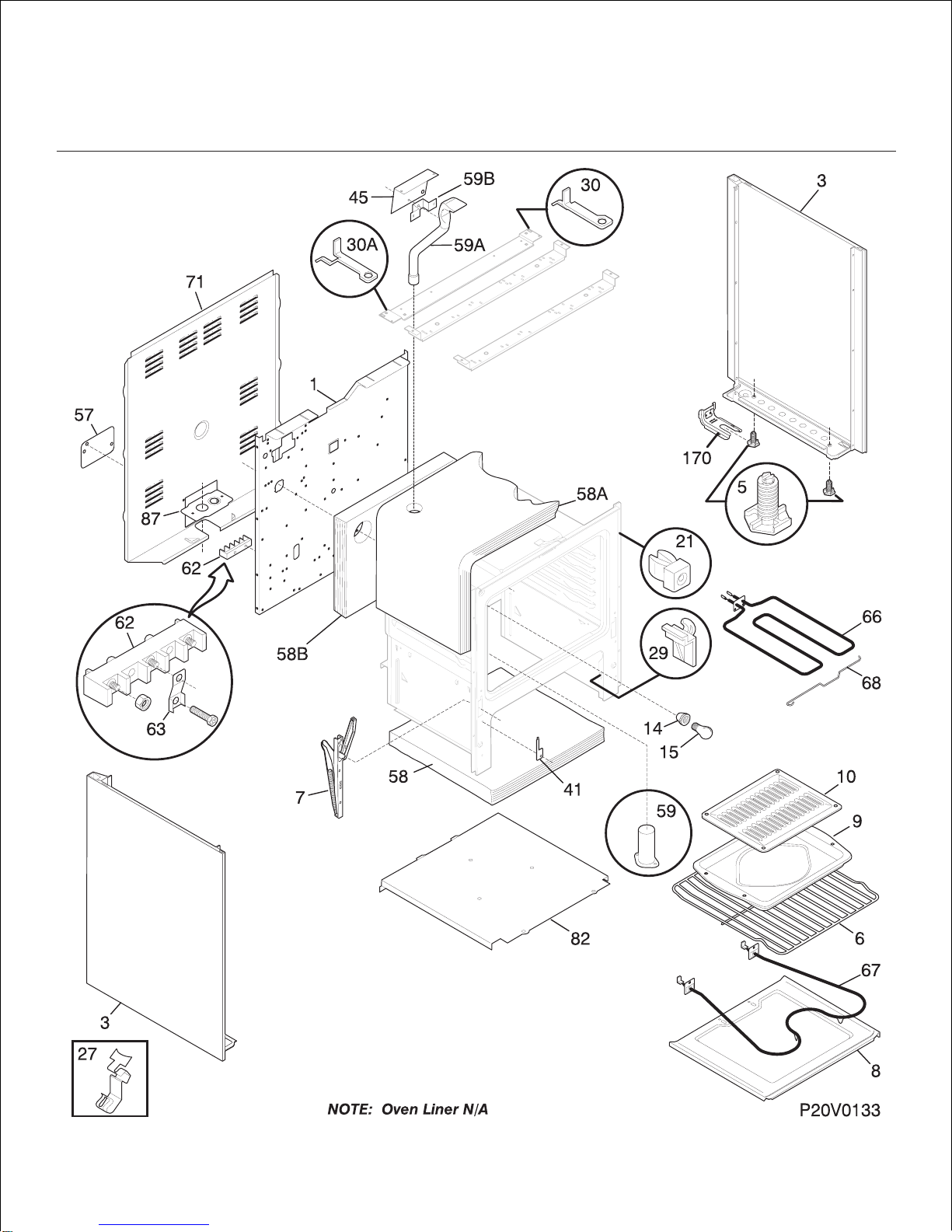

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 03/99

Publication number

FEF336BGWD, FEF336BGDD 5995319927

CAUTION: Use the part number on all orders, not the position number.

BODY

A=FEF336BG (FEF336BGWD)

B=FEF336BG (FEF336BGDD)

POS. NO PART NO DESCRIPTION

* 3203550 A B Plug-button

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

A B ind lght brkt,manifold pnl

* 316045000 A B Clip-wire,harness ,main top

* 5303051099 A B Nut,hex ,#10-32

1 316080804 A B Back-main, short,dipped ,black

3 316081036 - B Panel-bodyside, almond, RH

3 316081037 - B Panel-bodyside, almond, LH

3 316081034 A Panel-bodyside,white ,RH

3 316081035 A Panel-bodyside,white ,LH

5 316107300 A B Screw-leveling

6 316067902 A B Rack-oven

7 316007001 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

14 316116400 A B Socket-light

15 5303013071 A B Light Bulb/Lamp

21 3014099 A B Spacer-bodyside,(8)

27 5303284616 A B Clip-thermo bulb

29 3051162 A B Glide-drawer,front

30 5303283574 A B Bracket-hinge,main top RH

30A 5303283575 A B Bracket-hinge,main top LH

41 3131570 A B Cover-hinge cutout

45 316066100 A B Shield-wire, s/t vent

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

59 316073603 A B Tube-oven vent

59A 316023601 A B Tube-oven vent,upper

59B 316040100 A B Bracket-mounting,vent tube

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element, broil

71 316015805 A B Shield-rear wall

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

170 316107200 A B Anti-tip bracket

170* 316116000 A B Screw-Anti tip, 1.75" concrete

03/99 6

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 03/99

Publication number

FEF336BGWD, FEF336BGDD 5995319927

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A=FEF336BG (FEF336BGWD)

B=FEF336BG (FEF336BGDD)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A B Screw-8-18x1/2 Tr Sqd White

* 316045000 A B Clip-wire,harness ,main top

* 316089600 A B Spacer-drawer,(2)

* 316112101 A B Cleaner-cooktop

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A - Panel-drawer,white

4 316084406 - B Panel-drawer, almond

7 3051163 A B Glide-drawer,rear

15 # 316010204 A B Element-surface,radiant , large/8 inch ,

2100W,limit sw incl

15A# 316010203 A B Element-surface,radiant , small/6 inch ,

1200W,limit sw incl

16 316098103 A - Main Top,white

16 316098104 - B Main Top, almond

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

26 316099101 A B Channel-support,element ,(2)

26A 316099201 A B Bracket-support, chassis

48 316100200 A B Shield-wire,main top

51 80142193 A B Indicator light

52 316099400 A B Clip-spring, element mtg,(8)

53 316099300 A B Bracket-indicator light,hot surface ,

4 hole

88 316099500 A B Pin-guide,(2)

03/99 8

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 03/99

Publication number

FEF336BGWD, FEF336BGDD 5995319927

CAUTION: Use the part number on all orders, not the position number.

DOOR

A=FEF336BG (FEF336BGWD)

B=FEF336BG (FEF336BGDD)

POS. NO PART NO DESCRIPTION

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 5303212671 A B Screw,cr pan hd sems ,8-32BP x 1.00

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 1/2

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

3 316067802 A B Trim-oven door,black

4 316089000 A B Glass-oven door,black ,outer

6 316088403 A B Shield-wool

7 316076401 A B Insulation,oven door

8 316088600 A B Glass-oven door,inner

9 316066610 A B Liner-oven door

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

12 5303202011 A B Seal-oven door,non self-clean

39 316091114 A B Handle-door,black ,oven

39* 316008401 A B Washer,3/4 x 1/4 ,steel

52 316081303 A B Shield-oven door,black ,top

03/99 10

Publication number

5995319927 FEF336BGWD, FEF336BGDD

CAUTION: Use the part number on all orders, not the position number.

WIRING DIAGRAM
