FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF305PHDA FEF305PH ALMOND USA

FEF305PHWA FEF305PH WHITE USA

Publication No.

5995323846

990526

-EN/SERVICE /SBR

369

WIRING DIAGRAM # - 316002675

OWNER’S GUIDE # - 316000629

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF305PHDA

FEF305PHWA

07/98 2

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

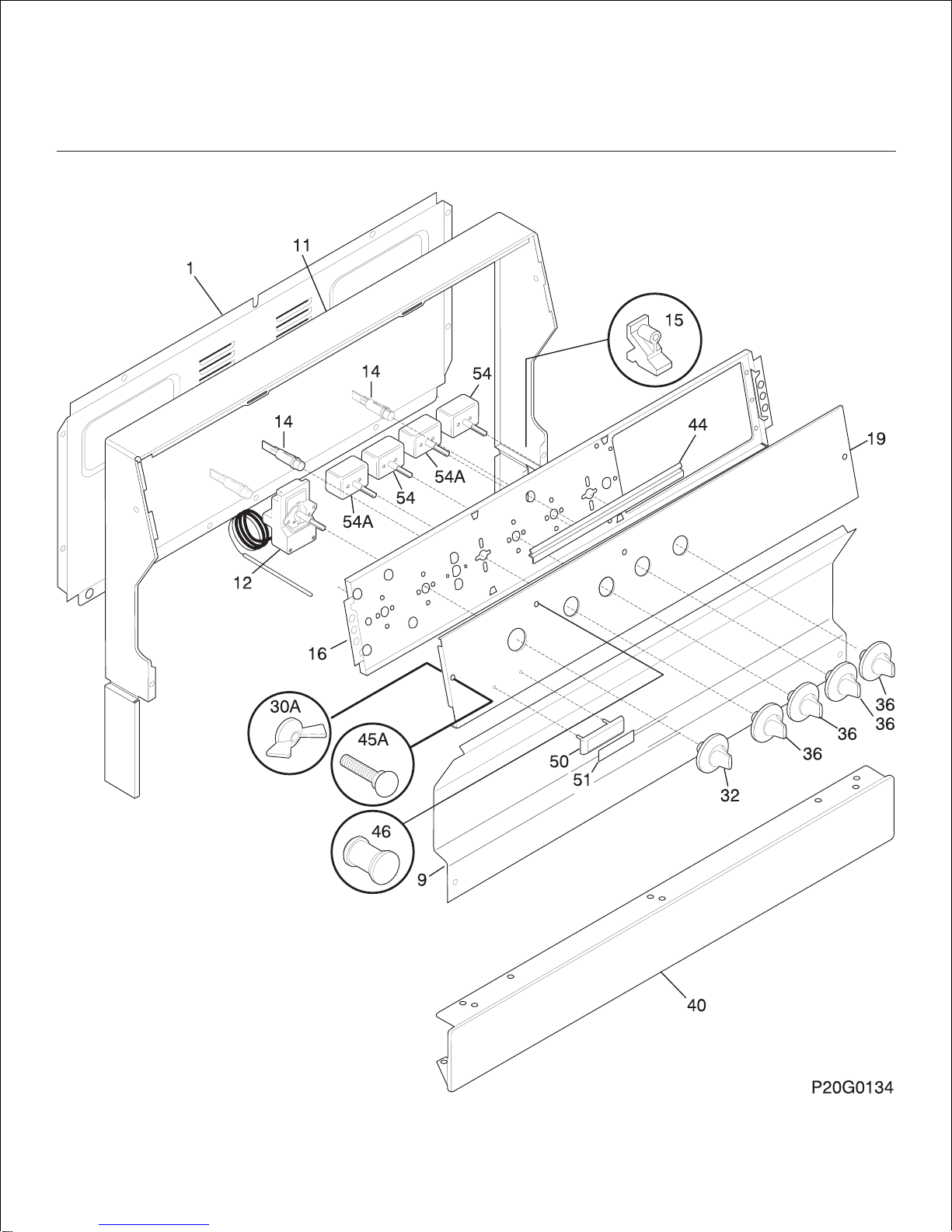

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FEF305PHDA, FEF305PHWA 5995323846

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF305PH (FEF305PHDA)

B = FEF305PH (FEF305PHWA)

POS. NO PART NO DESCRIPTION

* 316002675 A B Diagram-wiring

* 316000629 A B Owner’s Guide

* 316003025 A B Installation Instructions

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316112500 A B Template, Anti-tip bracket

* 5303272555 A B Clip-backguard

1 3131123 A B Shield-backguard,rear wall

9 316043601 - B Trim-splasher,white

9 316043602 A - Trim-splasher,almond

11 316057002 A B Trim-wrapper

12 # 5303212745 A B Thermostat-oven

14 3201726 A B Light/Lamp,indicator ,blue ,250 V

15 5303131237 A B Support-backguard,(2)

16 316042602 A B Plate,instrument mtg

19 316034120 A B Panel-control,metal

30A 316064300 A B Nut,nylon

32 316123301 A B Knob-thermostat

36 316123303 A B Knob-infinite switch, black

40 316064009 A B Panel-manifold,black

44 3131468 A B Bracket,backguard

45A 316056902 A B Bolt-fastener,nylon

46 316065801 A B Lens-light/lamp,indicator ,red

50 316096900 A B Bezel-nameplate,black

51 316095420 A B Nameplate,black

54 # 5303285142 A B Switch-6" element

54A# 5303285143 A B Switch-8" element

07/98 4

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 07/98

Publication number

FEF305PHDA, FEF305PHWA 5995323846

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF305PH (FEF305PHDA)

B = FEF305PH (FEF305PHWA)

POS. NO PART NO DESCRIPTION

* 3051367 A B Clip-wire

* 3203550 A B Plug-button

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 5303051099 A B Nut,hex ,#10-32

* 5303284616 A B Clip-thermo bulb

* 5308014215 A B Screw,8-X 1/2 ,(4)

*# 316001559 A B Harness-main

1 316080804 A B Back-main, short,dipped ,black

3 316081034 - B Panel-bodyside, white ,RH

3 316081035 - B Panel-bodyside, white , LH

3 316081036 A - Panel-bodyside,almond ,RH

3 316081037 A - Panel-bodyside,almond ,LH

4 5303271756 A B Burner Box

5 316107300 A B Screw-leveling

6 316067902 A B Rack-oven

7 316007007 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316081900 A B Pan-broiler

10 316082000 A B Insert-broiler pan

21 3014099 A B Spacer-bodyside, (8)

27 5303284616 A B Clip-thermo bulb

29 3051162 A B Glide-drawer,front

41 3131570 A B Cover-hinge cutout

44 3131903 A B Bumper-door/drawer, rubber

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047707 A B Insulation, 1" ,oven wrapper

58B 316054202 A B Insulation, 1" ,oven back

59 316073601 A B Tube-oven vent

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element, broil

69 3051218 A B Plate-oven light

71 316015805 A B Shield-rear wall

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

170 316107200 A B Anti-tip bracket

170* 316116000 A B Screw-Anti tip, 1.75" concrete

07/98 6

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 07/98

Type your model numbers here

CAUTION: Use the Kenmore part number on all orders, not the position number.

TOP/DRAWER

A = FEF305PH (FEF305PHDA)

B = FEF305PH (FEF305PHWA)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 - B Screw-8-18x1/2 Tr Sqd White

* 316021113 A - Screw-8-18x1/2 Tr Sqd Almond

* 316089600 A B Spacer-drawer,(2)

* 5303280311 A B Screw, waf hd sdr , 10-32 x 5/16 , (2)

* 5308014215 A B Screw,8-X 1/2 ,(4)

* # 316001731 A B Harness-wiring,surface element

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 - B Panel-drawer,white

4 316084406 A - Panel-drawer,almond

4* 08067785 A - Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B Glide-drawer,rear

15 # 3051450 A B Element-surface, 8" , large

15A# 3051449 A B Element-surface,6”, small

16 3013512 A - Main Top,almond

16 5303013511 - B Main Top,white

17 316066900 A B Rod-maintop support

18 08067747 A B Bracket-hinge,main top RH

18A 08067746 A B Bracket-hinge,main top LH

19 # 316048413 A B Pan-surface element,chrome ,

large/8 inch,(2)

19A# 316048414 A B Pan-surface element,chrome ,

small/6 inch,(2)

27 # 5303912666 A B Terminal Block Kit,surface element

28 5303017715 A B Medallion,1 1/2"dia ,black ,

surface element

07/98 8

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 07/98

Publication number

FEF305PHDA, FEF305PHWA 5995323846

CAUTION: Use the part number on all orders, not the position number.

DOOR

A = FEF305PH (FEF305PHDA)

B = FEF305PH (FEF305PHWA)

POS. NO PART NO DESCRIPTION

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316102200 A B Foil-aluminum

* 5303212762 A - Screw,8-18 X 1/2

* 5303271648 A B Screw, wafer hd sq dr , 8-18AB x 1/2

* 316071608 A B Anti-tip label

* 5303280311 A B Screw, waf hd sdr , 10-32 x 5/16 , (2)

9 316066611 A B Liner-oven door

10 5303281378 A B Screw-handle mtg,wafer head ,10-24F x 3

12 5303202011 A B Seal-oven door,non self-clean

13 3202315 - B Panel-oven door,white

13 3202316 A - Panel-oven door,almond

39 316020204 A B Handle-door,black ,oven

39* 316008401 A B Washer,3/4 x 1/4 ,steel

49 3016755 A B End Cap,black ,(2)

07/98 10

Publication number

5995323846 FEF305PHDA, FEF305PHWA

CAUTION: Use the part number on all orders, not the position number.

WIRING DIAGRAM
