Frigidaire FEF329D Manuale utente

Product No. FEF329DQA FEF329DSA

Series 30" f/s elec 30" f/s elec

Color bisque white

Market North America North America

Wiring Diagram 316255302 316255302

Owner's Guide 316257128 316257128

Installation Instructions 316259206 316259206

Service Data Sheet 316218512 316218512

FEF366D.eps T20G0026.eps T20V0078.eps L20T0003.eps L20D0028.eps

316255302d.eps 316255302s.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995426391

05/01/12

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEF329D

Publication No: 5995426391 FEF329D

01/05 2

BACKGUARD

FEF329D Publication No: 5995426391

# Functional Parts 3 01/05

* Non-Illustrated Parts

BACKGUARD

Model Index: AFEF329D (FEF329DQA)

BFEF329D (FEF329DSA)

POS. NO PART NO. DESCRIPTION

1 316416100 A B Shield, backguard, rear wall

14 316022500 A B Light/Lamp, indicator, 125 V

15 316411407 A - Support, backguard, bisque, RH

15 316411403 - B Support, backguard, white, RH

15A 316411406 A - Support, backguard, bisque, LH

15A 316411402 - B Support, backguard, white, LH

19 316424196 A - Panel, control, bisque

19 316424195 - B Panel, control, white

20 # 316222807 A B Clock/Timer, electronic, ES100

20A 316220702 A - Overlay, clock, bisque

20A 316220700 - B Overlay, clock, white

24 316246002 A - Switch, rocker, bisque, oven light

24 316246000 - B Switch, rocker, white, oven light

31 316223003 A - Knob, control, bisque

31 316223000 - B Knob, control, white

46 316040201 A B Lens, indicator light, red

54 # 316021500 A B Switch, infinite, small element

54A# 316021501 A B Switch, infinite, large element

56 316234014 A - Shield, backguard, bisque, inner

56 316234012 - B Shield, backguard, white, inner

69 5303288565 A B Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

Publication No: 5995426391 FEF329D

01/05 4

BODY

68 68

NOTE: Oven Liner N/A

Ass. du four N/A

58A 58B

41A

T20V0078

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

170

FEF329D Publication No: 5995426391

# Functional Parts 5 01/05

* Non-Illustrated Parts

BODY

Model Index: AFEF329D (FEF329DQA)

BFEF329D (FEF329DSA)

POS. NO PART NO. DESCRIPTION

1 316201300 A B Back, main

3 316400106 A - Panel, bodyside, bisque, RH

3 316400107 A - Panel, bodyside, bisque, LH

3 316400102 - B Panel, bodyside, white, RH

3 316400103 - B Panel, bodyside, white, LH

4 316201401 A B Burner Box

5 316272900 A B Screw, leveling, plastic, rear, (2)

5A 316407200 A B Leveling Leg Assy, metal, front, (2), bracket & leg

6 316067902 A B Rack, oven

7 316216510 A B Hinge, oven door, RH

7A 316216511 A B Hinge, oven door, LH

8 3203540 A B Panel, oven bottom

14 316116400 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, oven light

21 316408000 A B Clip, bodyside

26 316206300 A B Support, chassis, (2)

29 3051162 A B Glide, drawer, front

37 # 316233900 A B Probe, oven temp

41 316233400 A B Cover, hinge cutout, RH

41A 316233500 A B Cover, hinge cutout, LH

42 316206200 A B Shield, wool, lower

57 316422400 A B Cover, access

58 3200847 A B Insulation, oven bottom

58A 316047707 A B Insulation, 1", oven wrapper

58B 316054202 A B Insulation, 1", oven back

59 316073605 A B Tube, oven vent

60 316239100 A B Cover, oven front

62 5303935238 A B Terminal Block Kit, w/ground plate

62* 316205500 A B Nut, hex flange, 3/8 10-32

63 316278800 A B Plate, grounding strap

66 # 316203200 A B Element, broil

67 316075103 A B Element, bake

68 316203400 A B Support, broil element

71 316422300 A B Shield, rear wall

71* 316248900 A B Spacer, shield, rear wall

87 316081200 A B Bracket, cable mtg

170 5303935180 A B Anti-tip Kit, w/bracket, screw

170* 316107200 A B Bracket, anti-tip

170* 316112500 A B Template, anti-tip

170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt

* # 316253146 A B Wiring Harness, main

* 3203550 A B Plug, button, oven bottom

* 316427400 A B Plate, weight, (4)

* 5304414035 A - Paint, touch-up, bisque

* 5303305324 - B Paint, touch-up, white

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

* 316089500 A B Screw, 10-16 x .486

* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black

* 5308014215 A B Screw, 6-20 x 0.312

Publication No: 5995426391 FEF329D

01/05 6

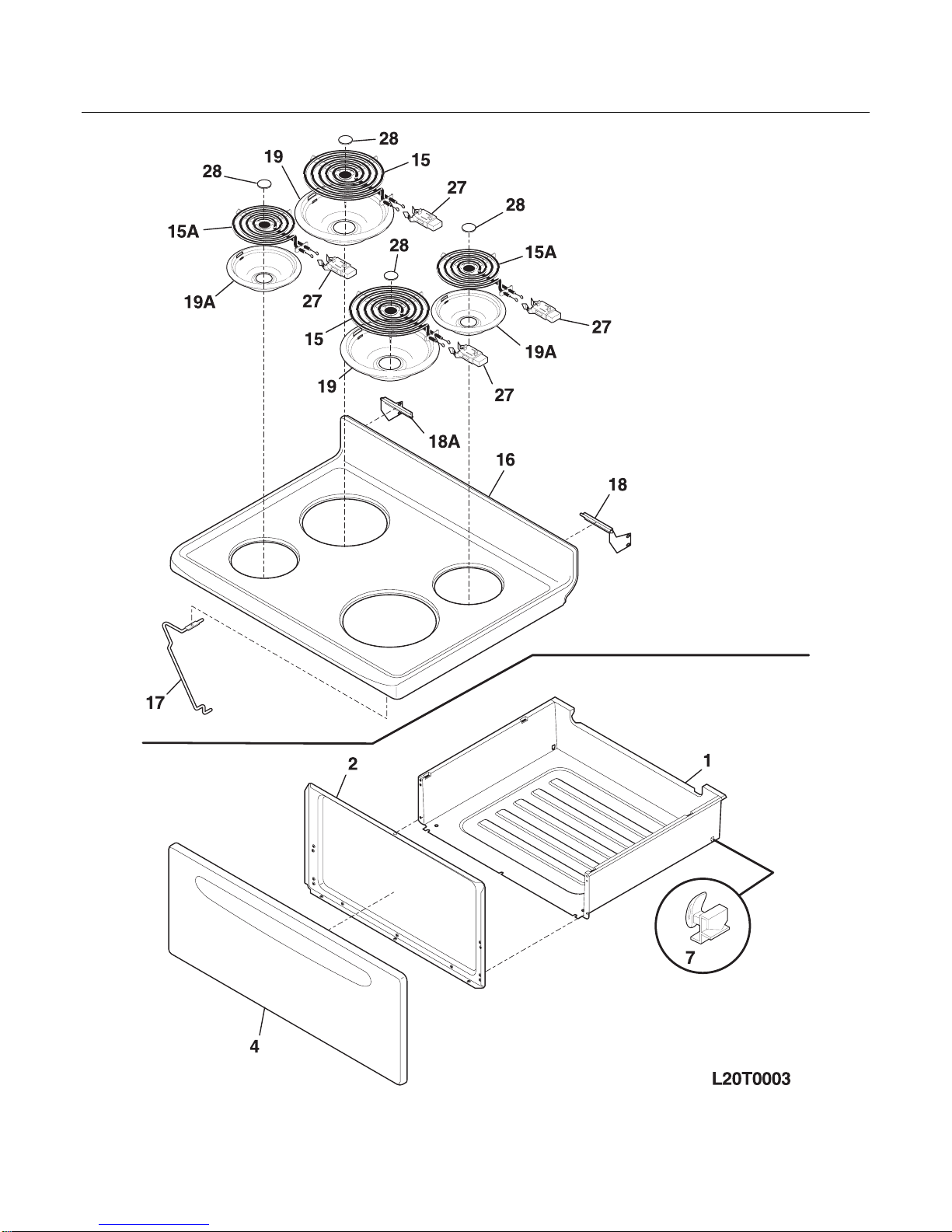

TOP/DRAWER

FEF329D Publication No: 5995426391

# Functional Parts 7 01/05

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFEF329D (FEF329DQA)

BFEF329D (FEF329DSA)

POS. NO PART NO. DESCRIPTION

1 316011503 A B Drawer

2 316231500 A B Liner, drawer

4 316231309 A - Panel, drawer, bisque

4 316231305 - B Panel, drawer, white

7 3051163 A B Glide, drawer, rear

15 # 5303012223 A B Element, surface, 8", large

15A# 08067762 A B Element, surface, 6", small

16 316202309 A - Main Top, bisque

16 316202307 - B Main Top, white

17 316057601 A B Rod, support, main top

18 316235900 A B Hinge, main top, RH

18A 316235901 A B Hinge, main top, LH

19 # 316048419 A - Pan, surface element, beige, lg/8 inch, (2), w/clip

19 # 316048417 - B Pan, surface element, gray, lg/8 inch, (2), w/clip

19A# 316048420 A - Pan, surface element, beige, sml/6 inch, (2), w/clip

19A# 316048418 - B Pan, surface element, gray, sml/6 inch, (2), w/clip

27 # 5303912666 A B Terminal Block Kit, surface element

28 3017801 A B Medallion, stainless steel, surf elem

28 5303017715 A B Medallion, 1 1/2"dia, black, surface element

* # 316253501 A B Wiring Harness, surface element

* 316058600 A B Clip, surface element, chrome, (4)

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

* 5303280311 A B Screw, wafer hd sq dr, 10-32 x 0.312

* 5308014215 A B Screw, 6-20 x 0.312

Publication No: 5995426391 FEF329D

01/05 8

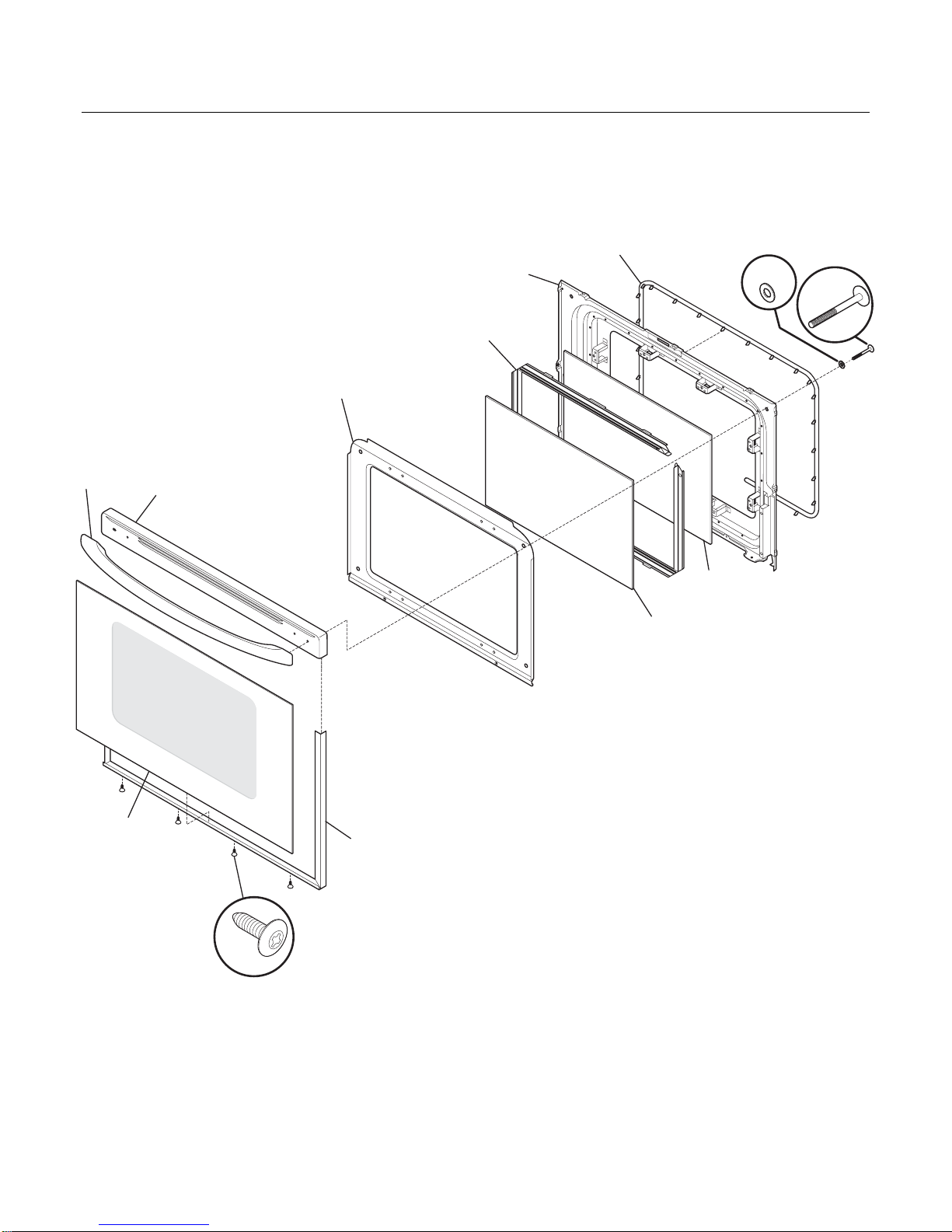

DOOR

60B

10B

L20D0028

FEF329D Publication No: 5995426391

# Functional Parts 9 01/05

* Non-Illustrated Parts

DOOR

Model Index: AFEF329D (FEF329DQA)

BFEF329D (FEF329DSA)

POS. NO PART NO. DESCRIPTION

3 5303935193 A - Trim kit-door, 3 sided, bisque, w/tape and foil

3 5303935192 - B Trim kit-door, 3 sided, white, w/tape and foil

4 316202819 A - Glass, oven door, bisque, outer

4 316202818 - B Glass, oven door, white, outer

6 316222711 A B Shield, wool, black, oven door

8 316237100 A B Glass, oven door, clear, heat barrier

9 316230617 A B Liner, oven door

10 316278700 A B Screw, wafer head, 10-14 x 1 3/8, handle mtg

10B 316008401 A B Washer, 3/4 OD x 1/4 ID, steel

12 316239700 A B Seal, oven door

17 316117701 A B Spacer, door glass, (2)

39 316270202 A - Handle, door, bisque

39 316270201 - B Handle, door, white

52 316201009 A - Cap, door trim, bisque

52 316201003 - B Cap, door trim, white

60B 316021110 A B Screw, 8-18 x 0.5, black

* 316433600 A B Label, anti-tip

* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303280311 A B Screw, wafer hd sq dr, 10-32 x 0.312

* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995426391 FEF329D

01/05 10

WIRING SCHEMATIC
