Frigidaire FEF316WG Manuale utente

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF316WGSB FEF316WG WHITE USA

FEF316WGSC FEF316WG WHITE USA

FEF316WGSD FEF316WG WHITE USA

FEF316WGTB FEF316WG ALMOND USA

FEF316WGTC FEF316WG ALMOND USA

FEF316WGTD FEF316WG ALMOND USA

Publication No.

5995321675

992304

-EN/SERVICE /SBR

369

WIRING DIAGRAM # - 316002012, 316002675

OWNER’S GUIDE # - 316000629

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF316WG

04/99 2

Publication number

5995321675 FEF316WG

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publiction number

FEF316WG 5995321675

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF316WG (FEF316WGSB)

B = FEF316WG (FEF316WGSC)

C = FEF316WG (FEF316WGSD)

D = FEF316WG (FEF316WGTB)

E = FEF316WG (FEF316WGTC)

F = FEF316WG (FEF316WGTD)

POS. NO PART NO DESCRIPTION

* 316001558 - B C - E F Harness

* 316002675 - B C - E F Diagram-Wiring

* 316021105 A B C D E F Screw,hex ,8-18 x 0.375 ,back\bodyside

* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black

* 316112500 A B C D E F Template, Anti-tip bracket

* 5303272555 A B C D E F Clip-backguard

1 3131123 A B C D E F Shield-backguard,rear wall

9 316043601 A B C - - - Trim-splasher,white

9 316043602 ---DEF Trim-splasher,almond

11 316083716 A B C - - - Trim-wrapper,white

11 316083717 ---DEF Trim-wrapper,almond

12 # 5303212745 A B C D E F Thermostat-oven

14 3201726 A B C D E F Light/Lamp,indicator ,blue ,250 V

15 5303131237 A B C D E F Support-backguard,(2)

16 316042602 A B C D E F Plate,instrument mtg

19 316034128 A B C - - - Panel-control,white

19 316034129 ---DEF Panel-control,metal ,PAINT ,almond

24 # 316005608 ---DEF Switch-rocker,oven light ,almond

24# 316005607 A B C - - - Switch-rocker,oven light ,white

30A 316064300 A B C D E F Nut,nylon

32 316016819 A B ---- Knob-thermostat

32 316016838 ---DE- Knob-thermostat,almond

32 316123300 - - C - - - Knob-thermostat,white

32 316123302 -----F Knob-thermostat,almond

36 316016919 A B ---- Knob-control,infinite sw

36 316016935 ---DE- Knob-control,almond

36 316123304 - - C - - - Knob-infinite switch, white

36 316123305 -----F Knob-infinite switch, almond

40 316064015 ---DEF Panel-manifold,almond

40 316064030 A B C - - - Panel-manifold,white

44 3131468 A B C D E F Bracket,backguard

45A 316056903 A B C - - - Bolt-fastener,nylon ,white

45A 316056904 ---DEF Bolt-fastener,nylon ,almond ,(2)

46 316065801 A B C D E F Lens-light/lamp,indicator ,red

54 # 5303285142 A B C D E F Switch-6" element

54A# 5303285143 A B C D E F Switch-8" element

04/99 4

Publiction number

5995321675 FEF316WG

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 04/99

Publiction number

FEF316WG 5995321675

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF316WG (FEF316WGSB)

B = FEF316WG (FEF316WGSC)

C = FEF316WG (FEF316WGSD)

D = FEF316WG (FEF316WGTB)

E = FEF316WG (FEF316WGTC)

F = FEF316WG (FEF316WGTD)

POS. NO PART NO DESCRIPTION

* 3051367 A B C D E F Clip-wire

* 3203550 A B C D E F Plug-button

* 316021105 A B C D E F Screw,hex ,8-18 x 0.375 ,back\bodyside

* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 5303051099 A B C D E F Nut,hex ,#10-32

1 316080804 A B C D E F Back-main, short,dipped ,black

3 316081034 A B C - - - Panel-bodyside, white ,RH

3 316081035 A B C - - - Panel-bodyside, white , LH

3 316081036 ---DEF Panel-bodyside,almond ,RH

3 316081037 ---DEF Panel-bodyside,almond ,LH

4 5303271756 A B C D E F Burner Box

5 316107300 A B C D E F Screw-leveling

6 316067902 A B C D E F Rack-oven

7 316007003 A B C D E F Hinge-oven door,assembly

8 3203540 A B C D E F Panel-oven bottom

9 316073800 A B C D E F Pan-broiler

10 3205234 A B C D E F Insert-broiler pan

14 316116400 A B C D E F Socket-light

15 5303013071 A B C D E F Light Bulb/Lamp

21 3014099 A B C D E F Spacer-bodyside, (8)

27 5303284616 A B C D E F Clip-thermo bulb

29 3051162 A B C D E F Glide-drawer,front

41 3131570 A B C D E F Cover-hinge cutout

44 3131903 A B C D E F Bumper-door/drawer, rubber

57 316081101 A B C D E F Cover-access

58 3200847 A B C D E F Insulation,oven bottom

59 316073601 A B C D E F Tube-oven vent

62 # 5303935061 A B C D E F Terminal Block

63 5301145190 A B C D E F Plate-ground strap

66 # 5303051140 A B C D E F Element-broil

67 # 316075102 A B C D E F Element-bake,lower oven

68 316075300 A B C D E F Support-element, broil

71 316015805 A B C D E F Shield-rear wall

82 5303289913 A B C D E F Shield-insulation

87 316081200 A B C D E F Bracket-cable mtg

170 316107200 A B C D E F Anti-tip bracket

170* 316116000 A B C D E F Screw-Anti tip, 1.75" concrete

04/99 6

Publiction number

5995321675 FEF316WG

CAUTION: Use the part number on all orders, not the position number.

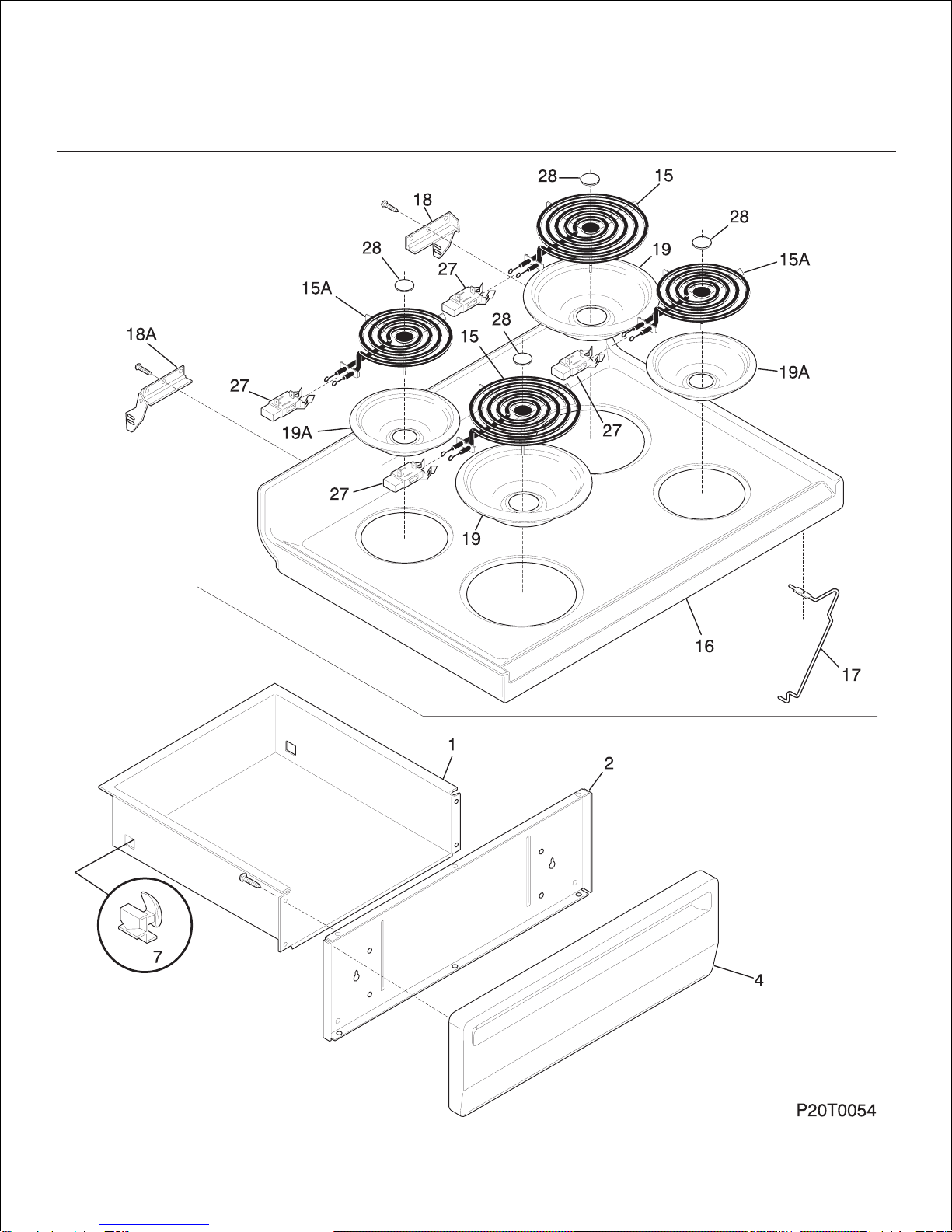

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 04/99

Publiction number

FEF316WG 5995321675

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FEF316WG (FEF316WGSB)

B = FEF316WG (FEF316WGSC)

C = FEF316WG (FEF316WGSD)

D = FEF316WG (FEF316WGTB)

E = FEF316WG (FEF316WGTC)

F = FEF316WG (FEF316WGTD)

POS. NO PART NO DESCRIPTION

* 316021105 A B C D E F Screw,hex ,8-18 x 0.375 ,back\bodyside

* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black

* 316021112 A B C - - - Screw-8-18x1/2 Tr Sqd White

* 316021113 ---DEF Screw-8-18x1/2 Tr Sqd Almond

* 316089600 A B C D E F Spacer-drawer,(2)

* 5303280311 A B C D E F Screw, waf hd sdr , 10-32 x 5/16 , (2)

* 5308014215 A B C D E F Screw,#6-20 x 5/16 ,(4)

* # 316001731 A B C D E F Harness-wiring,surface element

1 316011501 A B C D E F Drawer-utility

2 3131975 A B C D E F Shield-panel

4 316084405 A B C - - - Panel-drawer,white

4 316084406 ---DEF Panel-drawer,almond

4* 08067785 ---DEF Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B C D E F Glide-drawer,rear

15 # 3051450 - - C - - F Element-surface, 8" , large

15 # 5303015715 A B - D E - Element-surface,large/8 inch

15A# 3051449 - - C - - F Element-surface, small

15A# 5303015716 A B - D E - Element-surface,small/6 inch

16 3013512 ---DEF Main Top,almond

16 5303013511 A B C - - - Main Top,white

17 316066900 A B C D E F Rod-maintop support

18 08067747 A B C D E F Bracket-hinge,main top RH

18A 08067746 A B C D E F Bracket-hinge,main top LH

19 # 316048413 A B C D E F Pan-surface element,chrome ,

large/8 inch,(2)

19A# 316048414 A B C D E F Pan-surface element,chrome ,

small/6 inch,(2)

27 # 5303912666 A B C D E F Terminal Block Kit,surface element

28 3017801 A B - D E - Medallion,stainless steel ,surf elem

28 5303017715 - - C - - F Medallion,1 1/2"dia ,black ,

surface element

44 3131903 A B C D E F Bumper-door/drawer, rubber

04/99 8

Publiction number

5995321675 FEF316WG

CAUTION: Use the part number on all orders, not the position number.

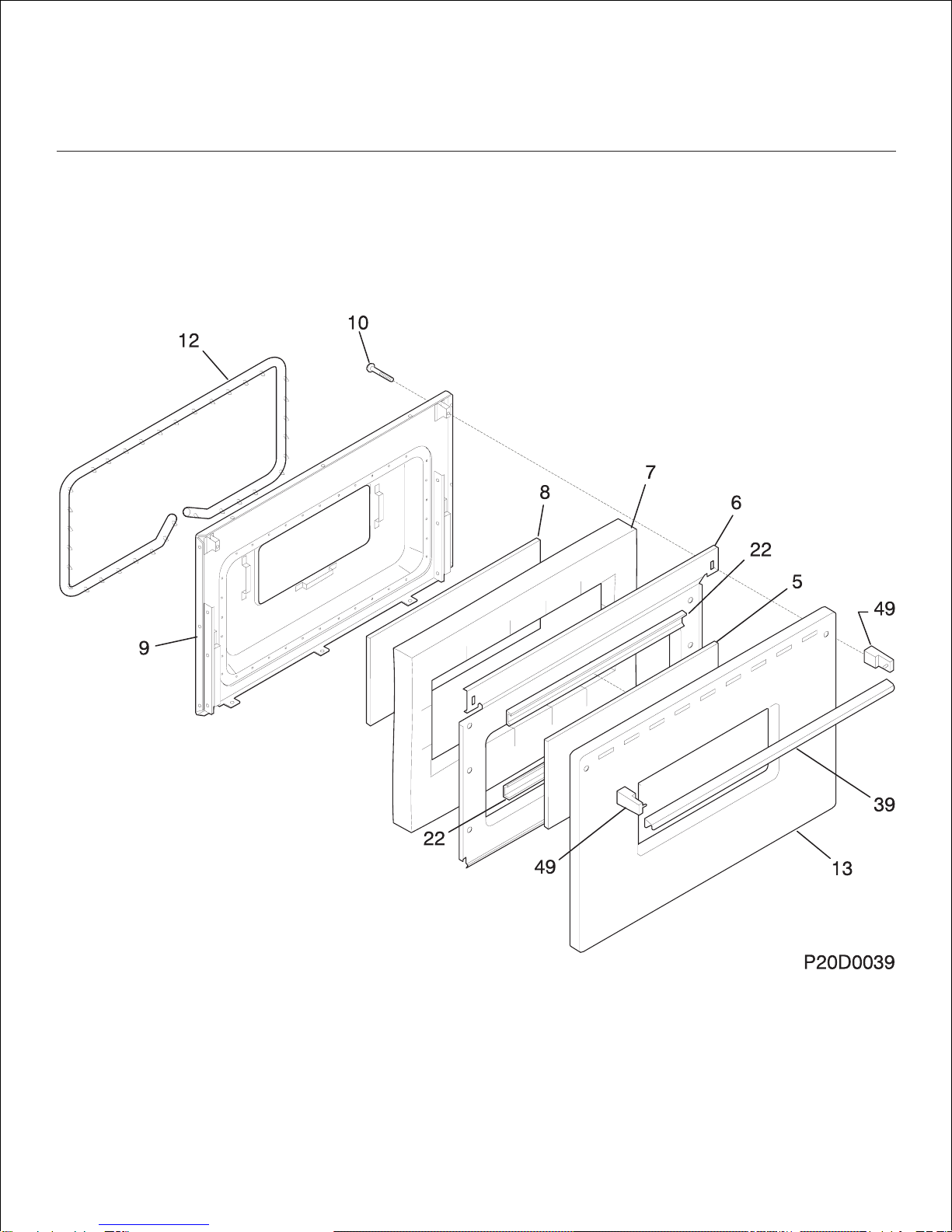

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 04/99

Publiction number

FEF316WG 5995321675

CAUTION: Use the part number on all orders, not the position number.

DOOR

A = FEF316WG (FEF316WGSB)

B = FEF316WG (FEF316WGSC)

C = FEF316WG (FEF316WGSD)

D = FEF316WG (FEF316WGTB)

E = FEF316WG (FEF316WGTC)

F = FEF316WG (FEF316WGTD)

POS. NO PART NO DESCRIPTION

* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black

* 5303212762 ---DEF Screw,8-18 X 1/2

* 5303271648 A B C D E F Screw, wafer hd sq dr , 8-18AB x 1/2

* 5303280311 A B C D E F Screw, waf hd sdr , 10-32 x 5/16 , (2)

5 316050300 A B C - - - Glass-oven door, white , outer

5 316050301 ---DEF Glass-oven door,almond ,outer

6 316088403 A B C D E F Shield-wool

7 316076401 A B C D E F Insulation,oven door

8 316088600 A B C D E F Glass-oven door,inner

9 316066610 A B C D E F Liner-oven door

10 5303281378 A B C D E F Screw-handle mtg,wafer head ,10-24F x 3

12 5303202011 A B C D E F Seal-oven door,non self-clean

13 3017081 A B C - - - Panel-oven door,white

13 3017096 ---DEF Panel-oven door,almond

22 5303272476 A B C D E F Retainer-glass,(2) ,angle

39 316020202 A B C - - - Handle-door, white , oven

39 316020205 ---DEF Handle-door, almond , oven

39* 316008401 A B C D E F Washer,3/4 x 1/4 ,steel

49 316020101 A B C - - - End Cap-handle, white , (2)

49 316020103 ---DEF EndCap-handle, almond , (2)

04/99 10

Publiction number

5995321675 FEF316WGSB,FEF316WGTB

CAUTION: Use the part number on all orders, not the position number.

WIRING DIAGRAM
