Frigidaire FEF336BG Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF336BGDA FEF322BG almond USA

FEF336BGWA FEF322BG white USA

Publication No.

5995306312

980430

-EN/SERVICE /VLM

369

ELECTRIC - RANGE

Model No.

FEF336BG

FACTORY PARTS CATALOG

ELECTRIC RANGE

WIRING DIAGRAM # - 316002660

OWNER’S GUIDE # - 316000273

INSTALLATION INSTRUCTIONS # - 316003018

104 Warren Road

Augusta, Georgia 30907-3755

BACKGUARD

Publication No. FEF336BGWA

599530631 FEF336BGDA

05/98 2

A = FEF336BG (FEF336BGWA)

B = FEF336BG (FEF336BGDA)

POS. NO PART NO DESCRIPTION

1 316081601 A B Shield-backguard,rear wall

2 316015905 A B Shield-backguard,inner

11 316083719 A B Trim-wrapper,textured ,black

12 # 316032400 A B Thermostat-oven,non sc

13 # 316032500 A B Switch-selector

14 316022503 A B Light/Lamp,indicator ,yellow ,250 V

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100529 A B Panel-backguard,black

20 # 316097901 A B Clock/Timer,electronic

20* 316098000 A B Overlay-clock,black

23 316033204 A B Bracket-timer

24 # 316005602 A B Switch-rocker,oven light ,black

31 316054904 A B Knob-selector,(3) pos

32 316054900 A B Knob-thermostat

36 316025108 A B Knob-control,black

40 316025800 A B Panel-manifold

46 316040201 A B Lens-light/lamp,indicator ,red ,(2)

54 # 316021500 A B Switch-6" element,(2)

54A# 316021501 A B Switch-8" element,(2)

69 5303292005 A B Screw-switch mtg,8-32 x 5/32

* 316003018 A B Instructions,installation

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

BACKGUARD

FEF336BGWA Publication No.

FEF336BGDA 599530631

# = Functional Part 3 04/98

* = Non-Illustrated Part

BODY

Publication No. FEF336BGWA

599530631 FEF336BGDA

05/98 4

A = FEF336BG (FEF336BGWA)

B = FEF336BG (FEF336BGDA)

POS. NO PART NO DESCRIPTION

1 316080801 A B Back-main

3 316081028 A - Panel-bodyside,white ,RH

3 316081030 - B Panel-bodyside,almond ,RH

3* 316081029 A - Panel-bodyside,white ,LH

3* 316081031 - B Panel-bodyside,almond ,LH

5 5303203397 A B Screw-leveling

5* 3934058 A B Anti-tip Kit

5* 316078600 A B Screw,anti-tip ,(4)

5* 5303288460 A B Nut,T-type ,leveling screw

6 316067902 A B Rack-oven

7 316007001 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

14 3014073 A B Socket-light/lamp,oven

15 5303013071 A B Light Bulb/Lamp

21 3014099 A B Spacer-bodyside,(8)

27 5303284616 A B Clip-thermo bulb

29 3051162 A B Glide-drawer,front

30 5303283574 A B Bracket-hinge,main top RH

30A 5303283575 A B Bracket-hinge,main top LH

41 3131570 A B Cover-hinge cutout

45 316066100 A B Shield-wire, s/t vent

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047707 A B Insulation,oven wrapper

58B 316054202 A B Insulation,oven back

59 316073603 A B Tube-oven vent

59* 316040100 A B Bracket-mounting,vent tube

59A 316023601 A B Tube-oven vent,upper

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

63 5303212739 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element

71 316015805 A B Shield-rear wall

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

* 3203550 A B Plug-button

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316045000 A B Clip-wire,harness ,main top

* 5303051099 A B Nut,hex ,#10-32

BODY

FEF336BGWA Publication No.

FEF336BGDA 599530631

# = Functional Part 5 04/98

* = Non-Illustrated Part

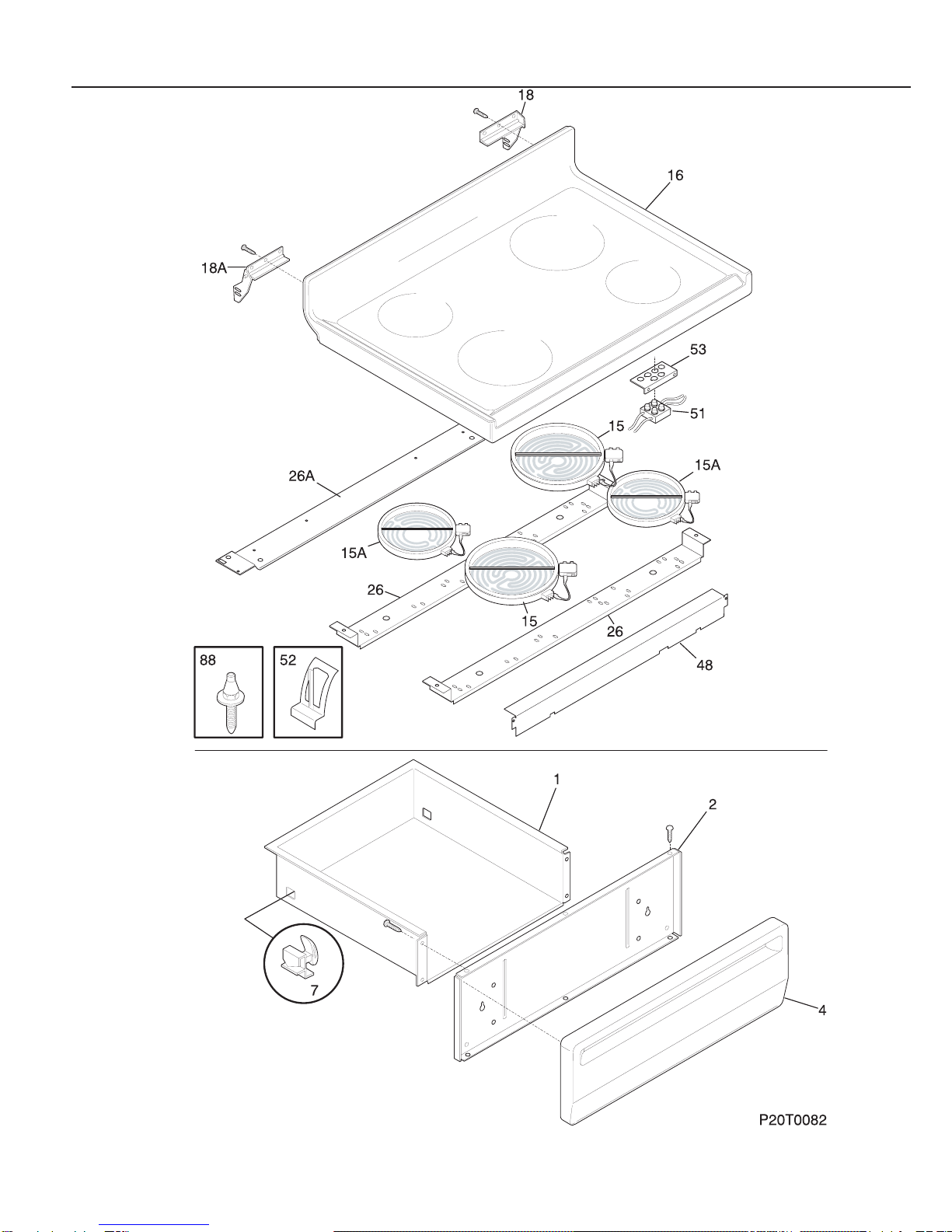

TOP/DRAWER

Publication No. FEF336BGWA

599530631 FEF336BGDA

05/98 6

A = FEF336BG (FEF336BGWA)

B = FEF336BG (FEF336BGDA)

POS. NO PART NO DESCRIPTION

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A - Panel-drawer,white

4 316084406 - B Panel-drawer,almond

4* 316021112 A - Screw-drawer pnl

4* 316021113 - B Screw-drawer pnl

7 3051163 A B Glide-drawer,rear

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

15A# 316010203 A B Element-surface,radiant ,small/6 inch ,

1200W,(2) ,limit sw incl

15 # 316010204 A B Element-surface,radiant ,

large/8 inch/RF,2100W ,(2) ,

limit sw incl

16 316098103 A - Main Top,white

16 316098104 - B Main Top,smooth top ,almond

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

26 316099101 A B Channel-support,element ,(2)

26A 316099201 A B Bracket-support,chassis

48 316100200 A B Shield-wire,main top

51 316105100 - B Light-indicator,hot surface ,assy ,(1)

52 316099400 A B Clip-spring, element mtg,(8)

53 316099300 A B Bracket-indicator light,hot surface ,

4hole

60 316089500 A B Screw,10-16 x .486 ,safety valve ,

handle,(4)

88 316099500 A B Pin-guide,(2)

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316045000 A B Clip-wire,harness ,main top

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5309951550 A B Cleaner-cooktop

TOP/DRAWER

FEF336BGWA Publication No.

FEF336BGDA 599530631

# = Functional Part 7 04/98

* = Non-Illustrated Part

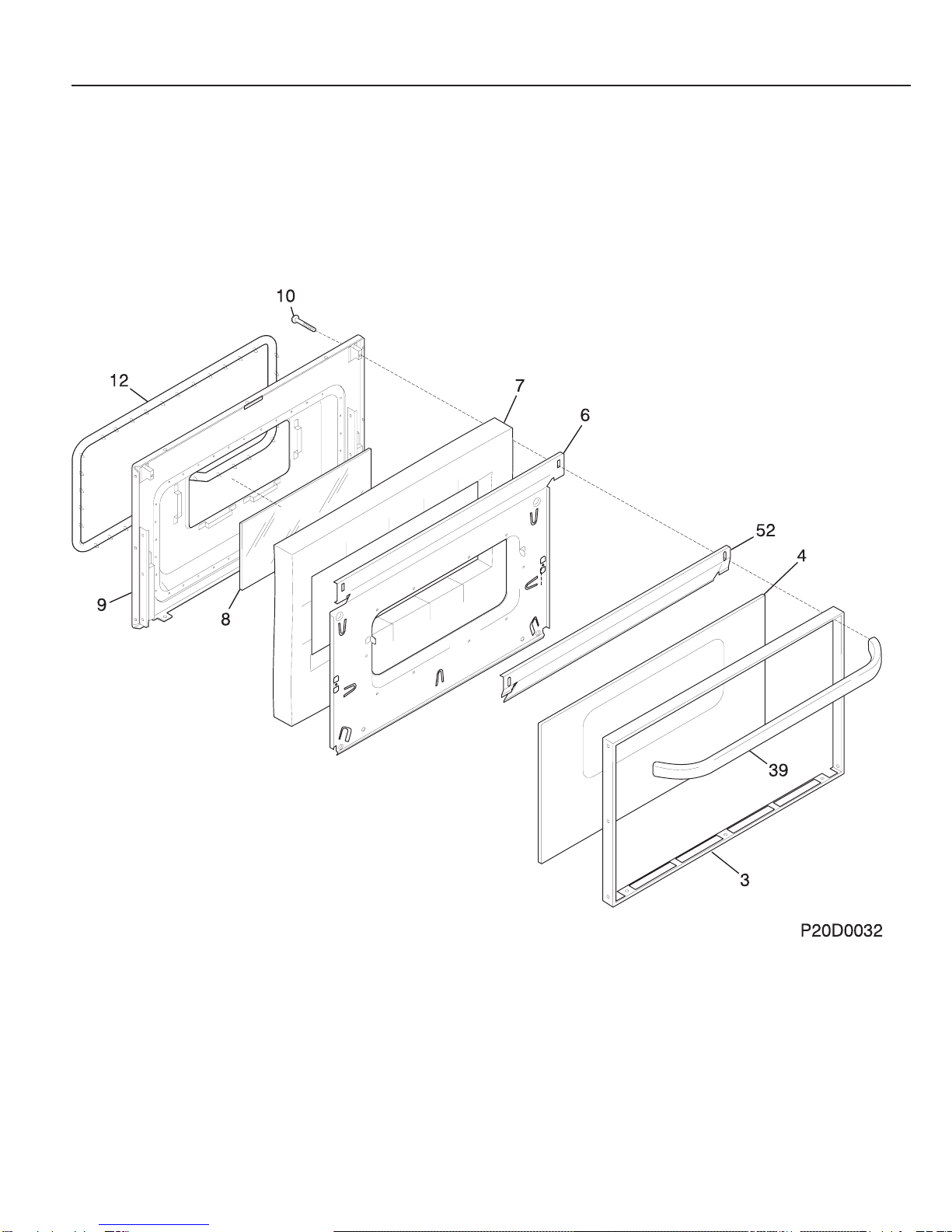

DOOR

Publication No. FEF336BGWA

599530631 FEF336BGDA

05/98 8

A = FEF336BG (FEF336BGWA)

B = FEF336BG (FEF336BGDA)

POS. NO PART NO DESCRIPTION

3 316067802 A B Trim-oven door,black

4 316089000 A B Glass-oven door,black ,outer

6 316088403 A B Shield-wool

7 316076401 A B Insulation,oven door

8 316088600 A B Glass-oven door,airwash

9 316066610 A B Liner-oven door

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

12 5303202011 A B Seal-oven door,non self-clean

39 316091114 A B Handle-door,black ,oven

39* 316008401 A B Washer,3/4 x 1/4 ,steel ,(2)

52 316081303 A B Shield-oven door,black ,top

* 5303212671 A B Screw,cr pan hd sems ,8-32BP x 1.00

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 1/2

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5303285179 A B Screw-oven door,wafer head ,8-32T x 1/2

DOOR

FEF336BGWA Publication No.

FEF336BGDA 599530631

# = Functional Part 9 04/98

* = Non-Illustrated Part

WIRING DIAGRAM

Publication No. FEF336BGWA

599530631 FEF336BGDA

05/98 10
